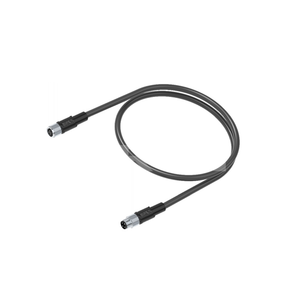

X236 M8 IO Precast Connection Cable Socket Type

X236 M8 IO Precast Connection Cable Socket Type manufacturer

Waterproof X236 M8 IO Precast Connection Cable Socket Type

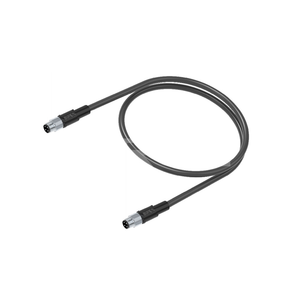

SiRON X236 M8 IO Precast Connection Pin Type Cable

Name: SiRON X236 M8 IO Precast Connection Pin Type Cable
Brand: SiRON
Rating: 5.0 (35 reviews)

Features
● Low loss, anti-interference, excellent conductivity.
● Wear-resistant, stretch-resistant and durable.
● Stable transmission and long service life.
● Please according to PLC and Terminal Block specifications,select the suitable cable.
● Please don’t arbitrarily changed cable internal product.

Quantity:
Availability:





Inquire Add to Basket

Model:
X236
Brand:
SiRON

Connection Cable Pin Type High-Performance X236 M8 IO Precast Connection Cable Socket Type Straight pin type Cable Waterproof X236 M8 IO Precast Connection Cable Socket Type Elbow needle type Cable 3PIN M8 l/O Connection wire

Product Description

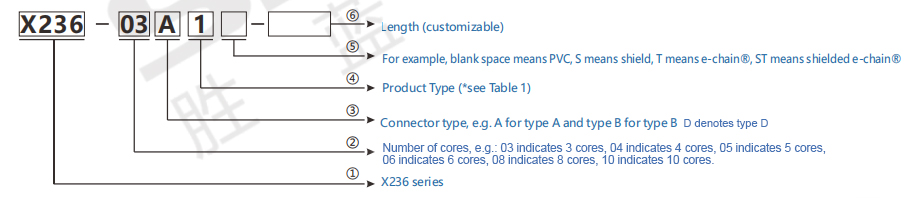

Example

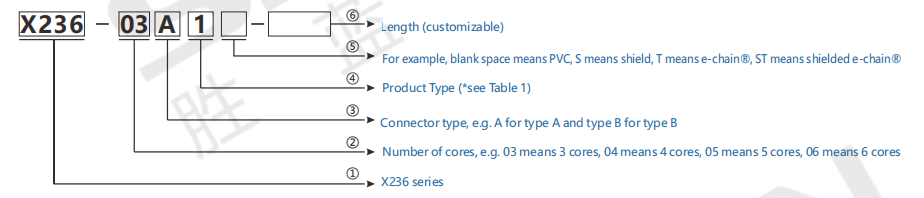

Selection example: X236-03A1 means X236 series, the number of cores is 3, the connector type is type A, the product type is straight pin type, straight pin type, PVC unshielded.

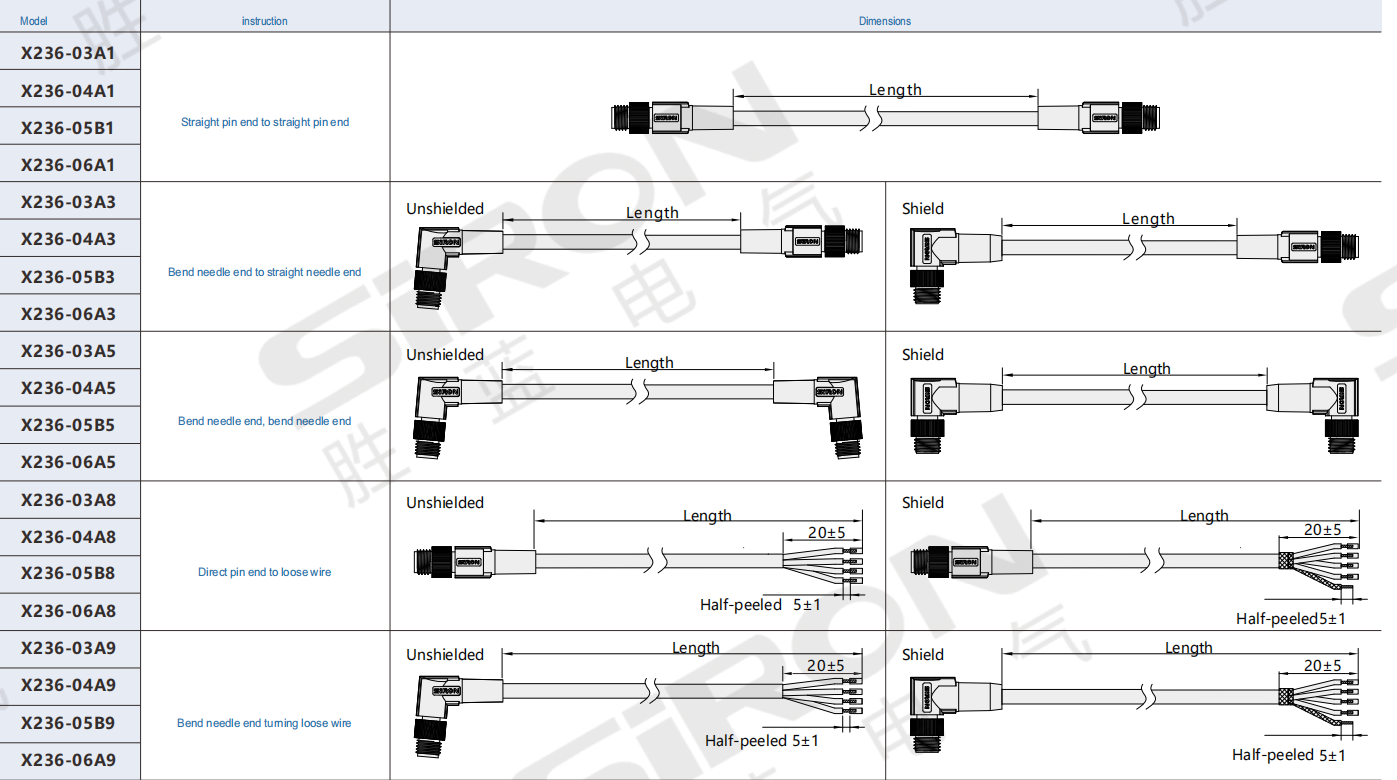

Table 1:Product Type

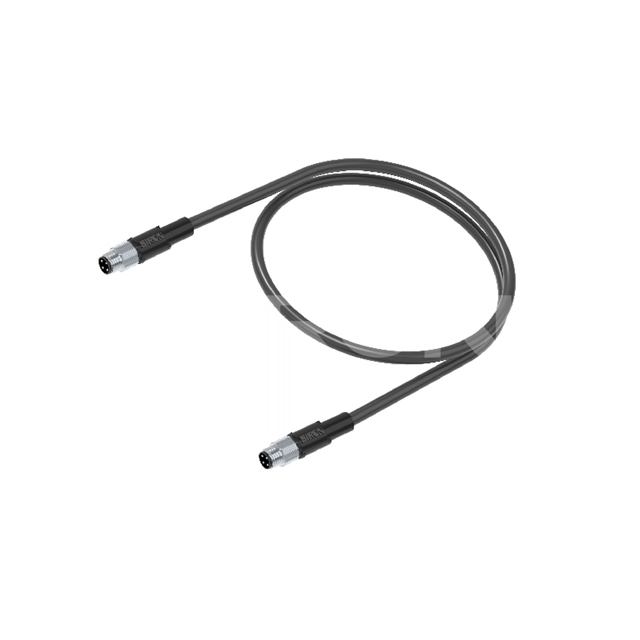

1	Straight pin type,straight pin type

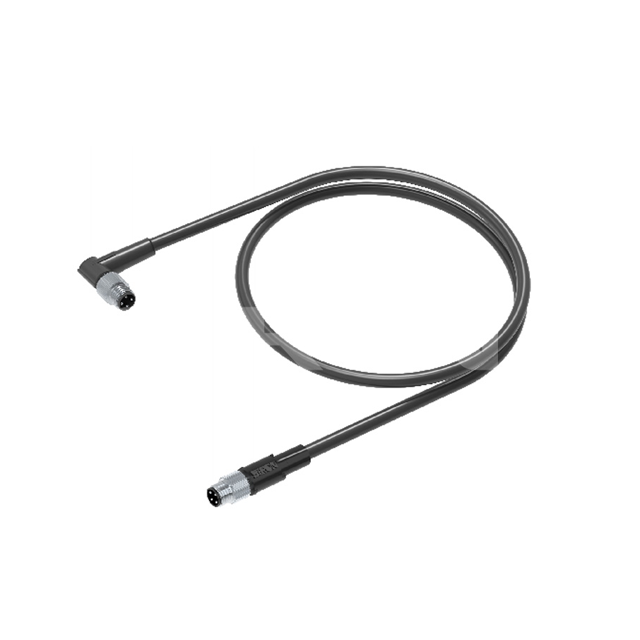

3	Straight pin type,bent pin type

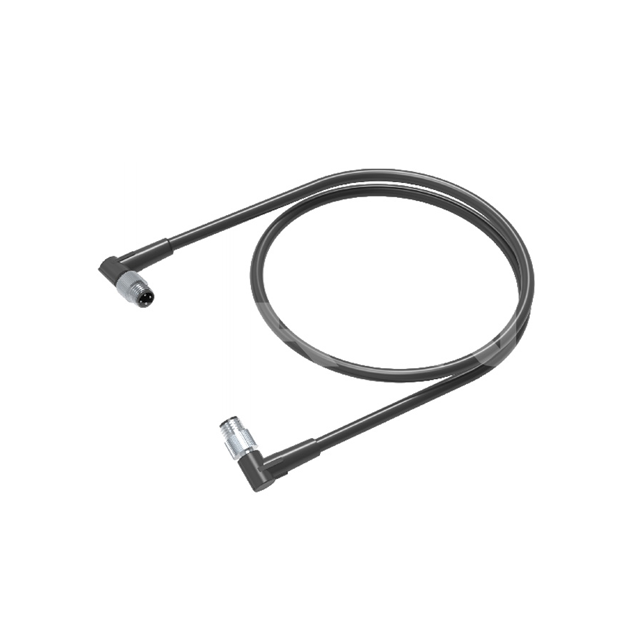

5	Elbow needle type
8	Straight pin type,one end leads out
9	Bend needle type,one end leads out

Cable specification

Name	M8 I/O Connection line
Number of cores	3 core	4 core	5 core	6 core
Model	ModelX236-03A1	X236-04A1	X236-05B1	X236-06A1
	X236-03A3	X236-04A3	X236-05B3	X236-06A3
	X236-03A5	X236-04A5	X236-05B5	X236-06A5
	X236-03A8	X236-04A8	X236-05B8	X236-06A8
	X236-03A9	X236-04A9	X236-05B9	X236-06A9
Wire outer diameter	4.5mm	4.8mm	5.0mm	5.4mm
Cable specifications	3C*0.25mm²	4C*0.25mm²	5C*0.25mm²	6C*0.25mm²
Operating Voltage	Maximum 60V
Protection level	IP67
Cable jacket	PVC PUR
