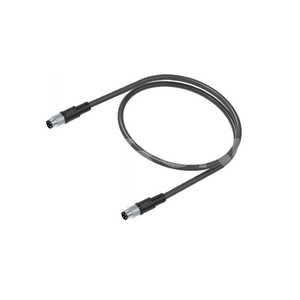

X236
SiRON
8536901100

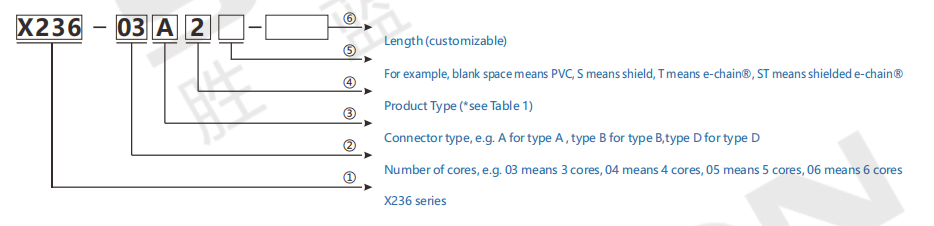

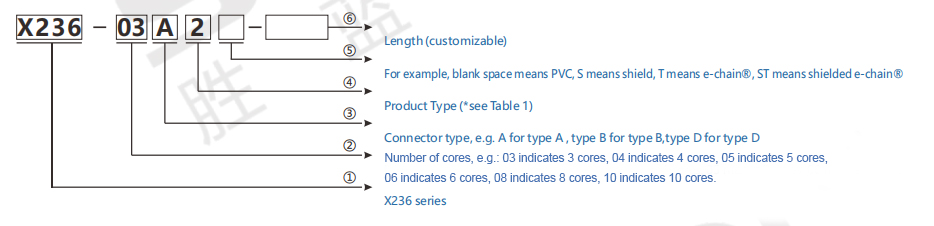

Example
Selection example: X236-03A2 means X236 series, the number of cores is 3, the connector type is type A, the product type is straight pin type, straight head hole type, PVC unshielded.
X236-04D1S stands for X236 series, the number of pins is 4, the connector type is D, the product type is straight pin type, straight pin type, PVC shielded.
Table 1:Product Type
| 1 | Straight pin type,straight pin type |
| 2 | Straight head needle straight head hole |

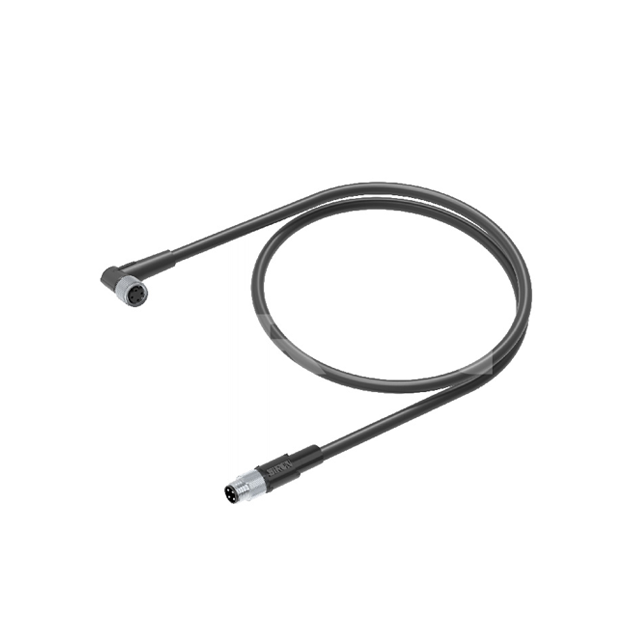

| 4 | Straight needle type,elbow hole type |

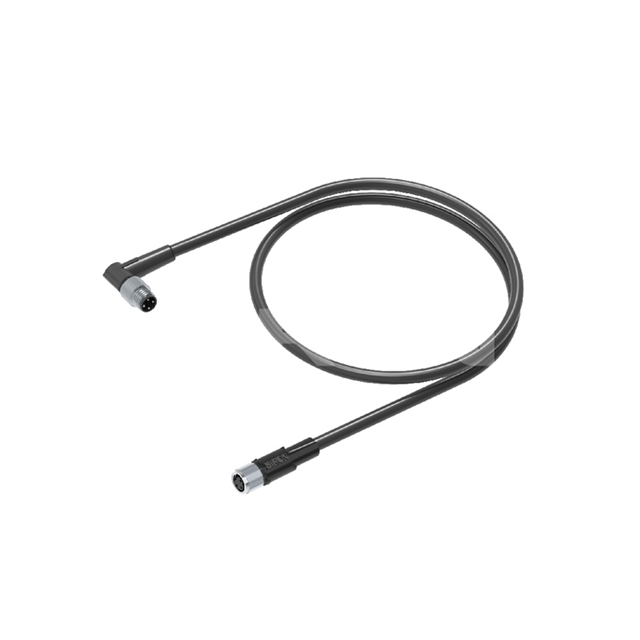

| 6 | Elbow pin,straight hole |
| 7 | Elbow pin,elbow hole |
| 8 | Straight pin type one end leads out |
| A | Straight head hole straight head hole |
| D | Straight hole type one end leads out |
Cable specification

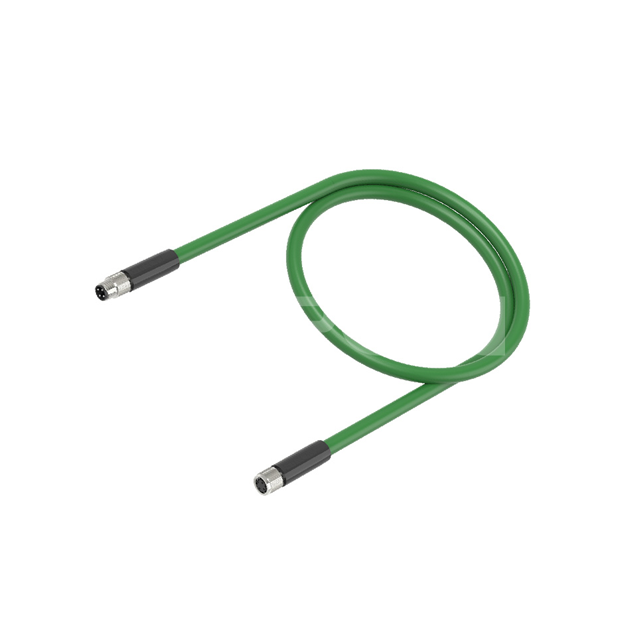

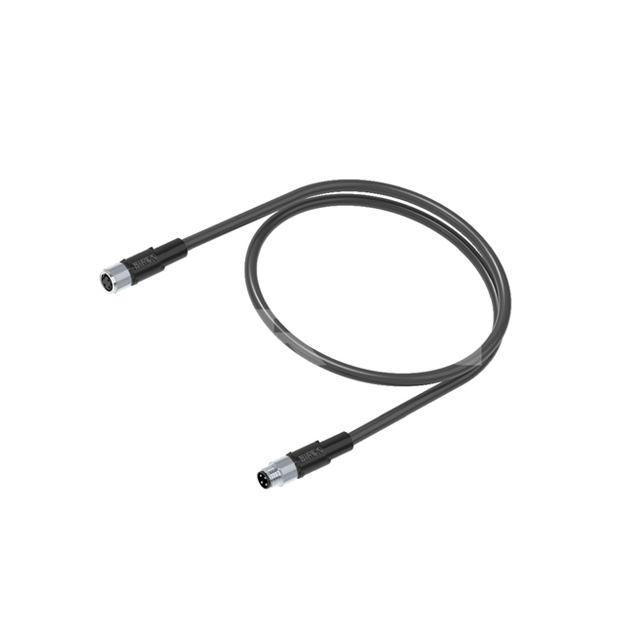

Name | M8 I/O Connection line | ||||
Number of cores | 3 core | 4 core | 4 core | 6 core | 7 core |
| Type | A type | A type | A type | A type | A type |
Model | X236-03A2 | X236-04A2 | X236-04D2S | X236-05B2 | X236-06A2 |
X236-03A6 | X236-04A6 | X236-04D1S | X236-05B6 | X236-06A6 | |
X236-03A4 | X236-04A4 | X236-04D8S | X236-05B4 | X236-06A4 | |
X236-03A7 | X236-04A7 | X236-04DAS | X236-05B7 | X236-06A7 | |
| / | / | X236-04DDS | / | / | |
Wire outer diameter | 4.5mm | 4.8mm | 5.5mm | 5.0mm | 5.4mm |
Cable specifications | 3C*0.25mm² | 4C*0.25mm² | 4C*0.34mm² | 5C*0.25mm² | 6C*0.25mm² |
Operating Voltage | Maximum 60V | ||||
Protection level | IP67 | ||||
| Cable jacket | PVC PUR | ||||

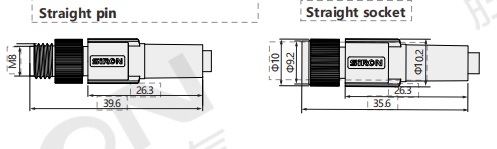

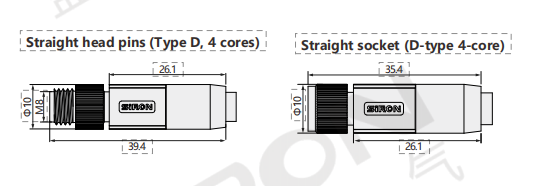

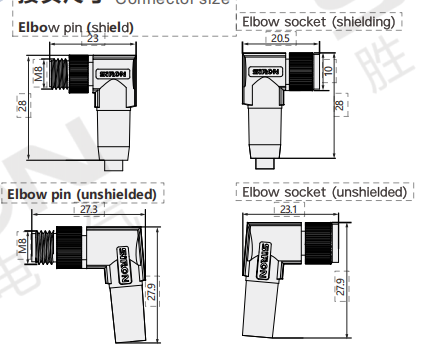

Connector size
|
|

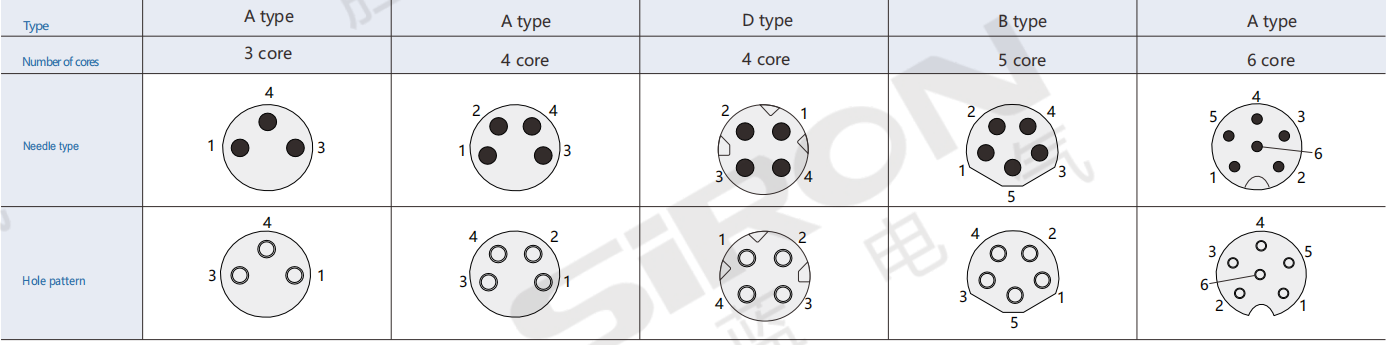

View from front

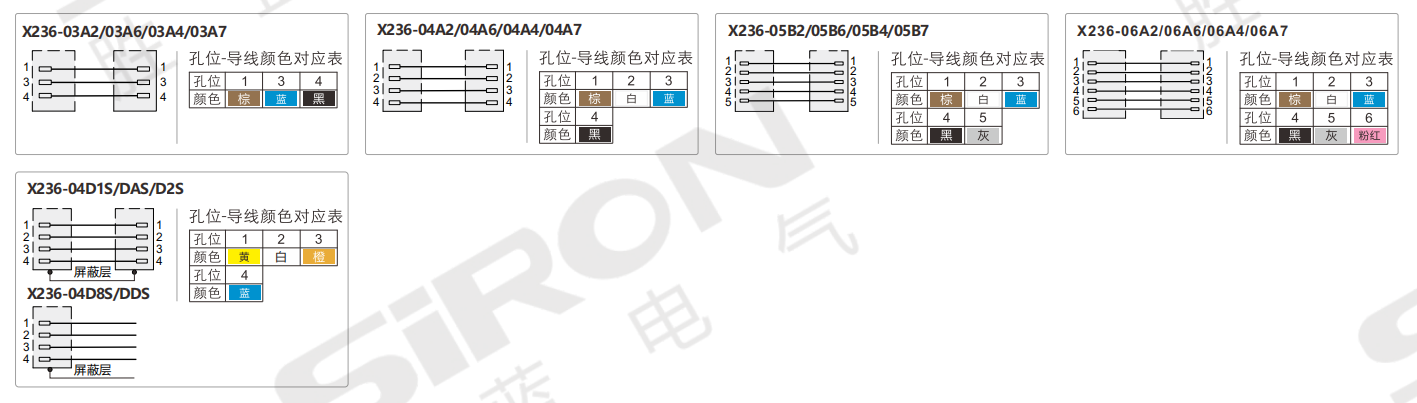

Wiring Diagram
Outline
