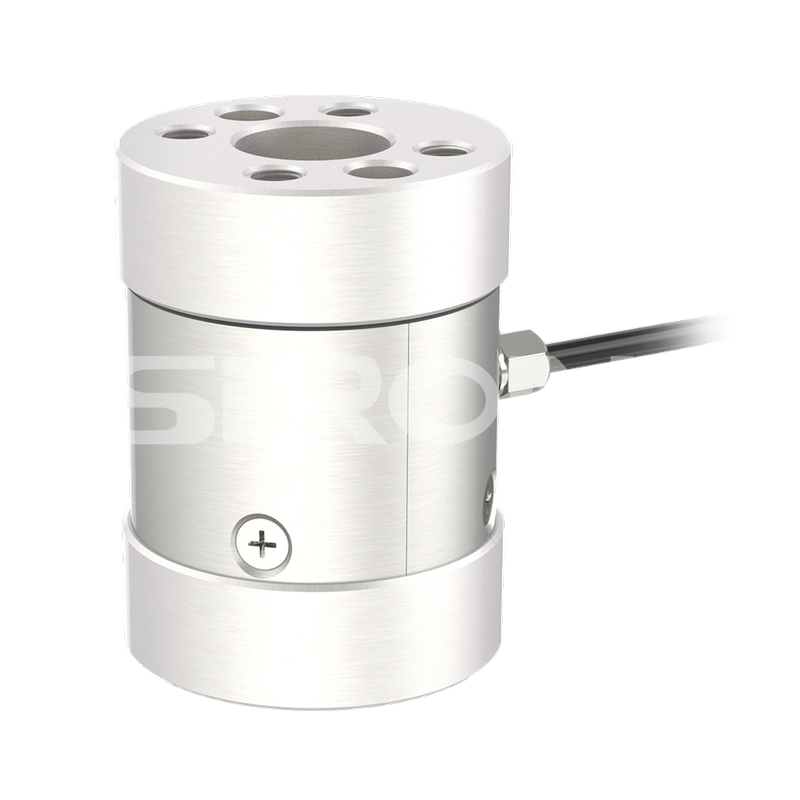

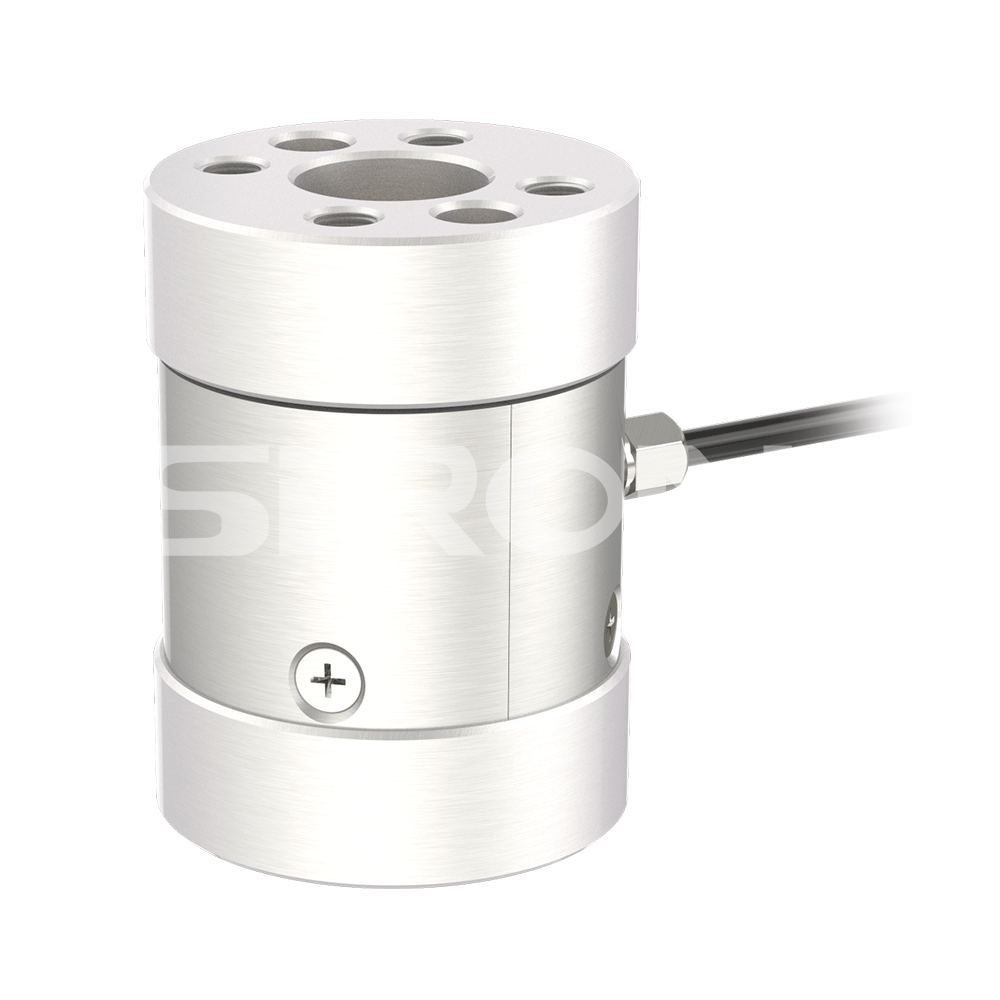

SiRON K103-1 Series Static Torque Sensor High Precision

Name: SiRON K103-1 Series Static Torque Sensor High Precision
Brand: SiRON
Rating: 5.0 (71 reviews)

Features:

* Stainless steel/aluminum alloy structure, high precision, good stability;

* It is mainly used for torque measurement of static and non-continuous rotation;
* Widely used in static torque testing instruments, torque wrenches and other torque testing equipment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K103-1 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Static torque sensor high precision easy installation testing static torque

Product Description

About selection

Selection example: K13-1-1 indicates the K103 series, serial number 1, Rated range 1N.m

Rated range

Code	1	2	3	5	6	10	20	30	50
Rated range	1N.m	2N.m	3N.m	5N.m	6N.m	10N.m	20N.m	30N.m	50N.m
Code	100	150
Rated range	100N.m	150N.m

Specifications

Name	Static torque sensor
Model	K103-1-1	K103-1-2	K103-1-3	K103-1-5	K103-1-6	K103-1-10
Capacity	1N.m	2N.m	3N.m	5N.m	6N.m	10N.m
Model	K103-1-20	K103-1-30	K103-1-50	K103-1-100	K103-1-150	/
Capacity	20N.m	30N.m	50N.m	100N.m	150N.m	/
Sensitivity	1.5±10%mV/V
Zero balance	±0.02mV/V
Creep (30min)	≤0.1%F.S.
Non-linearity	≤0.1%F.S.
Hysteresis	≤0.1%F.S.
Repeatability	≤0.05%F.S.
Input/Output impedance	input resistance：350±5Ω;output resistance：350±5Ω
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5～15V
Maximum excitation	20V
Compensated Temp Range	-10~60℃
Operating Temp Range	-20~80℃
Safe/Ultimate overload	Safe overload: 120%F.S. Ultimate overload: 150%F.S.
Cable size	Φ3x3000mm
Weight	0.5/0.2kg
Material	Stainless steel/aluminum alloy
