SiRON K109-A4 Series Four Channel Transmitter

Name: SiRON K109-A4 Series Four Channel Transmitter
Brand: SiRON
Rating: 5.0 (60 reviews)

Features:

* Highcost-effectiveness,multipledigitalfilters;
* ChoosebetweenRS232orRS485communicationmethods;
* Cancalibrateandmodifyparametersthroughhandheldterminals;

* 4independentchannels;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K109-A4 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Four channel transmitter High cost-effectiveness multiple digital filters RS232 RS485 DC 10-30V

Product Description

About selection

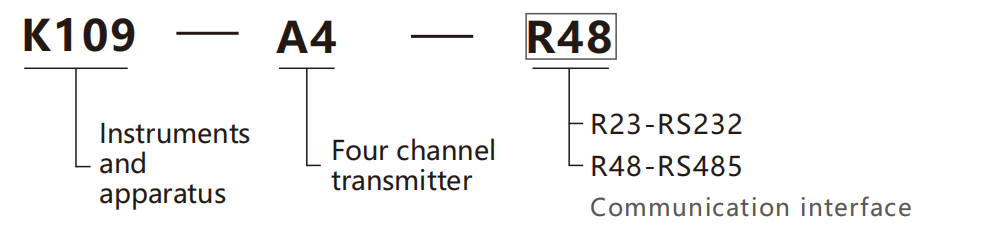

Example selection: K109-A4-R48 indicates the K109 series of instruments and meters, A4 four-channel transmitter, RS485 communication interface.

Specifications

Name	Four channel transmitter
Model	K109-A4-R48	K109-A4-R23
Serial communication	RS485(Free Protocol, Modbus RTU and ASCII Protocol)	S485(Free Protocol, Modbus RTU and ASCII Protocol)
Output specifications	0.4~6mV/N
Display accuracy	1/10000
Sensor excitation voltage	5VDC±2%,100mA
Power supply	DC:10V~30V
Operation temp range	-30~60℃
A/D performance	24-bit, Delta-Sigma method
Output rate	10, 40, 640, 1280 times per second
Withstand voltage	At 2000V AC50/60Hz for 1 minute
Surrounding environment	Humidity: 35-85%RH, storage: 35-85%RH; Temperature: -10 to 55℃, storage: -25 to 65℃;
