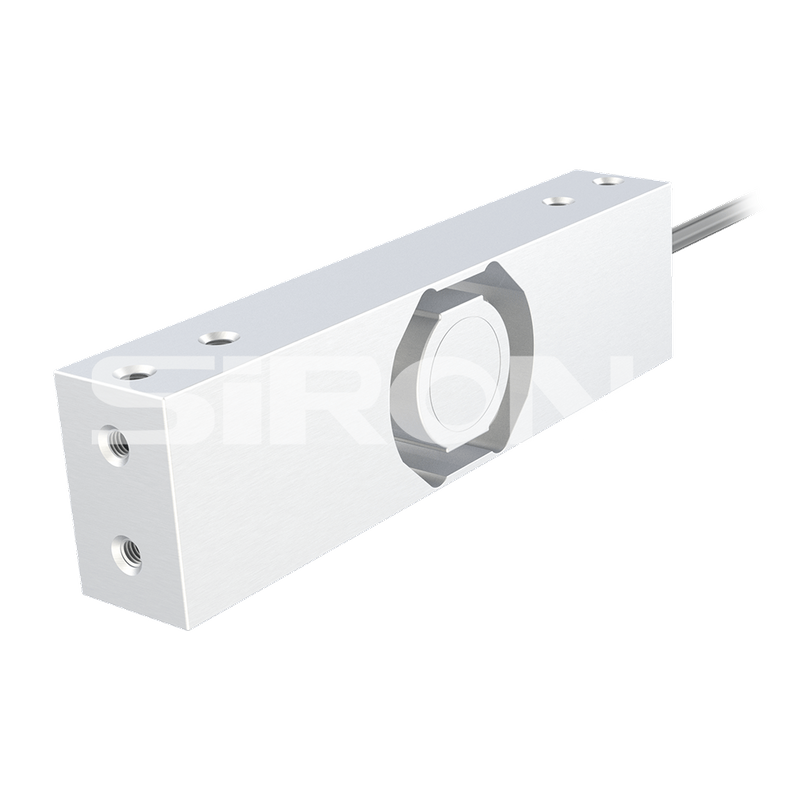

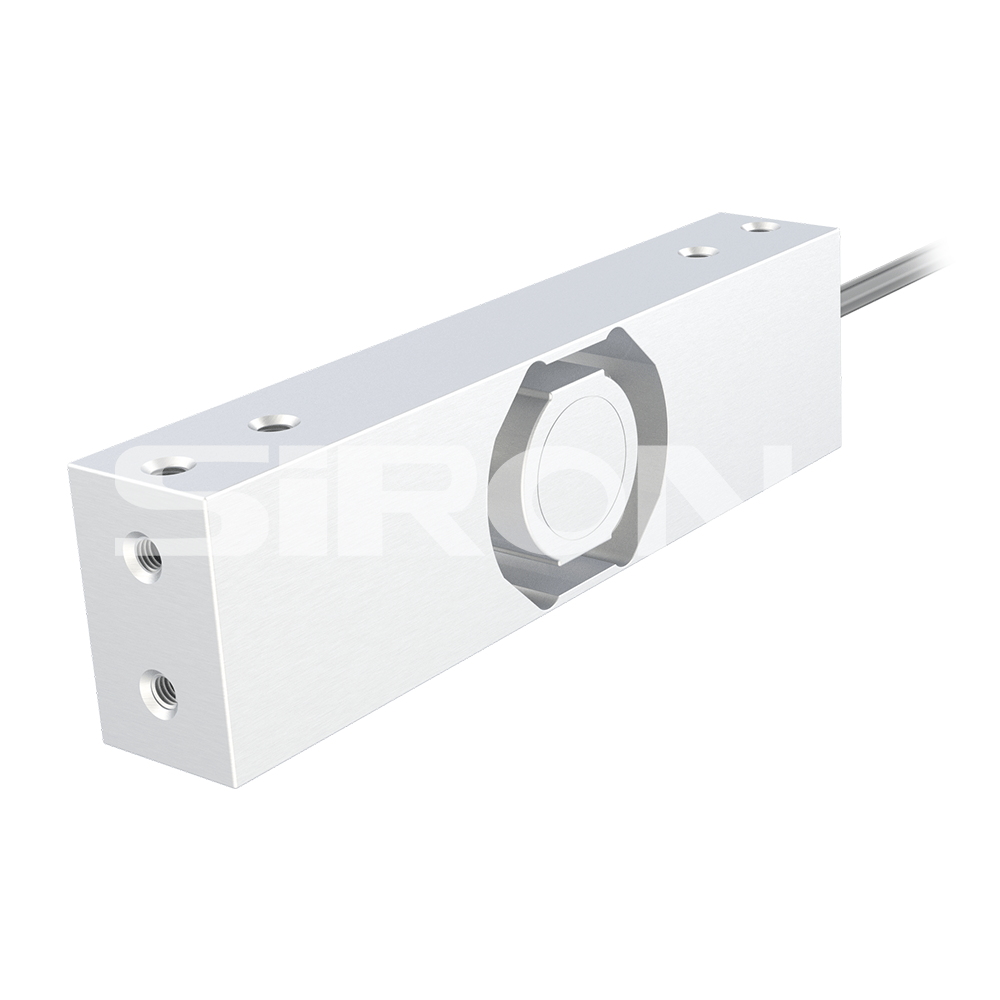

SiRON K102-6 Series Load Cell/Weighing Sensor

Name: SiRON K102-6 Series Load Cell/Weighing Sensor
Brand: SiRON
Rating: 5.0 (28 reviews)

Features:

* High precision, strong anti-biased load ability;
* Used in table scales, ingredients weighing, packaging weighing, electronic balance, industrial measurement, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K102-6 series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Load Cell/Weighing Sensor high precision Small size Strong anti-bias-load capacity customizable

Product Description

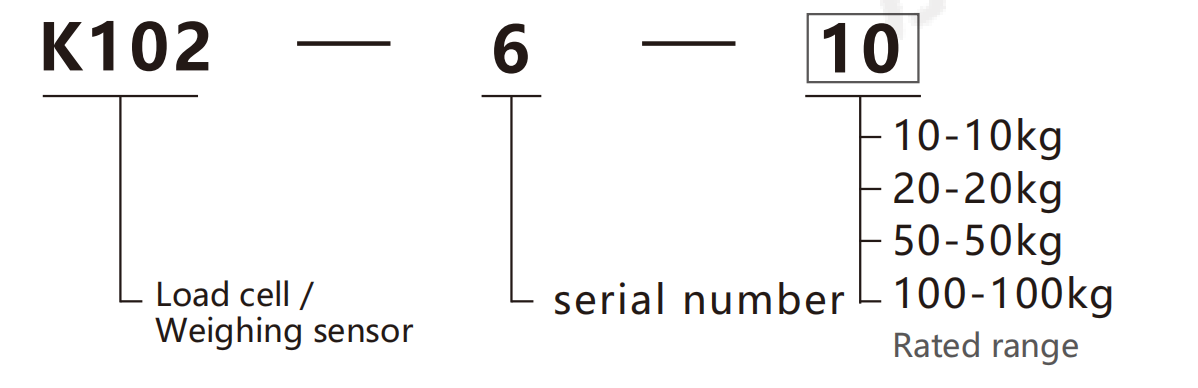

About selection

Selection example: K102-6-10 indicates the K102 series, serial number 6, rated range 10kg.

Specifications

Name	Load cell/weighing sensor
Model	K102-6-10	K102-6-20	K102-6-50	K102-6-100
Capacity	10kg	20kg	50kg	100kg
Sensitivity	2.0±10%mV/V
Zero balance	±0.05mV/V
Creep(30min)	≤0.0166%F.S.
Non-linearity	≤0.0166%F.S.
Hysteresis	≤0.0166%F.S.
Repeatability	≤0.018%F.S.
Input/Output impedance	Input resistance：390±5Ω; Output resistance：350±50
Temp.ef fect on output	0.0175%F.S./10℃
Temp.ef fect on zero	0.0125%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5V
Maximum excitation	12V
Safe/Ultimate overload	Safe Overload：150%F . S . ;Ultimate Overload：200%F . S .
Compensated Temp Range	-10～40℃
Operating Temp Range	-10～50℃
Cable size	φ5.4×3000mm
Weight	0.5kg
Material	Stainless steel
Maximum pan size	500×400mm
