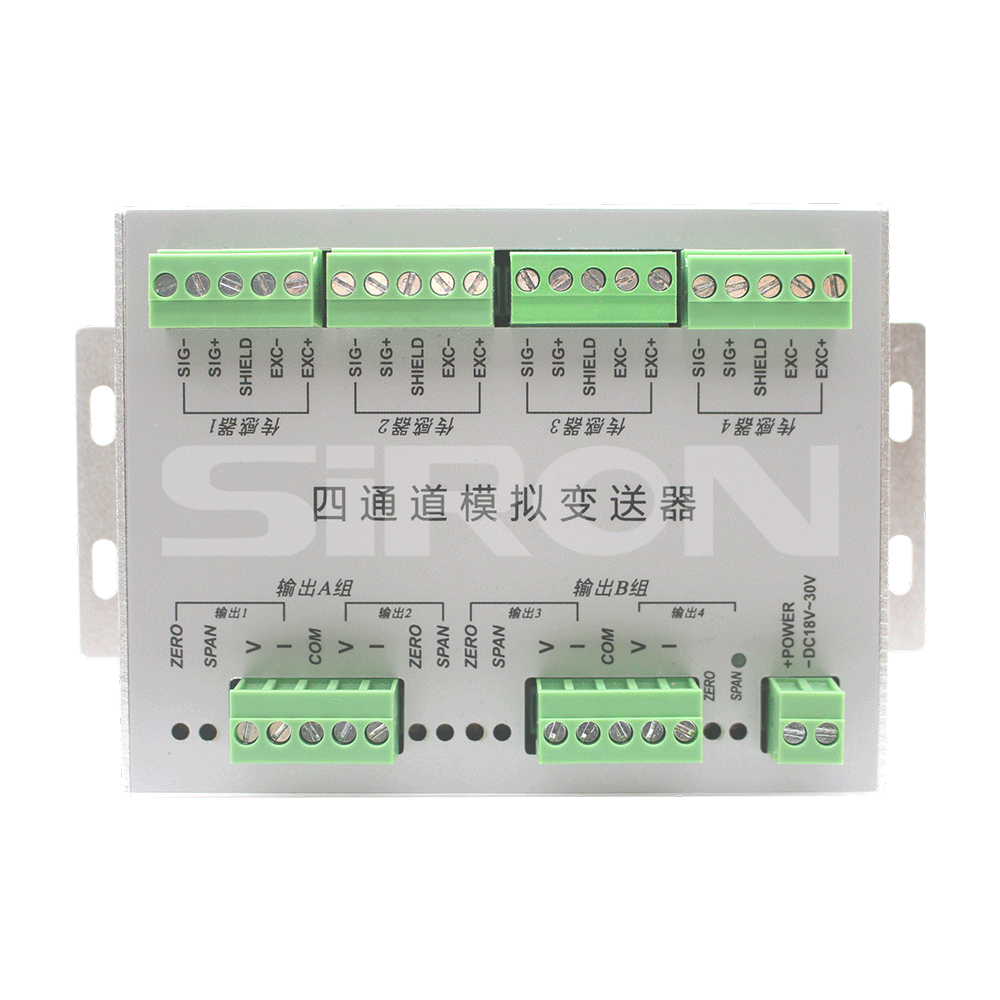

SiRON K109-A3 Series Four Channel Analog Transmitter

Name: SiRON K109-A3 Series Four Channel Analog Transmitter
Brand: SiRON
Rating: 5.0 (14 reviews)

Features:

* Fourindependentchannelswithstrongloadcapacitycanbeconnectedto16350Ωsensors;
* Usingoriginalimportedelectroniccomponents,withhighresponsefrequency,goodlong-termstability,

and acomprehensiveaccuracyof±0.05%FS
* Inputpowerreverseprotectionandoutputshortcircuitprotection
* Suitableforvariousstrainbridgesensorssuchastension,torque,andtension

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K109-A3 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Four channel analog transmitter DC 15-30V IP64 highresponsefrequency

Product Description

About selection

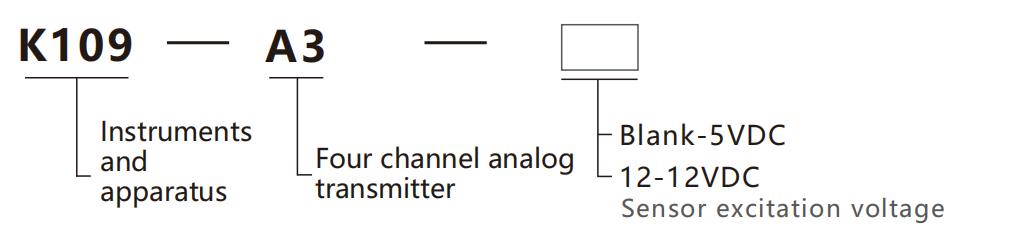

Example selection: K109-A3 indicates K109 series instruments and meters, A3 four-channel analog transmitter,

with a sensor excitation voltage of 5VDC.

Specifications

Name	Four channel analog transmitter
Model	K109-A3
Output specifications	0.4~6mV/N
Display accuracy	≤±0.05%F.S.
Sensor excitation voltage	Default: 5VDC(or 12VDC is optional)
Power supply	DC:15V~30V
A/D performance	24-bit, Delta-Sigma method
Output rate	10, 40, 640, 1280 times per second
Rated output	0~5v、0~10v、0~±5v、0~±10v、0~20mA、4~20mA(10, 40, 640, 1280 times per second)
Sampling frequency	≥5KHZ
Surounding environment	Humidity: 35-85%RH, storage: 35-85%RH; Temperature: -10 to 55℃, storage: -25 to 65℃;
IP Class	IP64
