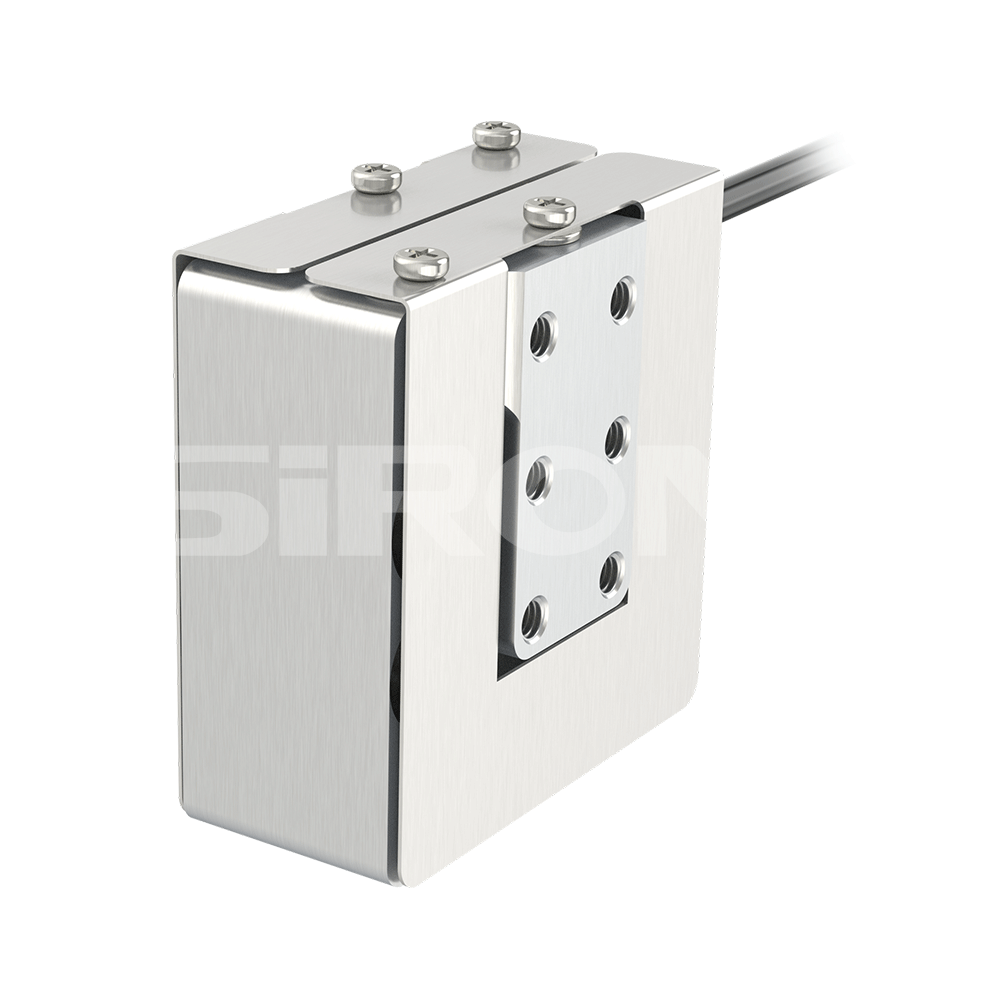

SiRON K104-1 Series Multi-axis Force Sensors

Name: SiRON K104-1 Series Multi-axis Force Sensors
Brand: SiRON
Rating: 5.0 (22 reviews)

Features:

* Multi-dimensional force measurement; Small mutual interference error.
* High overall accuracy (single channel maximum 0.05%F.S, overall coupling accuracy maximum control at 1%F.S);

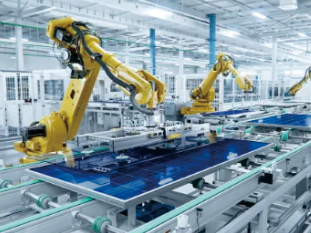

* Can be used in the machining process of milling machine grinding machine tool multi-direction force detection, robot polishing multi-axis force detection, and a variety of three-dimensional force detection occasions.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K104-1 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Multi-axis Force Sensors customizable Aluminium Alloy high precision Multidimensional force measurement

Product Description

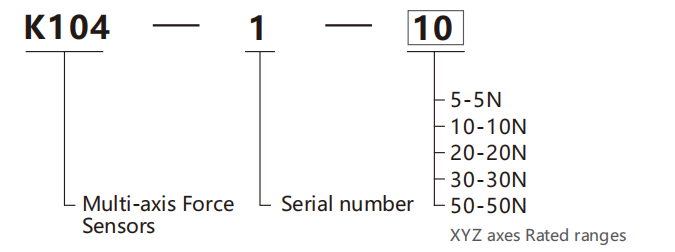

About selection

Example selection: K104-1-10 indicates the K104 series, with a serial number of 1, and the rated range

of the XYZ axes is 10N.

Specifications

Name	Multi-axis force sensors
Model	K104-1-5	K104-1-10	K104-1-20	K104-1-30	K104-1-50
Capacity	5N	10N	20N	30N	50N
Sensitivity	±1.0mV/V
Zero balance	±0.02mV/V
Interference error	≤0.5%F.S.
Non-inearity	≤0.2%F.S.
Hysteresis	≤0.2%F.S.
Repeatability	≤0.2%F.S.
Input/Output impedance	Input resistance: 350±5Ω; Output resistance: 350±5Ω
Temp.ef fect on output	0.1%F.S./10℃
Temp.effect on zero	0.1%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5~12V
Maximum excitation	15V
Compensated Temp Range	-10~40℃
Operating Temp Range	-20~75℃
Safe/UItimate overload	Input resistance: 350±5Ω; Output resistance: 350±5Ω
Cable size	Φ3×3000mm
Material	Aluminium alloy
