SiRON K109-C1 Series Handheld Device

Name: SiRON K109-C1 Series Handheld Device
Brand: SiRON
Rating: 5.0 (77 reviews)

Features:

* 2.8 inch TFT true color display, direction button, display screen can be turned 180°.
* Built in real-time clock; USB data interface, supports hot swapping.
* The peak value, real-time value, and testing process curve are displayed on the same screen, and the entire testing process can
be monitored and traced.
* Three units of N, kg, and lb are automatically converted, and the strength unit Mpa can be automatically converted.
* Test material strength by inputting the cross-sectional area of the material.
* Switching between Chinese and English; Built in graphic and text instructions, various operations are intuitive and clear.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K109-C1 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Handheld device USB interface Switch between Chinese and English IP65 Simple Operation

Product Description

About selection

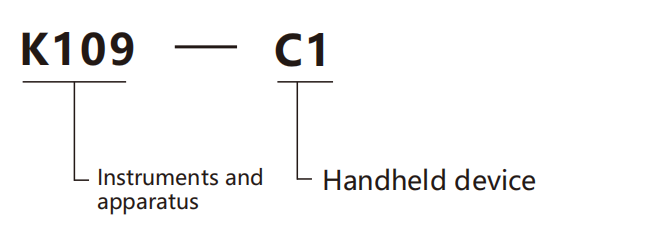

Example selection: K109-C1 indicates the K109 series of instruments and meters, with C1 being a handheld device.

Specifications

Name	Handheld device
Model	K109-C1
Display	2.8-inch TFT true color /LCD backlight
Readability	1/90000
Output linear	<0.002%
Comprehensive accuracy	Better than 0.01%
A/D Conversion speed	≤1600 times per second
Accept sensor	-3.6~+3.6mV/V
Input load	1 to 4 350Ω sensors
Output specification	±10V/0～10V/4～20mA
Temp.effect on output	≤10ppm/℃
Temp.effect on zero	≤10μV/℃
Excitation voltage	5VDC
Power supply	24±5VDC
Powerwaste	≤10W
Operation temp range	-20～70℃
Weight approx	0.5kg
iPClass	IP65
