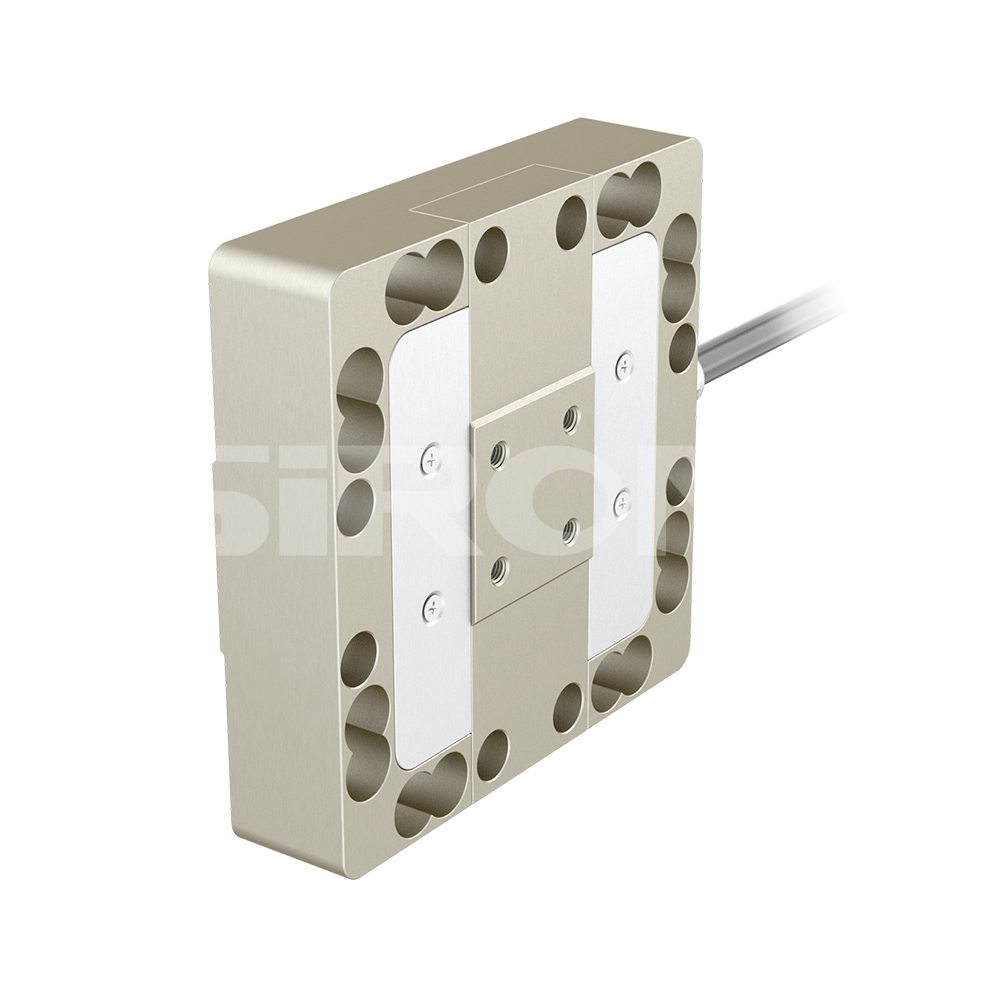

SiRON K104-2 Series Multi-axis Force Sensors

Name: SiRON K104-2 Series Multi-axis Force Sensors
Brand: SiRON
Rating: 5.0 (83 reviews)

Features:

* Multi-dimensional force measurement; Small mutual interference error.
* High overall accuracy (single channel maximum 0.05%F.S, overall coupling accuracy maximum control at 1%F.S);

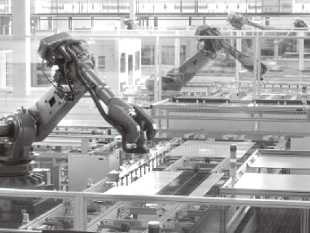

* Can be used in the machining process of milling machine grinding machine tool multi-direction force detection, robot polishing multi-axis force detection, and a variety of three-dimensional force detection occasions.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K104-2 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Multi-axis Force Sensors customizable Aluminium Alloy high precision Multidimensional force measurement

Product Description

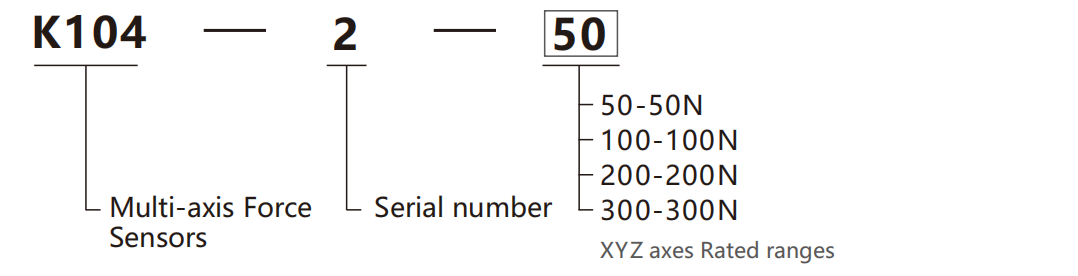

About selection

Example selection: K104-1-10 indicates the K104 series, with a serial number of 2, and the rated range

of the XYZ axes is 50N.

Specifications

Name	Multi-axis force sensors
Model	K104-2-50	K104-2-100	K104-2-200	K104-2-300
Capacity	50N	100N	200N	300N
Output sensitivity	±1.0±10%mV/V
Zero balance	±0.02mV/V
Creep(30min)	≤0.1%F.S.
Interference error	≤0.3%F.S.
Non-linearity	≤0.1%F.S.
Hysteresis	≤0.1%F.S.
Repeatability	≤0.05%F.S.
Input/Outputim pedance	Input resistance: 785±20Ω for X/Y axis, 385±20Ω for Z axis; Output resistance: 700±5Ω for X/Y axis, 300±5Ω for Z axis
Temp.ef fect on output	0.1%F.S./10℃
Temp.ef fect on zero	0.1%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5～12V
Maximum excitation	15V
Compensated Temp Range	-10~40℃
Operating Temp Range	-20~75℃
Safe/Ultimate overload	Safe overload: 150% F.S.;Ultimate overload: 200% F.S.
Cable size	φ5×3000mm
Product weightMaterial	Product weight: 0.8kg Material: Aluminum alloy
