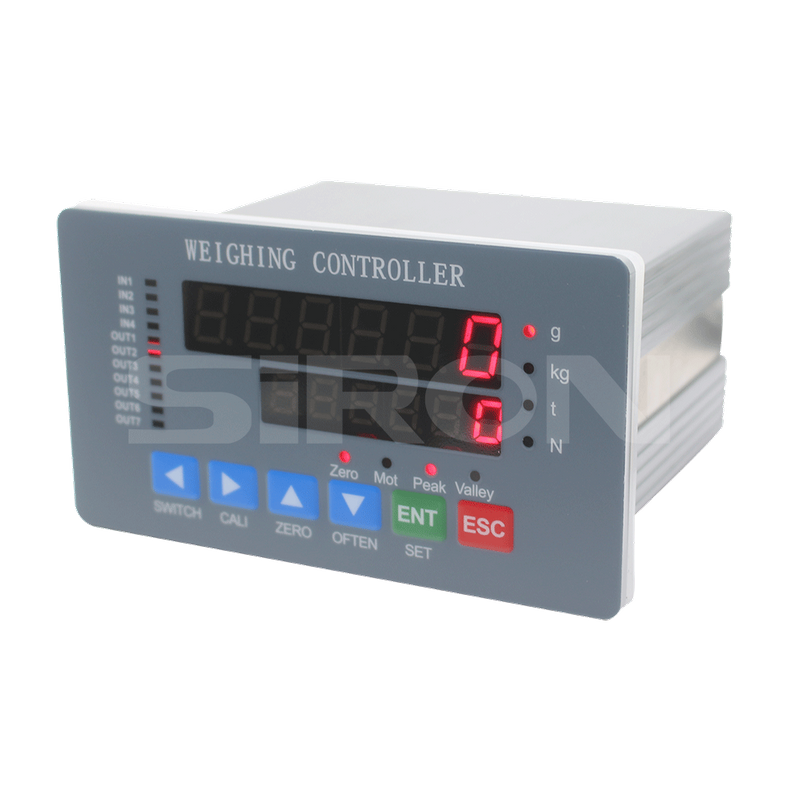

SiRON K109-B2 SeriesDual Row Digital Display Instrument

Name: SiRON K109-B2 SeriesDual Row Digital Display Instrument
Brand: SiRON
Rating: 5.0 (63 reviews)

Features:

* Double row 6-digit digital tube display;
* With RS232 and RS485 communication, analog output can be added on this basis;
* The switching quantity simultaneously has 5 transistor outputs, 2 relay outputs, and 4 inputs;
* Peak and valley value measurement, upper and lower limits alarm.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K109-B2 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Dual row digital display instrument IP65 RS485 DC 12-30V

Product Description

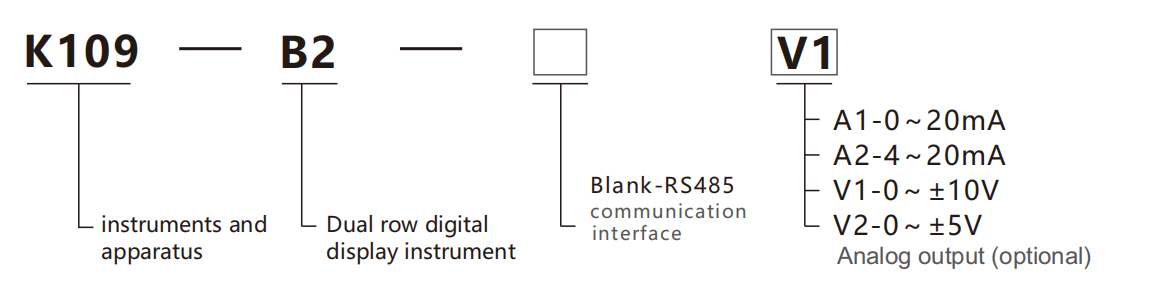

About selection

Example selection: K109-B2-V1 indicates the K109 series of instruments and meters, specifically the B2 dual-row

digital display meter, with a communication interface of RS485 and an optional analog output of

0～+10V.

Note: Analog output: resolution 1/60000(can add TEDS function) can be customized, please consult our sales staff

for details

Specifications

Name		Single row digital display instrument
Model		K109 -B2 series
Input sensitivity		0.1mV/N～6mV/V
Display window		Dual-row 6-digit LED
Display accuracy		1/100000
Sensor excitation voltage		5VDC±2%,100mA(up to 6 sensors of 350Ω)
Supply voltage		DC:12V~30V
Operating temperature		-30～60℃
Class of protection		IP65
AD performance		24-bit, Delta-Sigma method
Output rate		10、40、80、120、200、400、600、800、1200、1600、2400、4800 times per second
Baud rate		Baud rate 1200、2400、4800、9600、19200、38400、57600、115200、230400、460800、921600
Withstand voltage		At 2000V AC50/60Hz for 1 minute
Surrounding environment		Temperature: -10 to 55℃ Storage temperature: -25 to 65℃ Humidity: 35-85%RH Storage humidity: 35-85%RH
Communication output		RS485
Protocol type		Modbus RTU、ASCII and Free Protocol
Switching value		5-point transistor output (maximum 1A), 2-point relay output, 4-point input
Analog output	Assorting	0~±10V、0~±5V、0~20mA、4~20mA
	Customizable	Resolution 1/60000(TEDS function can be added)
