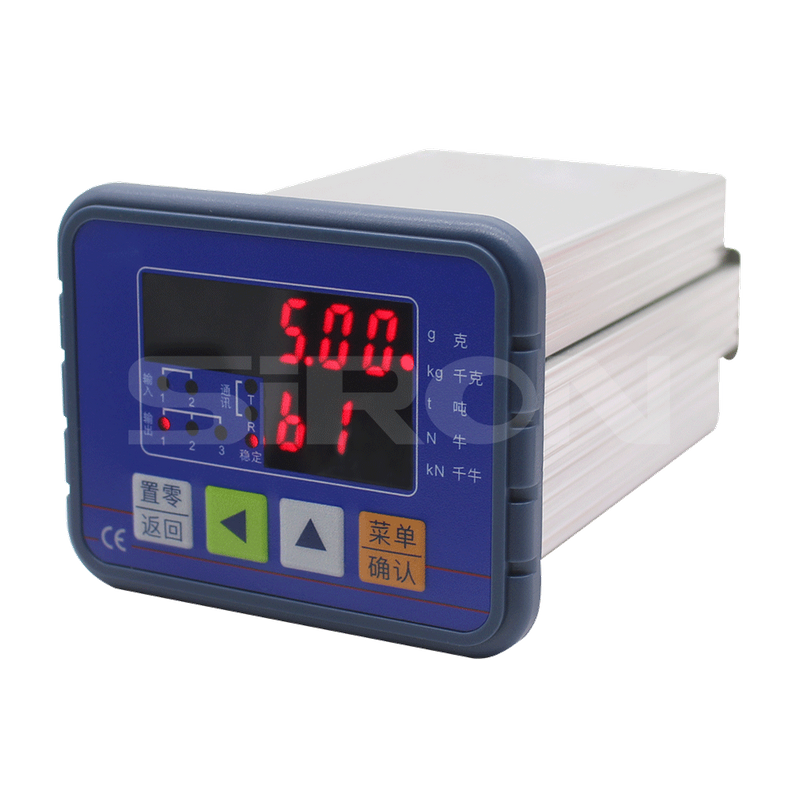

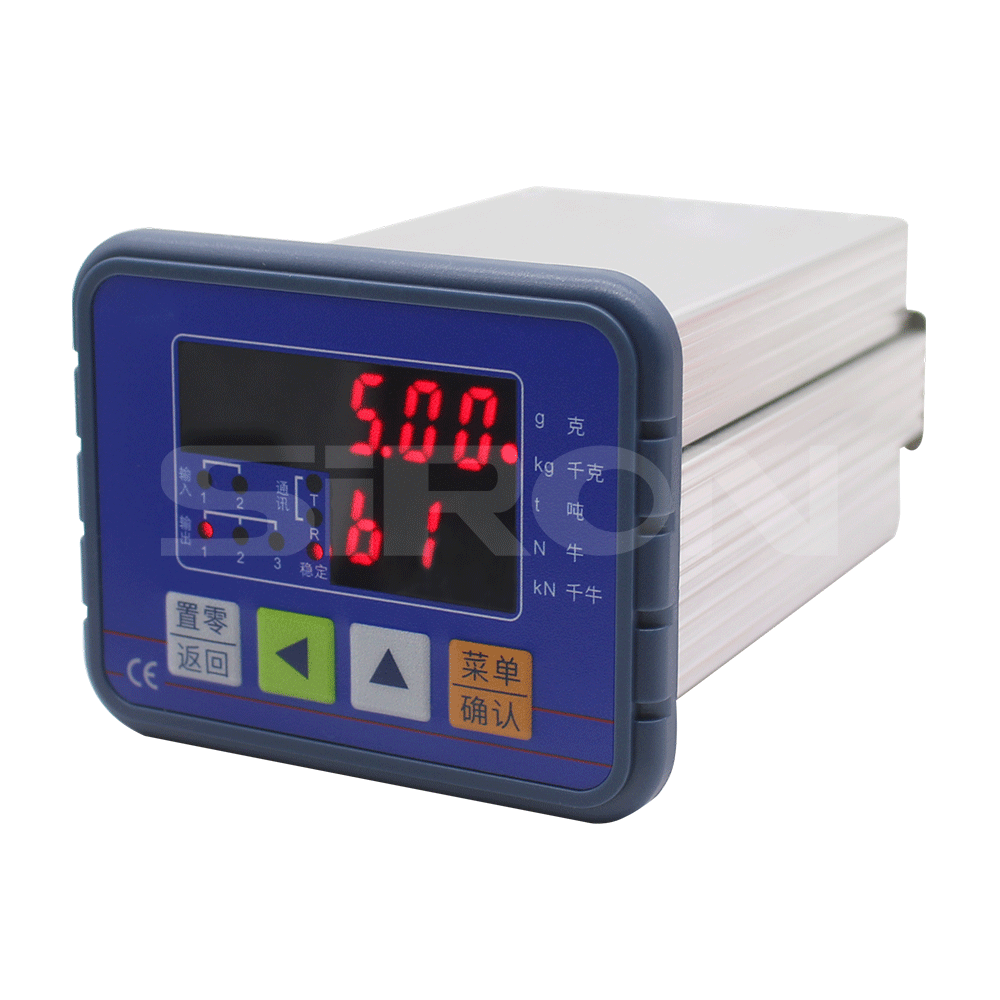

SiRON K109-B4 Series Weight Measuring Force Controller

Name: SiRON K109-B4 Series Weight Measuring Force Controller
Brand: SiRON
Rating: 5.0 (55 reviews)

Features:

* At the same time with 4 ~ 20mA, ±10V analog output signal, can be selected through the internal parameters of the instrument;
* At the same time with RS485, RS232 digital communication, can be selected through the internal parameters of the instrument;
* Double row LED digital tube display real-time measurement value, peak value, output current value, I/O status information;
* Controller with upper limit, middle limit, lower limit limit judgment function;
* I/O has 2 in and 3 out, can customize the input and output port function, low effective;
* Can be driven controller output through the host computer, can replace part of the PLC;
* Controller power supply adopts DC24V, voltage width ±5V, more safe and stable.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K109-B4 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Weight Measuring Force Controller RS232 RS485 IP65 Double row 6-digit LED digital tube RS232/ RS485 DC 24V

Product Description

About selection

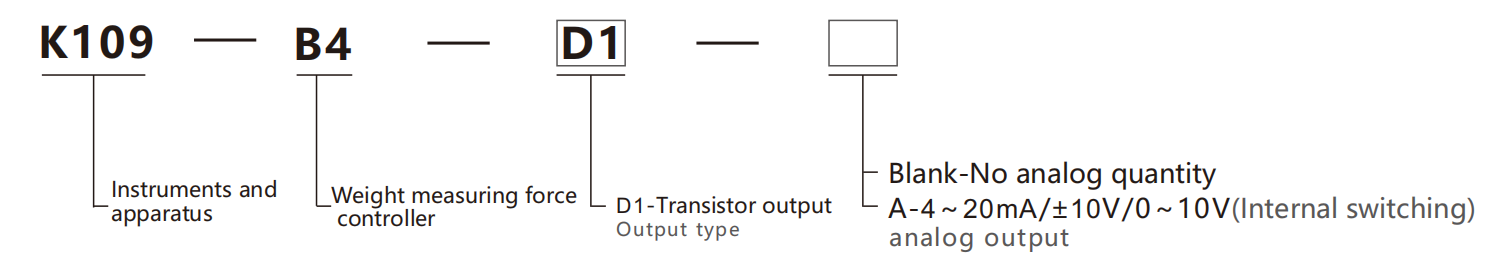

Example selection: K109-B4-D1 represents the K109 series of instruments and meters, B4 weighing and force measurement controller, transistor output, and no analog output.

Specifications

Name	Weight measuring force controller
Model	K109-B4 series
Dimension	110×62×81mm(w×h×d)
Shell	All-metal shielded housing, with OLED display and operation panel
Security protection	The front panel has a protection grade of IP65
Use environment	Temperature: -10℃ to 40℃ Relative humidity: 10% to 95%, no condensation
Power source	±24VDC(±15%),power<6W
Display screen	128×32 full dot matrix, 0LED display screen
Platform type	One analog scale platform
Number of sensors	1 to 6 350Ω sensors
A/D Update rate	A/D conversion rate ：200～2400Hz
Sensor excitation voltage	5VDC
Minimum input sensitivity	0.6μV/d
Keyboard	Four touch film function keys
Basic type	Serial communication interfaces: RS232 and RS485; Input/output interfaces: 1 input, 3 outputs
Analog interface output	current：0~20mA、4~20mA、0~24mA
Analog interface output	voltage：0~10V、0～5V
