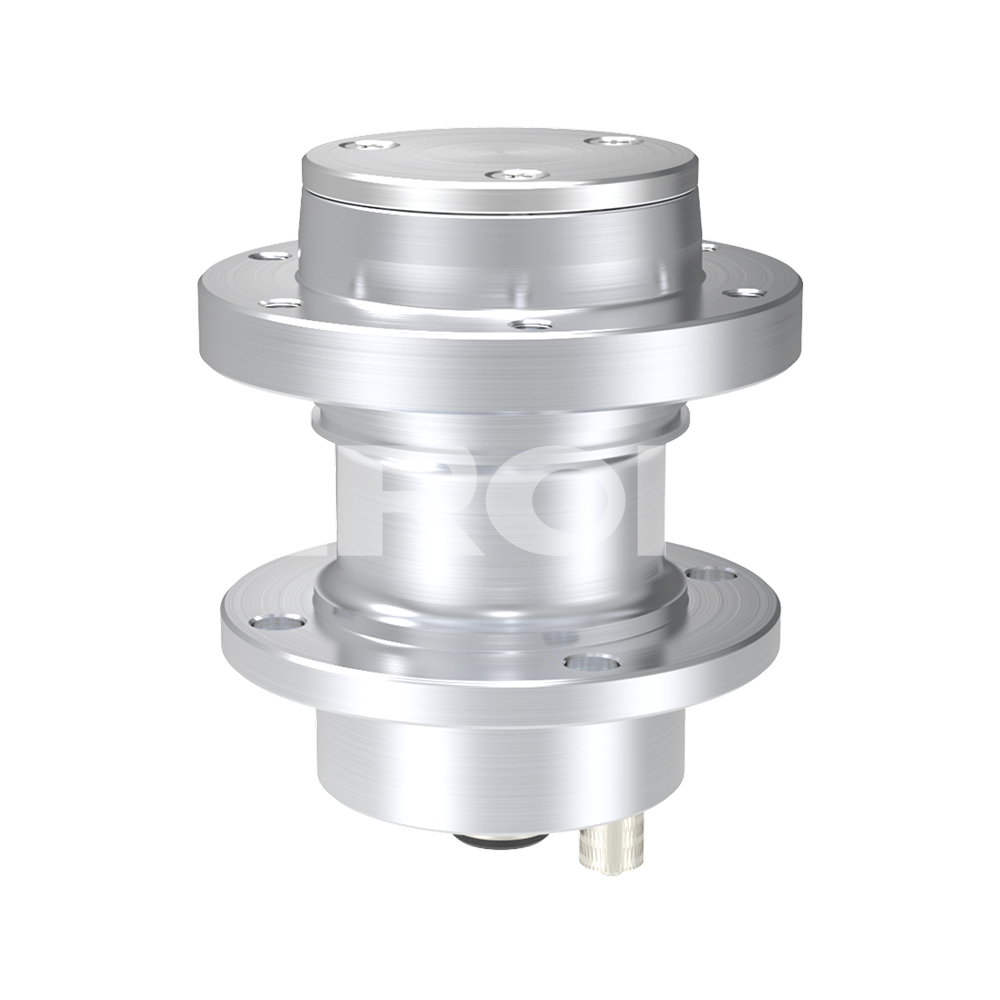

SiRON K108-1 Series Tension Sensor

About selection

Example  selection:  K108-1-38 indicates the K108 series, with a serial number of 1, and the rated range  38N.

Note: Tension sensor can be customized, please contact our sales staff for details.

Specifications

Name	Tension  sensor
Model	K108-1-38
Capacity	38N
Sensitivity	0.6±20%mV/V
Appearance
Zero balance	±0.02mV/V
Creep(30min)	≤0.05%F.S.
Non-linearity	≤0.1%F.S.
Hysteresis	≤0.3%F.S.
Repeatability	≤0.05%F.S.
nput/Output impedance	Input resistance: 350±5Ω; Output resistance: 350±5Ω
Temp.effect on output	0.05%F.S./10℃
Temp.ef fect on zero	0.05%F.S./10℃
Insulation resistance	≥5000MQ/100V(DC)
Recommended excitation	5~12V
Maximum excitation	15V
Compensated Temp Range	-10~40℃
Operating Temp Range	-20~60℃
Safe/Ultimate overload	Safe overload: 150% F.S.;" Ultimate overload: 200% F.S.
Cable size	Aviation connector
Product weight	0.5kg
Material	Aluminium alloy

Example

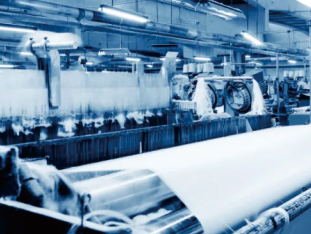

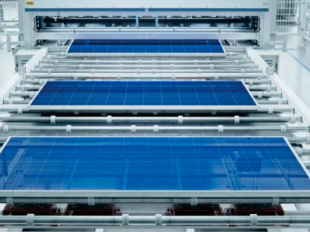

 Applications in the textile industry                                              Application in the photovoltaic industry
