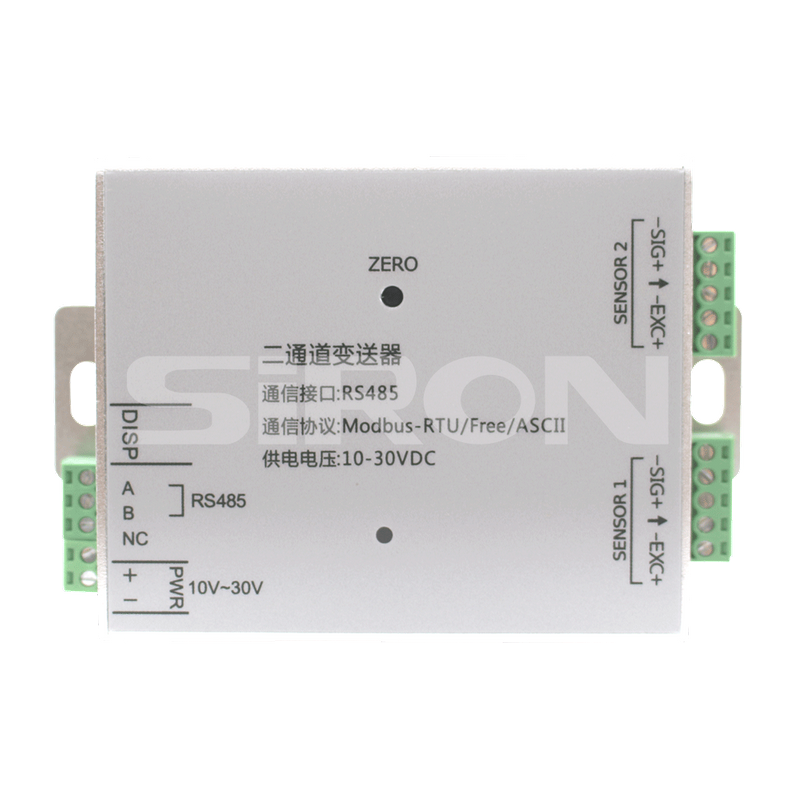

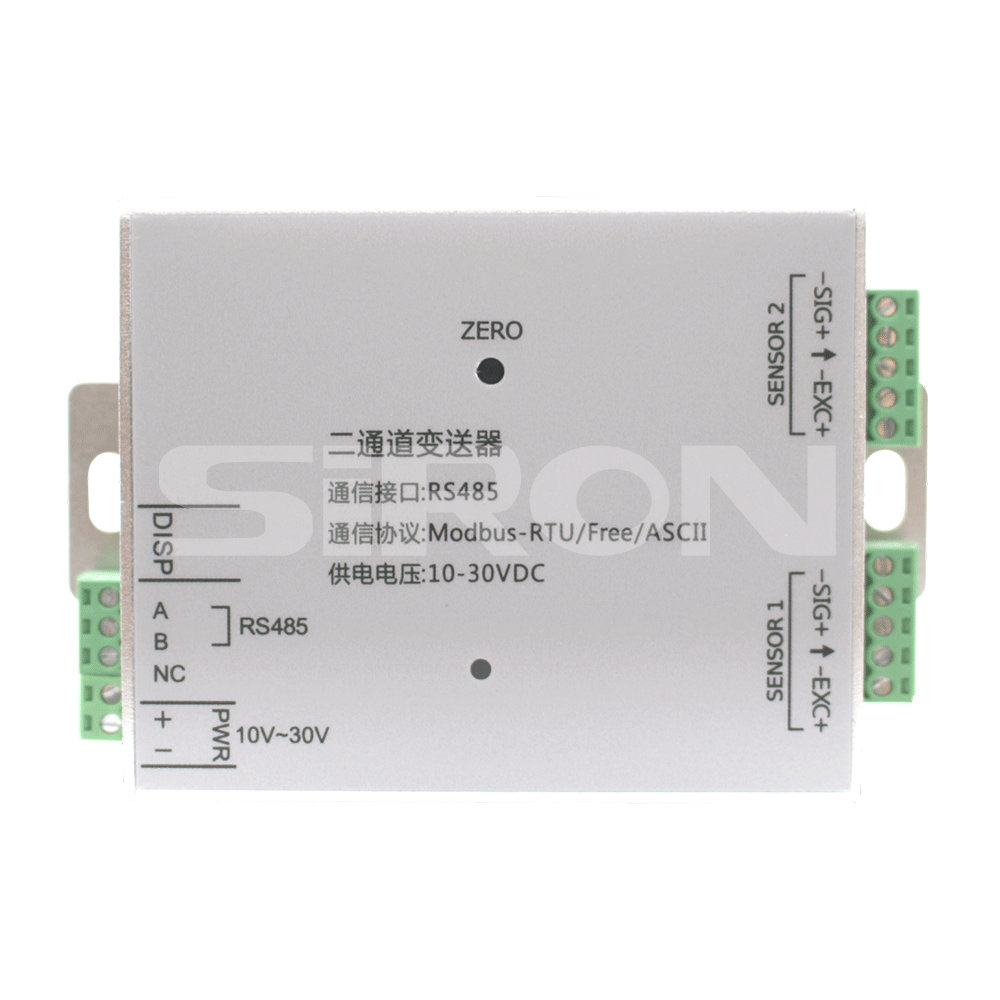

SiRON K109-A2 Series Two Channel Transmitter Instrument

Name: SiRON K109-A2 Series Two Channel Transmitter Instrument
Brand: SiRON
Rating: 5.0 (4 reviews)

Features:

* High cost-effectiveness, multiple digital filters.
* Choose between RS232 or RS485 communication methods, and analog output can be added.
* Can calibrate and modify parameters through handheld terminals, Two independent channels.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K109-A2 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Two channel transmitter Two independent channels RS232 RS485

Product Description

About selection

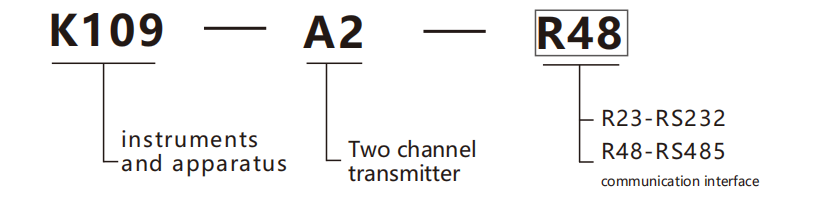

Example selection: K109-A2-R48 represents the K109 series of instruments and meters, A2 two-channel transmitter, RS485 communication interface

Specifications

Name	Two channel transmitter
Model	K109-A2-R48	K109-A2-R23
Serial communication	RS485(Free Protocol, Modbus RTU and ASCII protocol)	RS232(Free Protocol, Modbus RTU and ASCII protocol)
Output specifications	0.4~6mV/V
Display accuracy	1/10000
Sensor excitation voltage	5VDC±2%,100mA
Power supply	DC:10V~30V
Operation temp range	-30~60℃
A/D performance	24-bit, Delta-Sigma method
Output rate	10、40、640、1280 times per second
Withstand voltage	At 2000V AC50/60Hz for 1 minute
Surrounding environment	Humidity: 35-85%RH, storage: 35-85%RH; Temperature: -10 to 55℃, storage: -25 to 65℃;
