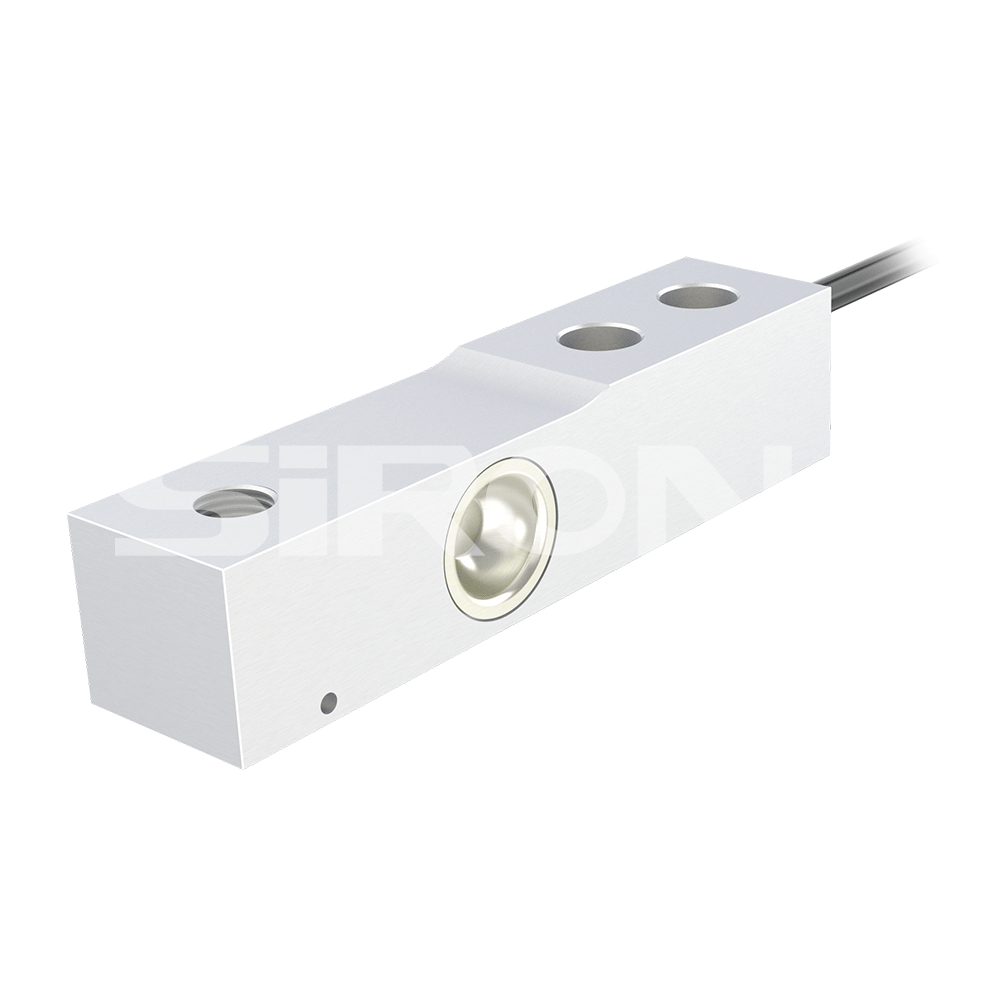

SiRON K102-7 Series Load Cell/Weighing Sensor

Name: SiRON K102-7 Series Load Cell/Weighing Sensor
Brand: SiRON
Rating: 5.0 (86 reviews)

Features:

*High precision, very stable, low installation height;
*Used for small weighbridge, hopper, packaging, proportioner, forklift, textile machinery, push tension meter, belt scale,

testing machine, textile machinery, automation control, industrial measurement, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K102-7 series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Load Cell/Weighing Sensor high precision Small size High repetition consistency customizable

Product Description

About selection

Selection example: K102-7-220 indicates the K102 series, serial number 7, rated range 220kg.

Specifications

Name	Load cellweighing sensor
Model	K102-7-220	K102-7-550	K102-7-1100	K102-7-1760	K102-7-2200	K102-7-4400
Capacity	220kg	550kg	1100kg	1760kg	2200kg	4400kg
Sensitivity	1.94±0.1%mV/V
Zero balance	±0.02mV/V
Creep (30min)	≤0.0166%F.S.
Non-linearity	≤0.017%F.S.
Hysteresis	≤0.017%F.S.
Repeatability	≤0.017%F.S.
Input/Output impedance	Input resistance: 390±3Ω Output resistance: 350±5Ω
Temp.ef fect on output	0.014%F.S./10℃
Temp.ef fect on zero	0.0125%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5～12V
Maximum excitation	15V
Safe/Ultimate overload	Safe overload: 150% F.S.;Ultimate overload: 200% F.S.
Compensated Temp Range	-10～60℃
Operating Temp Range	-20～80℃
Cable size	φ5.4×1500mm
Material	stainless steel
