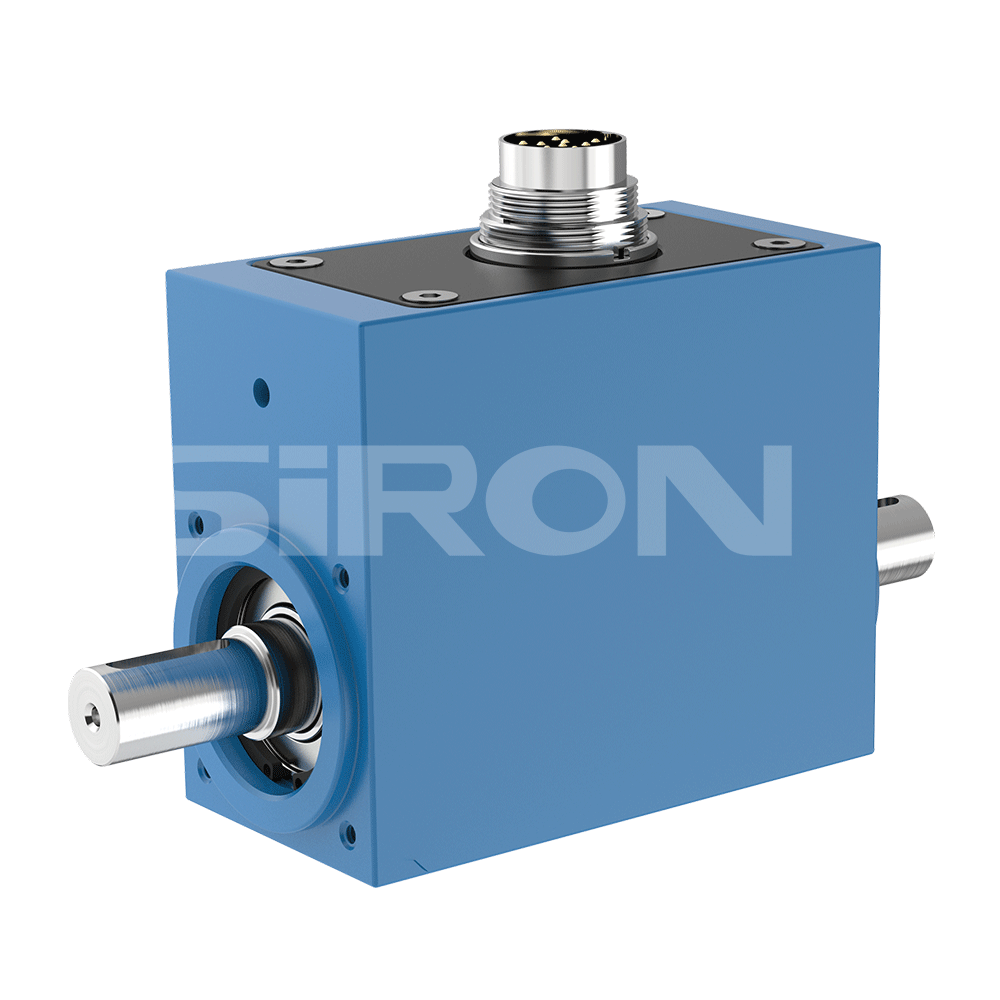

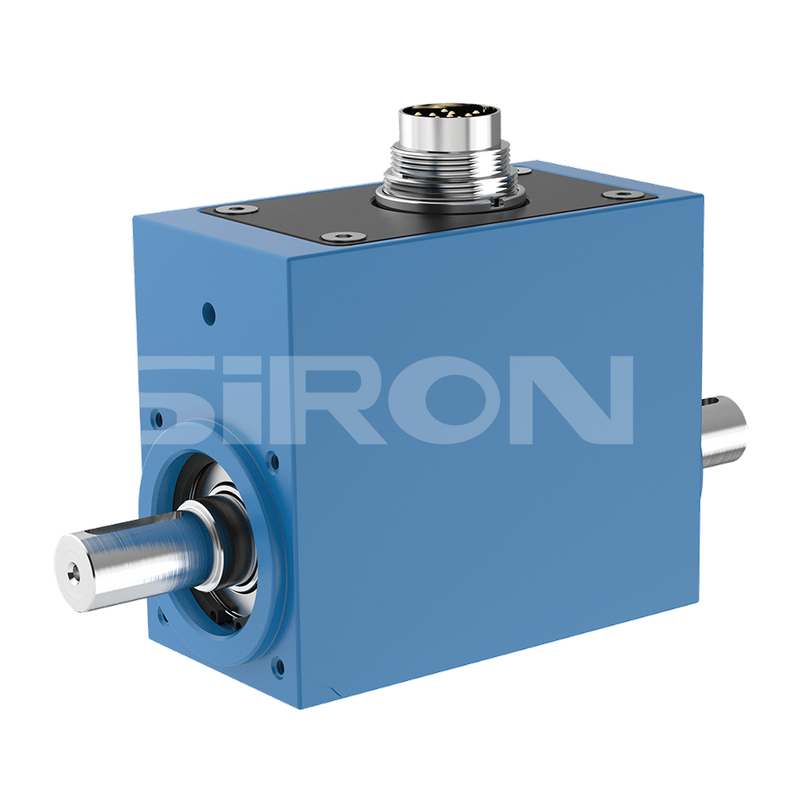

SiRON K103-7 Series Dynamic Torque Sensor

Name: SiRON K103-7 Series Dynamic Torque Sensor
Brand: SiRON
Rating: 5.0 (31 reviews)

Features:

* Small size, light weight, easy to install.Strong anti-interference, can be installed in any position, any direction.
* Both static and rotational torque can be measured; No carbon brush and other wear parts, can be high speed for a long time running.

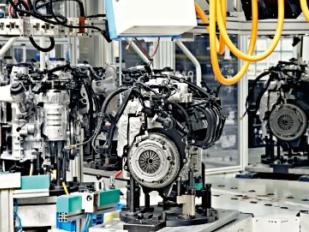

* Mainly used for dynamic rotation torque measurement, detection of motor, mixer, reducer, hoist, drilling machinery and other equipment load torque and input power.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K103-7 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Dynamic torque sensor customizable easy installation Strong anti-interference IP65

Product Description

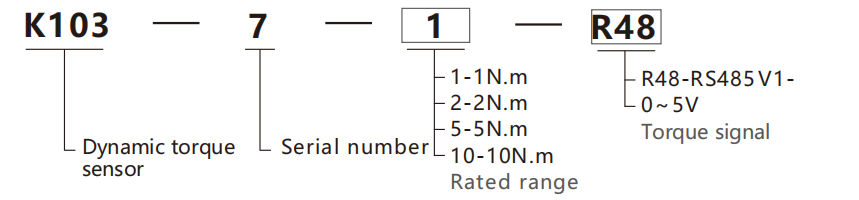

About selection

Example selection: K103-7-1-R48 indicates the K103 series, serial number 7, rated range of 1N.m,

and torque signal of RS485.

Torque signal

Code	R48	V1	V2	V3	V4	P1
Torque signal	RS485	0~5V	0~10V	-5～5V	-10～10V	5～15KHz

Specifications

Name	Dynamic torque sensor
Model	K103-7-1-□	K103-7-2-□	K103-7-5-□	K103-7-10-□
Rated range	1N.m	2N.m	5N.m	10N.m
Power supply	24VDC±15%
Speed range	≤8000 revolutions per minute
Torque signal	RS485/±10V/±5V/0～10V/0~5V/5～15KHz(pulse signal)
Speed signal	RS485/60 pulse signal
Precision	±0.2%F.S
Overload capacity	150%
Response frequency	1ms
Operating temperature	-20～80℃
Zero temperature drift	0.15%F.S/10℃
Temperature sensitivity drift	0.15%F.S/10℃
Material	φ6×3000mm
Cable dimension	Shell: Aluminum; Shaft core: 17-4PH
Class of protection	IP65
