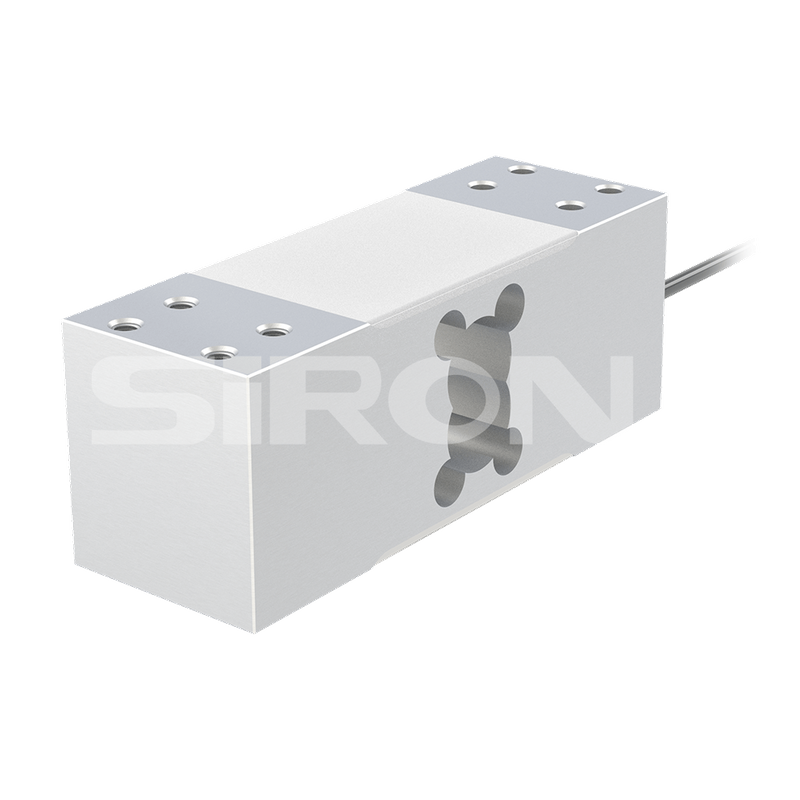

SiRON K102-5 Series Load Cell/ Weighing Sensor

Name: SiRON K102-5 Series Load Cell/ Weighing Sensor
Brand: SiRON
Rating: 5.0 (78 reviews)

Features:

* High precision, strong anti-biased load ability;

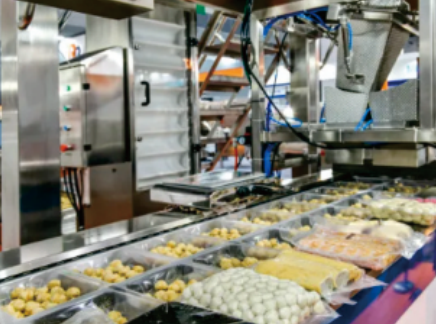

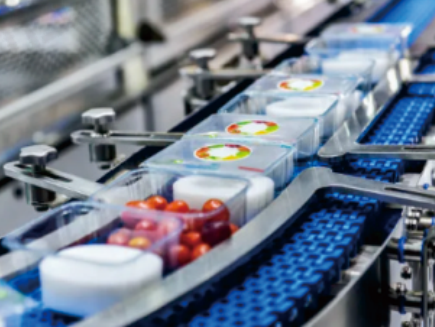

* Used in table scales, ingredients weighing, packaging weighing, electronic balance, industrial measurement, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K102-5 series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Load Cell/Weighing Sensor high precision Small size Strong anti-bias-load capacity customizable

Product Description

About selection

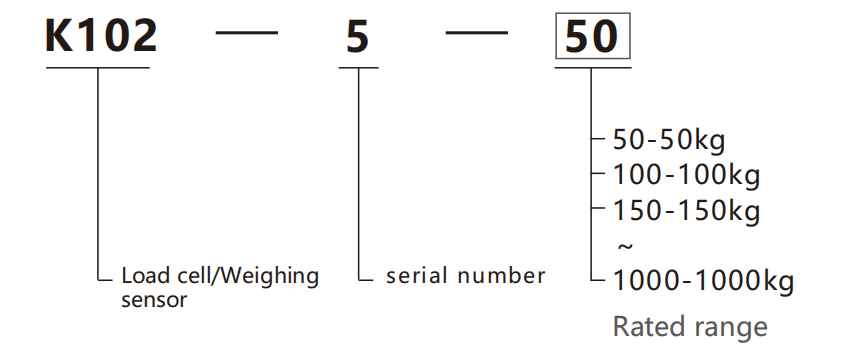

Selection example: K102-5-50 indicates the K102 series, serial number 5, rated range 50kg.

Code	50	100	150	200	250	300	500	600	1000
Rated range	50kg	100kg	150kg	200kg	250kg	300kg	500kg	600kg	1000kg

Specifications

Name	Load cell/weighing sensor
Model	K102-5-50	K102-5-100	K102-5-150	K102-5-200	K102-5-250	K102-5-300	K102-5-500	K102-5-600	K102-5-1000
Capacity	50kg	100kg	150kg	200kg	250kg	300kg	500kg	600kg	1000kg
Sensitivity	2.0±10%mV/V
Accuracy level	C3
Zero balance	±0.02mV/V
Creep(30min)	≤0.02%F.S.
Non-linearity	≤0.017%F.S.
Hysteresis	≤0.017%F.S.
Repeatability	≤0.017%F.S.
Input/output impedance	Input resistance: 405 ± 15 Ω; Output resistance: 350 ± 3 Ω
Temp.ef fect on output	0.0175%F.S./10℃
Temp.ef fect onzero	0.0177%F.S./10℃
Insulation resistance	≥2GΩ/100V(DC)
Recommended excitation	1～12V
Maximum excitation	15V
Safe/U1timate overload	Safe overload：150%F . S . ;Maximum overload：200%F . S .
Compensated Temp Range	-10～40℃
Operating Temp Range	-20～60℃
Cable size	Φ6×1000mm
Weight	0.6kg
Material	Aluminium alloy
