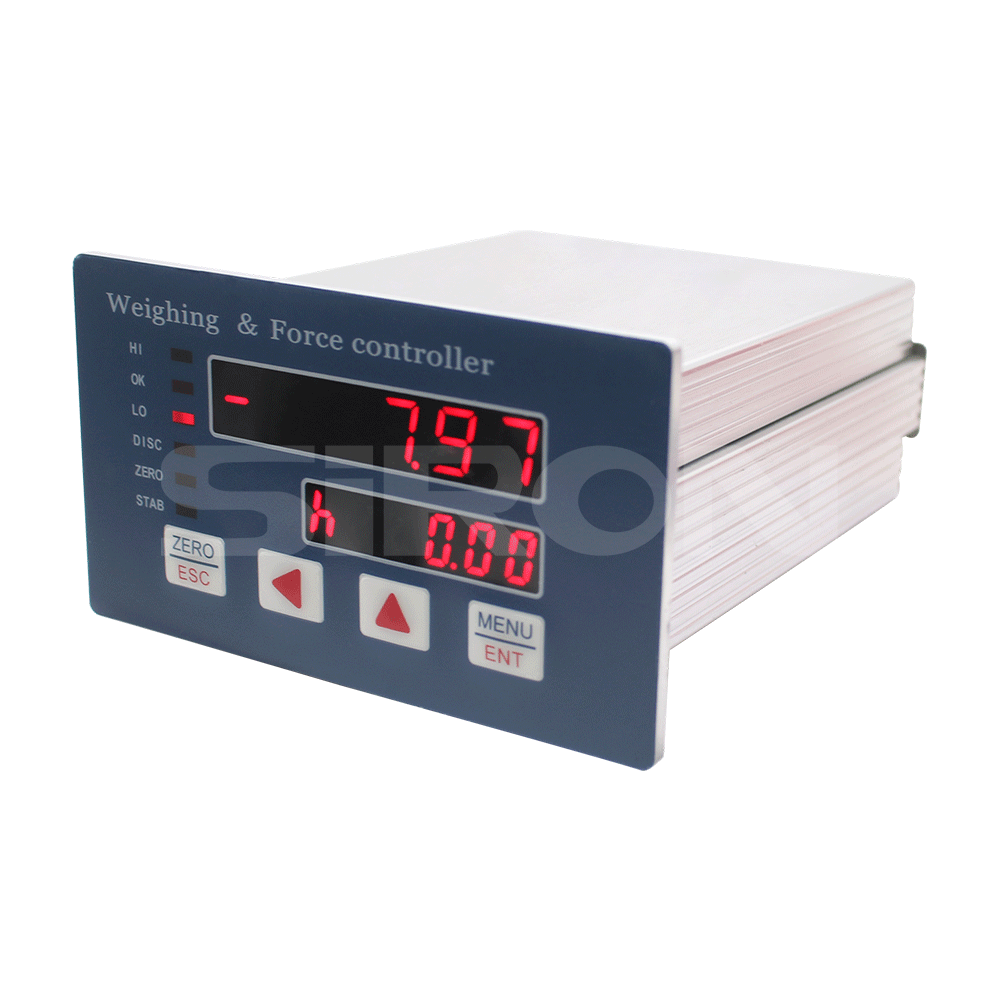

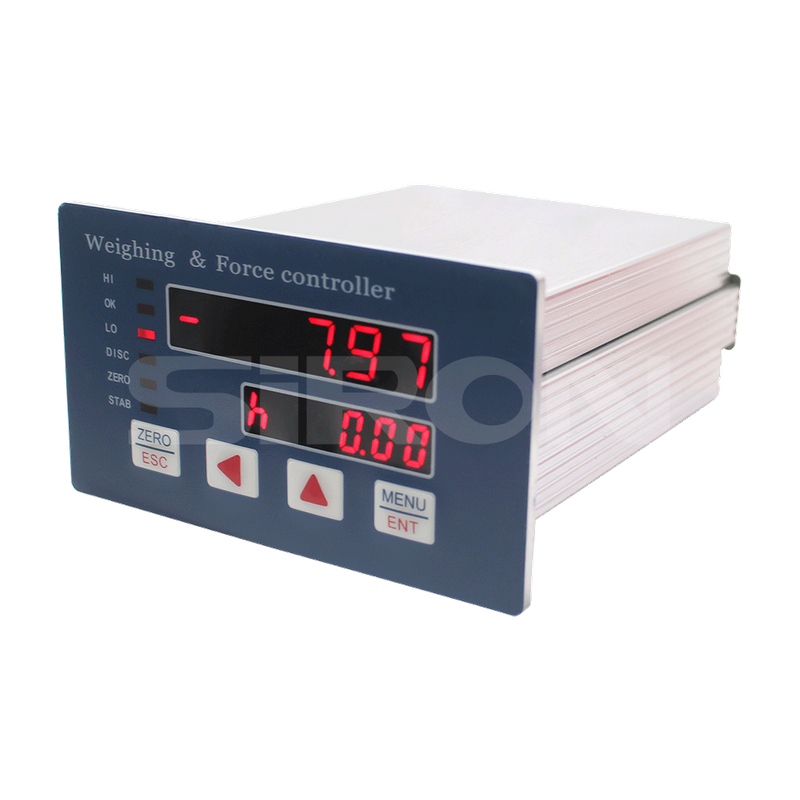

SiRON K109-B3 Series Weighing Force Meter

Name: SiRON K109-B3 Series Weighing Force Meter
Brand: SiRON
Rating: 5.0 (63 reviews)

Features:

*For the need to convert the force measurement signal to digital communicationsignals,standard analog output signals and simple contro occasions:
*Double row 6-digit LED digital tube displays real-time measurement value, peak value, output current, /0 status informationrespectively;
*Can be used in a variety of load-bearing occasions, suitable for batching scale, packaging scale, filing scale,reducing batching scale and otherfunctionalbatching site;
*Can be driven controller outputthrough the upper computer, can partially replace PLC.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K109-B3 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Weighing force meter IP65 Double row 6-digit LED digital tube Aluminium Alloy DC 24V

Product Description

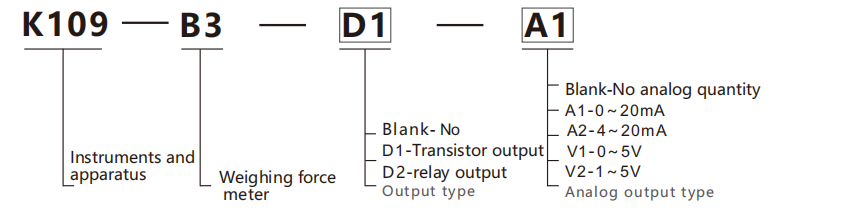

About selection

Example selection: K109-B3-D1-A1 indicates the K109 series of instruments and meters, B3 weighing and

force measurement instruments, transistor output, and analog output of 0–20mA.

Note :Note: Both RS232 and RS485 are configured.

Specifications

Name	Weighing force meter
Model	K 1 0 9 - B 3 series
Display	Double-row 6-digit LED display, with character heights of 9mm and 7.5mm respectively
Division value	1、2、5、10、20、50
Maximum scale display range	999999
Decimal place	0、0.0、0.00、0.000、0.0000、0.00000
Static accuracy dass	resolution ratio 900000
Maximum signal input range	- 3 . 6m V N~3 . 6m V/V(amount to - 18mV/V~18mV/V)
Zero drift	≤0.05μV(@0.02 mV/V)
Range temperature coefficient	≤10ppm/℃
Sensorinterface inputimpedance	≥20MΩ
Nonlinear error	≤0.002%FS
AD conversion speed	≤400 times per second
Zero drift	≤10μV/℃
Range temperature ooeficient	≤0.02%FS/℃
Sensor type	straingauge type transducer
Sensor excitation voltage	DC5V can be connected in parallel with 8 350Ω sensors
Switching output (contact)capacity	Relay output capacity: AC220V 1A, a total of 6 channels; Transistor output capacity: DC24V 0.5A
Switching input voltage	DC24V
Switching quantity input curent	4～6mA
Powerrange	DC24V(±5V)
Product power	≤10W
Operating temperature	-10℃~50℃
Humidityrange	≤90% relative humidity (no condensation water)
