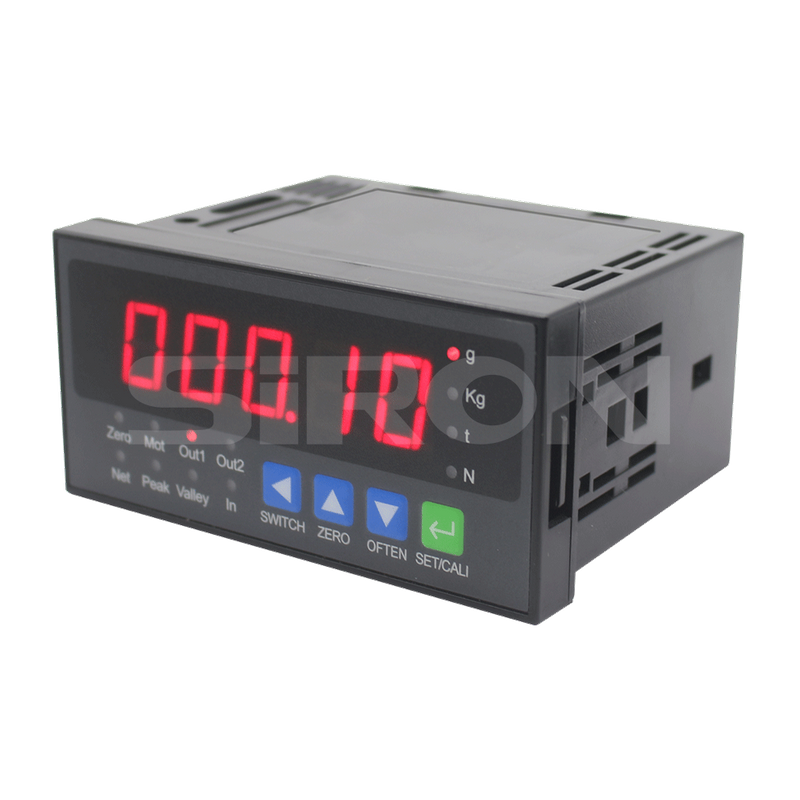

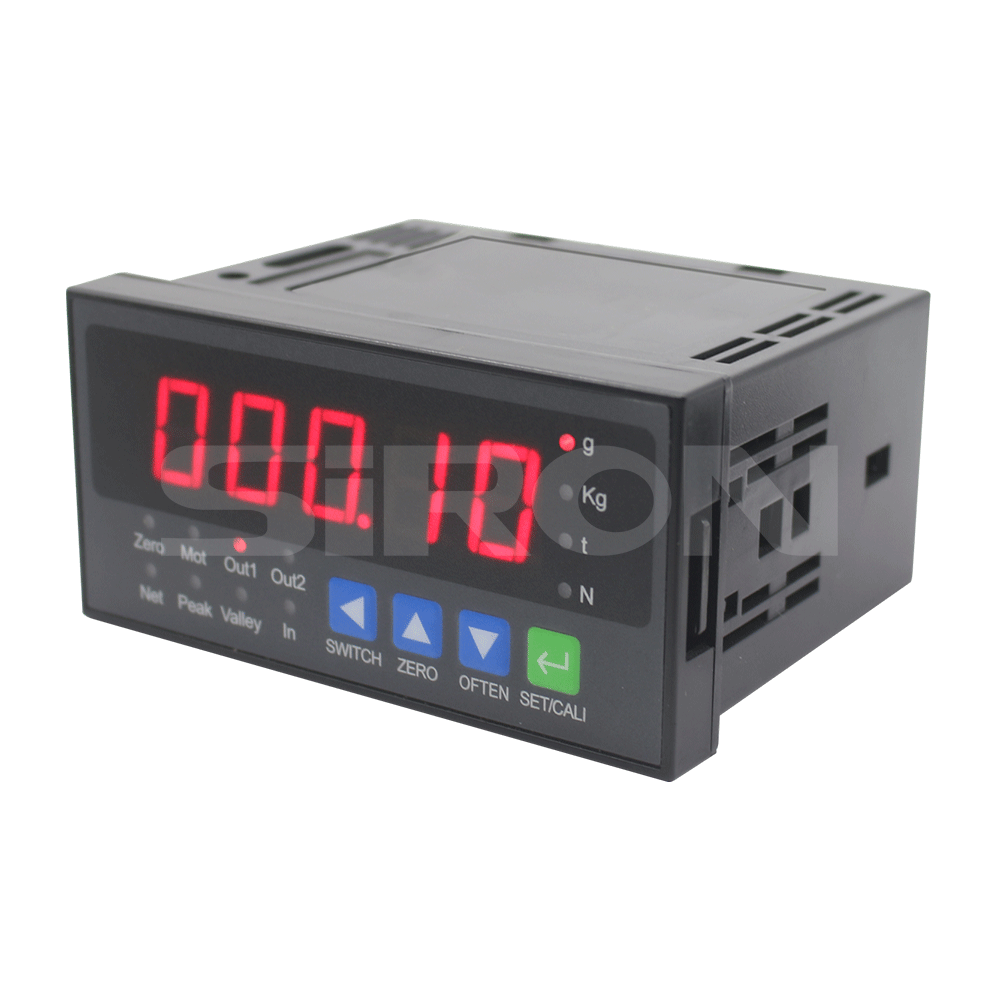

SiRON K109-B1 Series Single Row Digital Display Instrument

Name: SiRON K109-B1 Series Single Row Digital Display Instrument
Brand: SiRON
Rating: 5.0 (24 reviews)

Features:

* 5-bit or 6-bit digital display can be selected;
* You can add RS232, RS485, or choose one of three analog outputs;
* Transistors or relays can be selected as switch quantities;
* Peak valley value measurement, upper and lower limit alarm;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K109-B1 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Single row digital display instrument IP64 Single row digital display DC 9-30V RS485

Product Description

About selection

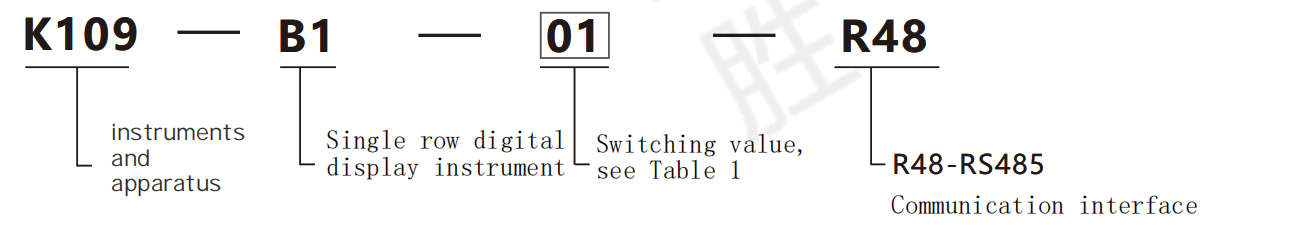

Example selection: K109-B1-01-R48 indicates the K109 series instruments and meters, B1 single-row digital display instrument, 01 single-row 5-digit nixie tube, transistor (3 outputs/1 input), and RS485 communication interface.

Table 1

Code	Type	Switch function
01	Crystal valve	Single-row 5-digit digital tube, transistor (3-point output / 1-point input)
02		Single-row 5-digit digital tubes, transistors (3-point output / 1-point input), TEDS
03		Single-row 6-digit digital tube, transistor (3-point output / 1-point input)
04		Single-row 6-digit digital tubes, transistors (3-point output / 1-point input), TEDS
05	Relay	Single-row 5-digit digital tube, relay (2-point output)
06		Single-row 5-digit digital tube, relay (2-point output), TEDS
07		Single-row 6-digit digital tube, relay (2-point output)
08		Single-row 6-digit digital tube, relay (2-point output), TEDS

Specifications

Name	Single-row 5-digit digital display instrument		Single-row 5-digit digital display instrument		Single-row 5-digit digital display instrument		Single-row 6-digit digital display instrument
Model	K109-B1-01-R48	K109-B1-02-R48	K109-B1-03-R48	K109-B1-04-R48	K109-B1-05-R48	K109-B1-06-R48	K109-B1-07-R48	K109-B1-08-R48
Switching value	Relay (2-point output),250VAC/3A resistive load		Transistor (3-point output / 1-point input),24V/1A load capacity		Relay (2-point output),250VAC/3A resistive load		Transistor (3-point output / 1-point input),24V/1A load capacity
Function	一	TEDS	一	TEDS	一	TEDS	一	TEDS
Display accuracy	1/10000
Sensor excitation voltage	5VDC±2%,100mA(up to 6 sensors of 350Ω)
Supply voltage	DC:12V~30V
input sensitivity	0.4mV/N~6mVN
Operating temperature	-30~60℃
A/D performance	24-bit, Delta-Sigma method
Output rate	10, 40, 640, 1280 times per second
nterface	RS485 interface Up to 32 nodes can be placed parallel. Supports Modbus RTU protocol and free protocol
Withstand voltage	At 2000V AC50/60Hz for 1 minute
Surounding environment	Temperature: -10 to 55℃, storage temperature: -25 to 65℃ Humidity: 35-85%RH, storage humidity: 35-85%RH
Communication output	RS485 interface: Up to 32 nodes in parallel; Supports Modbus RTU protocol and free protocol
