SiRON K044-7～K044-10 M18 Capacitive Proximity Switch

About selection

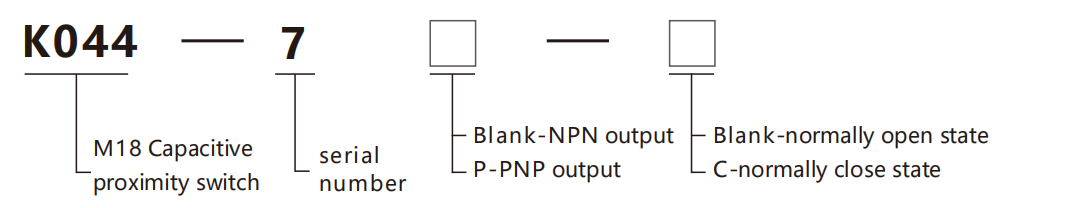

Selection example：K044-7 indicates the K044 series, serial number 7, with NPN output,                                                                                                         normally open state;

                                       K044-7P-C indicates the K044 series，serial number 7, with PNP output,

                                        normally close state.

Specifications

Name		M18 capacitive proximity switch

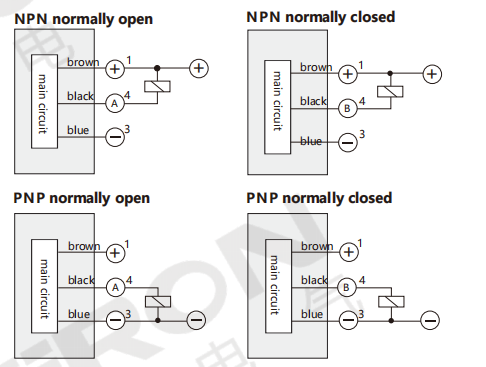

Model	NPN N.O	K044-7	K044-8	K044-9	K044-10
	NPN N.C	K044-7C	K044-8C	K044-9C	K044-10C
	PNP   N.O	K044-7P	K044-8P	K044-9P	K044-10P
	PNP N.C	K044-7P-C	K044-8P-C	K044-9P-C	K044-10P-C

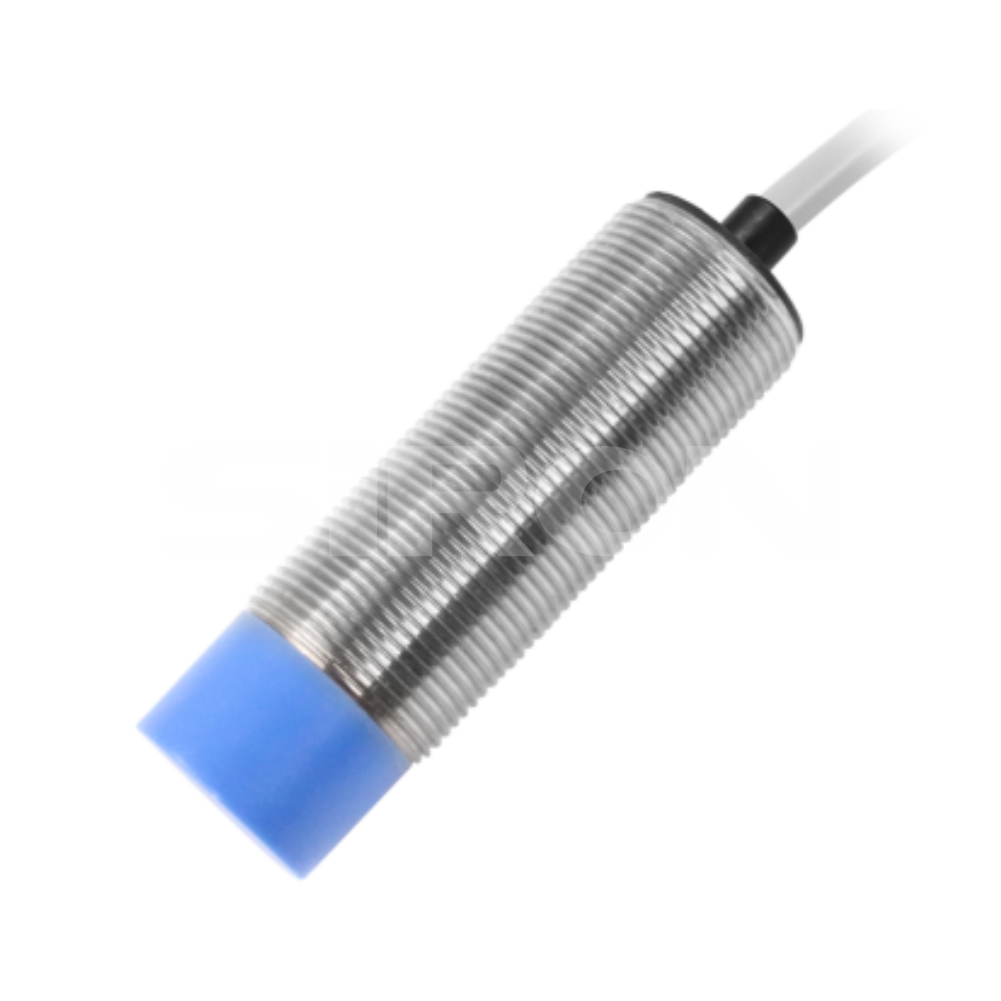

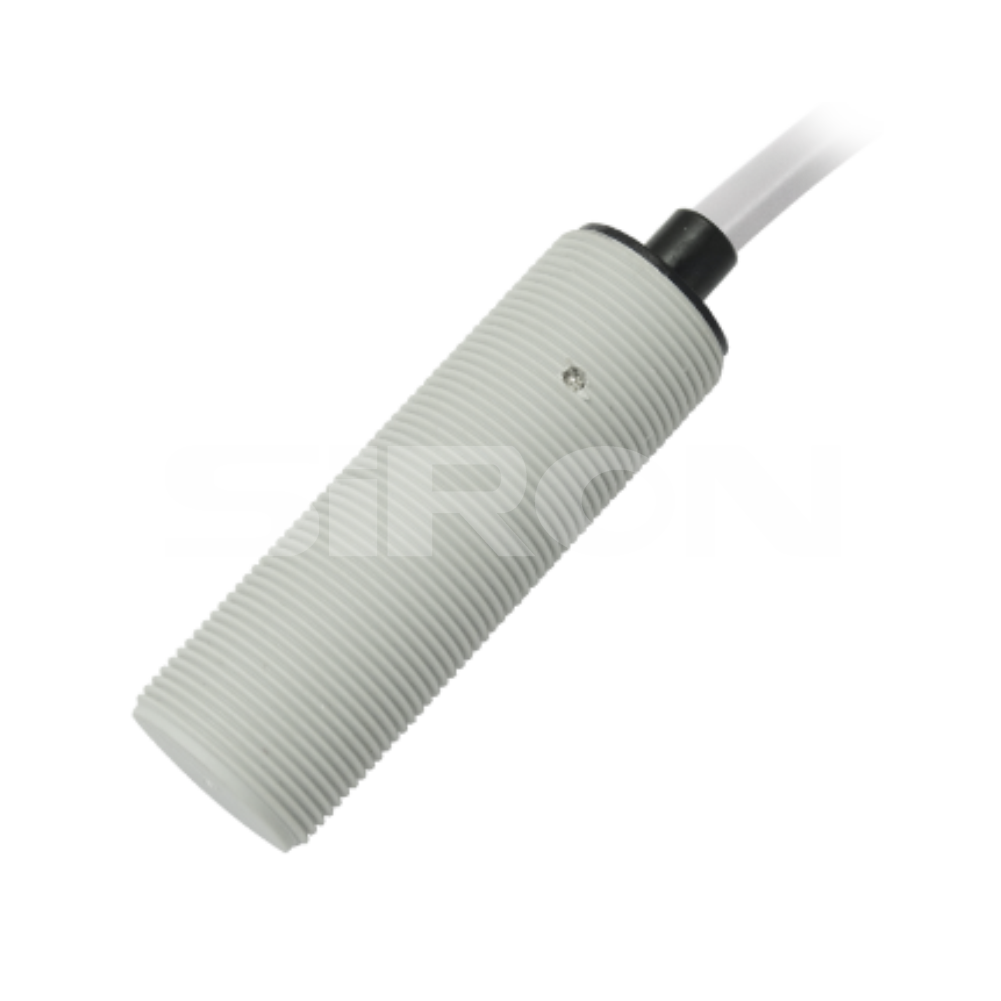

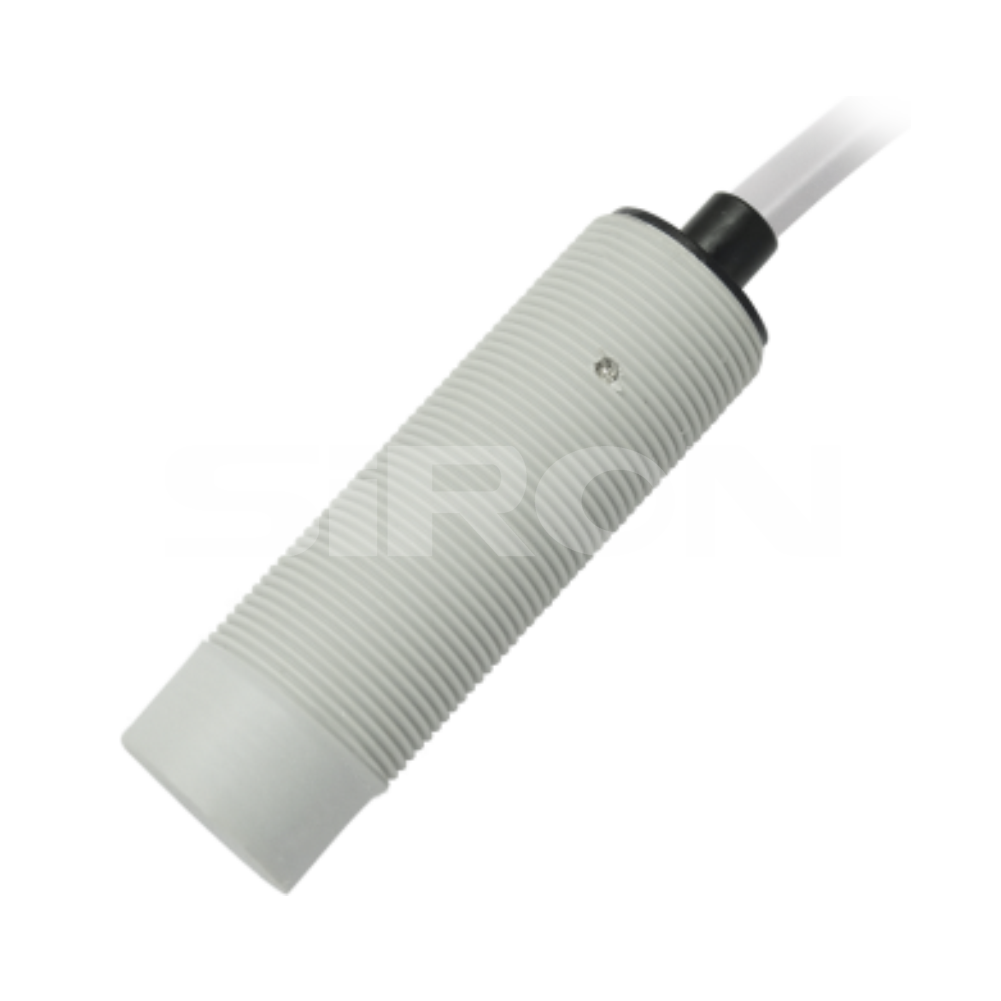

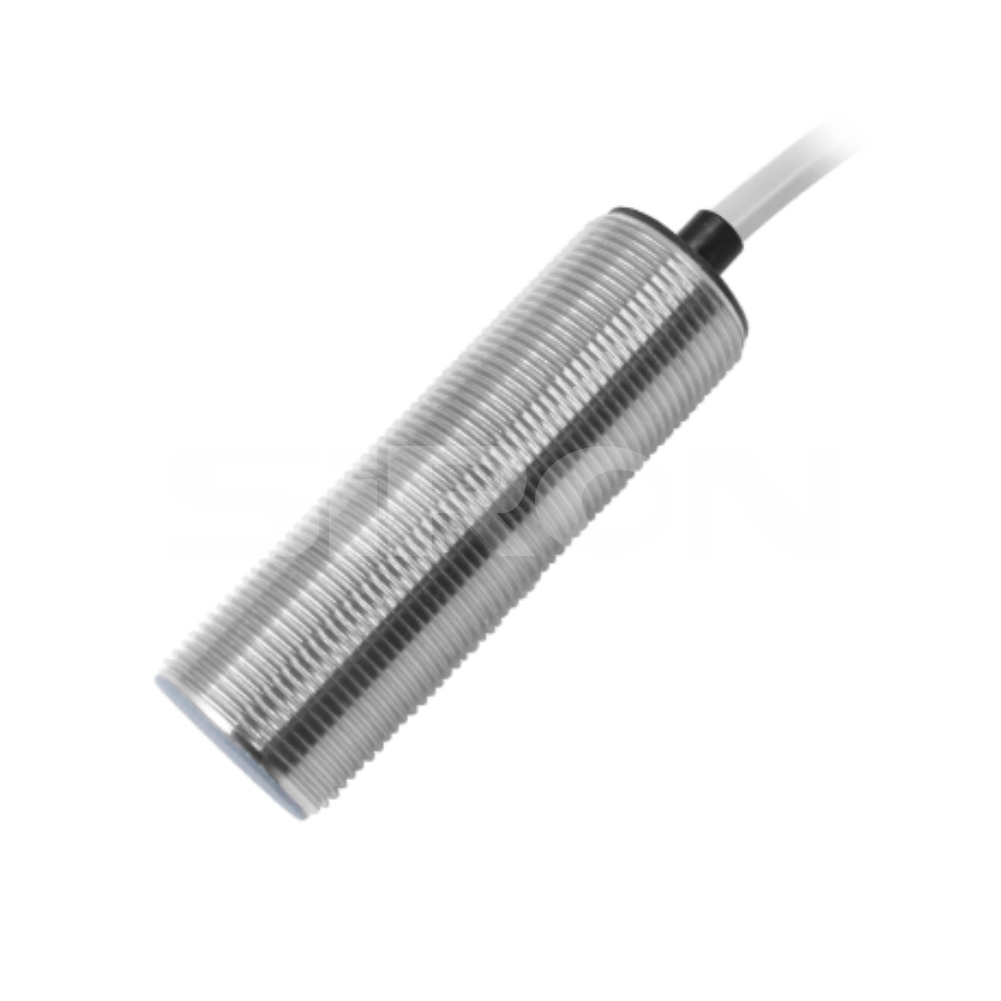

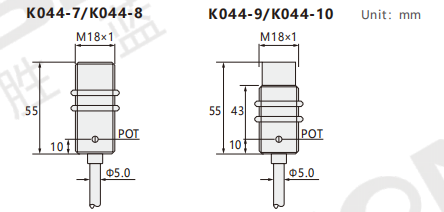

Appearance
Detecion distance		5mm		8mm
Shell material		nickel plated brass	PBT	nickel plated brass	PBT
installation		Flush installation		Non-flush installation
Thread		M18×1mm
Operating Voltage		10～30V    DC
On-off level		100Hz
Pressure drop		<2VDC
Load current		200mA
No-load curent		<10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜5%(Sr)
Ambient temperature		-25～70℃
Enclosure rating		IP67
Sensing surface materia		PBT
Cable		PVC cable；3×0.35mm²
Cable length		2M

Example

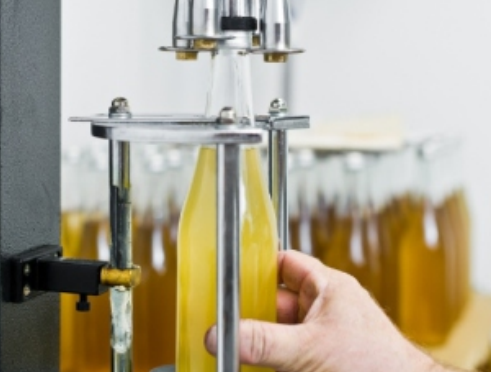

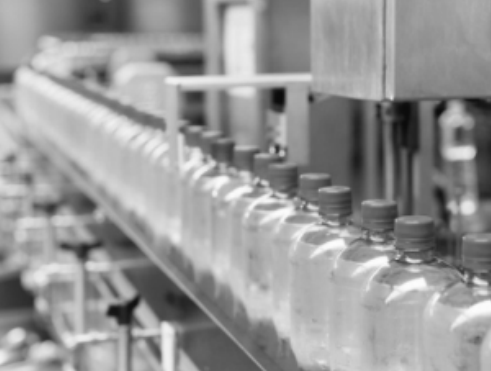

  Inspection of beverages on the production line                     Detection of liquid level
