SiRON K044-17 Series Capacitive Proximity Switch

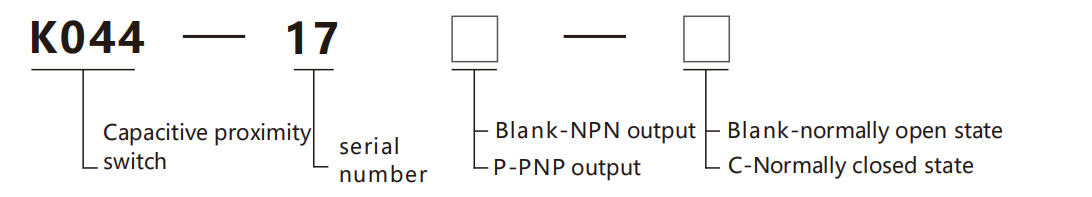

About selection

Selection example：K044-17 indicates the K044 series, serial number 17, with NPN output,                                                                                                         normally open state;

                                       K044-17P-C indicates the K044 series，serial number 17, with PNP output,

                                        normally closed state.

Specifications

Name	Capacitive proximity switch
Model	K044-17	K044-17C	K044-17P	K044-17P-C

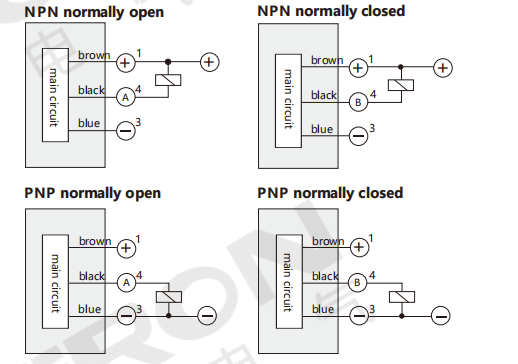

Output state	NPN    N.O	NPN   N.C	PNPN.O	PNPN.C

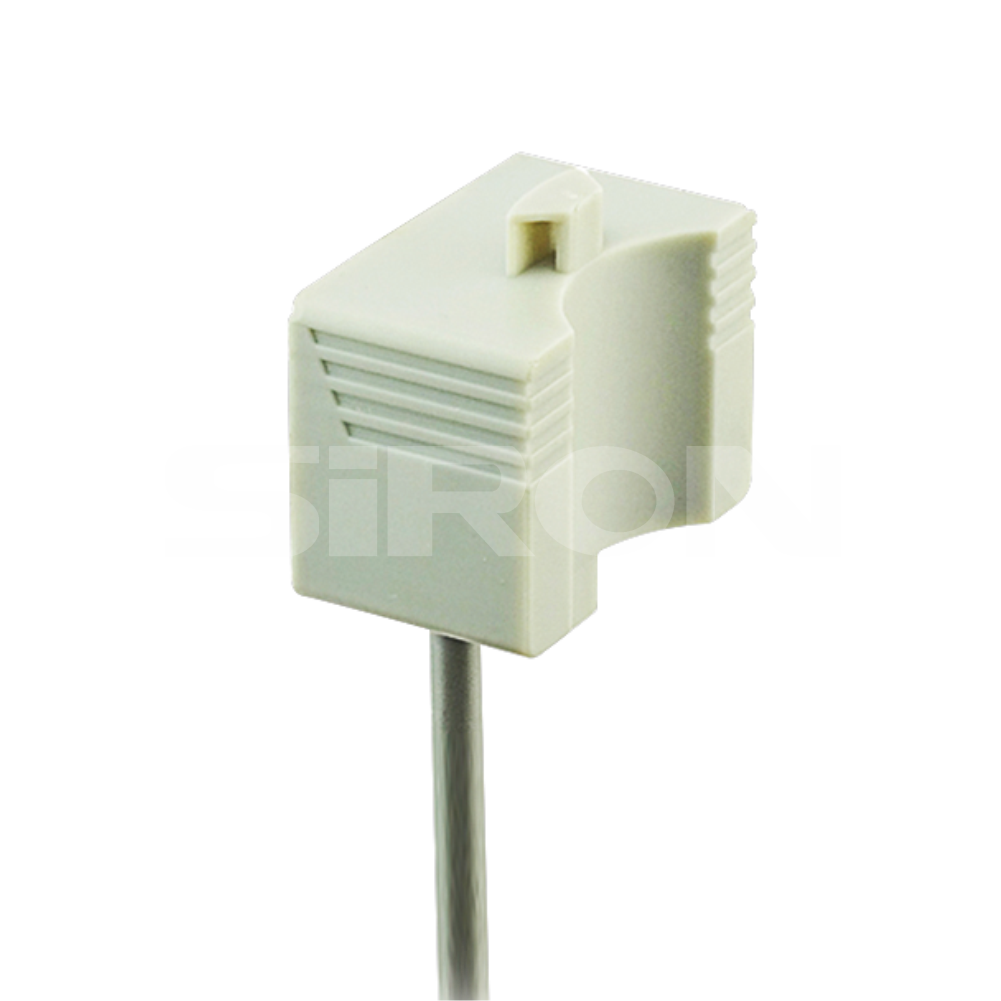

Appearance
Detection distance	3mm
installation	Flush installation
Operating Voltage	10～30V   DC
On-off level	100Hz
Pressure drop	<1VDC
Load current	200mA
No-load current	<12mA(24V)
Hysteresis	<15%(Sr)
Repeatability	<5%(Sr)
Ambient temperature	-25~70℃
Endosure rating	IP67
Shll material	ABS
Sensing surface material	ABS
Cable	PVC cable；3×0.25mm²
Cable length	2M

Example

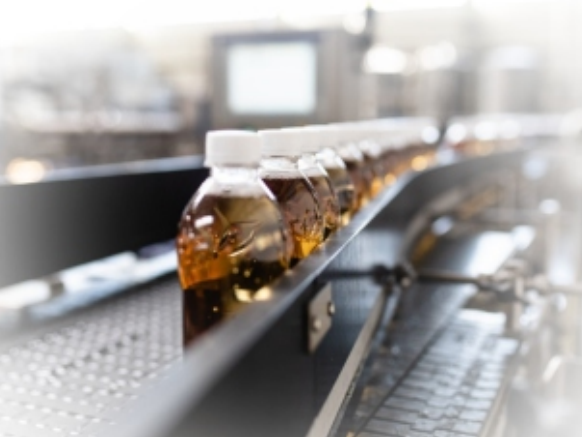

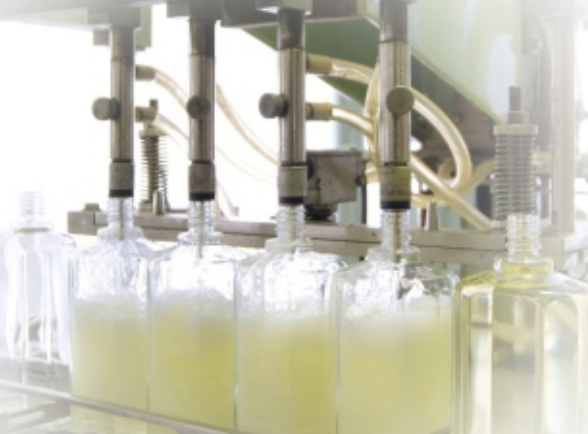

 Check if there is any liquid in the packaging bottle            Control of packaging liquid level
