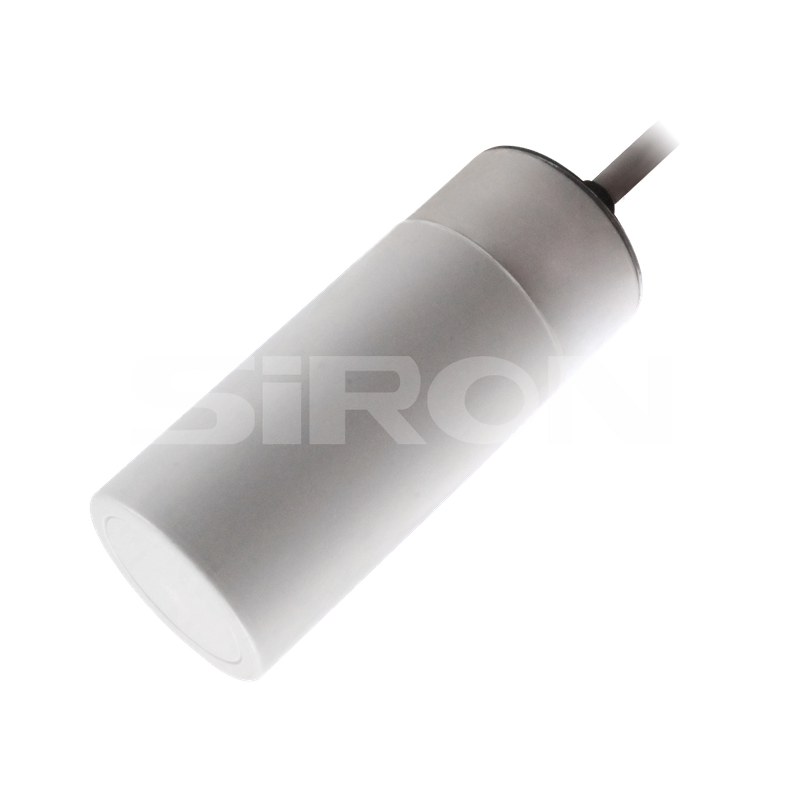

SiRON K044-15～K044-16 Series Φ34 Capacitive Proximity Switch

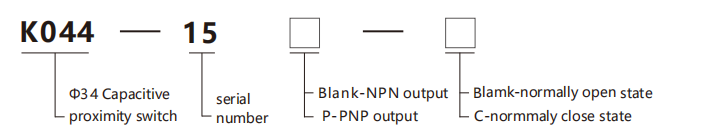

About selection

Selection example：K044-15 indicates the K044 series, serial number 15, with NPN output,                                                                                            normally open state;

                                       K044-15P-C indicates the K044 series，serial number 15, with PNP output,

                                        normally close state.

Specifications

Name		φ34 capacitive proximity switch

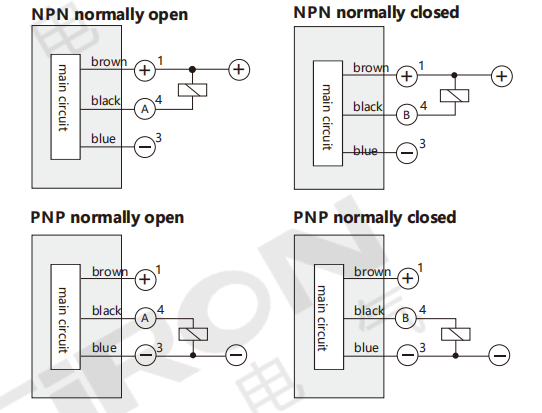

Model	NPN N.O	K044-15	K044-16
	NPN N.C	K044-15C	K044-16C
	PNP   N.O	K044-15P	K044-16P
	PNP  N.C	K044-15P-C	K044-16P-C

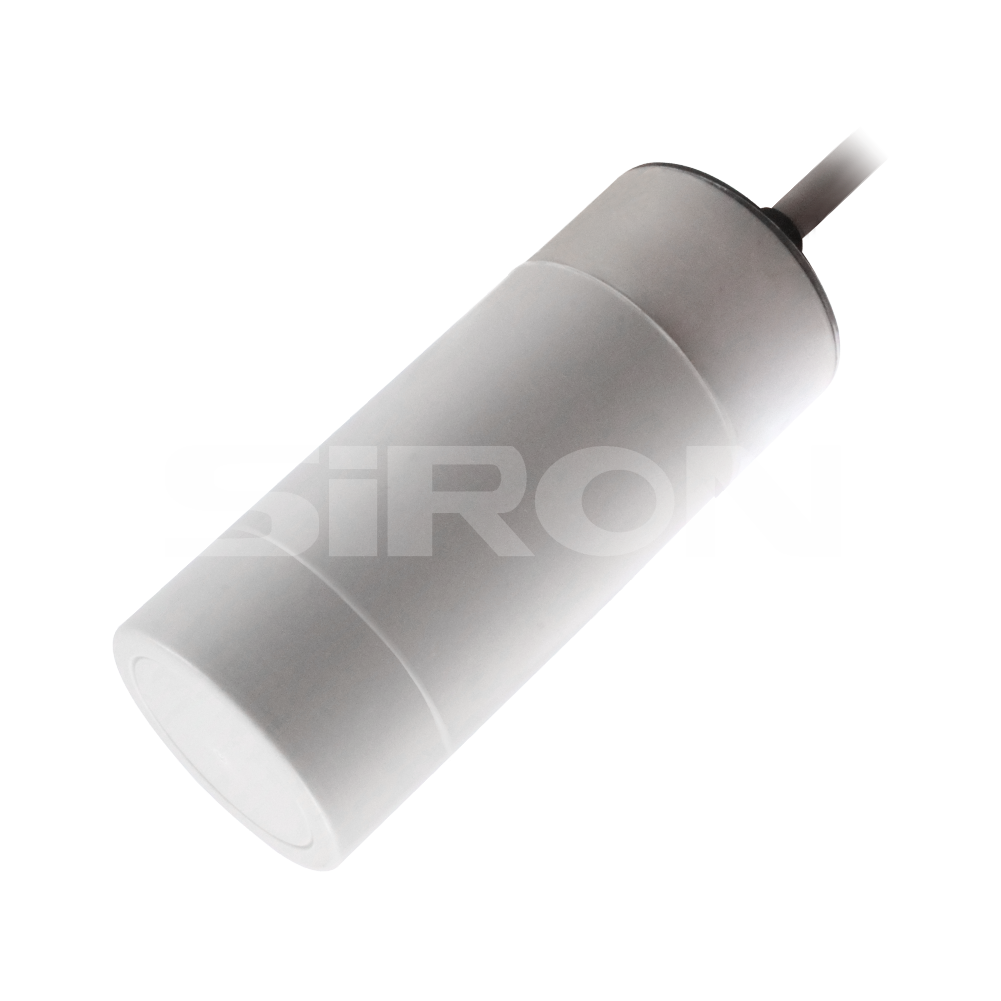

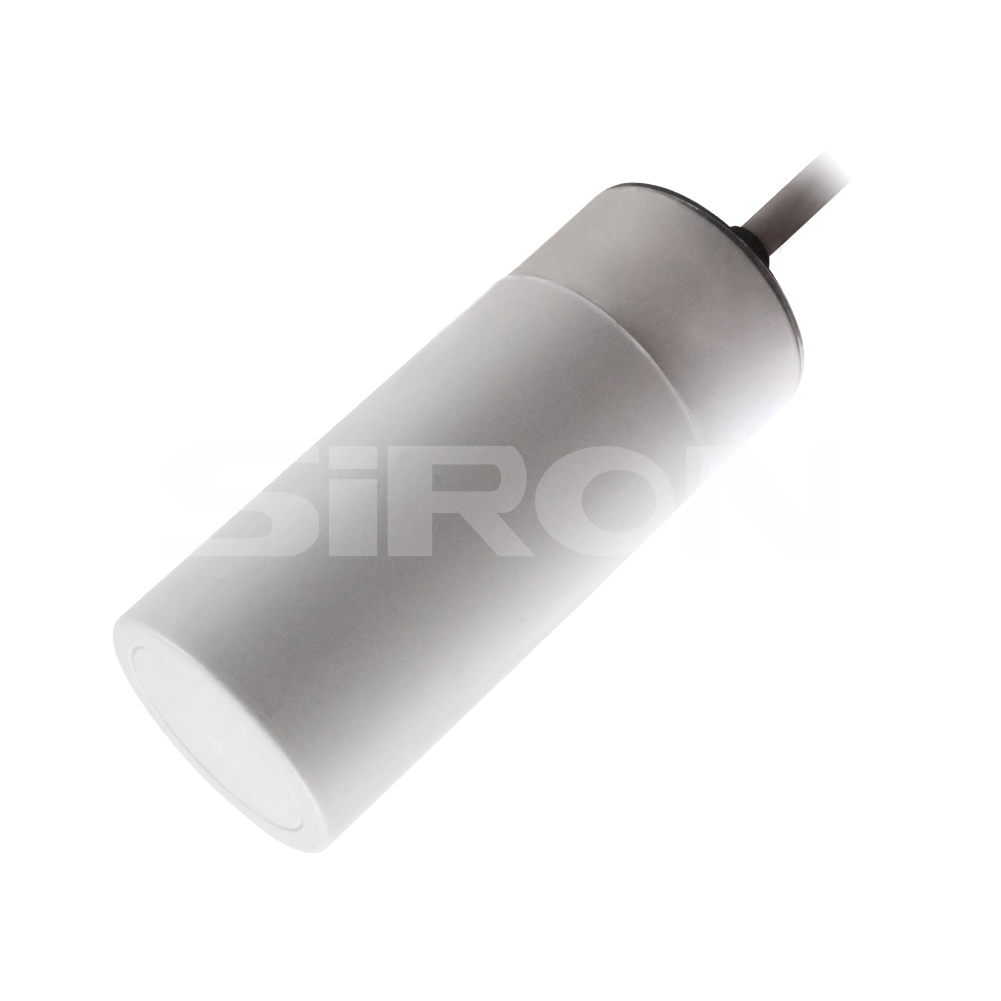

Appearance
Detection distance		2~25mm	2~35mm
Installation		Flush installation	Non-flush installation

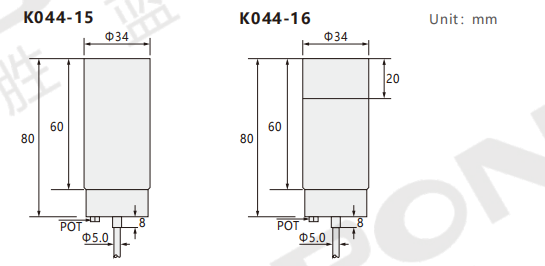

diameter		Φ3 4 m m
Operating Voitage		10～30VDC
On-offlevel		100Hz
Pressure drop		<2VDC
Load curent		200mA
No-load cument		<10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<5%(Sr)
Ambient temperature		-25~70℃
Enclosure rating		IP67
Shell material		PBT
Sensing surface material		PBT
Cable		PVC cable；3×0.35mm²
Cable length		2M

Example

   Aluminum can inspection                                                            Control and detection of the incoming liquid position
