SiRON K044-11～K044-14series M30 Capacitive Proximity Switch

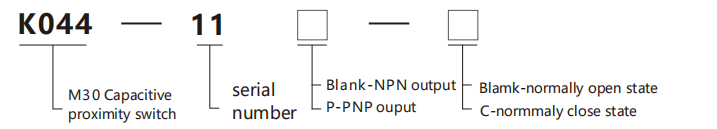

About selection

Selection example：K044-11 indicates the K044 series, serial number 11, with NPN output,                                                                                                         normally open state;

                                       K044-11P-C indicates the K044 series，serial number 11, with PNP output,

                                        normally close state.

Specifications

Name		M30 capacitive proximity switch

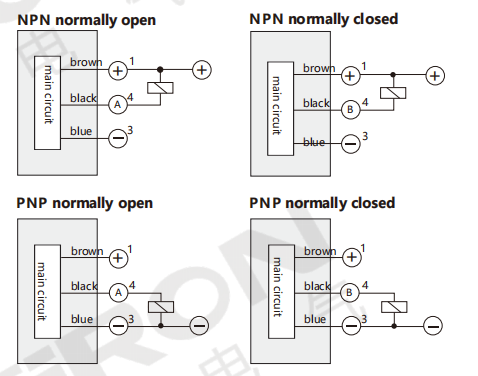

Model	NPN N.O	K044-11	K044-12	K044-13	K044-14
	NPN N.C	K044-11C	K044-12C	K044-13C	K044-14C
	PNP   N.O	K044-11P	K044-12P	K044-13P	K044-14P
	PNP   N.C	K044-11P-C	K044-12P-C	K044-13P-C	K044-14P-C

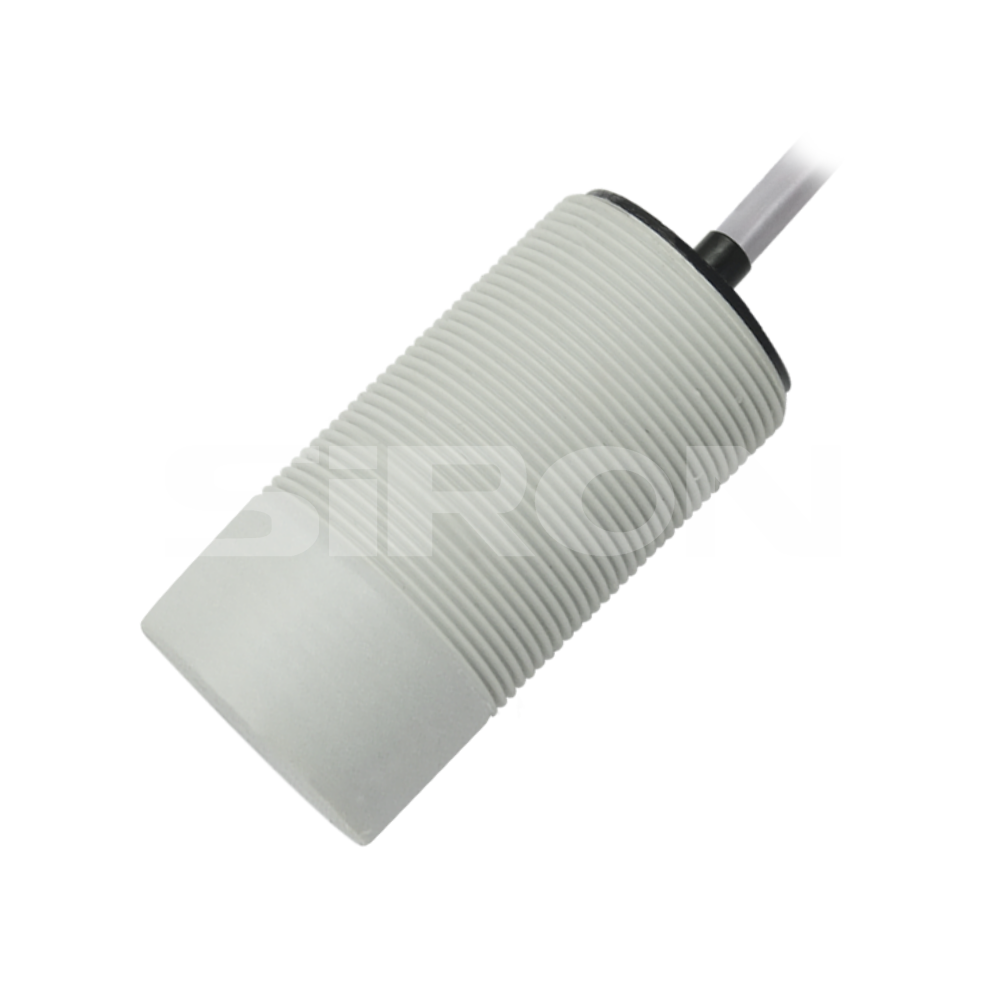

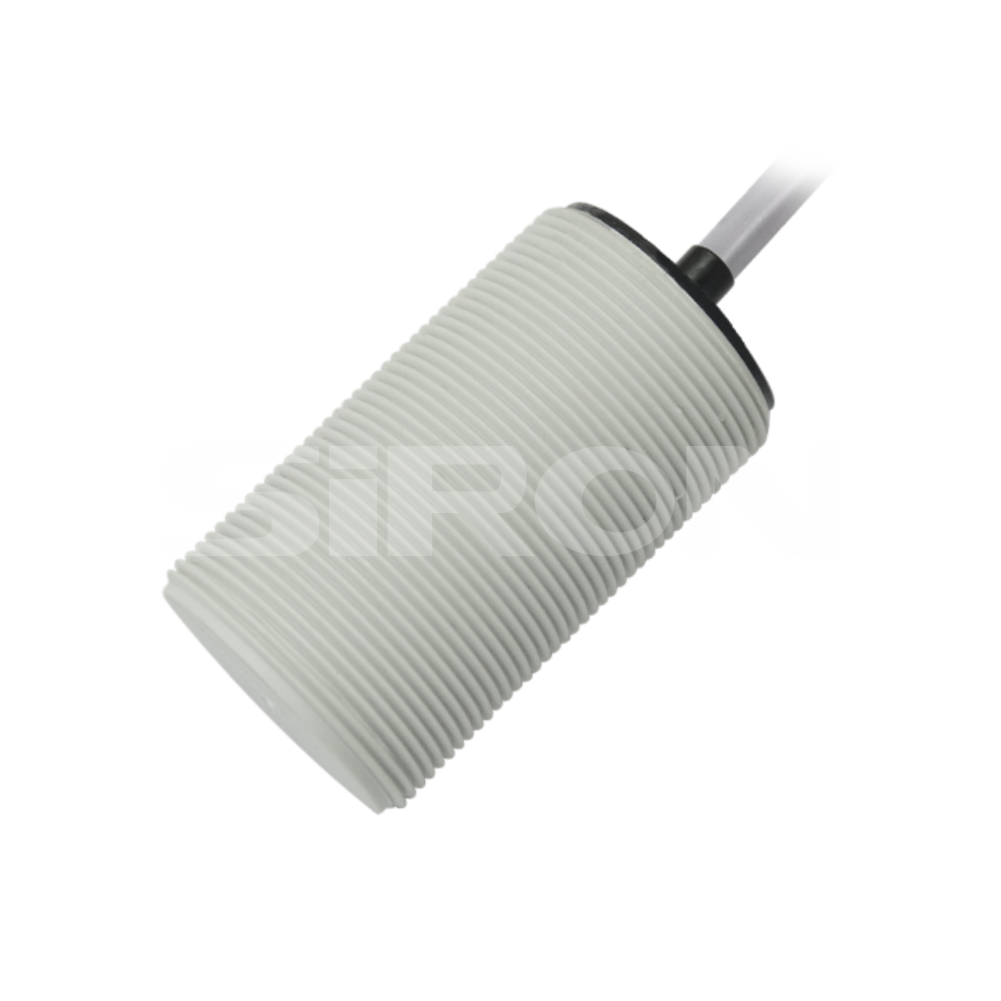

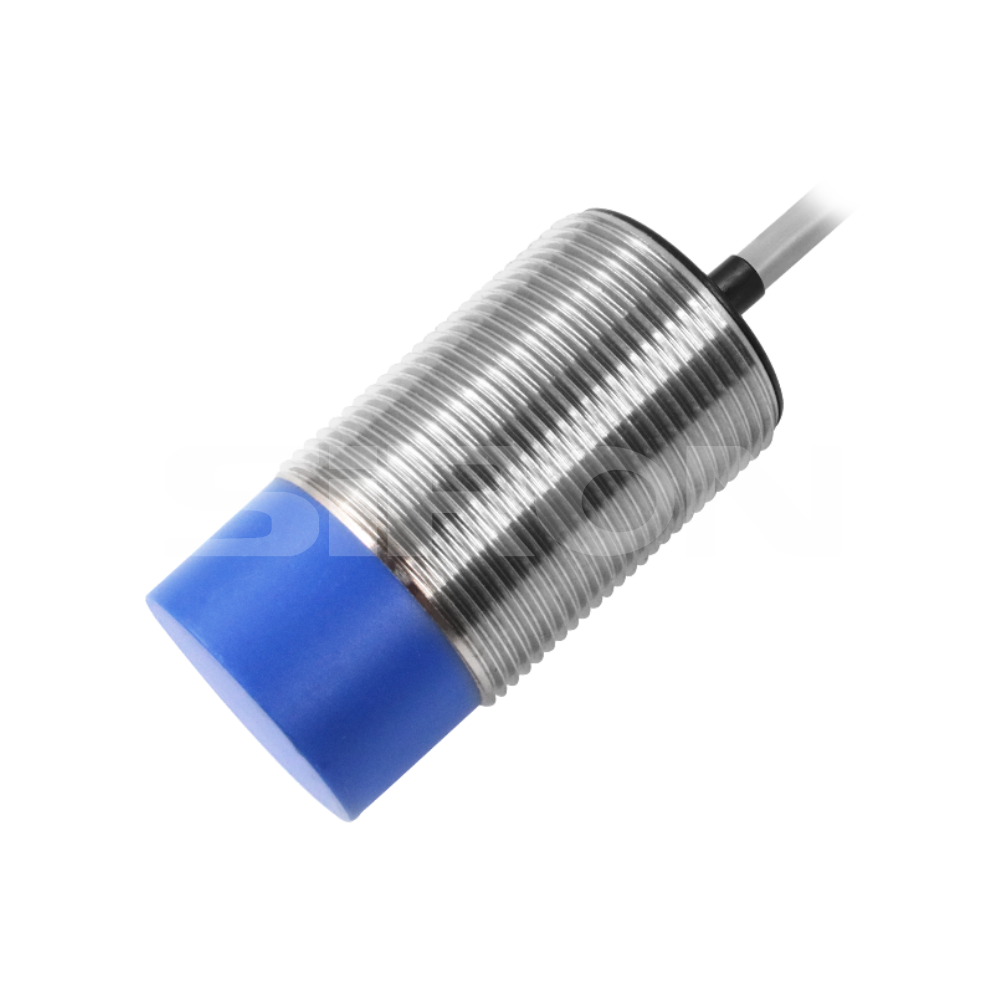

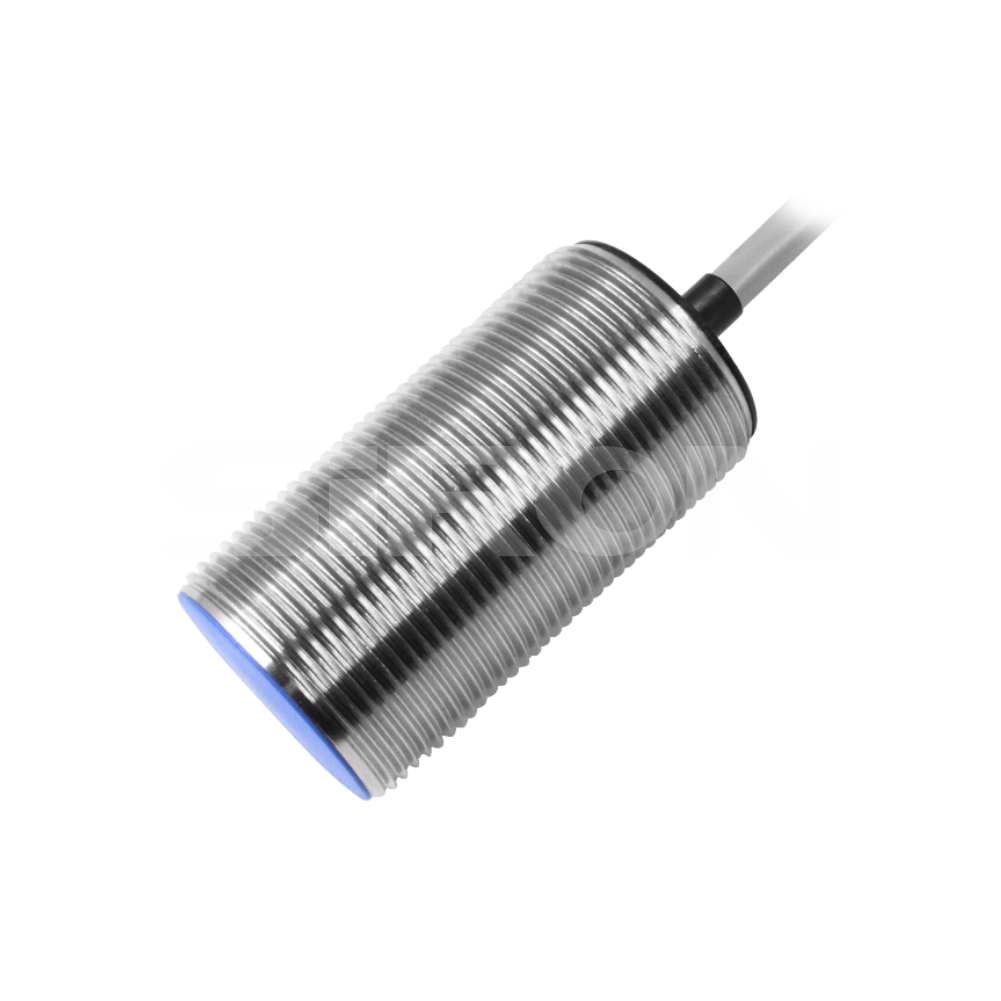

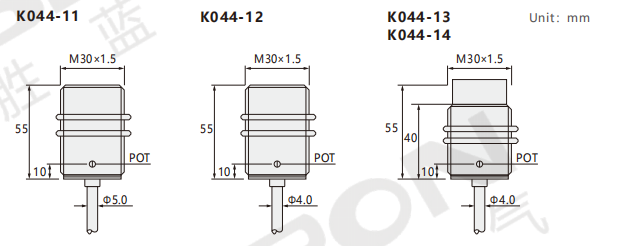

Appearance
Detection distance		10mm		15mm
Shell material		Nickel plated brass	PBT	Nickel plated brass	PBT
Installation		Flush installation		Non-flush installation
Thread		M30×1.5mm
Operating Voltage		10～30V   DC
On-offlevel		100Hz
Pressure drop		<2VDC
Load current		200mA
No-oad current		<10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<5%(Sr)
Ambient temperature		-25~70℃
Enclosure rating		IP67
Sensing surface materia		PBT
Cable		PVC cable；3×0.35mm²
Cable length		2M

Example

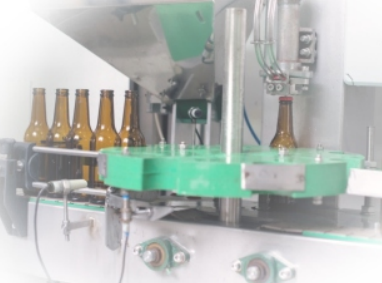

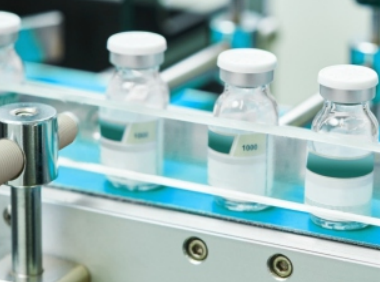

 Detection of the position of the pharmaceutical                     Check if there is any liquid in the packaging bottle

 solution
