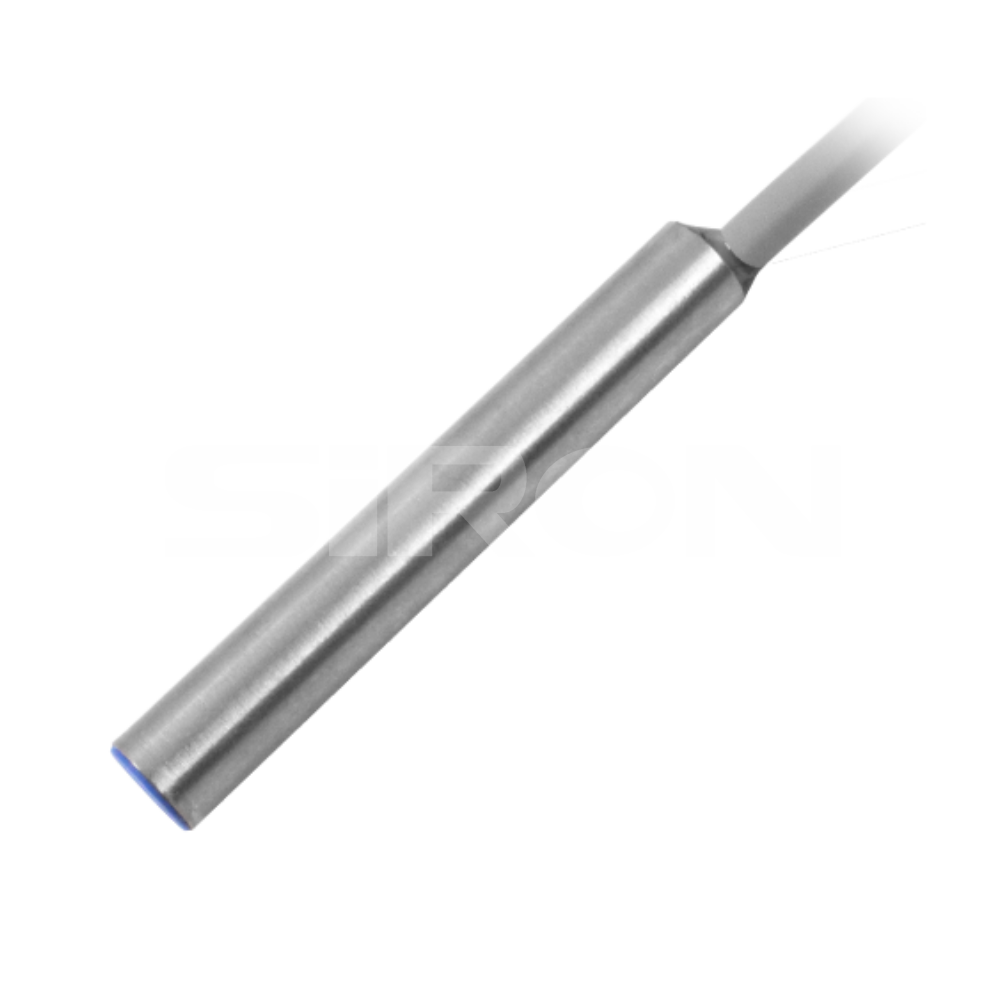

SiRON K040 Series Inductive Proximity Switch Stainless Steel Φ3mm

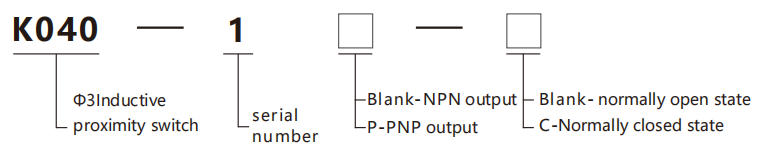

About selection

Selection example：K040-1 indicates the K040 series, serial number 1, with NPN output, normally open state;

                                             K040-1P-C indicates the K040 series, serial number 1, with PNP output, normally close state.

Specifications

Name	Φ3 inductive proximity switch
Model	K040-1	K040-1C		K040-1P		K040-1P-C
Output state	NPN    N.O	NPN    N.C		PNP   N.O		PNP   N.C
Appearance
Detection distance	0.6mm		Hysteresis		<15%(Sr)
installation	Flush mounting		Repeatability		<1.0%(Sr)
Diameter	Φ3mm		Ambient temperature		-25～70℃
Operating Voltage	10～30V    DC		Enclosure rating		IP67
On-off level	2000Hz		Sensing surface material		POM
Pressure drop	<2.0V		Cable		PVC cable；3×0 . 15mm²
Load current	100mA		Cable length		2M
No-load current	<10mA(24V)

Example

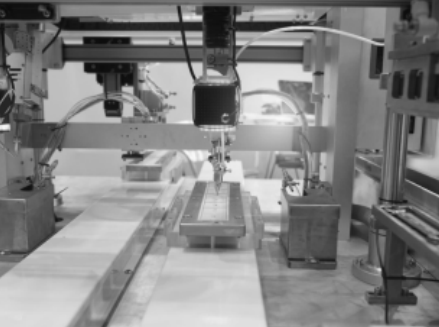

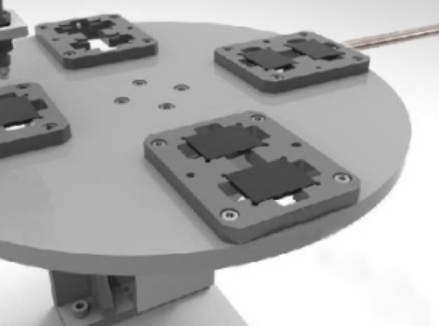

Check the position of the turntable                                                          Empty position detection of workpieces

Dimension

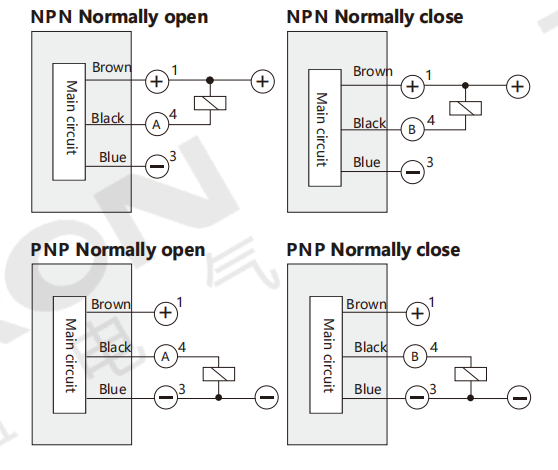

Wiring diagram
