SiRON K040-3～K040-4 Series Φ4mm Inductive Proximity Switch

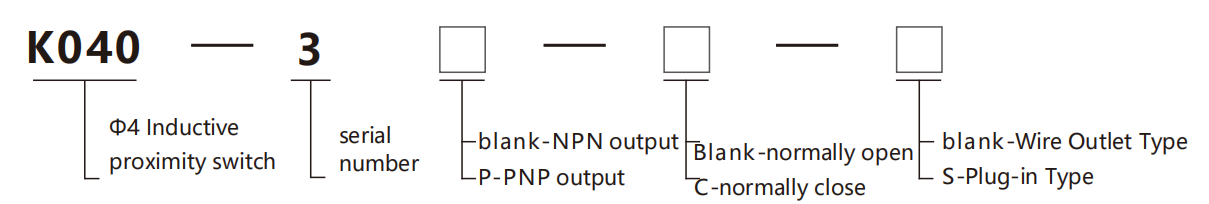

About selection

Selection example：K040-3 indicates the K040 series, serial number 3, with NPN output, normally open state,

                                            Wire Outlet Type.

                                   K040-3-S indicates the K040 series, serial number 3, with NPN output,                                                                                                    normally open state, Plug-in Type.

Specifications

Name		Φ4 inductive proximity switch
Model	NPNN.O	K040-3	K040-3-S	K040-4	K040-4-S
	NPNN.C	K040-3C	K040-3C-S	K040-4C	K040-4C-S
	PNP N.O	K040-3P	K040-3P-S	K040-4P	K040-4P-S
	PNP N.C	K040-3P-C	K040-3P-C-S	K040-4P-C	K040-4P-C-S
Wiring Form		Wire Outlet Type	Plug-in Type	Wire Outlet Type	Plug-in Type

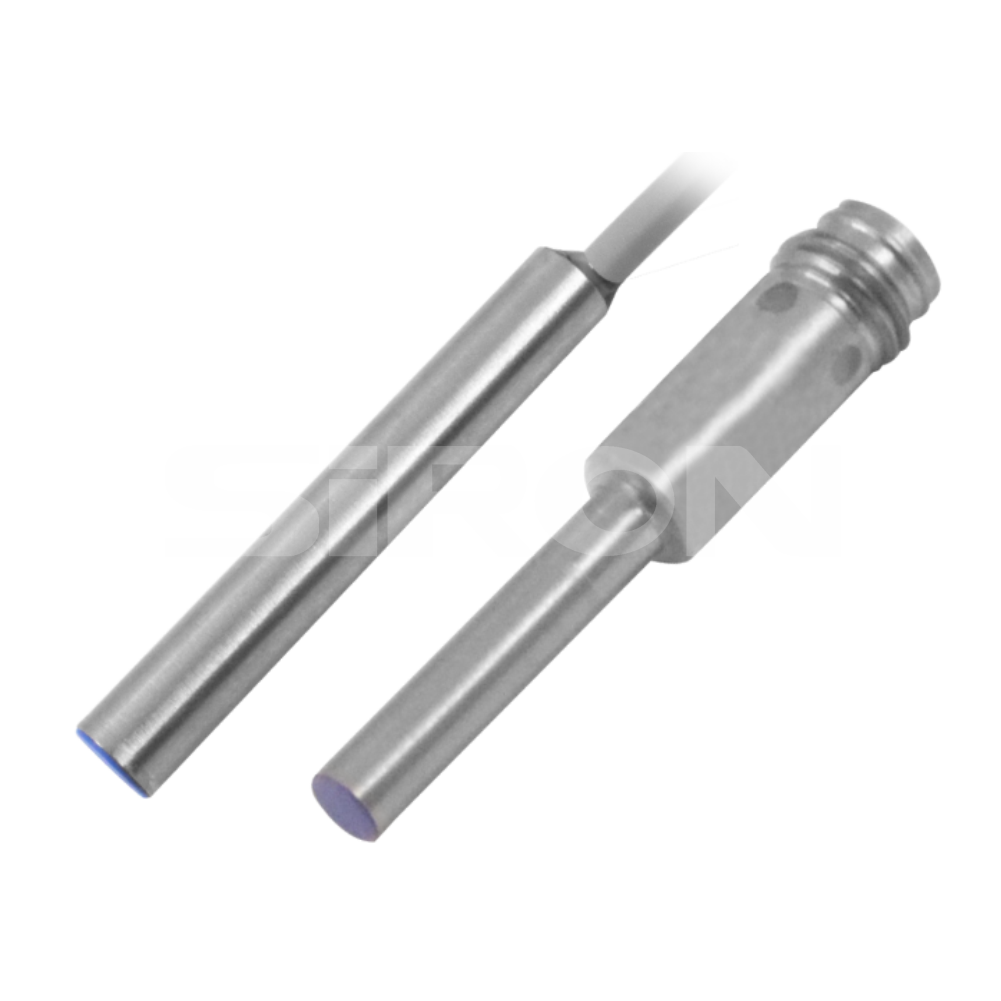

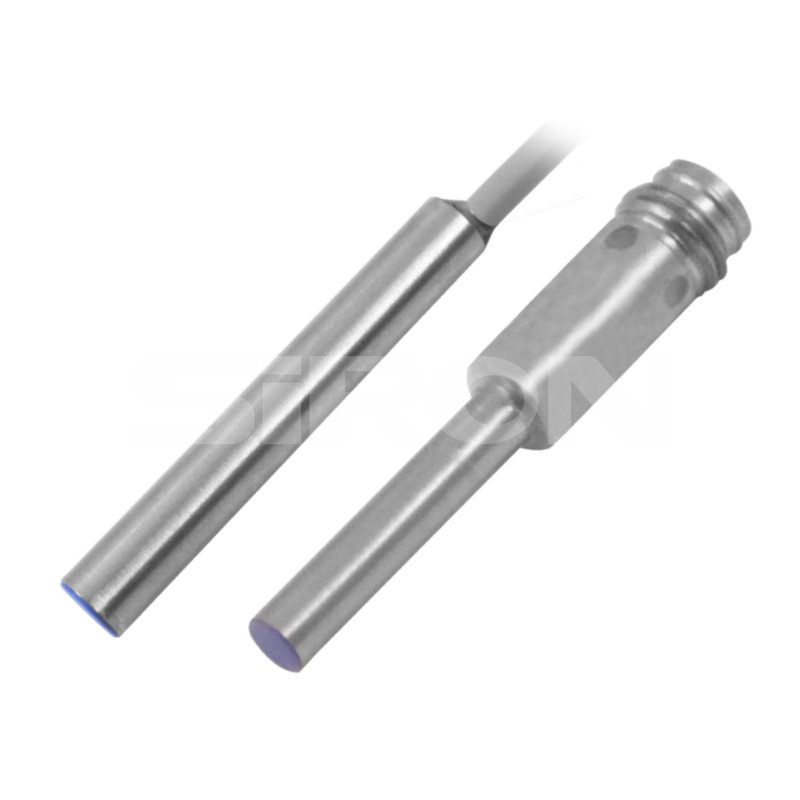

Appearance
Detection distance		0.8mm		1.2mm
Installation		Flush installation
Diameter		φ4mm
Operating Voltage		10～30V DC
On-off level		2000Hz
Pressure drop		<2.0V
Load current		100mA
No-load current		<10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambient temperature		-25~70℃
Enclosure rating		IP67
Sensing surface material		POM
Cable		Wire Outlet Type：PVC cable；3×0.15mm²; Plug-in Type：M8 connector
Cable length		2M

Example

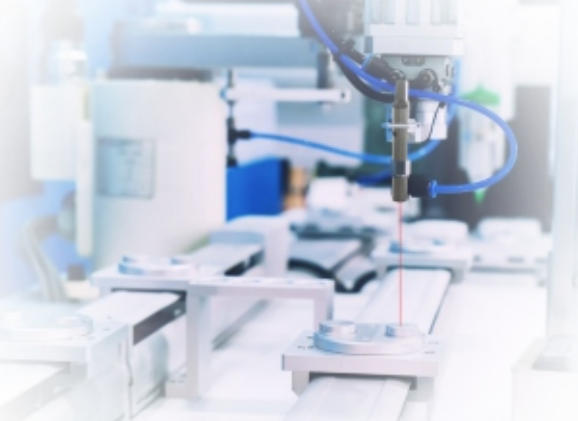

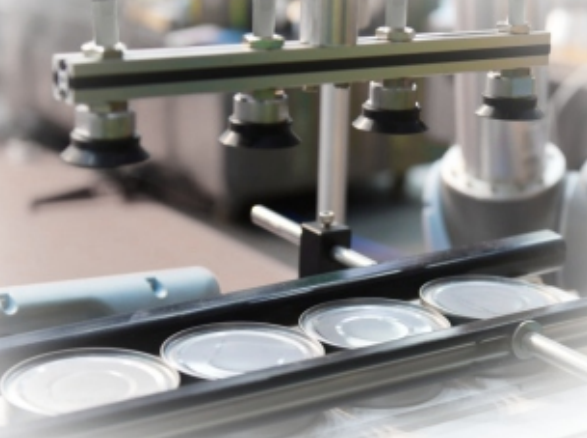

 Aluminum can inspection                                                          Detection of workpiece position

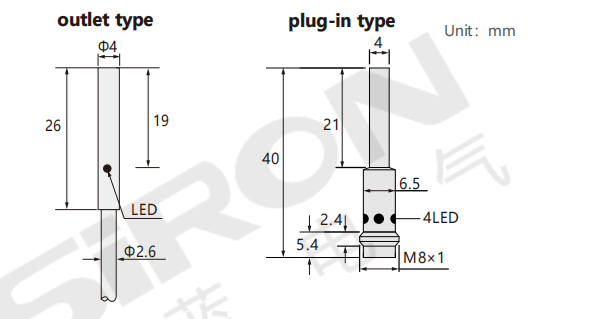

Dimension

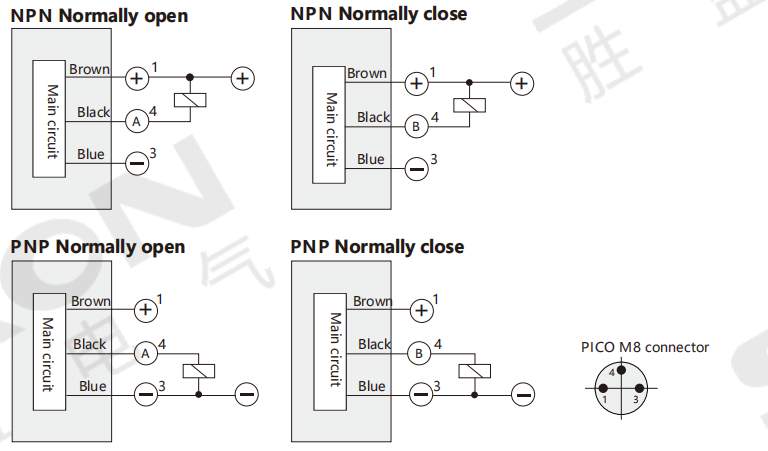

Wiring diagram
