SiRON K040-2 Series M4 Inductive Proximity Switch Stainless Steel

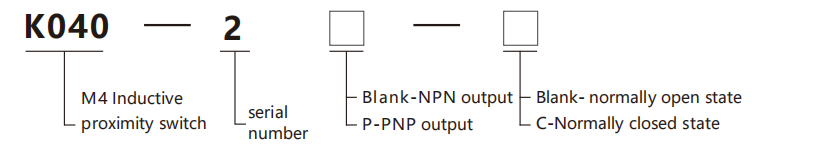

About selection

Selection example：K040-2 indicates the K040 series, serial number 2, with NPN output, normally open state;

                                             K040-2P-C indicates the K040 series, serial number 2, with PNP output, normally closed state.

Specifications

Name	M4 inductive proximity switch
Model	K040-2	K040-2C		K040-2P		K040-2P-C
Output state	NPN    N.O	NPN    N.C		PNP   N.O		PNP   N.C

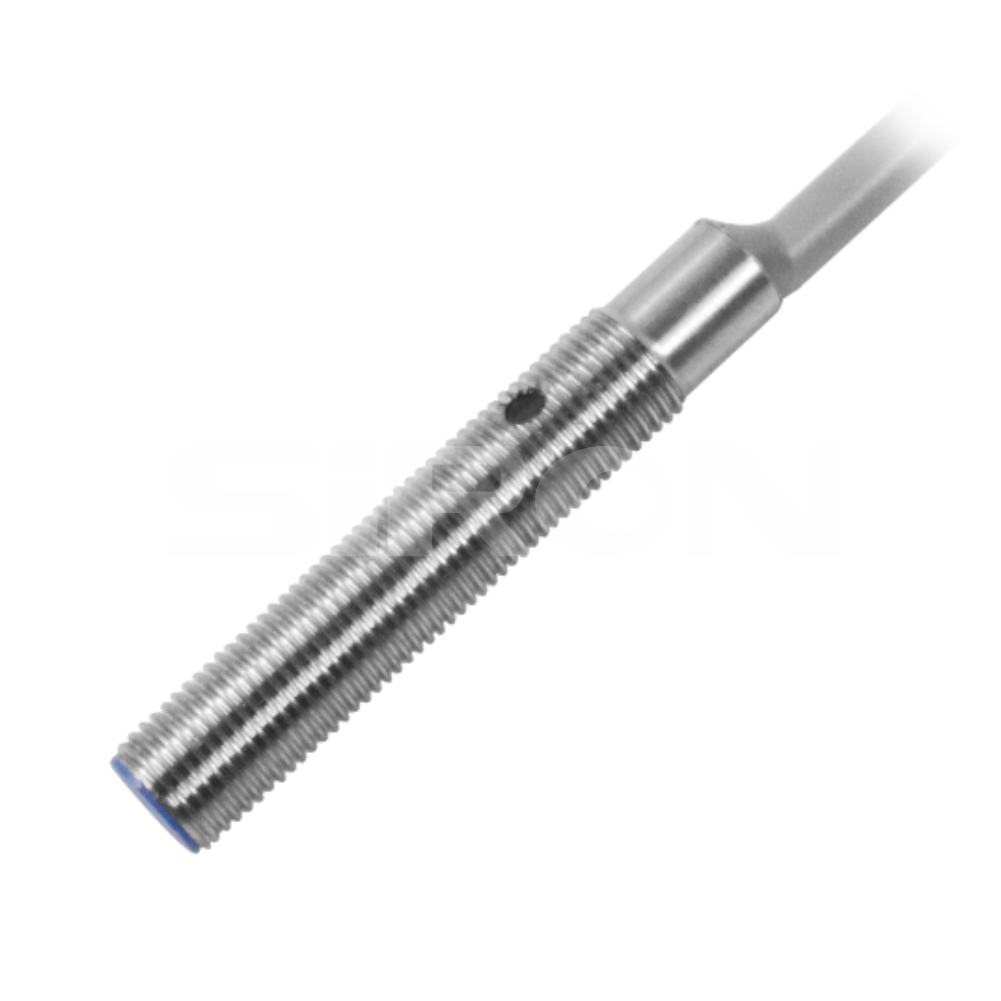

Appearance
Detection distance	0.6mm		Hysteresis		<15%(Sr)
installation	Flush installation		Repeatability		<1.0%(Sr)
Thread	M4×0.5mm		Ambient temperature		-25～70℃
Operating Voltage	10～30V    DC		Enclosure rating		IP67
On-off level	2000Hz		Sensing surface material		POM
Pressure drop	<2.0V		Cable		PVC cable；3×0 . 15mm²
Load current	100mA		Cable length		2M
No-load current	<10mA(24V)

Example

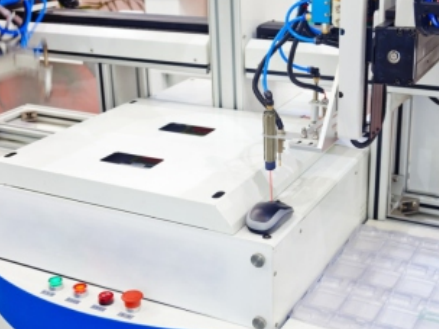

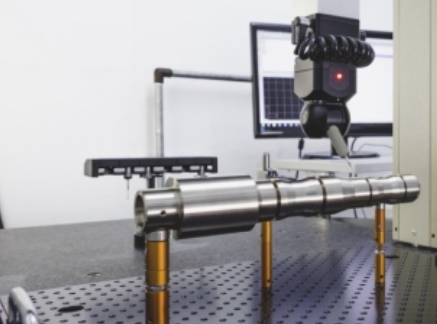

  Product material testing                                                            Inspection of metal workpieces

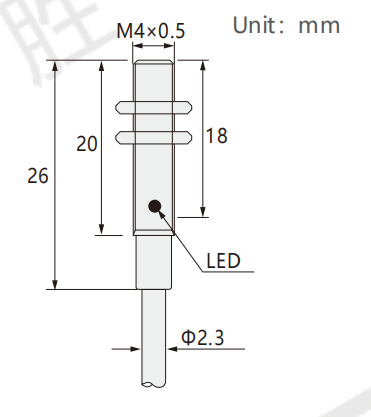

Dimension

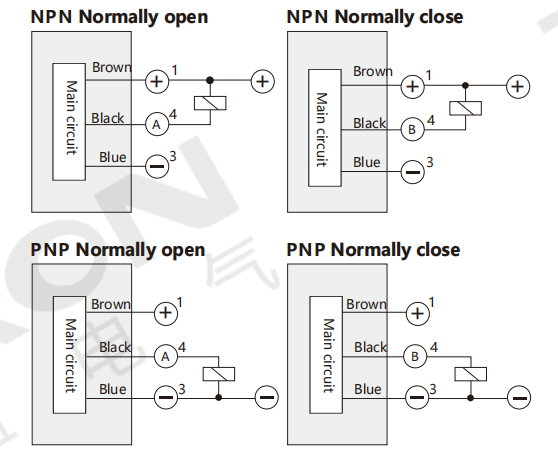

Wiring diagram
