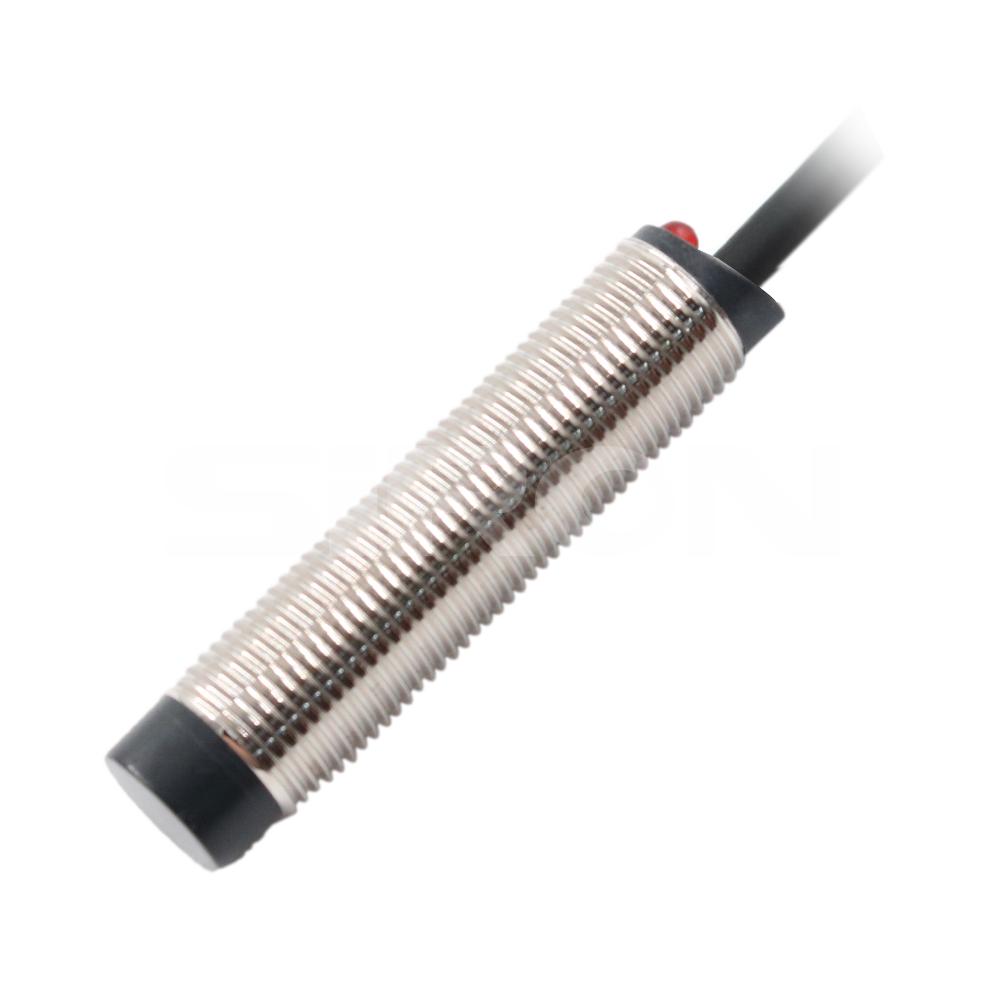

SiRON K022~K023 Series Proximity Switch Sensor

About selection

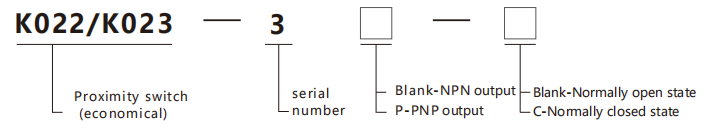

Selection example：K022-3 indicates the K022 series, serial number 3, with NPN output, normally open state;

                                        K022-3P-C indicates the K022 series, serial number 3, with PNP output., normally closed state.

Note: K022-2/K022-2P has been discontinued and can be replaced by K025-4.

Specifications

Name

Proximity switch (economical)

Model

NPNN.O

K022-1

K023-1

/

K023-2

K022-3

K023-3

K022-4

K023-4

K022-5

K023-5

K022-6

K023-6

NPNN.C

K022-1C

K023-1C

K022-2C

K023-2C

K022-3C

K023-3C

K022-4C

K023-4C

K022-5C

K023-5C

K022-6C

K023-6C

PNPN.O

K022-1P

K023-1P

/

K023-2P

K022-3P

K023-3P

K022-4P

K023-4P

K022-5P

K023-5P

K022-6P

K023-6P

PNPN.C

K022-1P-C

K023-1P-C

K022-2P-C

K023-2P-C

K022-3P-C

K023-3P-C

K022-4P-C

K023-4P-C

K022-5P-C

K023-5P-C

K022-6P-C

K023-6P-C

Appearance

Size

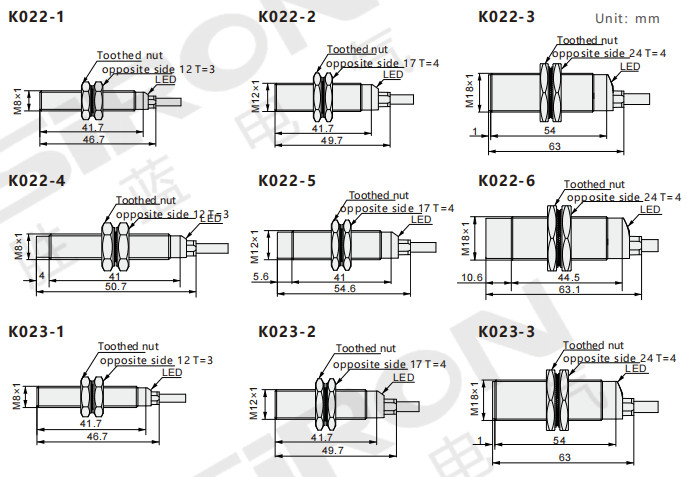

M8×46mm

M12×49mm

M18×63mm

M8×50mm

M12×55mm

M18×64.5mm

Installation method

Embedded sensor

Non-embedded structure

Detection distance

1.5mm±10%

2mm±10%

2mm±10%

4mm±10%

5mm±10%

8mm±10%

2mm±10%

4mm±10%

4mm±10%

8mm±10%

8mm±10%

16mm±10%

Operating Voltage

10~30V DC(voltage fluctuation <10%)

Residual voltage

<2.0V

Maximum load current

150mA

Current consumption

<10mA                                              <20mA

<10mA

Leakage current

<0.01mA

On-offlevel

1.5KHz

1KHz

1KHz

300Hz

1KHz

500Hz

1KHz

800Hz

500Hz

150Hz

Repeatability

<1.0%(Sr)

<5.0%(Sr)

<1.0%(Sr)

<5.0%(Sr)

<1.0%(Sr)

Hysteresis

<15%(Sr)

Shell material

stainless steel

nickel-copper

stainless steel

nickel-copper

Sensing surface material

PBT

Operat ing temperature

-25℃~+75℃

Protect the circuit

short-circuit protection

Protection level

IP67

Cable length

2M

Example

Classic cylindrical appearance                                                        Save installation space
