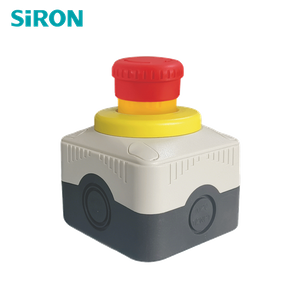

SiRON D170-4A Emergency stop button Robust Double‑Insulated

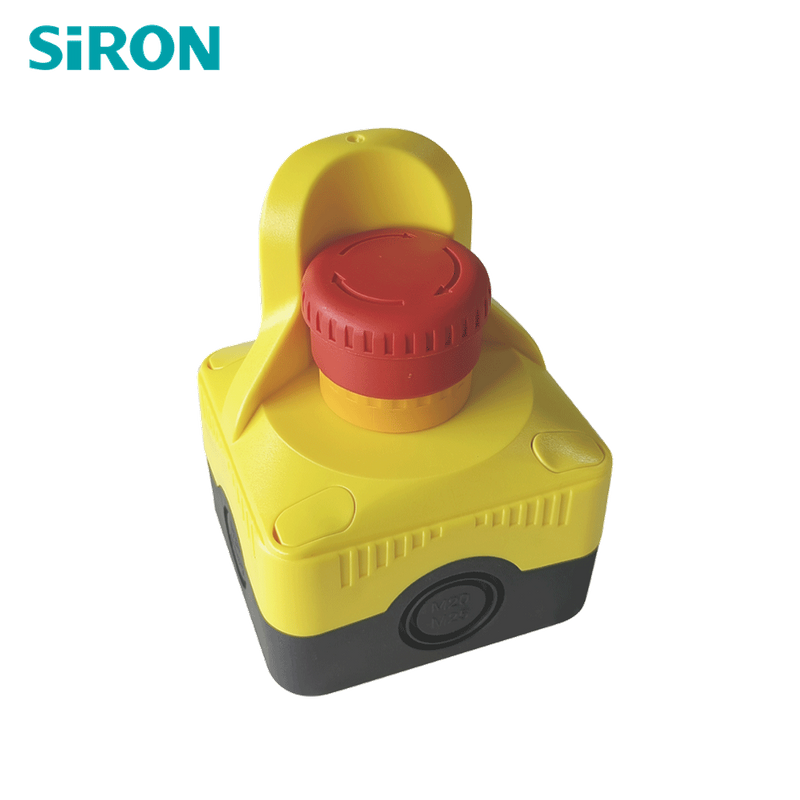

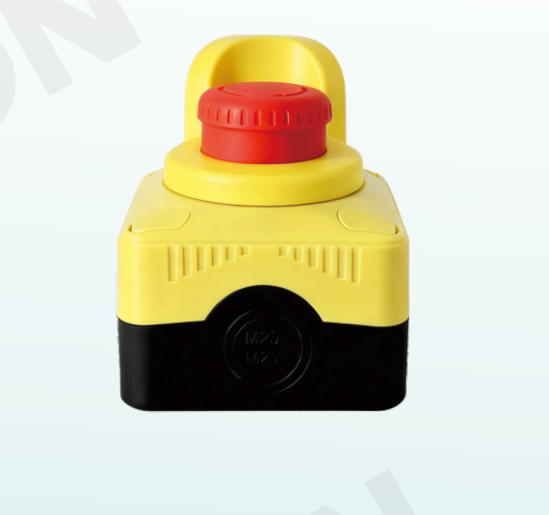

SiRON D170‑4C IP65 Mushroom Head Emergency Stop Push Button

Name: SiRON D170‑4C IP65 Mushroom Head Emergency Stop Push Button
Brand: SiRON
Rating: 5.0 (60 reviews)

* Designed for robustness and ease of installation, it saves working time;
* With indirect beeping and flashing warning function, rotating release;
* Self-extinguishing shock-resistant polycarbonate, featuring double insulation, UV resistance and high impact resistance;
* Removable structure, suitable for use in harsh environments such as those with dirt and moisture；
* Series control circuit design - one button can control multiple devices；
* Three cores, freely combined, with a dual-channel safety architecture, ensuring that the equipment can achieve the purpose of emergency stop when pressed.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
D170-4C
Brand:
SiRON
Code:
9405410000

IP65 emergency stop button durable push button high‑impact emergency button mechanical emergency switch Mushroom‑head push button Multi‑contact safety switch reliable safety button Industrial control button

Product Description

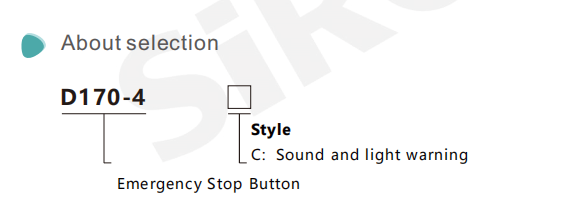

ABOUT SELECTION

Specifications

Model	D170-4C
Appearance
Protection level	IP65
Rated operating voltage	24V DC ±10%
Working current	0.01A
Beep intensity	80dB(@10 cm）
Flicker frequency	1Hz(0.5S NO，0.5S OFF）
Environmental temperature	-25°C~+80°C
Connection type	Spring‑cage connection
Cable cross-sectional area	0.34mm²~1.5mm²
Intravenous catheter inlet	2～2.5 Nm
Intravenous catheter inlet	4 side knock‑out entries: 2 × M20‑1/2NPT, 2 × M20‑1/2NPT ‑M25; 2 base knock-out entries for M16
