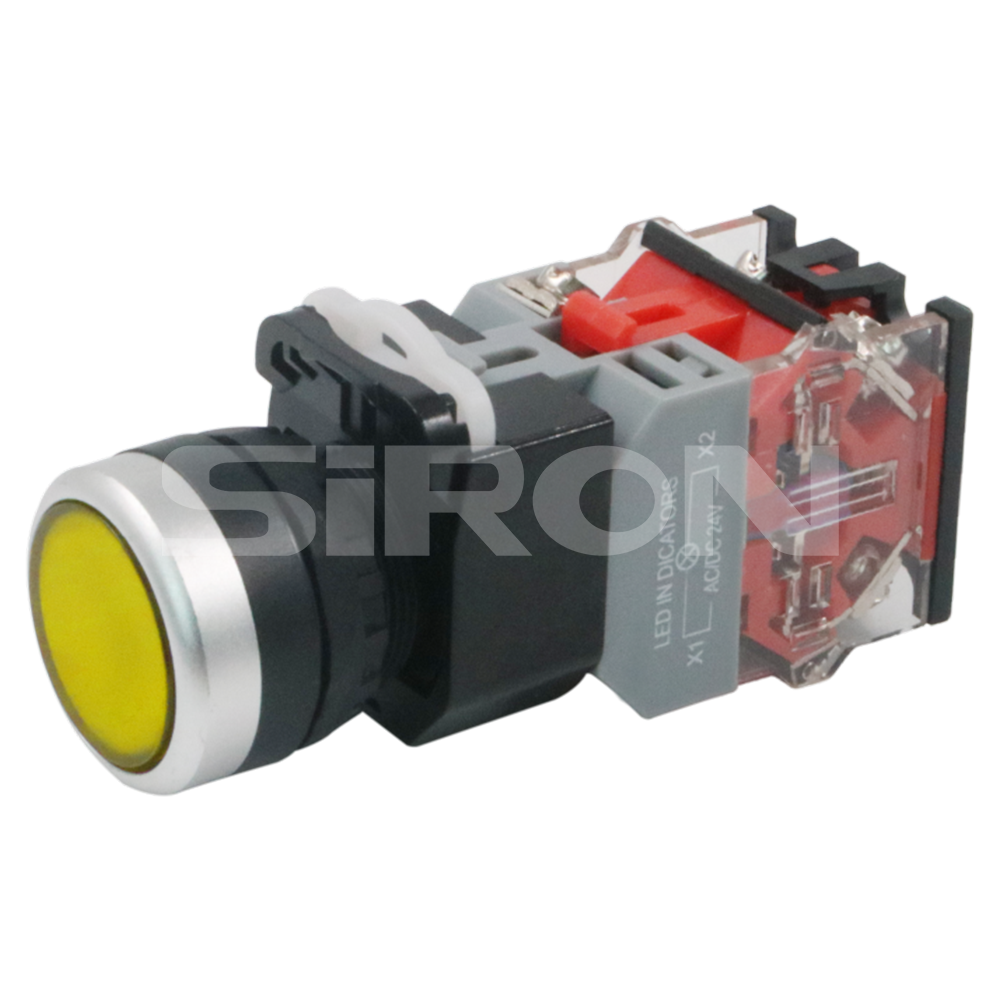

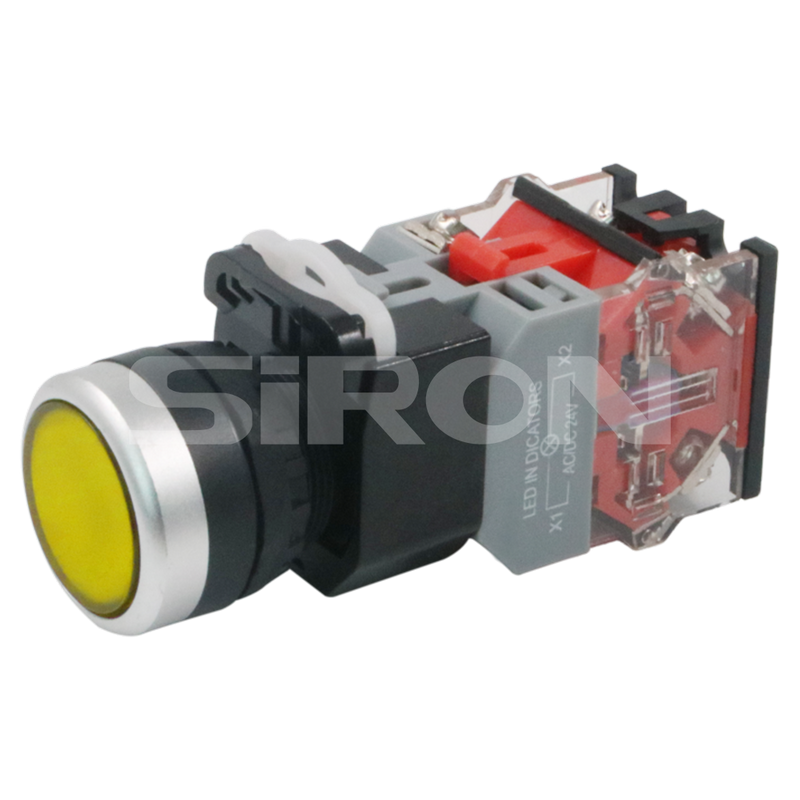

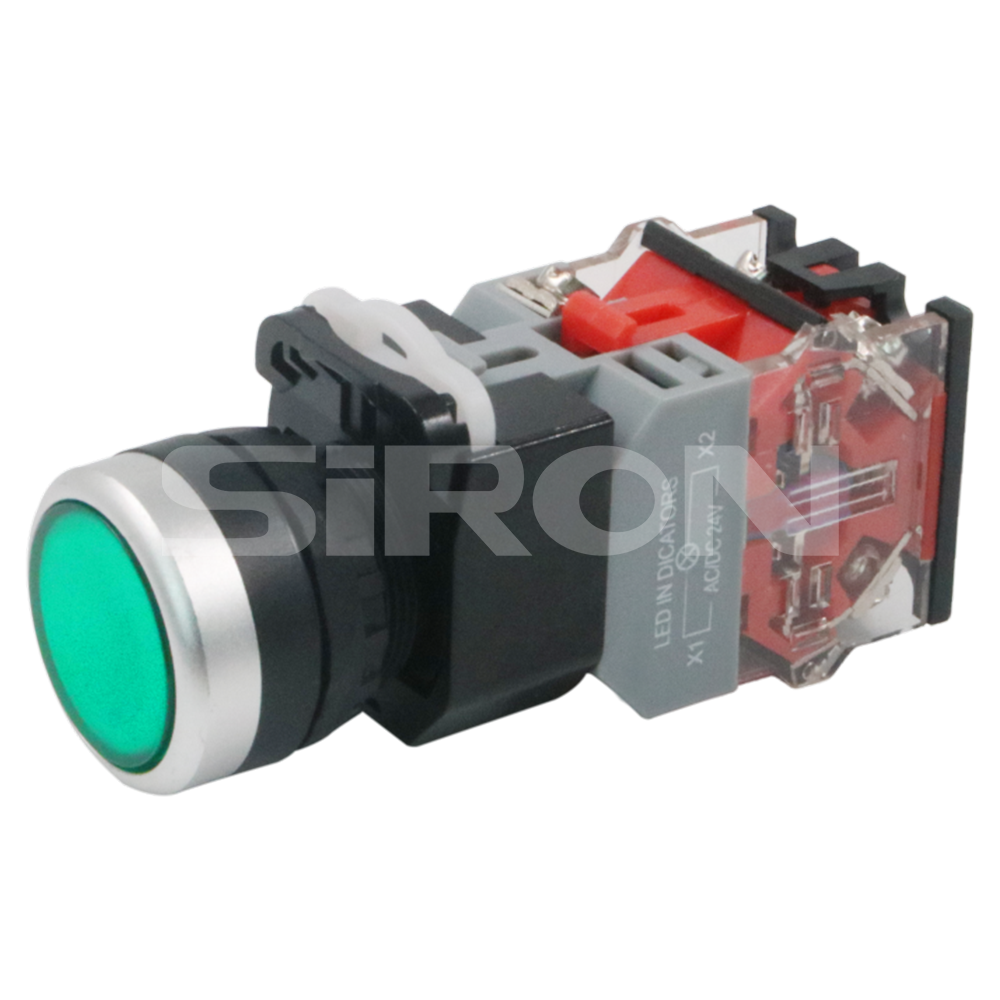

SiRON H011(C) Series Φ22 Silver Alloy Contacts Flat Button

Name: SiRON H011(C) Series Φ22 Silver Alloy Contacts Flat Button
Brand: SiRON
Rating: 5.0 (18 reviews)

Features

Heat-resistant, shock-resistant, light-weight mechanical key press, long service life, stable and reliable;
Normally open and normally closed contacts adopt separate insulation structure and sliding designto protect circuit safety;
The product cap is made of new material, anti-oxidation, beautiful, safe and durable;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

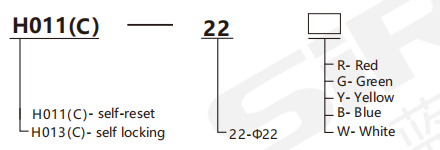

Order

378728fb610fbbf8317fe2bc637d7e85

Technical Features

Model		H011(C) series	H013(C) series
Operation type		Self-reset	Self locking
The environment temperature		-25℃~+55℃There must be good air circulation around the lighting switch body (no freezing)
Environment humidity		45～85%RH(No condensation)
Contact structure		1NO 1NC
Contact material		Silver, cadmium oxide in silver, gold plating in silver, thick coating3μm
Contact resistance/insulation resistance		≤50MΩ/≥100MΩ
Vibration resistance		50Hz,Amplitude approximately1 . 2mm
Impact resistance		>10g
Dielectric strength		3000V,AC50Hz
Mechanical/electrical life		100More than 30,000 times/ten thousand times
Wiring		Threaded connection, maximum wire diameter: 2×1.5⊃2; Wiring plug: 6.3×0.8⊃2;
Operating force		800gf to 2200gf, depending on the number of switching elements
Operating limits		(Button) approximately 3MM
Switch rating	Heating current	10A
	Rated insulation voltage	AC600V
	Rated voltage	24V
	DC	10A
	A C	P.F=1;P.F=0.7
