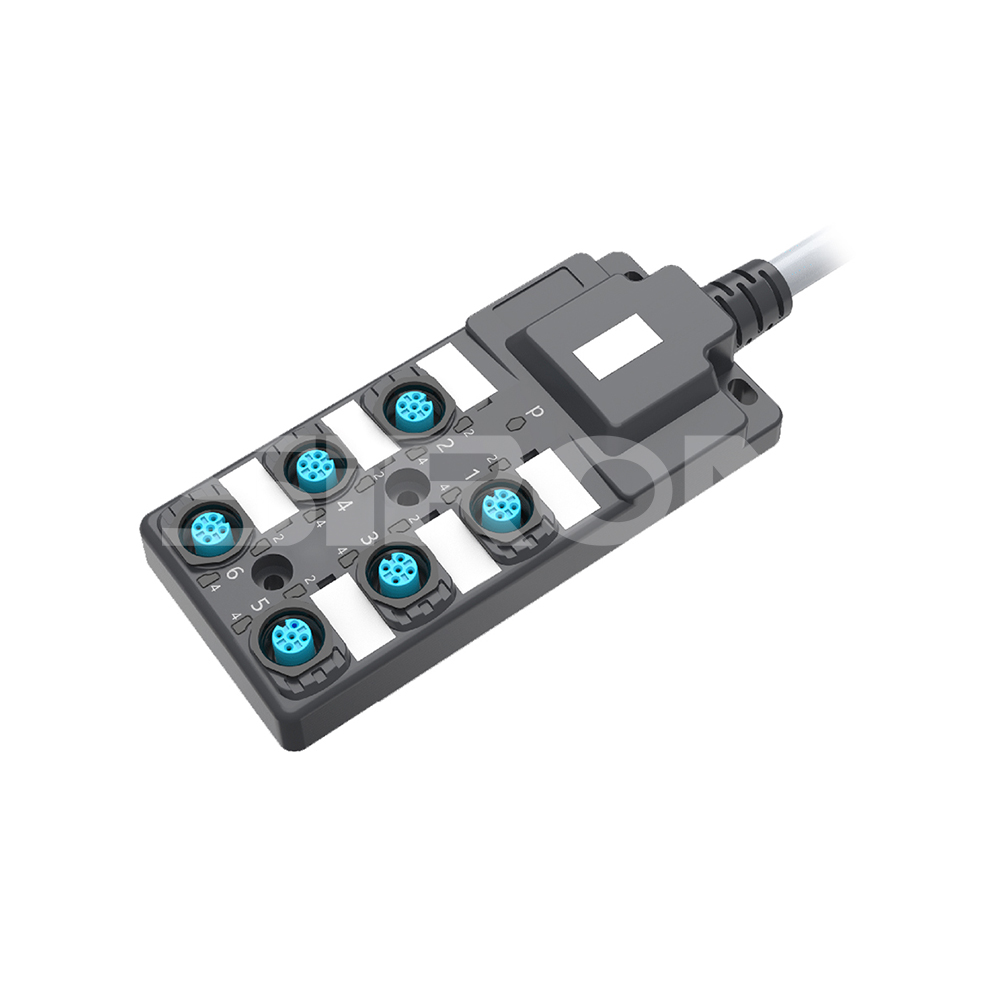

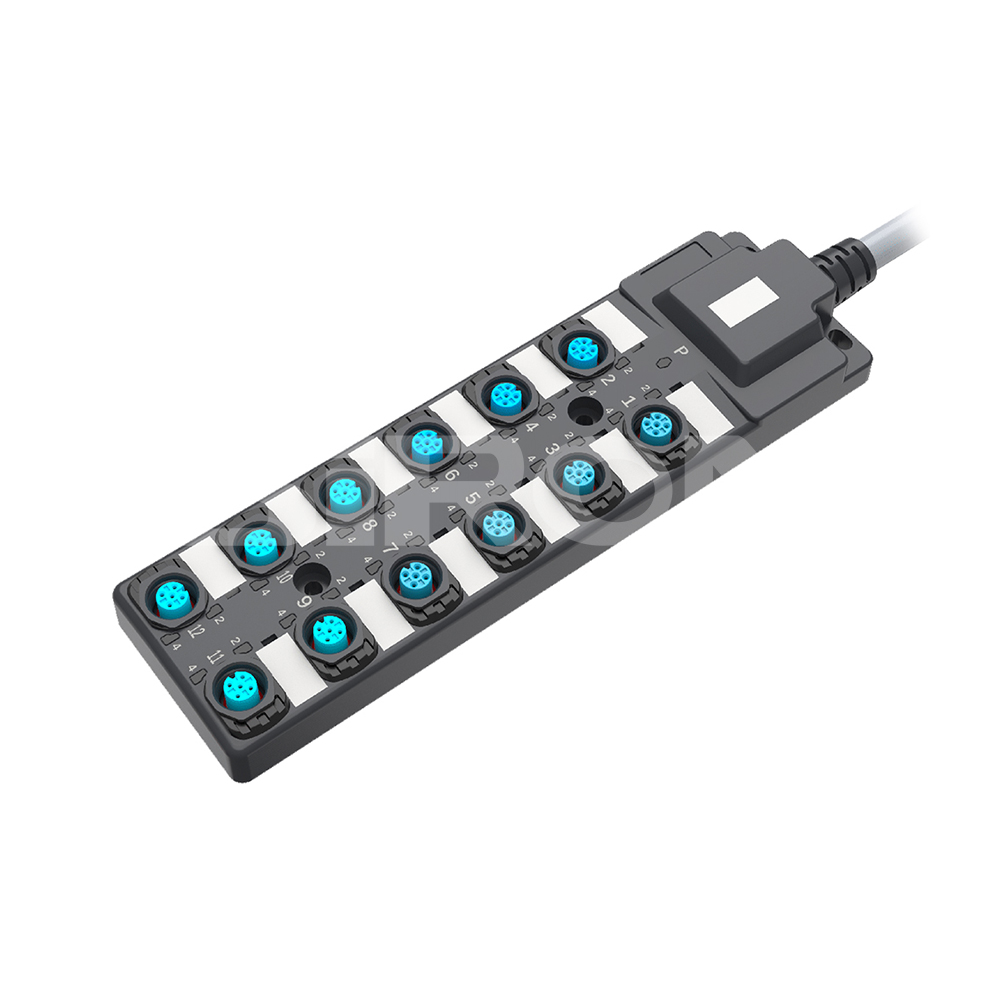

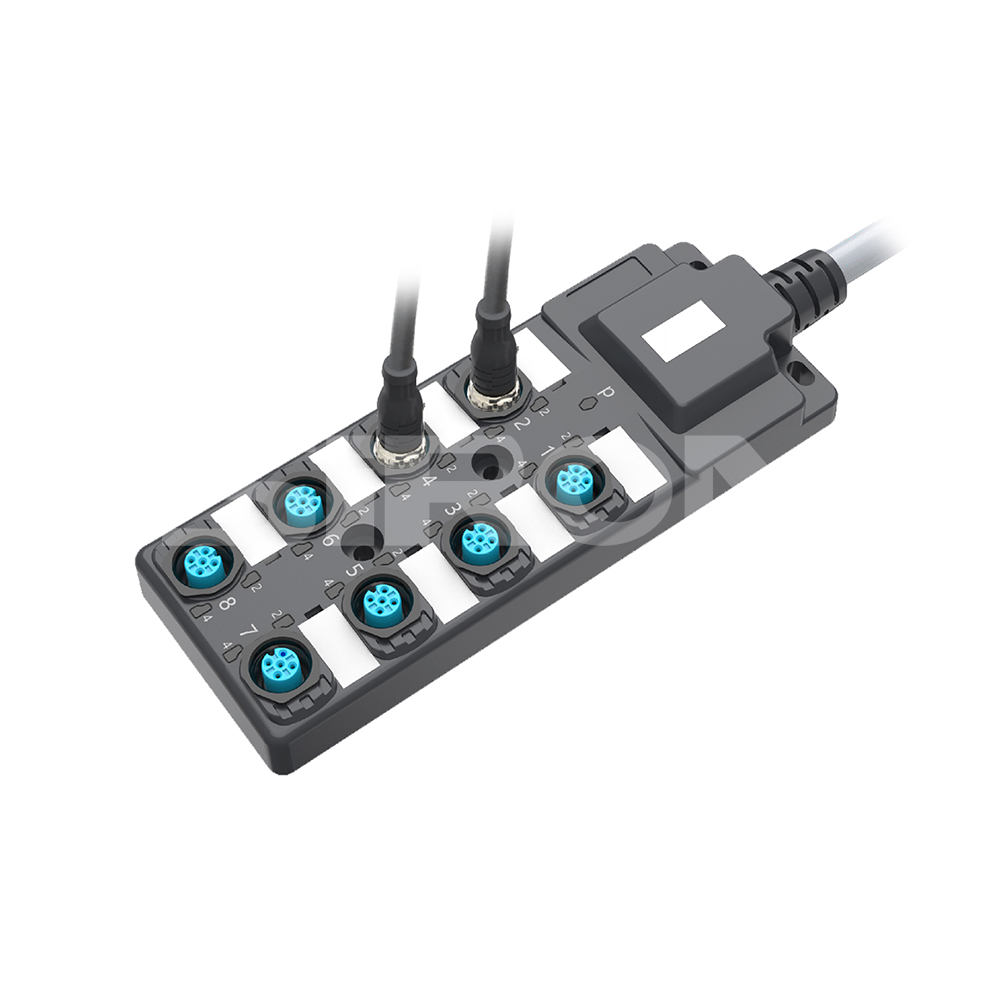

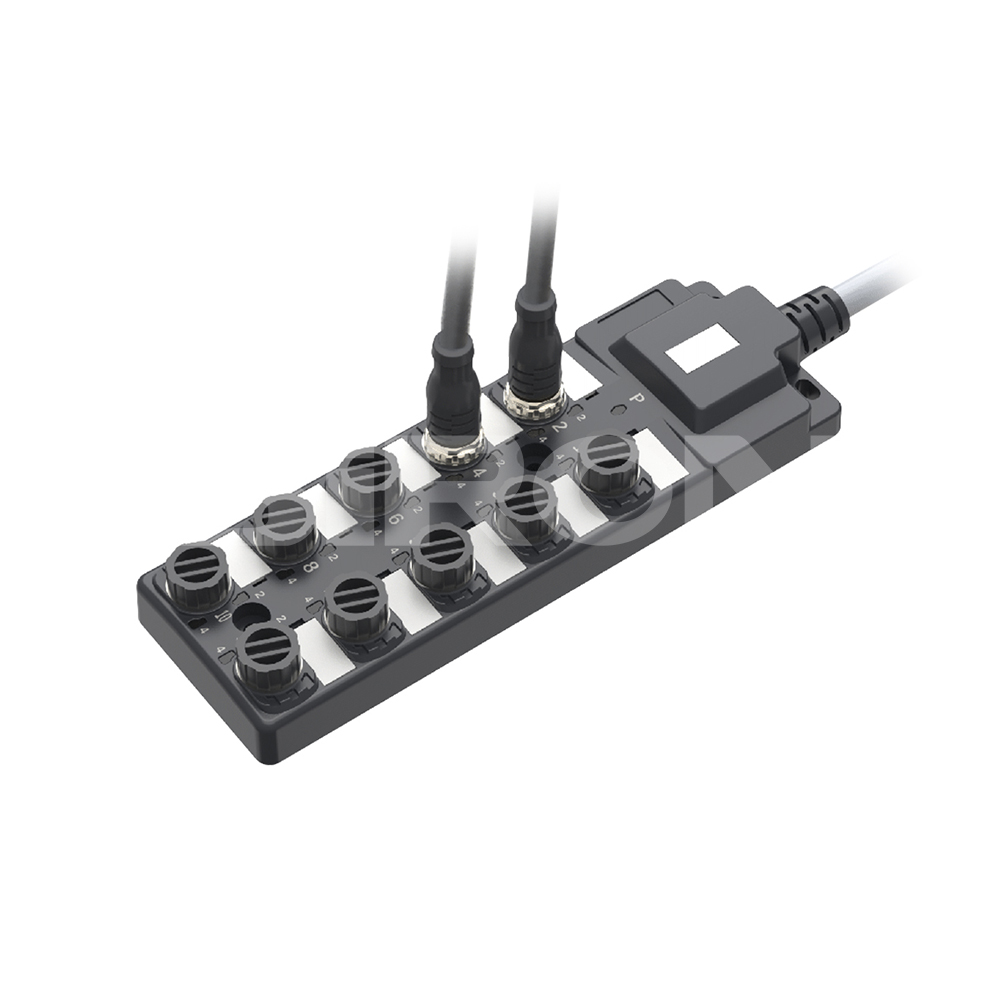

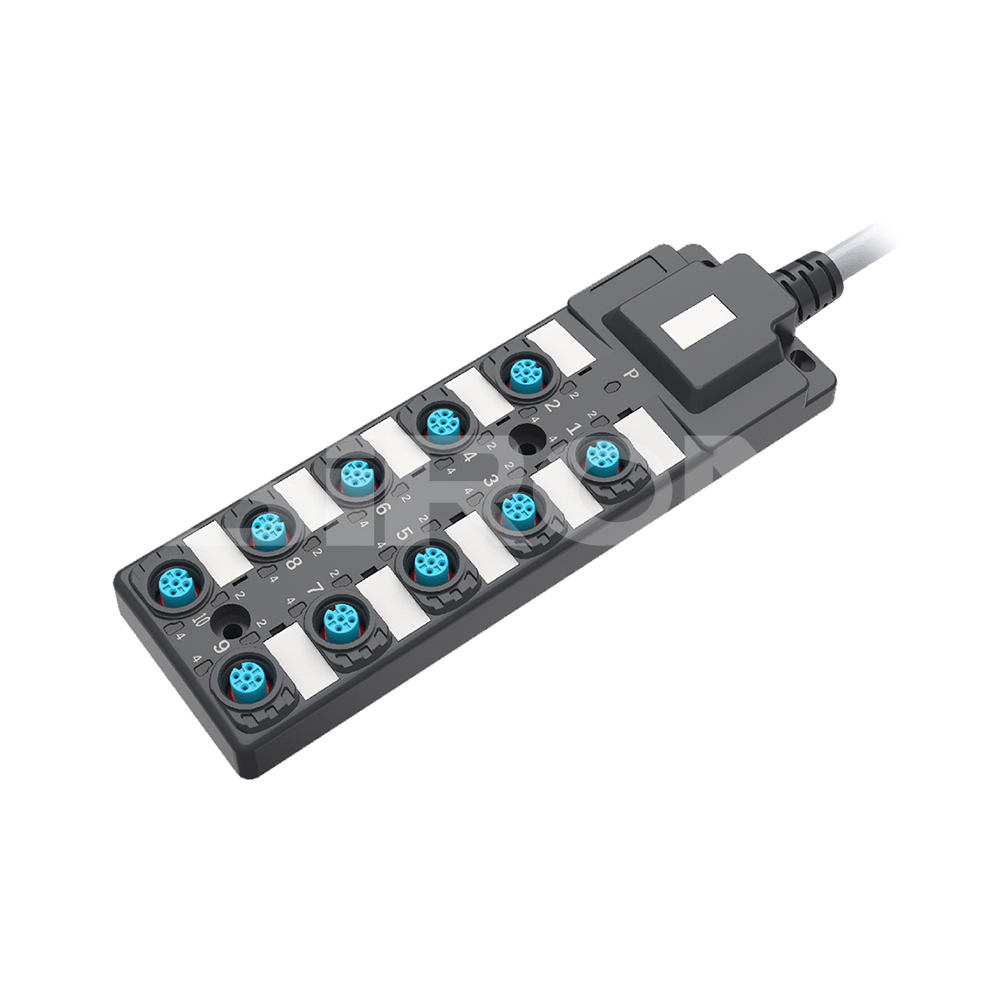

SiRON H427-12 Series Lead Type (Ip67) Junction Box

Name: SiRON H427-12 Series Lead Type (Ip67) Junction Box
Brand: SiRON
Rating: 5.0 (39 reviews)

Features

M12 lead type, convenient for installation in small space; NPN/PNP output;
LED indicating function and up to lP67 protection level;The standard cable length is 3000mm and the cable material is PVC

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
H427-124/H427-126/H427-128/H427-1210/H427-1212
Brand:
SiRON
Code:
8536901100

NPN/PNP Junction Box IP67 Junction Box M12 lead type Junction Box with PUR Cable of Junction Box

Product Description

Order

126

Selection example :H427-124, indicating the H427 series, leads type distribution box, M12, 4-port, single-channel, NPN output, wire length 3000mm PVC cable.

H427-124p indicates the H427 series, a leaded distribution box, M12, 4-port, single-channel, PNP output, with a wire length of 3000mm PVC cable.

Note: Drag chain PUR cable, default drag chain 5 million times; If you need drag chains for 10 million times, please contact our sales staff.

Specifications

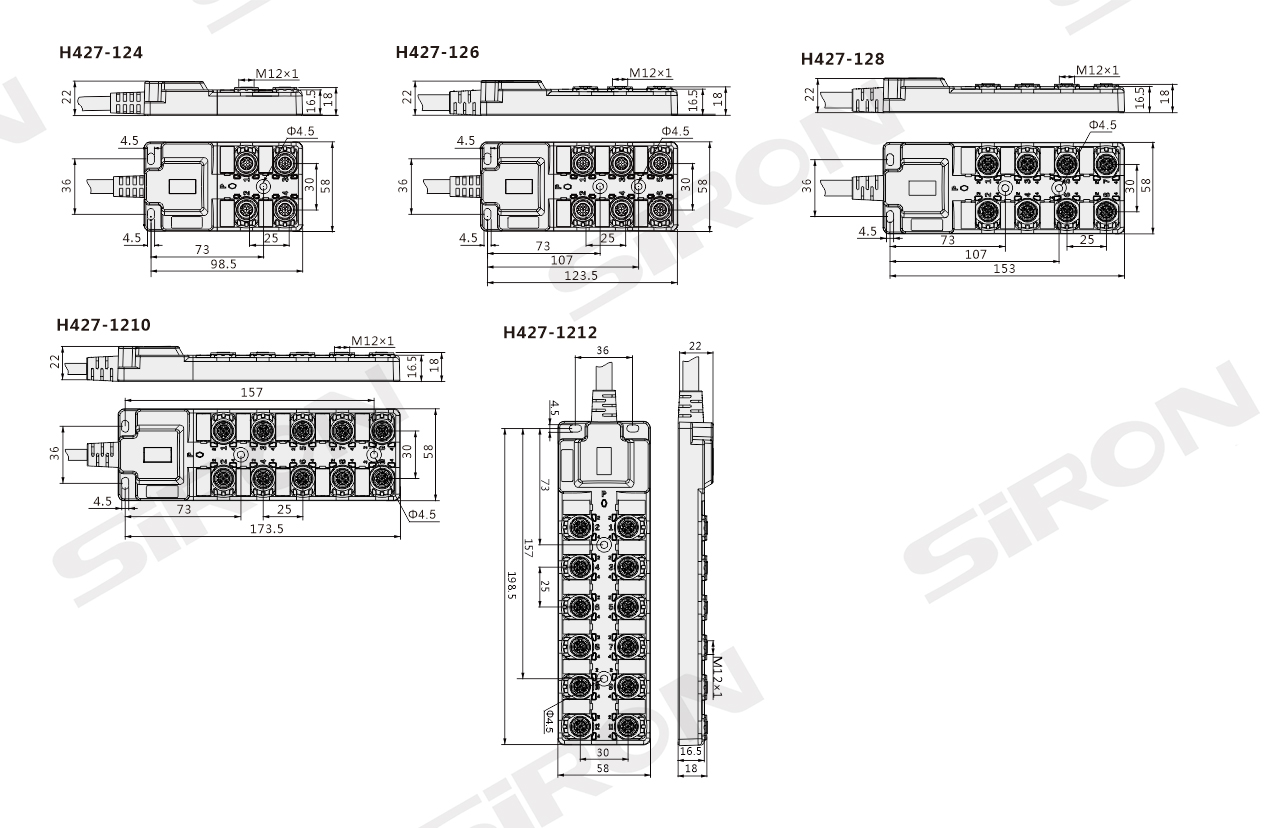

Model	H427-124	H427-126	H427-128	H427-1210	H427-1212
Output function	Single signal Double signal
Output type	NPN/PNP
Connector specification	M12: 5-pin connector
Operating woltage	24V DC
Working current	4A
Total current	6A
Indicator light	Power supply: Green Signal: Yellow
Housing protection class	IP67
Cable material	Grey PVC cable/3×0.75 mm + 8×0.34 mm
Cable diameter	8mm	8mm	8mm	10mm	10mm
Cable length	3000mm
