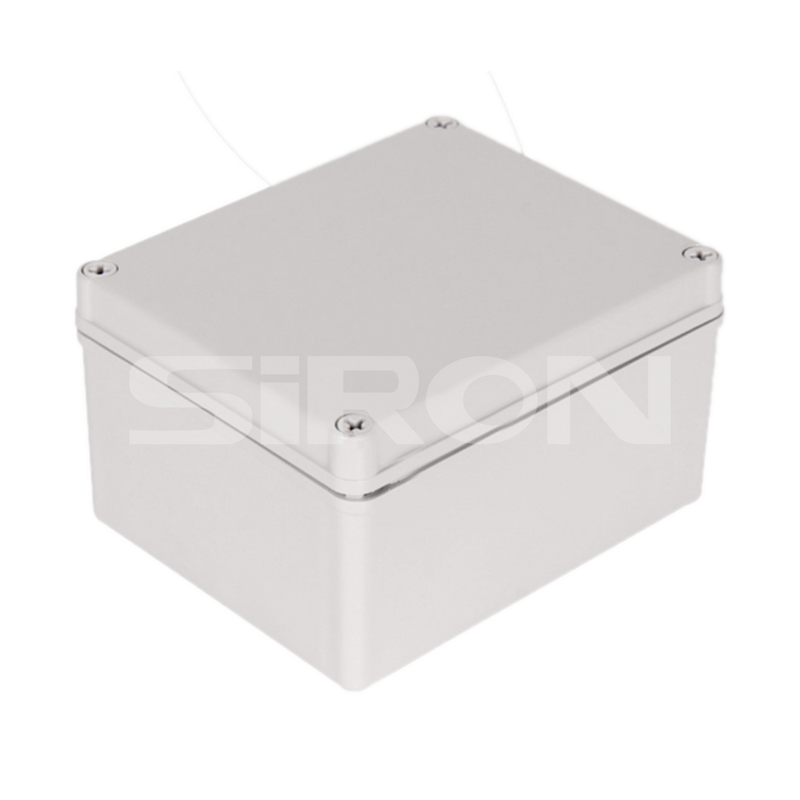

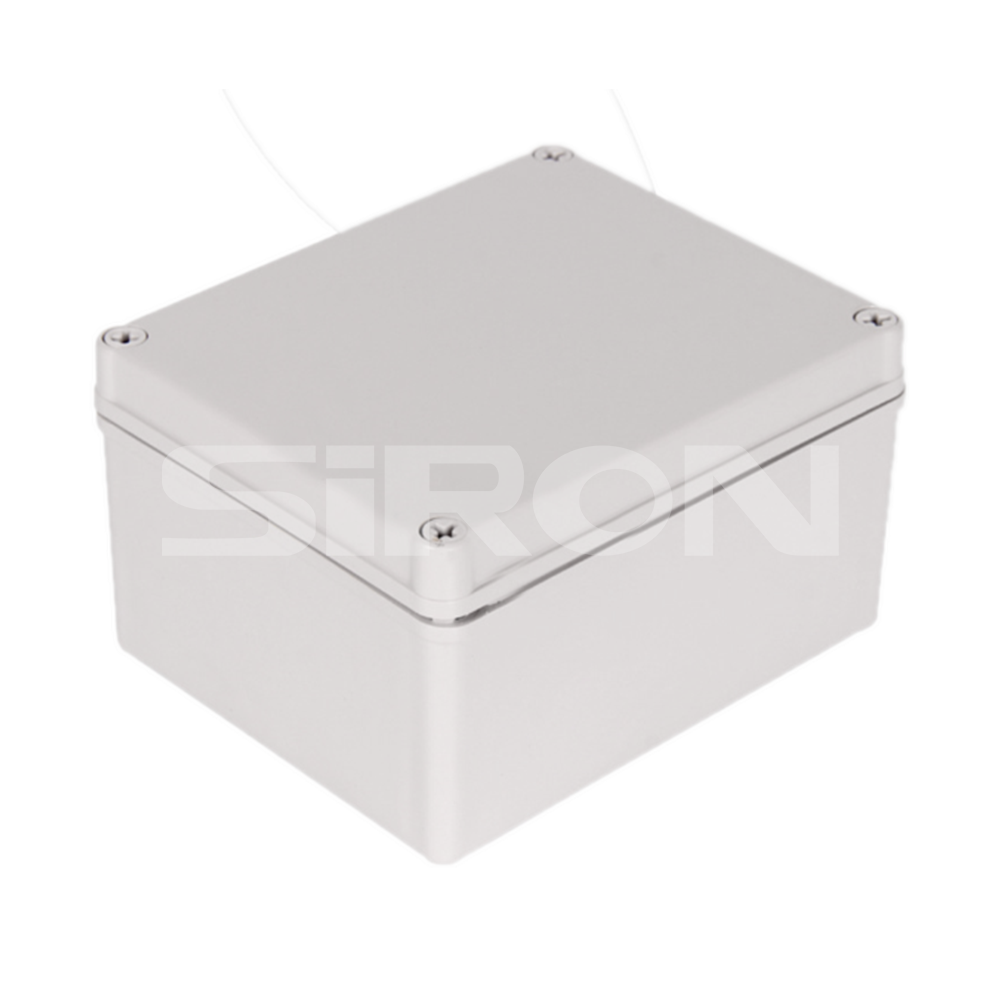

SiRON H435 Series IP66 Plastic Case (bolt Type)

Name: SiRON H435 Series IP66 Plastic Case (bolt Type)
Brand: SiRON
Rating: 5.0 (47 reviews)

Features

Excellent insulation, resistance to chemical corrosion and mechanical extrusion.
Protection grade lP66, all cases are dustproof, waterproof, resistance to 80° high temperature.
Suitable for small terminal, button box, signal, relay, calculator, communication use junction boxes, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
H435
Brand:
SiRON
Code:
8538900000

H435 Plastic Box IP66 protection Box Waterproof box Dustproof box High temperature of 80 degrees box

Product Description

Order

0c45035074e8aee199955bf799769839

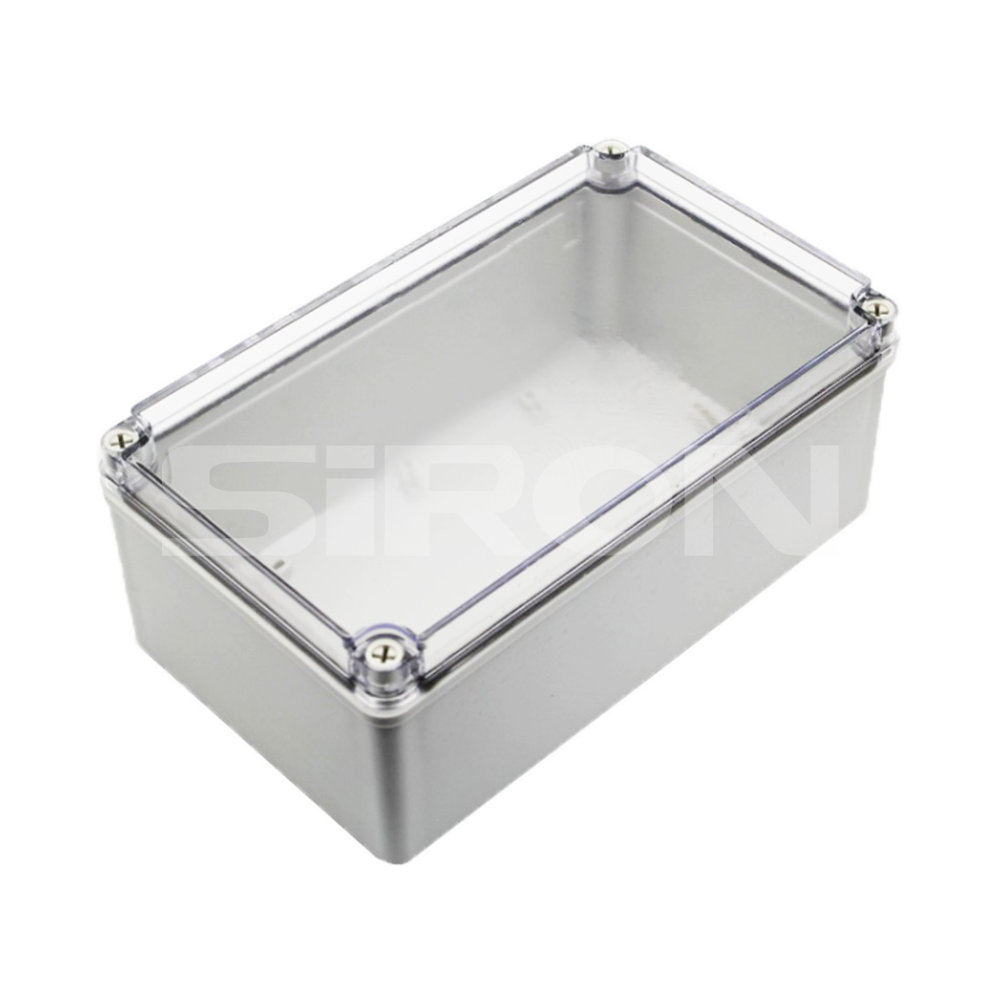

Note :H435-A-1 is the main body + metal base plate, while H435-1 is the plastic version without the metal base plate. The box lid is by default gray. If you need a transparent lid, please add "T" after the model. For more details, please consult the relevant salesperson

Type selection reference

Plastic case(bolt type)
Model	Size			Model	Size
Model	length(mm)	wide(mm)	high(mm)	Model	length(mm)	wide(mm)	high(mm)
H435-1	70	55	43	H435-21	220	120	85
H435-2	91	75	43	H435-22	170	140	95
H435-3	110	91	43	H435-23	230	140	95
H435-4	65	50	55	H435-24	200	150	75
H435-5	125	75	75	H435-25	200	150	100
H435-6	125	75	100	H435-26	200	150	130
H435-7	80	80	60	H435-27	200	150	160
H435-8	110	80	45	H435-28	250	150	100
H435-9	110	80	70	H435-29	250	150	130
H435-10	130	80	70	H435-30	250	150	160
H435-11	160	80	55	H435-31	175	175	75
H435-12	160	80	90	H435-32	175	175	100
H435-13	180	80	70	H435-33	250	175	75
H435-14	220	80	70	H435-34	250	175	100
H435-15	250	80	85	H435-35	200	200	95
H435-16	100	100	75	H435-36	200	200	125
H435-17	125	125	75	H435-37	200	200	130
H435-18	125	125	100	H435-38	200	200	160
H435-19	175	125	75	H435-39	250	200	100
H435-20	200	120	75	H435-40	300	200	105

Note: If you need to order plastic boxes without metal base plates, please place your order directly according to the following model numbers

Size specification

Model	Specification of metal inner plate		(mm)size
Model	M1	M2	W1	W2	W3	H1	H2	H3	D1	D2	D3
H435-1	45	60	55	47	47	70	62	52	8	35	32
H435-2	60	114	75	67	67	91	89	78	8	35	32
H435-3	80	100	91	89	78	110	108	102	8	35	32
H435-4	40	55	50	44	37	65	60	52	20	35	43
H435-5	60	110	75	64	57	125	116	107	25	49	62
H435-6	60	110	75	64	57	125	116	107	50	49	87
H435-7	65	65	80	77	62	80	77	62	15	45	47
H435-8	67	91	80	72	62	110	102	92	20	25	32
H435-9	67	91	80	72	62	110	102	92	20	50	57
H435-10	67	117	80	72	62	130	122	112	20	50	58
H435-11	67	151	82	75	68	162	155	148	15	40	44
H435-12	67	151	82	75	68	162	155	148	15	75	79
H435-13	70	170	82	72	62	180	172	162	20	50	57
H435-14	67	209	80	72	62	220	212	202	20	50	58
H435-15	67	237	80	72	62	250	242	232	35	50	73
H435-16	80	80	94	93	82	100	93	82	20	55	62
H435-17	112	112	125	116	105	125	118	105	20	55	62
H435-18	112	112	125	116	105	125	118	105	20	80	87
H435-19	112	162	125	117	109	175	167	156	25	50	60
H435-20	95	175	120	111	102	200	191	182	20	55	60
H435-21	95	175	120	110	100	220	210	200	20	67	74
H435-22	127	154	140	132	122	170	161	152	20	75	82
H435-23	125	215	140	131	122	230	220	212	20	75	81
H435-24	136	185	150	140	132	200	190	182	20	55	61
H435-25	136	185	150	140	132	200	190	182	20	80	86
H435-26	136	185	150	140	132	200	190	182	50	80	116
H435-27	136	185	150	140	132	200	190	182	50	110	146
H435-28	135	230	150	140	132	250	240	232	20	80	87
H435-29	135	235	150	140	132	250	240	232	20	110	117
H435-30	135	235	150	140	132	250	240	232	50	110	147
H435-31	159	159	175	164	156	175	167	157	25	50	60
H435-32	159	159	175	164	156	175	167	157	50	50	85
H435-33	155	230	175	167	156	250	242	232	25	50	62
H435-34	155	230	175	167	156	250	242	232	50	50	87
H435-35	185	185	200	190	182	200	190	182	20	75	80
H435-36	185	185	200	190	182	200	190	182	50	75	111
H435-37	185	185	200	190	182	200	190	182	20	110	116
H435-38	185	185	200	190	182	200	190	182	50	110	146
H435-39	180	228	200	191	178	250	241	228	25	75	87
H435-40	180	275	200	190	180	300	290	280	20	85	92
