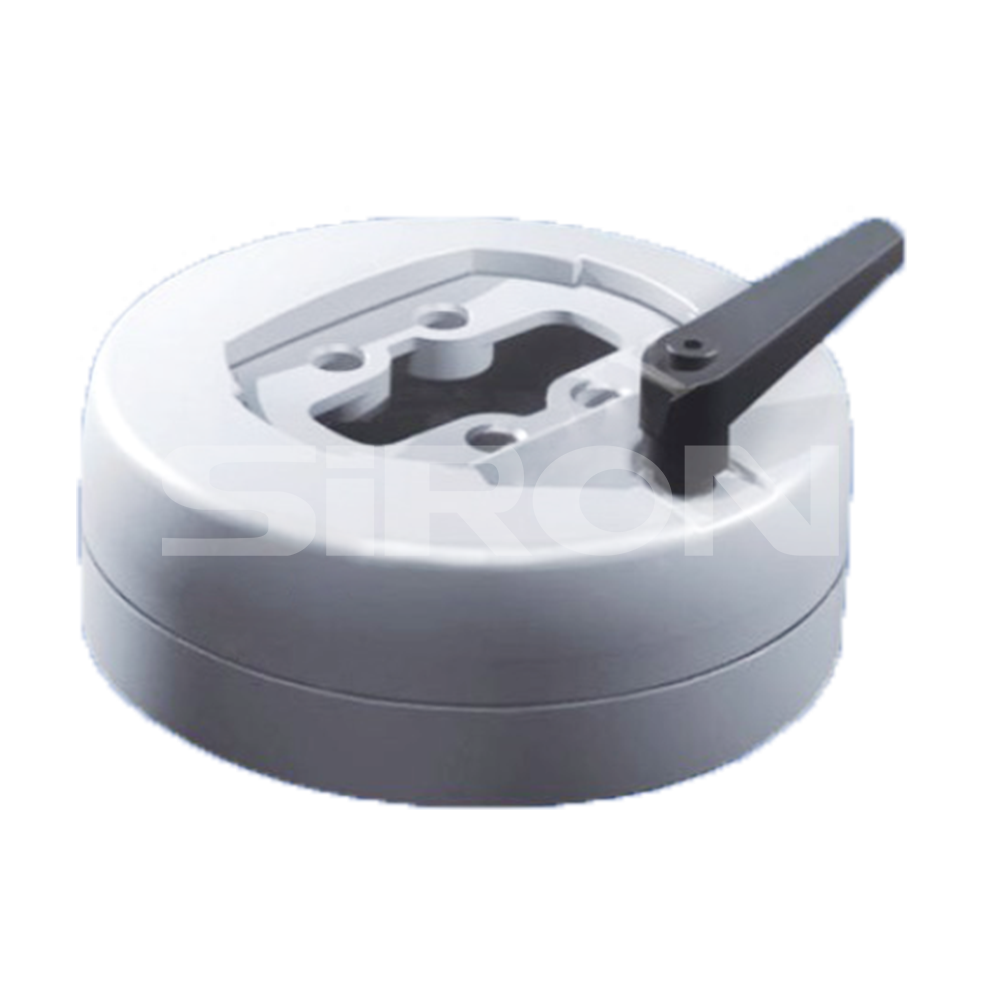

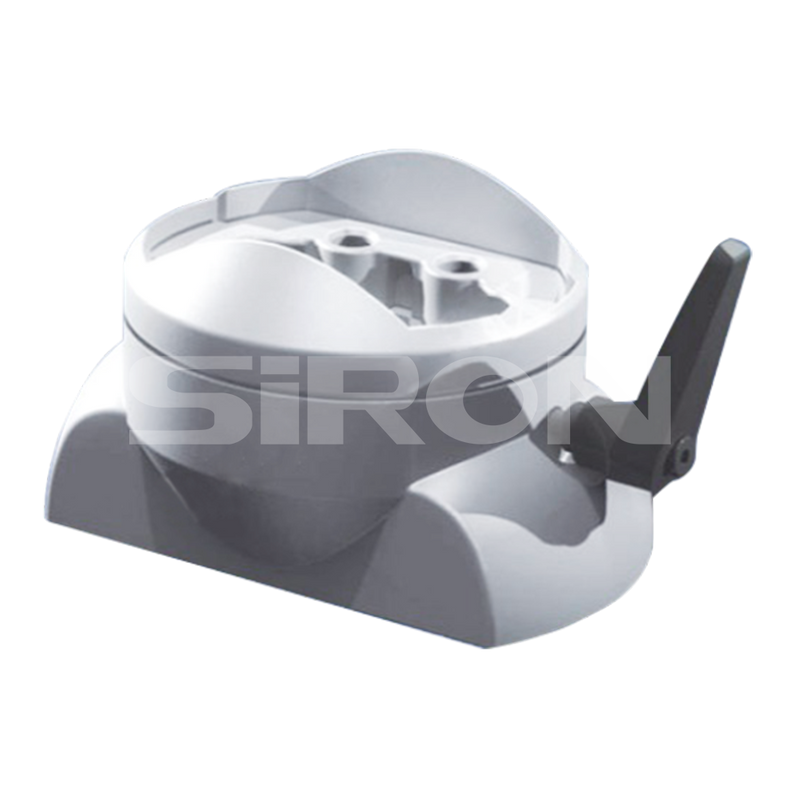

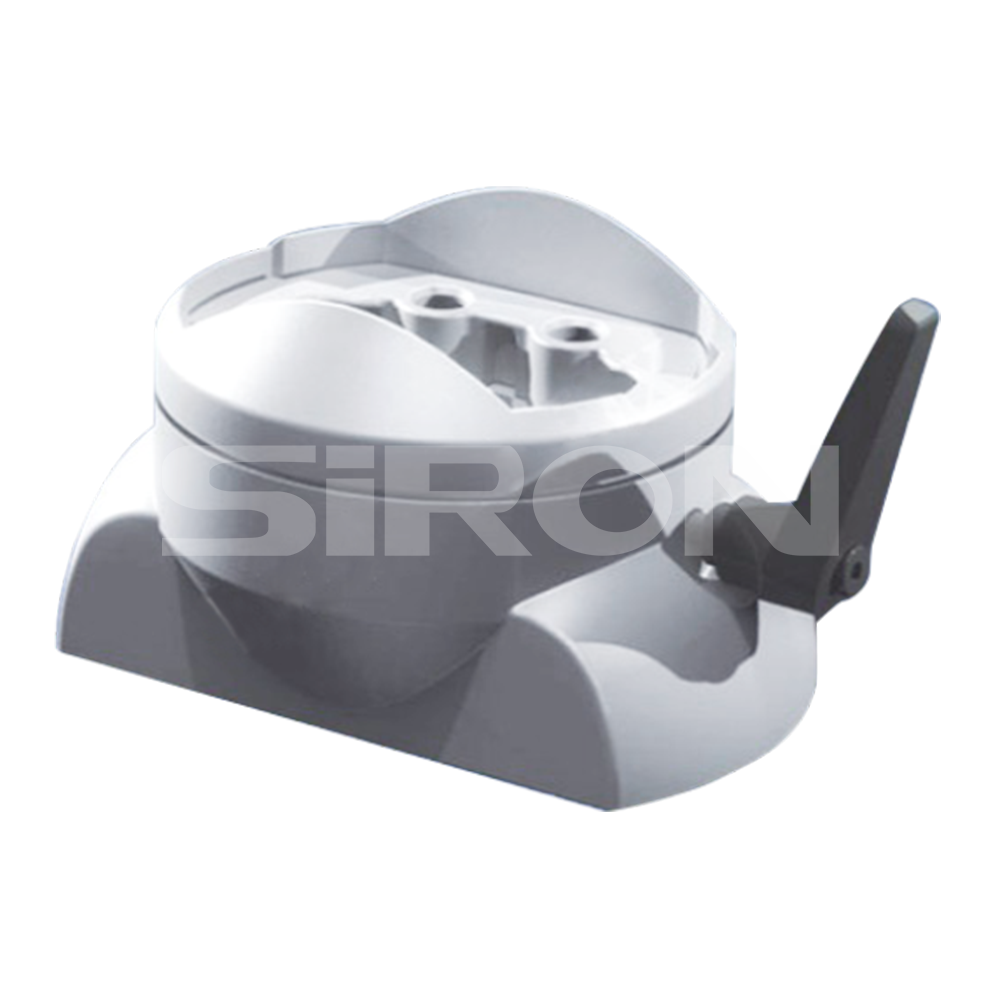

SiRON H402-E Series 60/85 Medium Cantilever Assembly

Features
  • This series of miniature cantilever components are matched with 40x50mm aluminum tubes;
  • For hanging or supporting small control box (7 inches);
  • The surface of the aluminum tube and components is treated with plastic spraying;
  • All components are made of aluminum alloy die-casting process.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • H402-E

  • SiRON

  • 8538900000

H402-E Series Medium Cantilever 60/85 medium-sized cantilever components Cantilever alloy Assembly
Product Description

Order

Model Serial number
H402-E 1

Note: Applicable to control boxes with a depth of 140-270mm.


Type selection reference

Model Product name Weight(kg) Horizontal rotation angle Material
H402-D-1 Box seat 2 0~320° pack alloy
H402-D-2 10°Box seat 2.1 0~320° pack alloy
H402-D-3 Right-angle box seat 2.9 0~320° pack alloy
H402-D-4 Right-angle 10° box seat 2.9 0~320° pack alloy
H402-D-5 Intersection angle 1.4 / pack alloy
H402-D-6 Top seat 3 0~320° pack alloy
H402-D-7 Raise the top seat 3.3 0~320° pack alloy
H402-D-8 Horizontal wall base 3.8 0~320° pack alloy
H402-D-9 Mid-joint 3.7 0~320° pack alloy
H402-D-10 Vertical wall base 2.9 0~320° pack alloy
H402-D-11 base seat 1.1 / pack alloy
H402-D-12 rotating base
 2.2 0~320° pack alloy
H402-D-13 Rotation angle of turntable 3 0~320° pack alloy
H402-D-14 Rotate the base of the box
 2.2 / pack alloy
H402-D-15 10°Rotate the base of the box 2.3 / pack alloy
H402-D-16 Mobile chassis 6 / Steel Q235
H402-D-17 15bevel 0.45 / pack alloy
