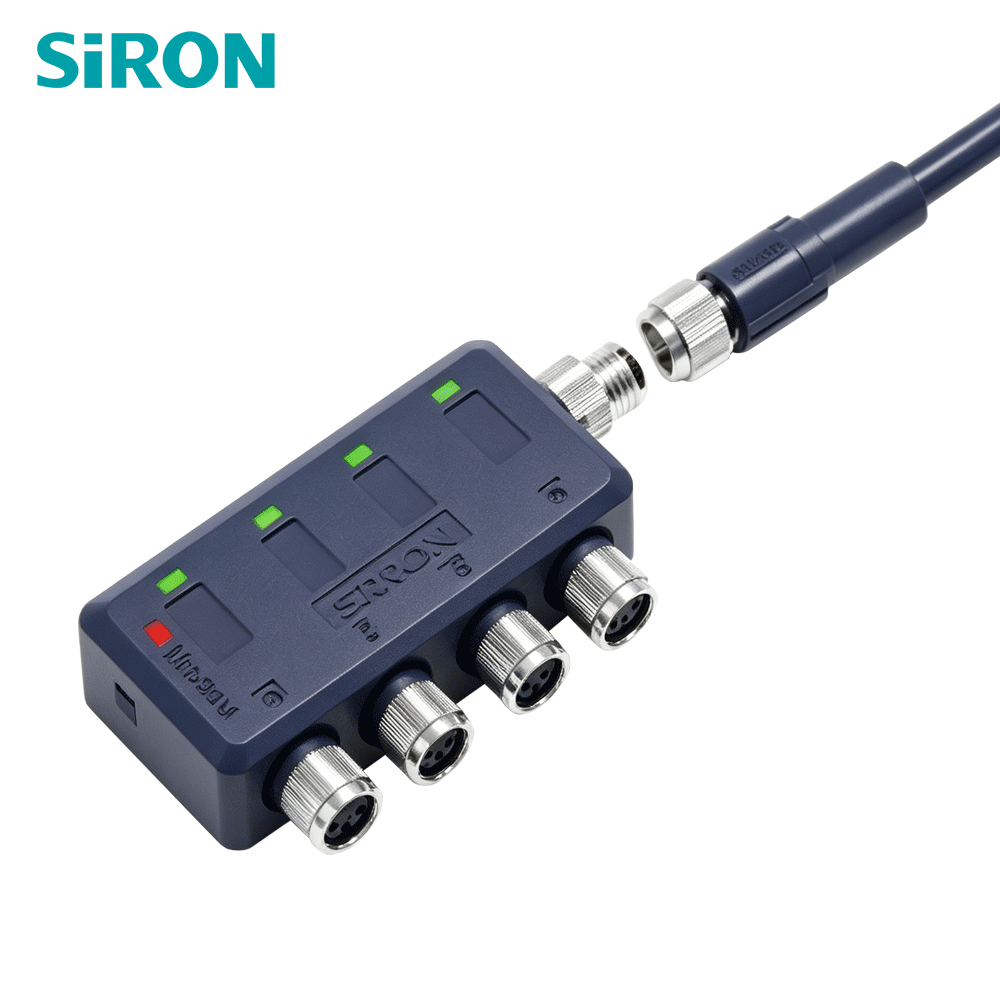

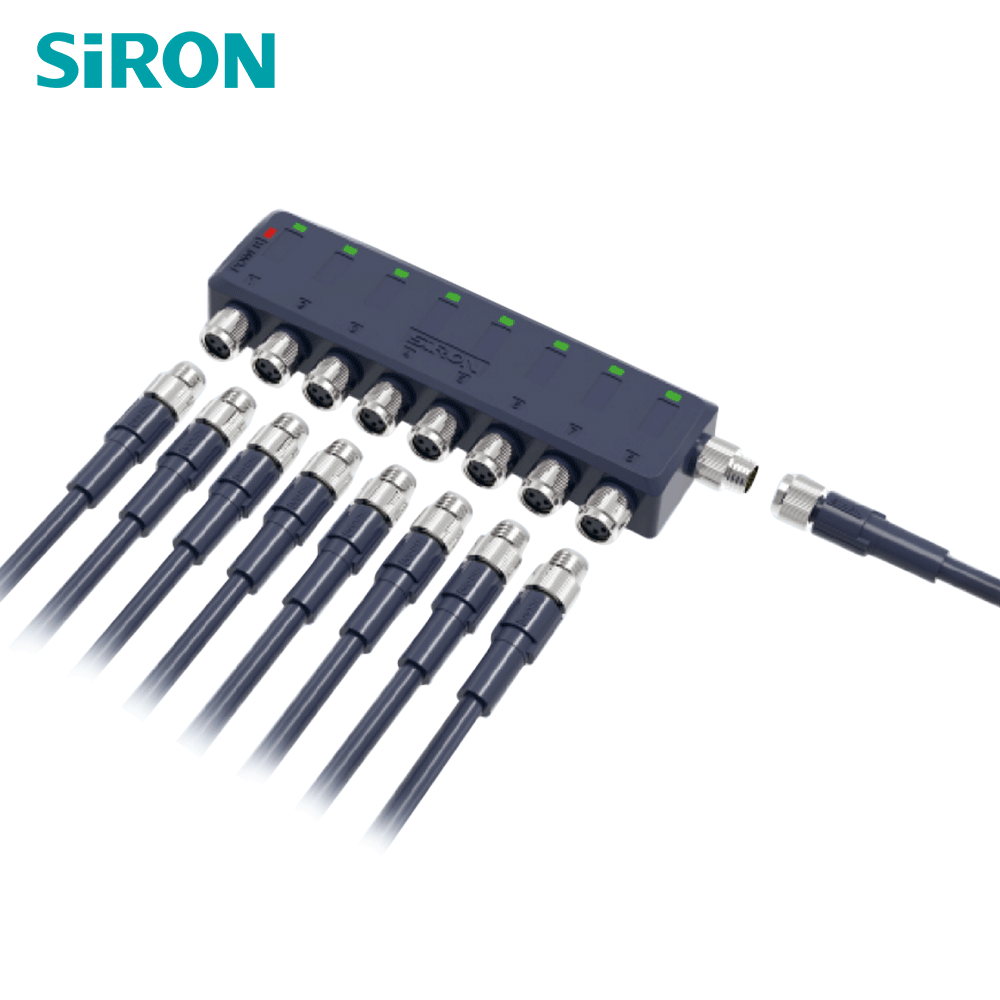

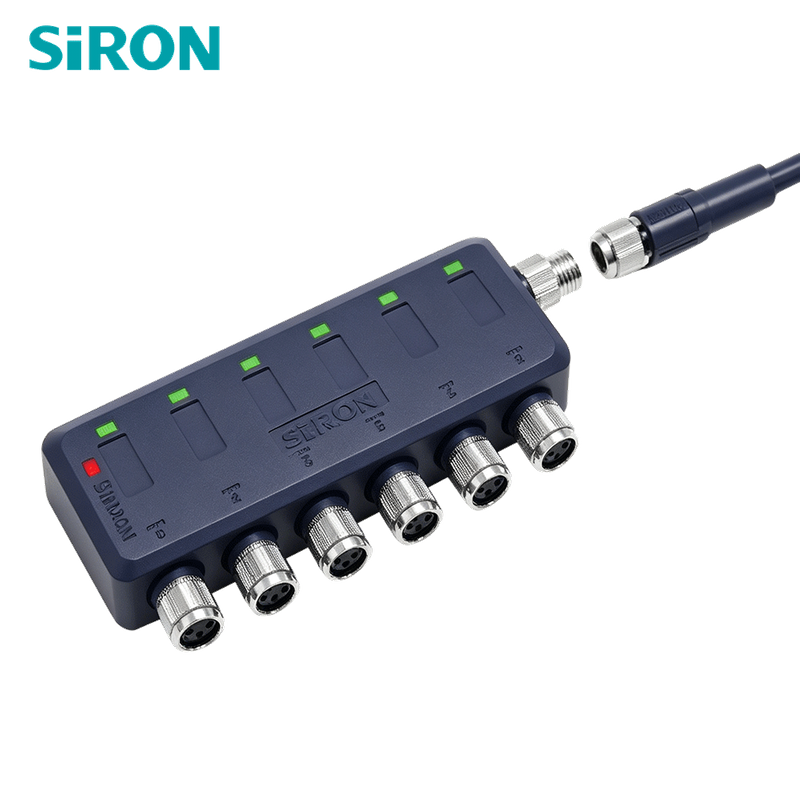

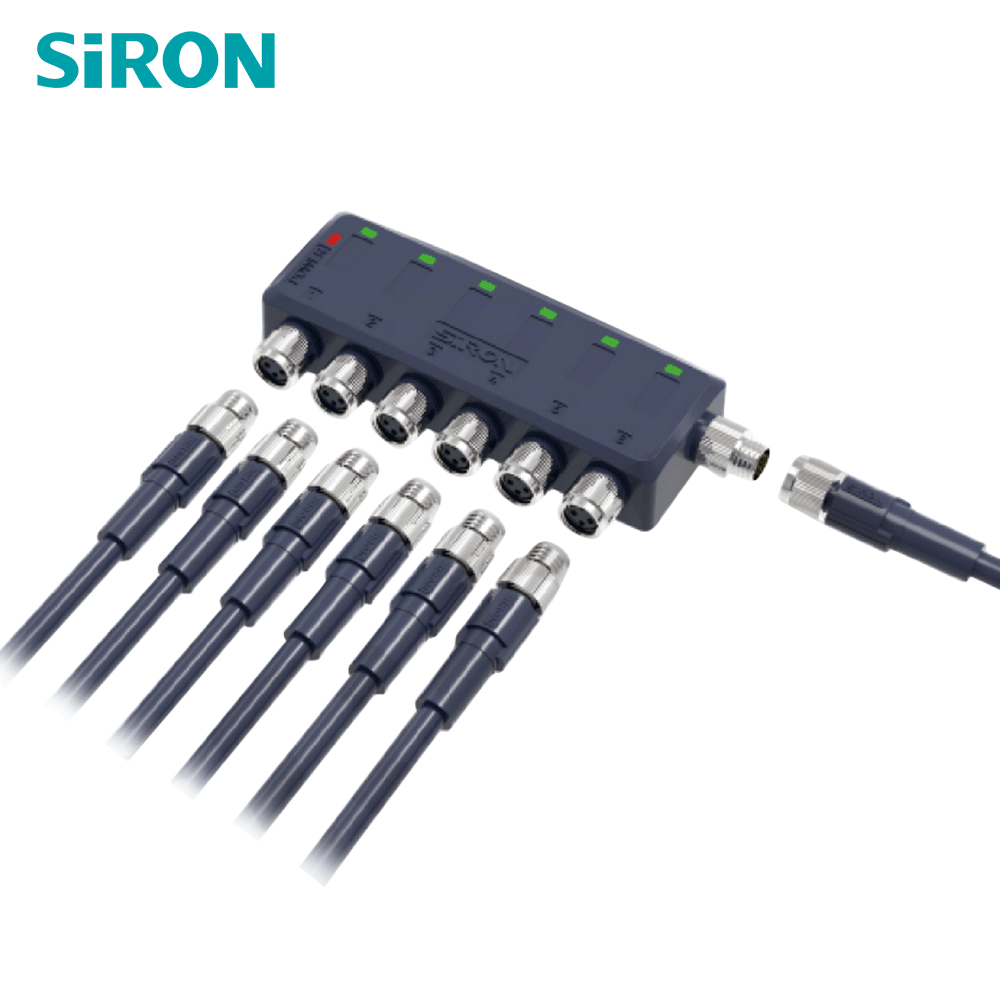

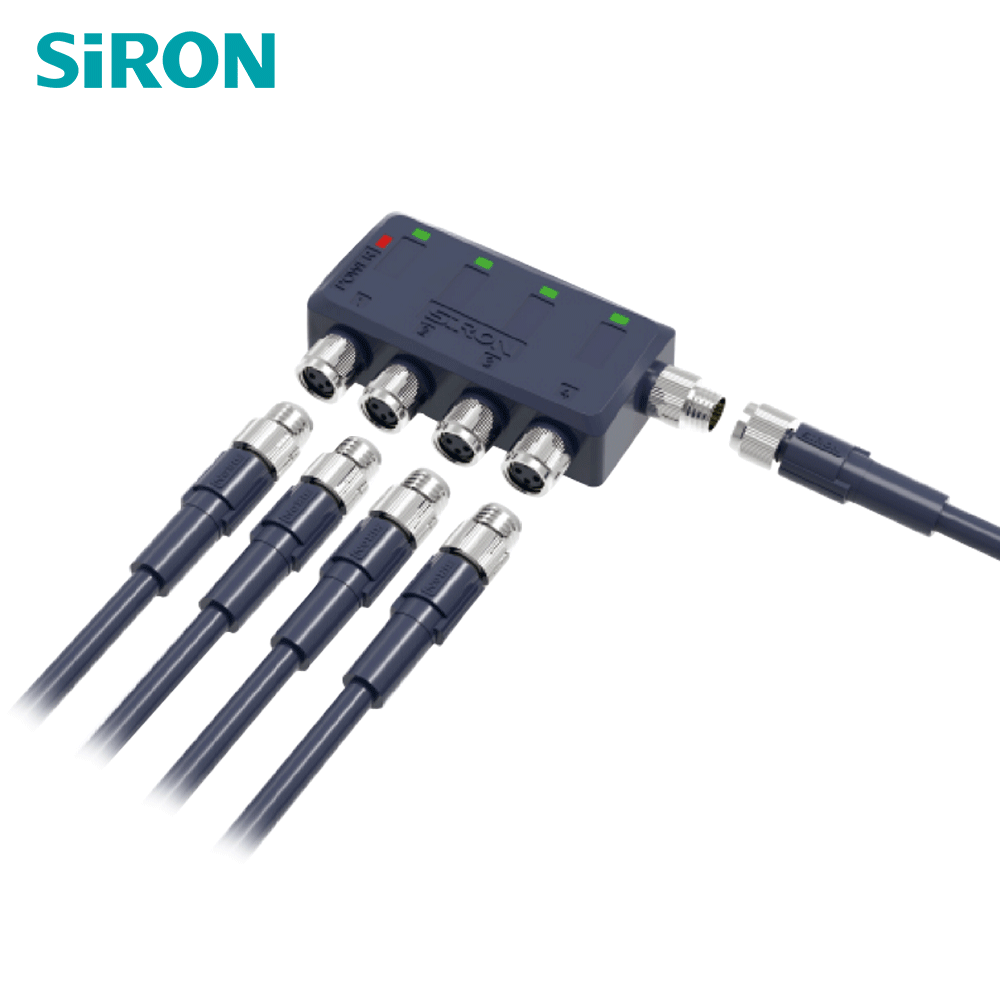

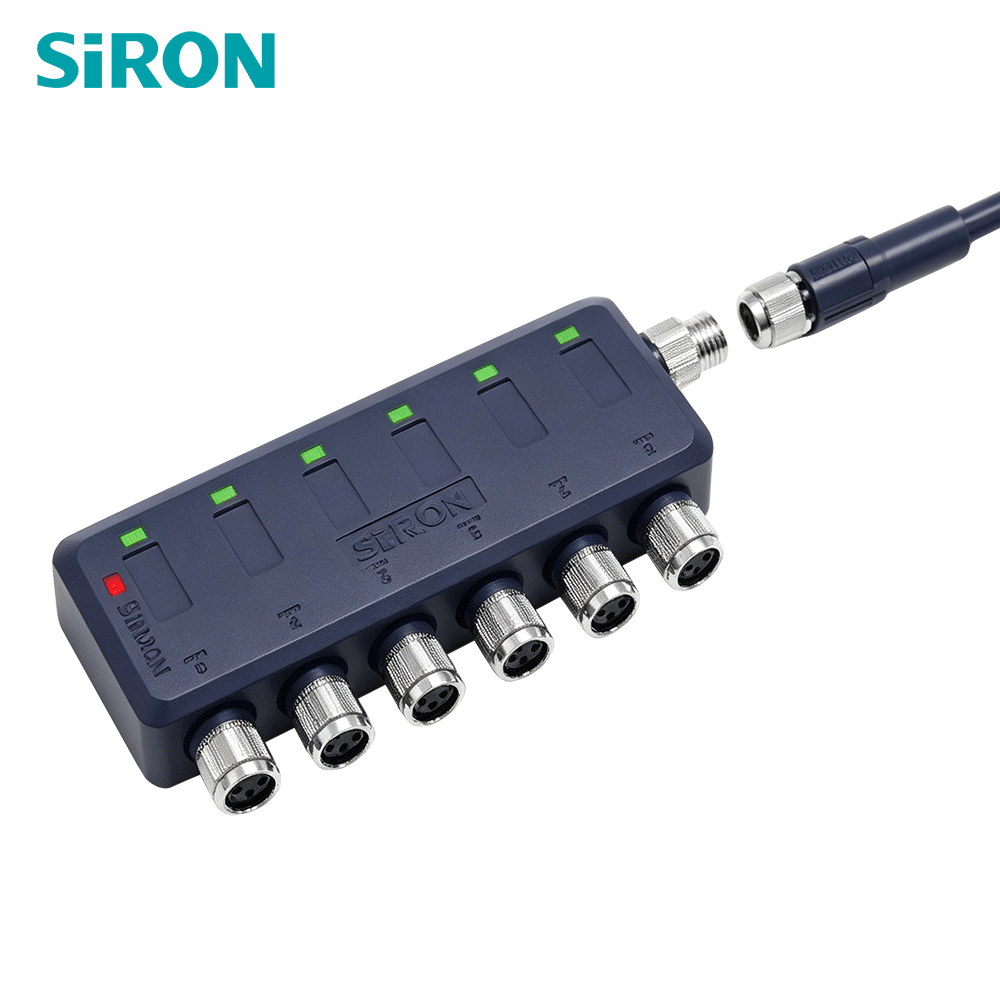

SiRON H422‑8 IP67 Split‑type M8 Junction Box With LED Indicator

Features:

* M8 split design, convenient for installation in tight spaces on-site; NPN/PNP output;
* LED indicator function and protection rating up to IP67.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • H422-8

  • SiRON

  • 8536909000

Industrial junction box Waterproof splitter box Split‑type connection box LED‑indicator junction box IP67 distribution box compact sensor junction box
Product Description

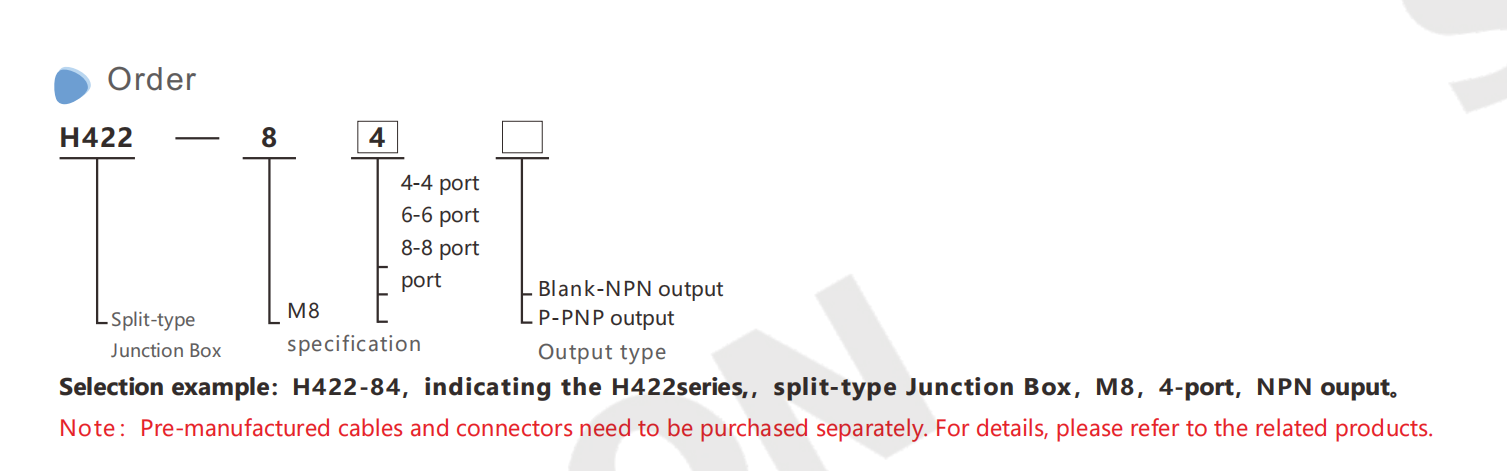

About selection

企业微信截图_17881538414102

Specifications

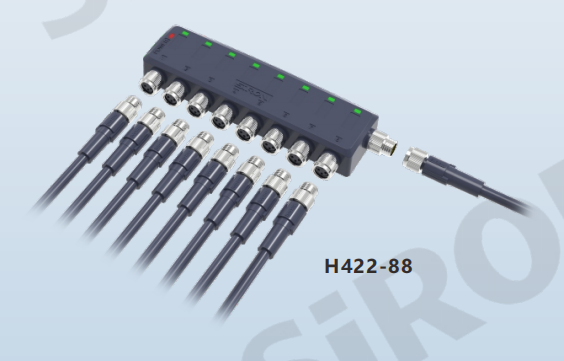

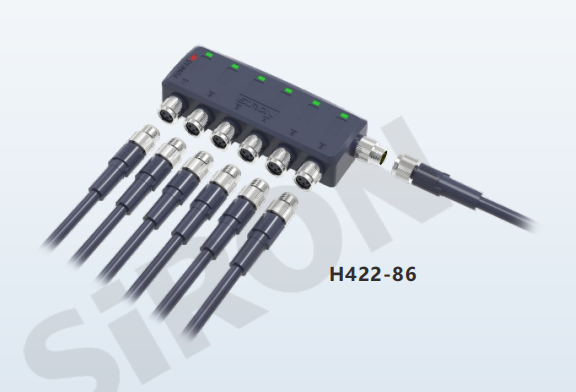

Model H422-84 H422-84P H422-86 H422-86P H422-88 H422-88P
Appearance 1 2 3
Output function Single signal
Output type NPN PNP NPN PNP NPN PNP

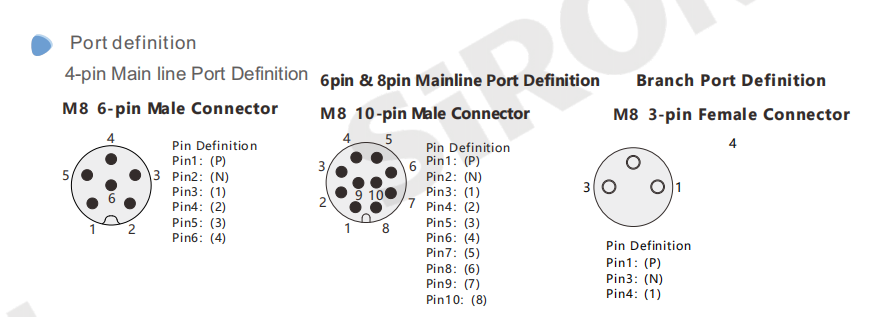

Connector specification
Main line port
M8:6-pin male
M8:10-pin mal
M8:10-pin male

Branch port
M8:3-pin female
Operating voltage
24V DC
Current
350mA/per channel
Indicator light
Power syupply：Red；Signal：Green
Housing protection class
IP67



Product Desciption

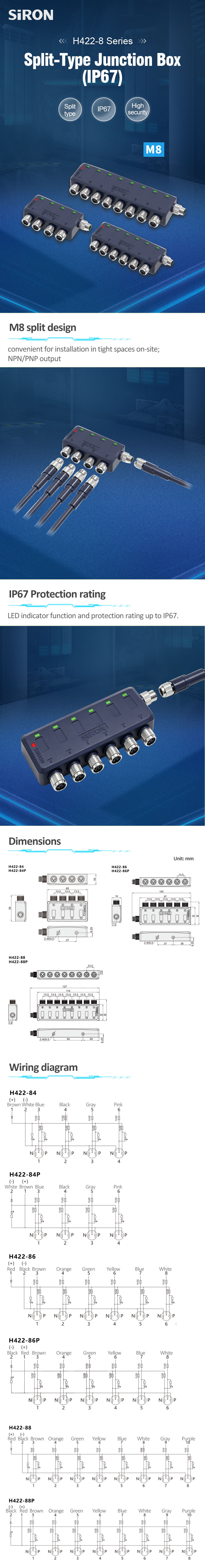

     详情页

1

6

7


9

10
