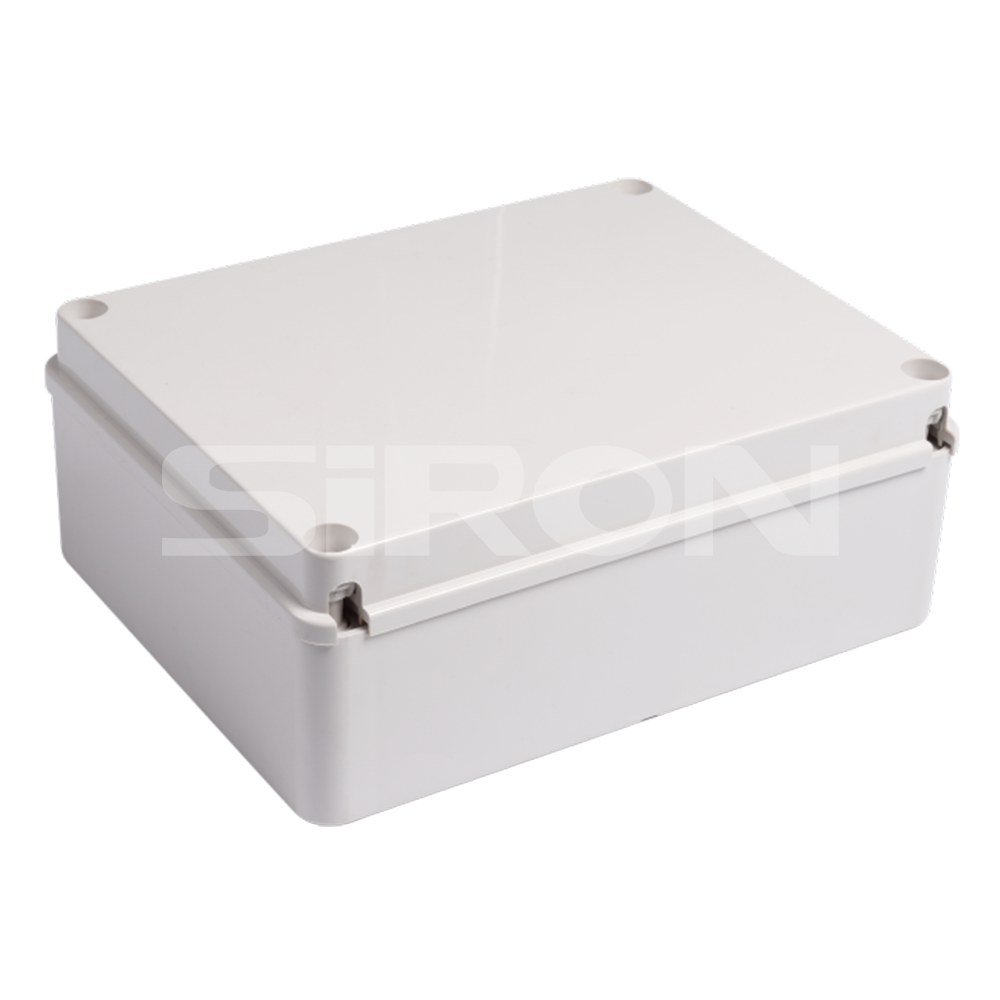

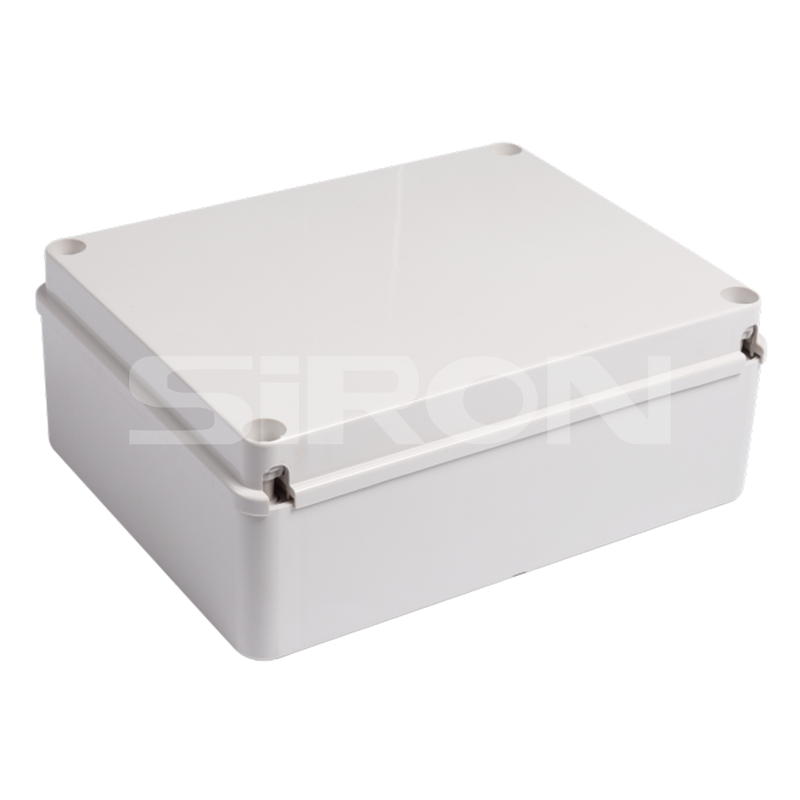

SiRON H437 Series Suitable for Small Terminal Plastic Case

Name: SiRON H437 Series Suitable for Small Terminal Plastic Case
Brand: SiRON
Rating: 5.0 (62 reviews)

Features

Excellent insulation, resistance to chemical corrosion and mechanical extrusion.
Protection grade lP66, all cases are dustproof, waterproof, resistance to 80° high temperature.
Suitable for small terminal, button box, signal, relay, calculator, communication use junction boxes, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
H437
Brand:
SiRON
Code:
8538900000

H437 Plastic Box IP66 protection Box Waterproof box Dustproof box High temperature of 80 degrees box

Product Description

Order

63576c7e46c70a65883a475700ff2cbe

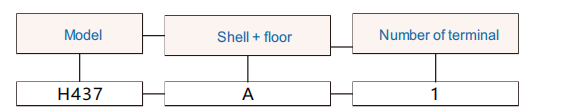

Note :H437-A-1 is the main body + metal base plate, while H437-1 is the plastic version without the metal base plate. The box lid is by default gray. If you need a transparent lid, please add "T" after the model. For more details, please consult the relevant salesperson

Type selection reference

Plastic case
Model	size			Model	size
Model	length(mm)	Width(mm)	high(mm)	Model	length(mm)	Width(mm)	high(mm)
H437-1	100	100	54	H437-6	254	199	168
H437-2	120	80	54	H437-7	300	220	125
H437-3	150	110	72	H437-8	300	220	185
H437-4	190	140	76	H437-9	380	300	125
H437-5	240	190	95	H437-10	380	300	185
