SiRON H006(S) Series Φ16 2nd/3rd Gear Key Switch

Name: SiRON H006(S) Series Φ16 2nd/3rd Gear Key Switch
Brand: SiRON
Rating: 5.0 (76 reviews)

Features

Heat-resistant, shock-resistant, light-weight mechanical key press, long service life, stable and reliable;
Normally open and normally closed contacts adopt separate insulation structure and sliding designto protect circuit safety;
The product cap is made of new material, anti-oxidation, beautiful, safe and durable;

Product Description

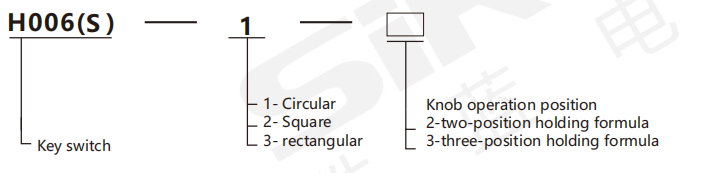

Order

a3647894a8cdc4be9ac86cbfa19a05e6

Technical Features

Model		H006 (S) series
Operation type		self locking
The environment temperature		temperature range of the lighting switch body is -25℃ to +55℃(without freezing). There must be good air circulation around it
Environment humidity		45~85%RH(No condensation)
Contact structure		1NO 1NC
Contact matenial		Silver, cadmium oxide silver, gold plating silver, coating thickness 3μm
Contact resistance		≤50MΩ
Insulation resistance		≥100MΩ
Vibration resistance		50Hz,Amplitude approximately1 . 2mm
impact resistance		>10g
Dielectric strength		Between the contacts and the leads of the lamp beads/between different electrode terminals:2000V,AC50Hz,1min Between extremons:1000V,AC50Hz,1min
Mechanical life		One million times
Electrical life		One million times
Winng		Welding wire diameter: 2×0.8mm² Maximum copper wire area: 0.75mm² Gold-plated wiring plug: 2.8×0.5mm²
Operating limits		(button)about3MM
Switch rating	Heating cuIrent	The current allowed when the temperature does not exceed the maximum rated value is 5A
	Rated voltage	24V
	DC	2A
	AC	P.F=1;P.F=0.7
