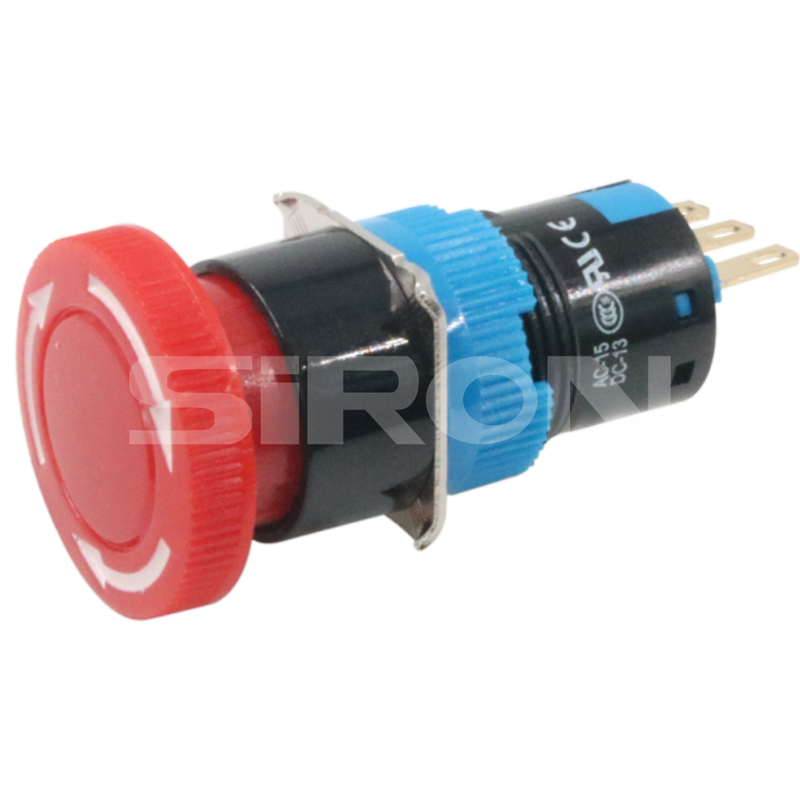

SiRON H007(C) Series Φ16 Round Plastic Emergency Stop Button

Name: SiRON H007(C) Series Φ16 Round Plastic Emergency Stop Button
Brand: SiRON
Rating: 5.0 (87 reviews)

Features

Heat-resistant, shock-resistant, light-weight mechanical key press, long service life, stable and reliable;
Normally open and normally closed contacts adopt separate insulation structure and sliding designto protect circuit safety;
The product cap is made of new material, anti-oxidation, beautiful, safe and durable;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

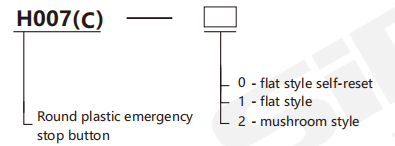

Order

64cdbb763f0a73007518718d61d65d10

Technical Features

Model		H007(C)-0	H007(C)-1/2
Operation type		Self-reset	Self locking
The environment temperature		-25℃~+55℃There must be good air circulation around the lighting switch body (no freezing)
Environment humidity		45～85%RH(No condensation)
Contact structure		1NO 1NC
Contact material		Silver, cadmium oxide in silver, gold plating in silver, thick coating3μm
Contact resistance/insulation resistance		≤50MΩ/≥1000MΩ
Vibration resistance		50Hz,Amplitude approximately1 . 2mm
Impact resistance		>10g
Dielectric strength		Amplitude approximately
Mechanical/electrical life		100More than 30,000 times/ten thousand times
Wiring		Welding wire diameter: 2×0.8mm², maximum copper wire area: 0.75mm², gold-plated wire connector: 2.8×0.5mm²
Operating limits		(Button) Appointment3MM
Switch rating	Heating current	5A The current allowed when the temperature does not exceed the maximum rated value
	Rated voltage	24V
	DC	2A
	A C	P.F=1;P.F=0.7
