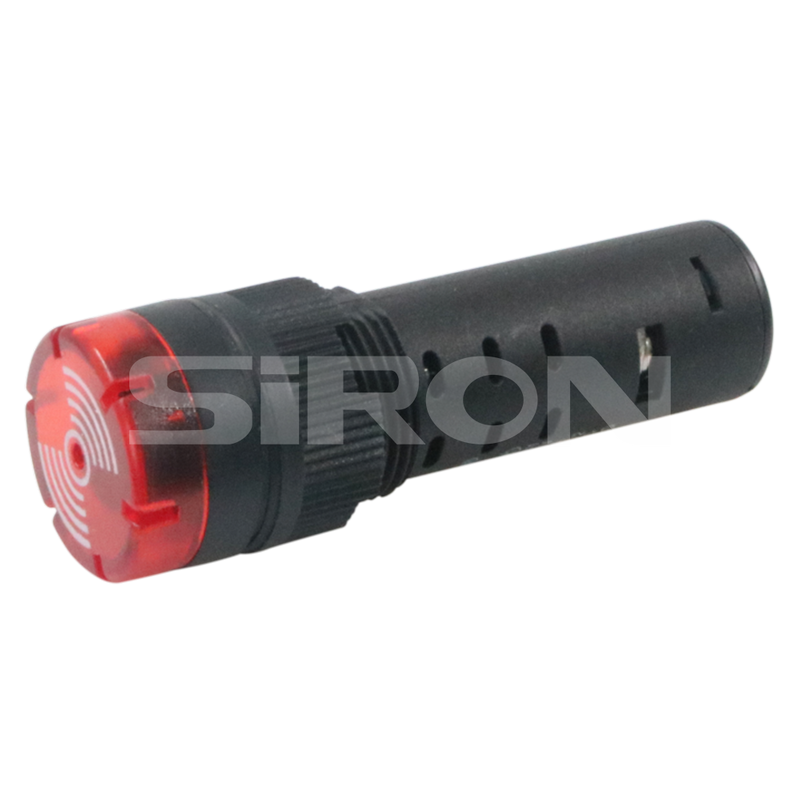

SiRON H018(C) Series Φ16/Φ22 Round plastic buzzer

Name: SiRON H018(C) Series Φ16/Φ22 Round plastic buzzer
Brand: SiRON
Rating: 5.0 (48 reviews)

Features

The indicator light uses a high-brightness solid-color LED light-emitting chip as the light source, with long life, low losssmall size, light weight, and various head styles
High brightness, good reliability, low power consumption, and longercontinuous working life;
Beautiful in appearance and exquisite in manufacture, suitable for circuits of electric power, telecommunications, machinetools, ships, textiles, printing, mining machinery and other equipment lndicative signals, warning signals, accident signalsand otherindication signals in China;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

Technical Features

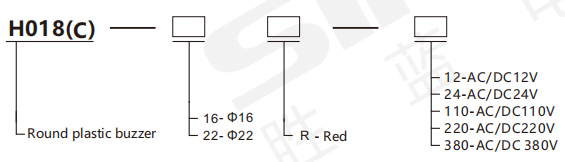

Model	H018(C)series
Connection type	Wiring post (guide wire)
Head style	Circular buzzer
Voltage	AC/DC 24V
Continuous workinglife	≥30000hour
AIlow transient voltage fluctuations	±20%(110Vabove)
Power frequency withstand voltage	2 . 5KV(Effective value of communication),1min
Frequency of use(AC)	50～60Hz
Rated working current	≤20mA
Brightness	≥100cd/m²
Compared with the tracking index CT1	≥100,combustion-supporting
Insulation resistance	Ui≤60V is 5MΩ,60V<Ui≤660V is 50MΩ
Glow color	Red
