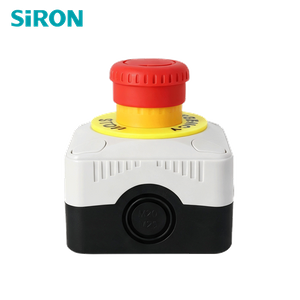

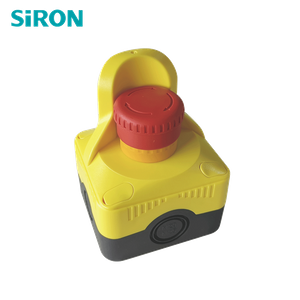

SiRON D170-4A Emergency stop button Robust Double‑Insulated

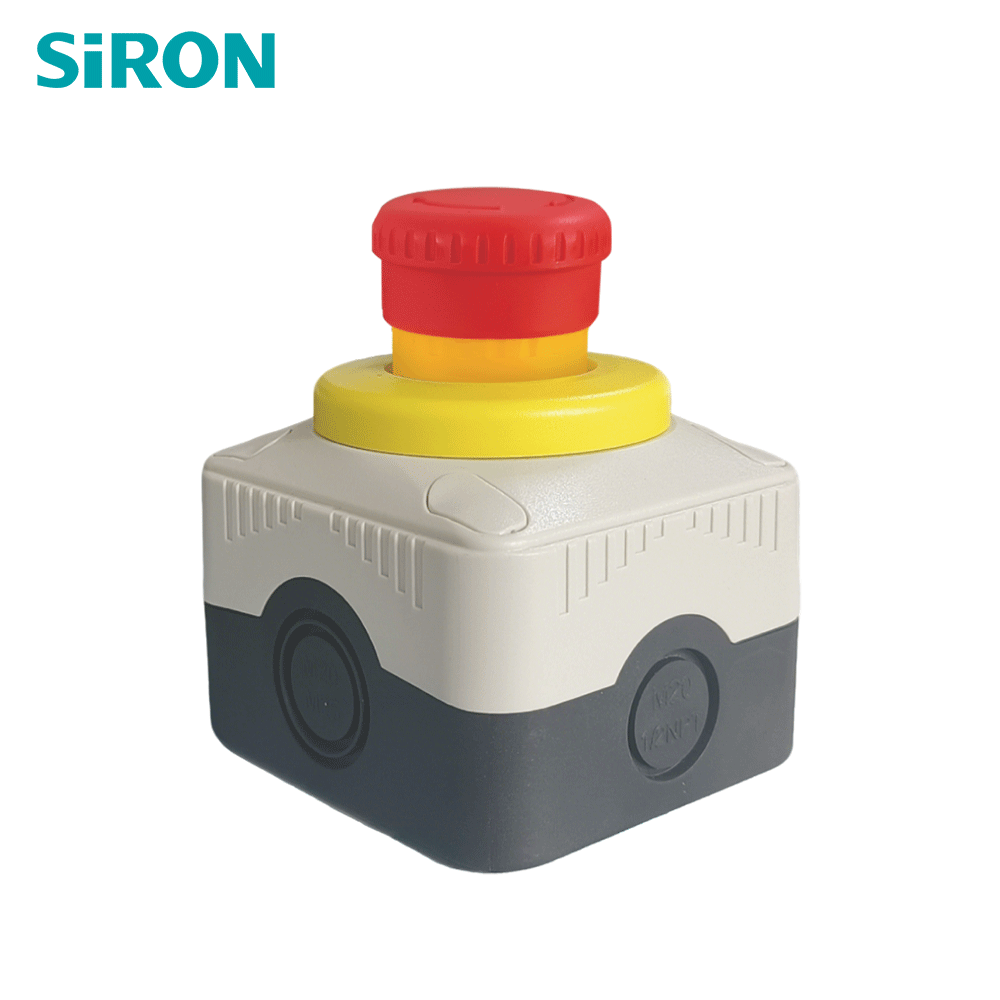

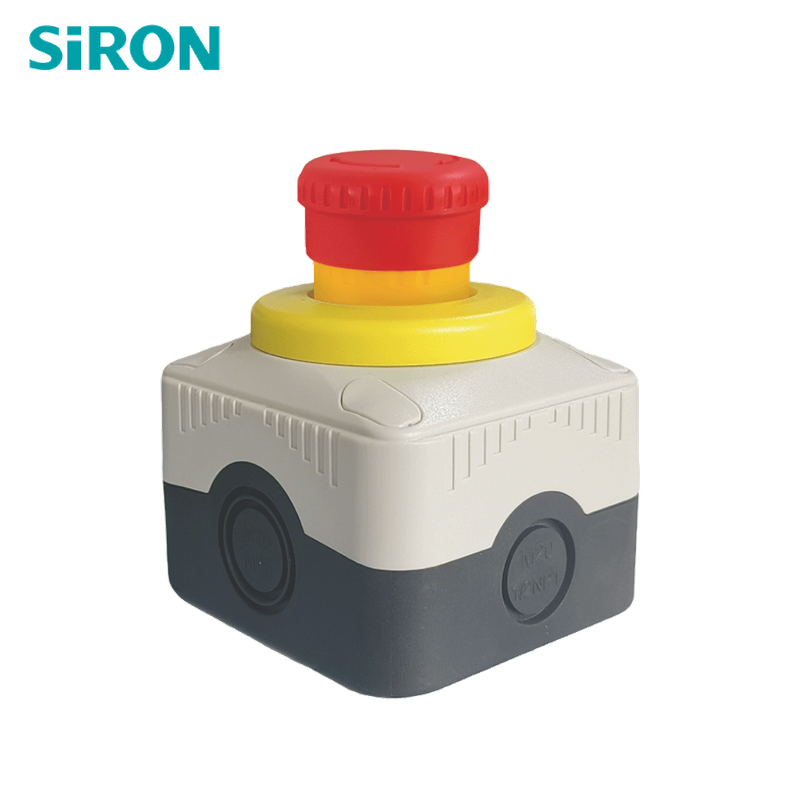

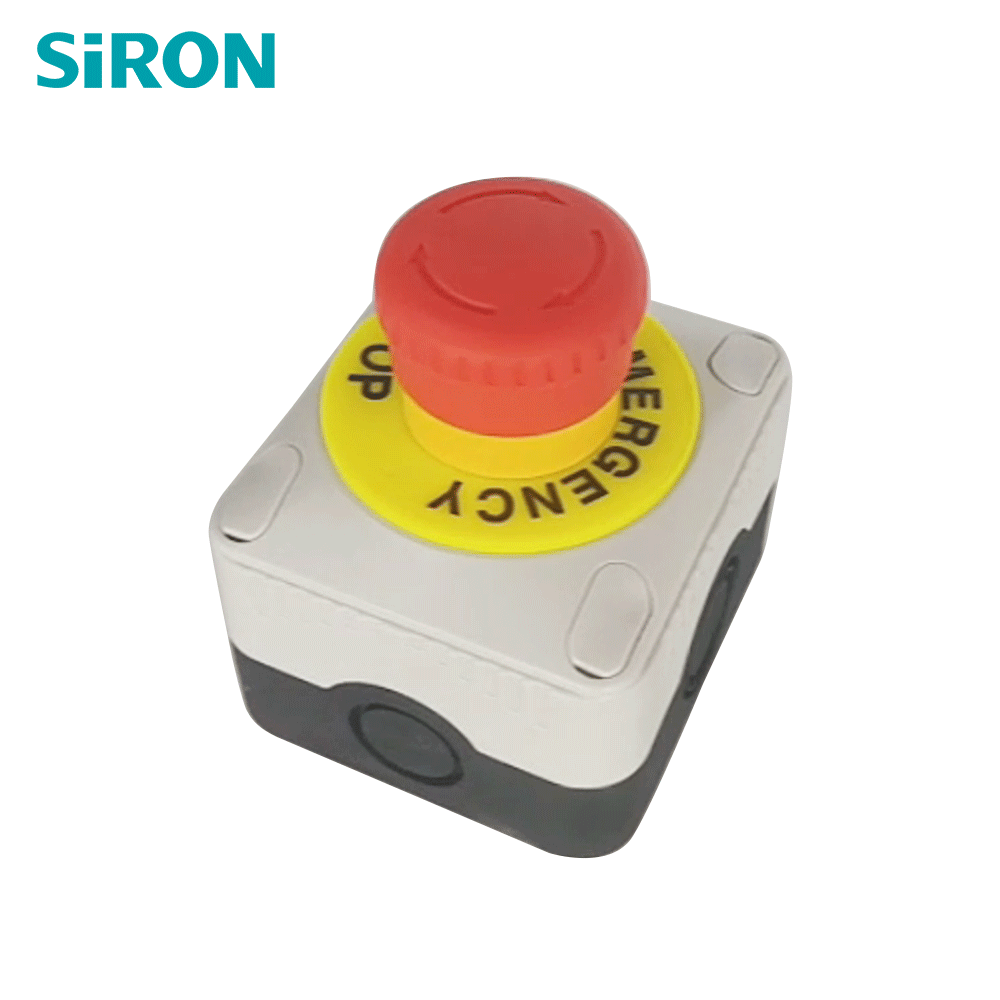

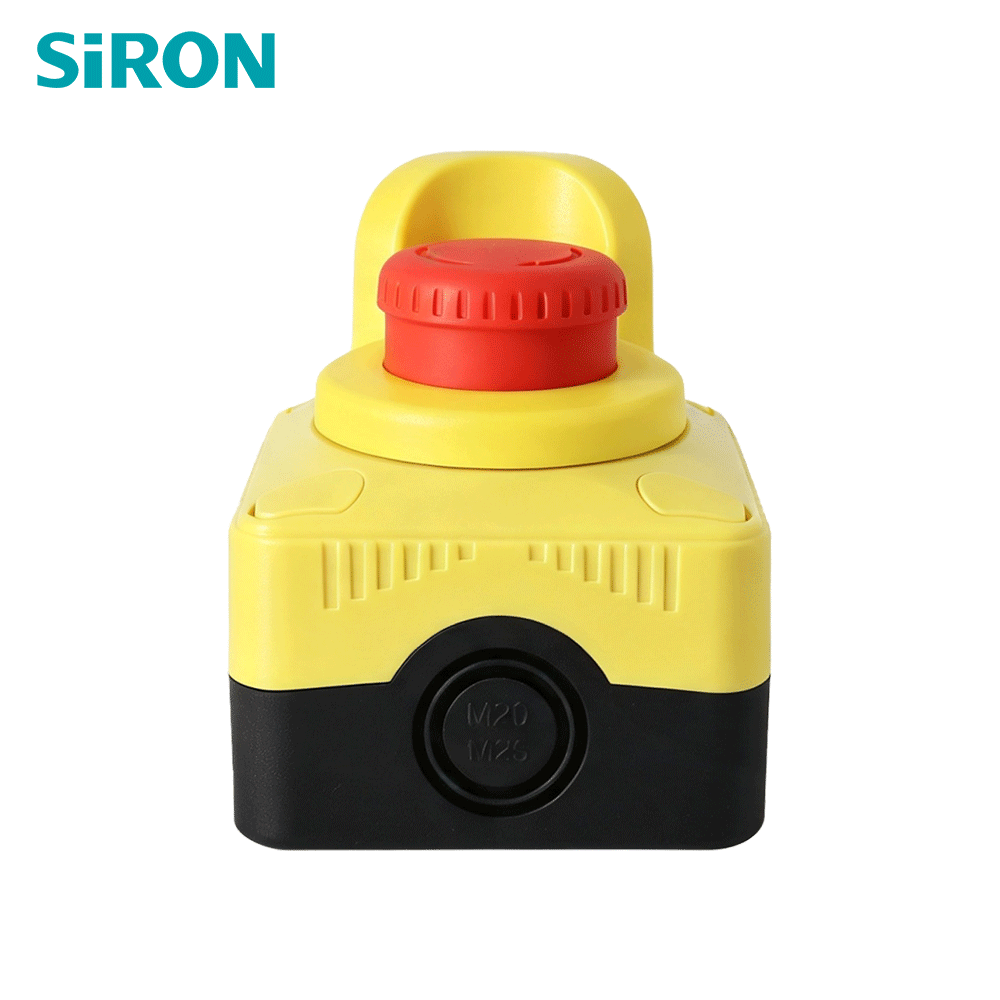

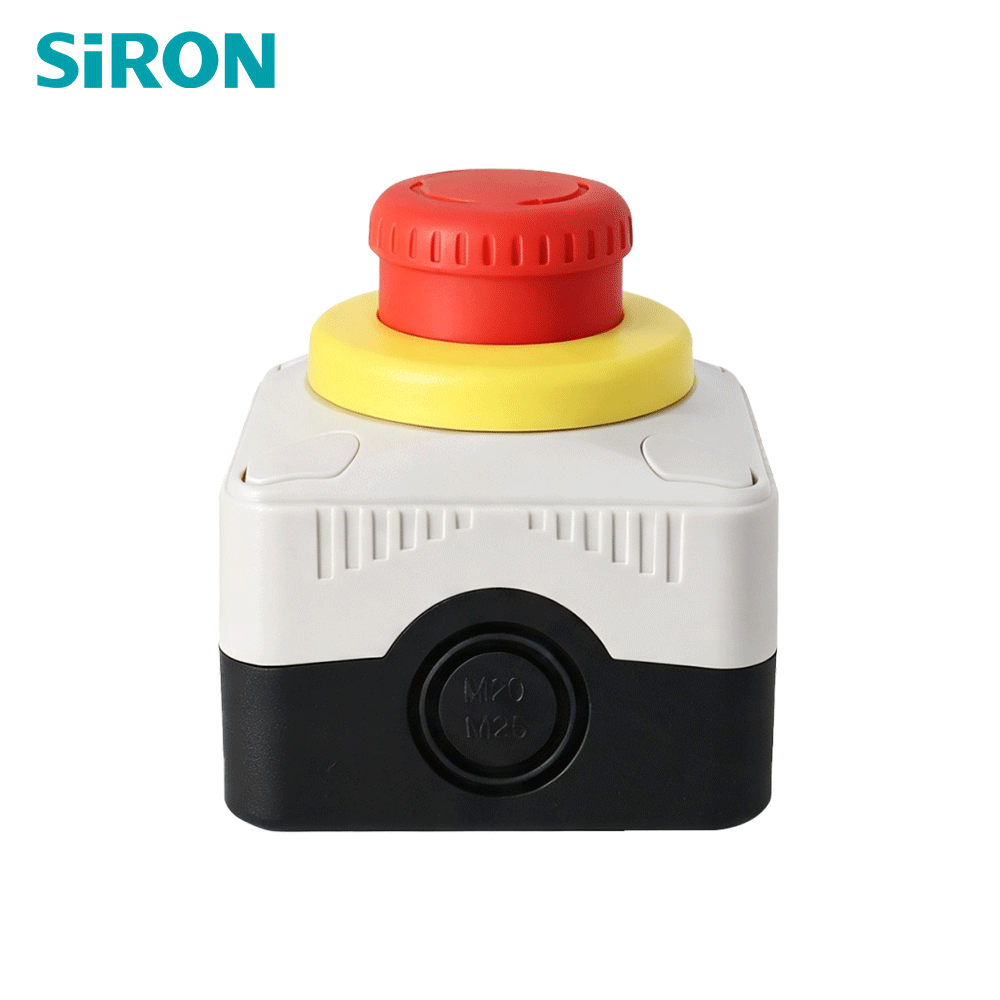

SiRON D170‑4B IP65 Waterproof Emergency Stop Push Button Safety E‑Stop Switch

Name: SiRON D170‑4B IP65 Waterproof Emergency Stop Push Button Safety E‑Stop Switch
Brand: SiRON
Rating: 5.0 (35 reviews)

* 60mm model with a yellow light-emitting disc, flashing warning function, rotate to release;
* Self-extinguishing shock-resistant polycarbonate, featuring double insulation, UV resistance and high impact resistance;
* Removable structure, suitable for use in harsh environments such as those with dirt and moisture；
* Series control circuit design - one button can control multiple devices；
* Three cores, freely combined, with a dual-channel safety architecture, ensuring that the equipment can achieve the purpose of emergency stop when pressed

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
D170-4B
Brand:
SiRON
Code:
9405410000

IP65 emergency stop button durable push button high‑impact emergency button mechanical emergency switch industrial emergency stop button Instant Emergency Stop Button reliable safety button High Electrical Performance stop button

Product Description

ABOUT SELECTION

Specifications

Model	D170-4B

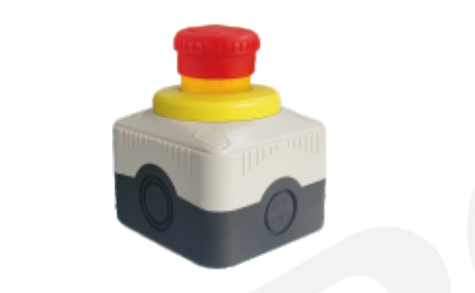

Appearance
Mechanical durability	3000,000 operating cycles
Operating frequency	≤3600 times /h
Operating force	25N
Triggered process	4mm（contact-free） 4mm（normally-closed contact）
Stroke-limit actuation force	Push-pull type: 18.5 N（contact-free）
Rotation release	35 N（contact-free）
Protection level	IP65
Maximum travel distance	9 mm
Set-ring tightening torque	2～2.5 Nm

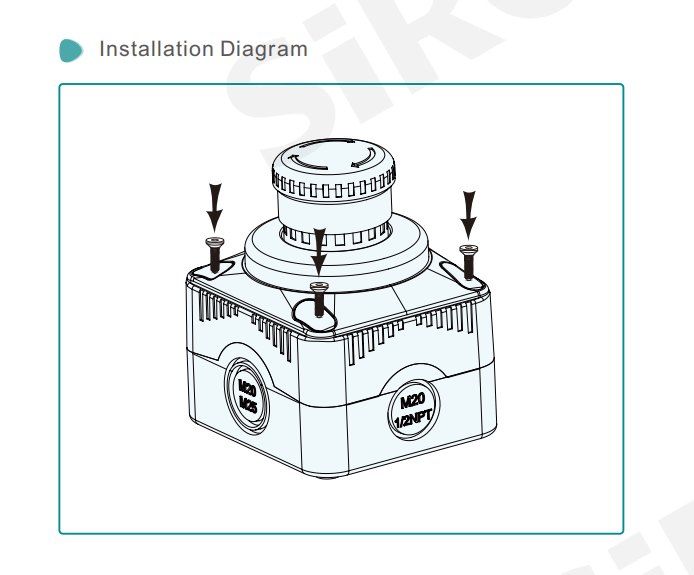

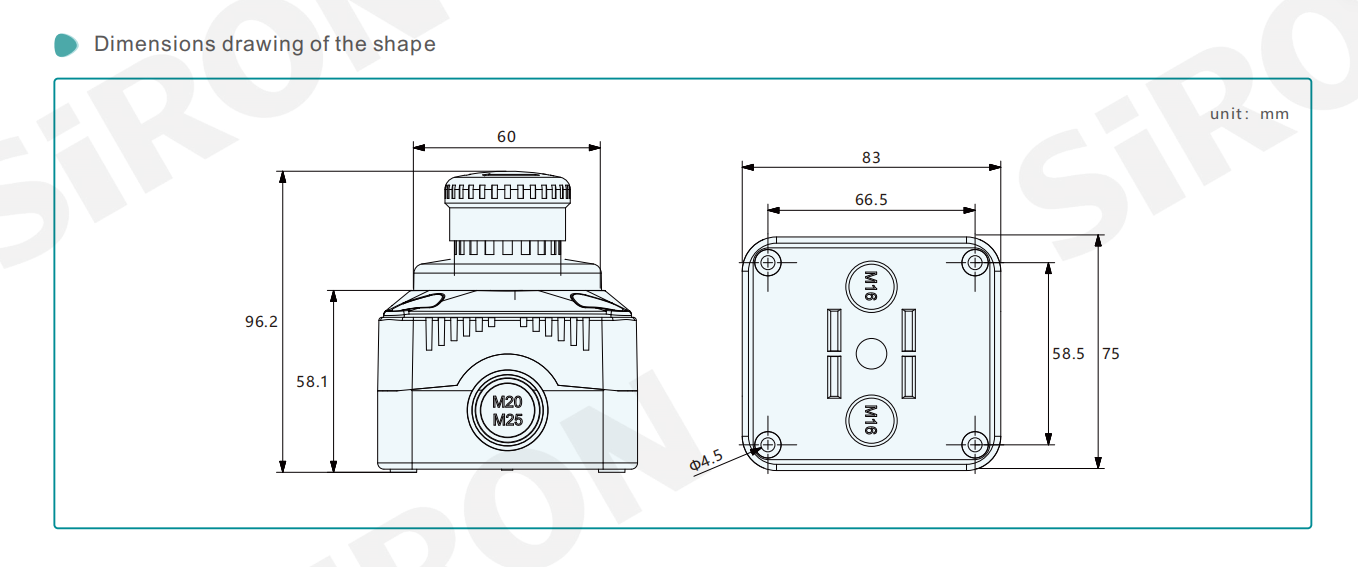

Intravenous catheter inlet	4 side knock‑out entries: 2 × M20‑1/2NPT, 2 × M20‑1/2NPT‑ M25; 2 base knock‑out entries for M16
