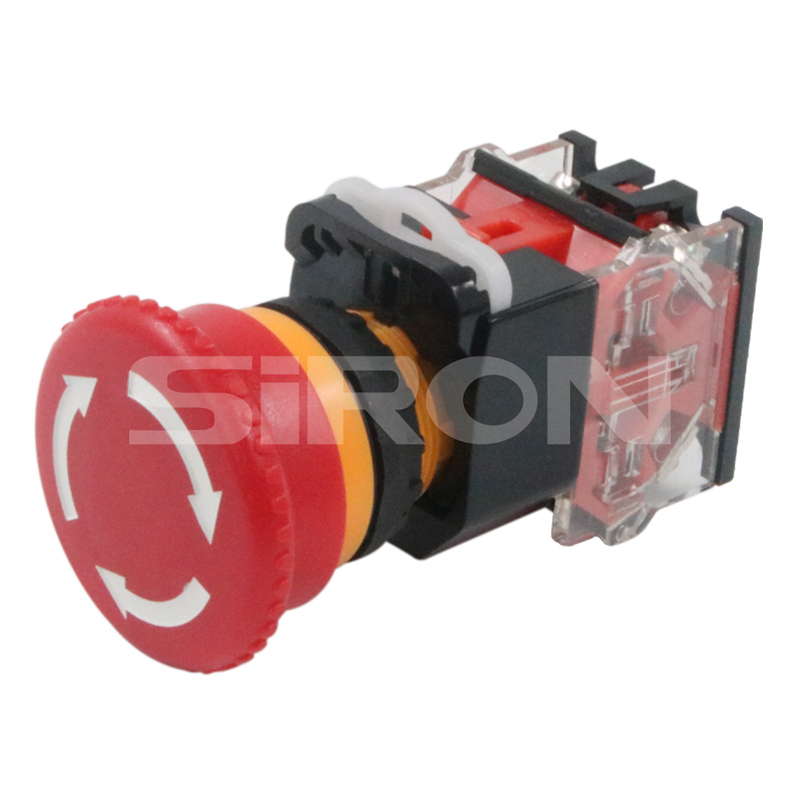

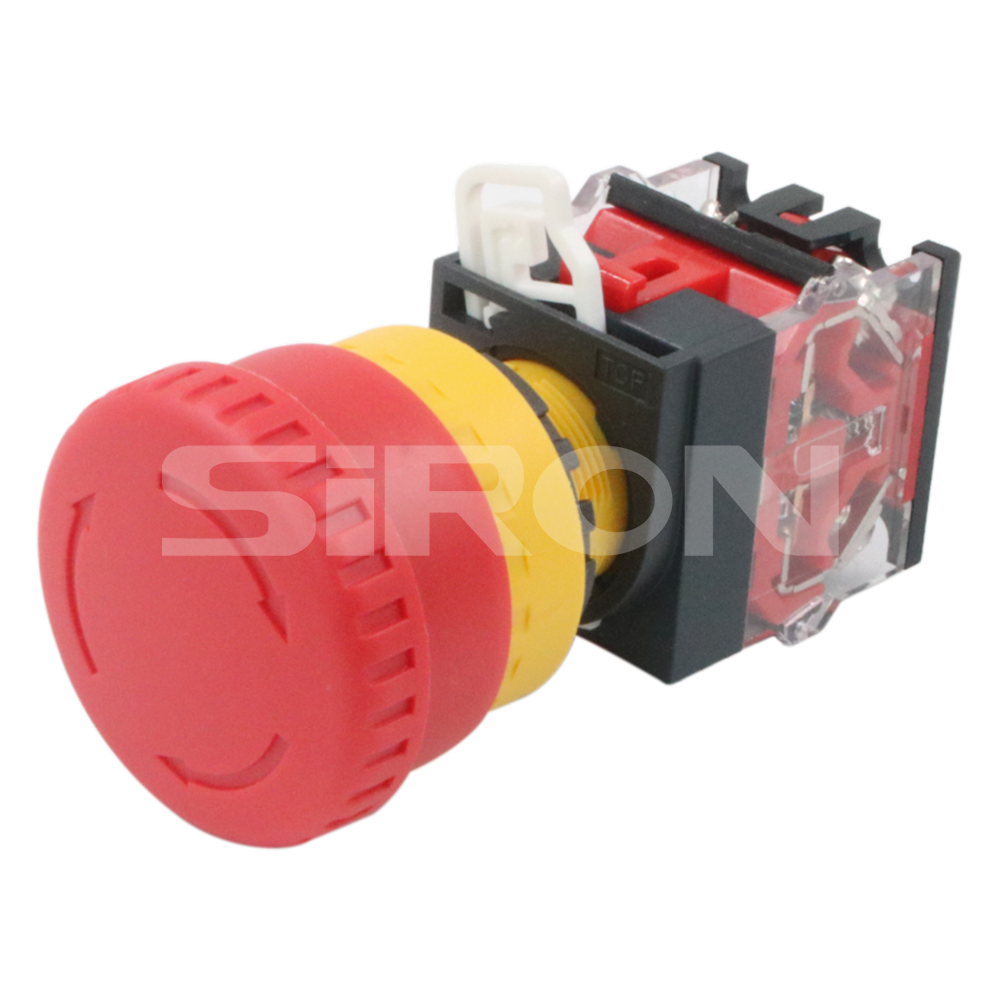

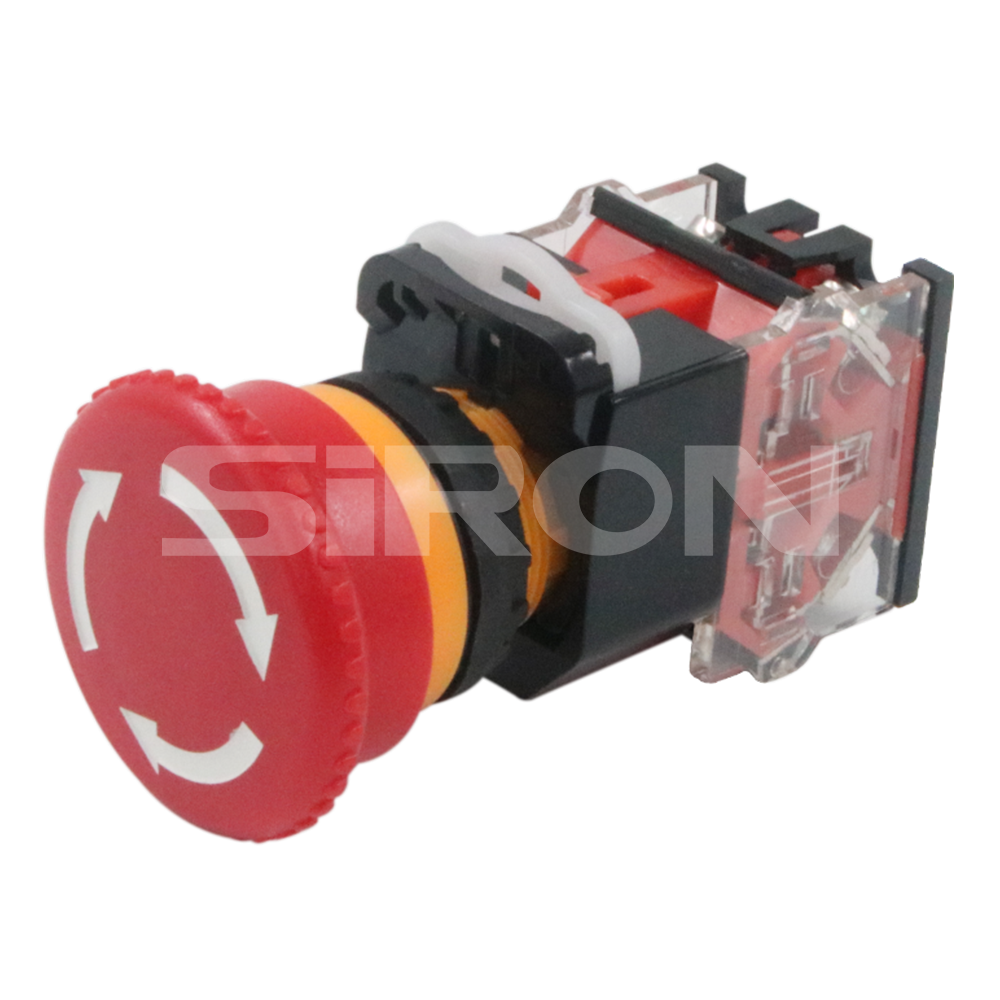

SiRON H017(C) Series Φ22 Round Plastic Emergency Stop Button

Name: SiRON H017(C) Series Φ22 Round Plastic Emergency Stop Button
Brand: SiRON
Rating: 5.0 (22 reviews)

Features

Laser typing, eye-catching prompts to prevent misoperation of buttons, high-quality plastic keys, flexible response, fastelasticity, high-quality plastic materials
Quality impact resistance, oxidation resistance, long use time;
Sliding contact design protects circuit safety, good conductivity and durability;
Safe flame retardant shell, bottom dust cover design, effectively reduce dust from entering theinterior and make the product life longer;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

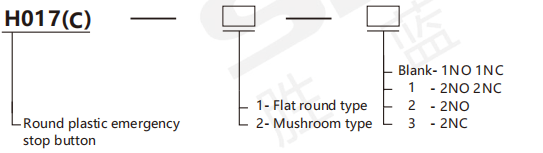

Order

Technical Features

Model		H017(C)series
Operation type		self locking
The environment temperature		-25℃~+55℃(No freezing）There must be good air circulation around the body of the lighting switch
Environment humidity		45～85%RH(No condensation)
Contact structure		1NO 1NC/2NO 2NC/2NO/2NC
Contact material		Silver, cadmium oxide silver, gold plating silver, coating thickness 3μm
Contact resistance		≤50MΩ
Insulation resistance		≥100MΩ
Vibration resistance		50Hz,Amplitude approximately1 . 0mm
Impact resistance		>10g
Dielectric strength		3000V,AC50Hz,
Mechanical life		More than ten thousand times
Electrical life		5More than ten thousand times
Wiring		Threaded connection, maximum wire diameter: 2×1.5⊃2; wiring plug：6.3×0.8⊃2;
Operating force		800gf~2200gf,It depends on the number of switch components
Operating limits		(Button) About 3MM
Switch rating	Rated insulation voltage	AC600V
	Heating current	10A
	Rated voltage	24V
	D C	10A
	A C	AC P.F=0.7
