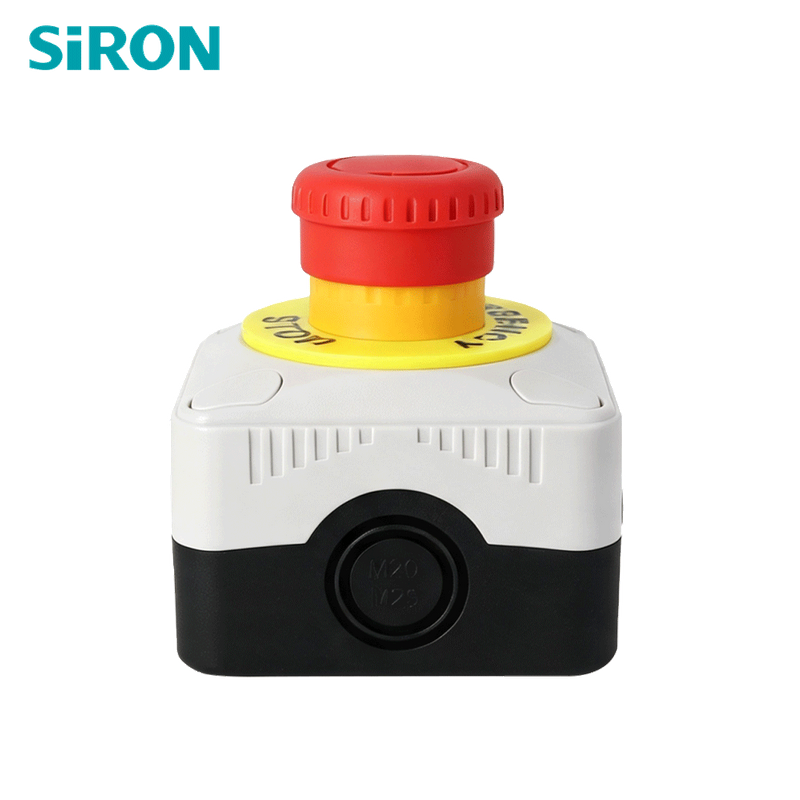

SiRON D170-4A Emergency stop button Robust Double‑Insulated

Name: SiRON D170-4A Emergency stop button Robust Double‑Insulated
Brand: SiRON
Rating: 5.0 (48 reviews)

* Designed for robustness and ease of installation, it saves working time;
* Press stop, twist to release or pull to release;
* Self-extinguishing shock-resistant polycarbonate, featuring double insulation, UV resistance and high impact resistance;
* Removable structure, suitable for use in harsh environments such as those with dirt and moisture；
* Series control circuit design - one button can control multiple devices；

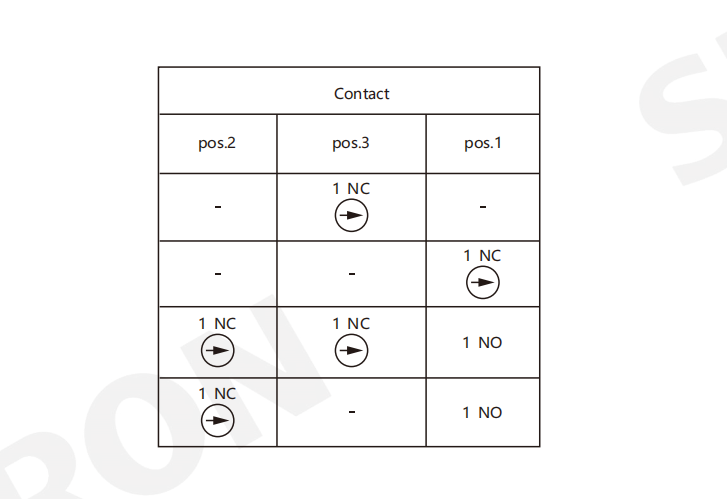

* Three cores, freely combined, with a dual-channel safety architecture, ensuring that the equipment can achieve the purpose of emergency stop when pressed.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
D170-4A
Brand:
SiRON
Code:
9405410000

IP65 emergency stop button robust safety push button high‑impact emergency button double‑insulated stop button industrial emergency stop button long‑life push button dustproof emergency stop button reliable stop push button

Product Description

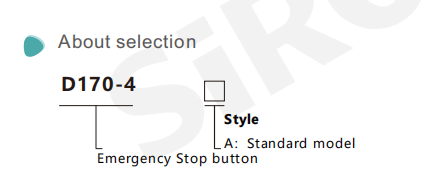

ABOUT SELECTION

Specifications

Model	D170-4A

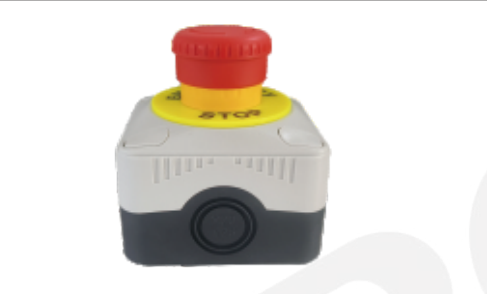

Appearance
Mechanical durability	3000,000 operating cycles
Operating frequency	≤3600 times /h
Operating force	25N
Triggered process	4mm（contact-free） 4mm（normally-closed contact）
Stroke-limit actuation force	Push-pull type: 18.5 N（contact-free）
Rotation release	35 N（contact-free）
Protection level	IP65
Maximum travel distance	9 mm
Set-ring tightening torque	2～2.5 Nm

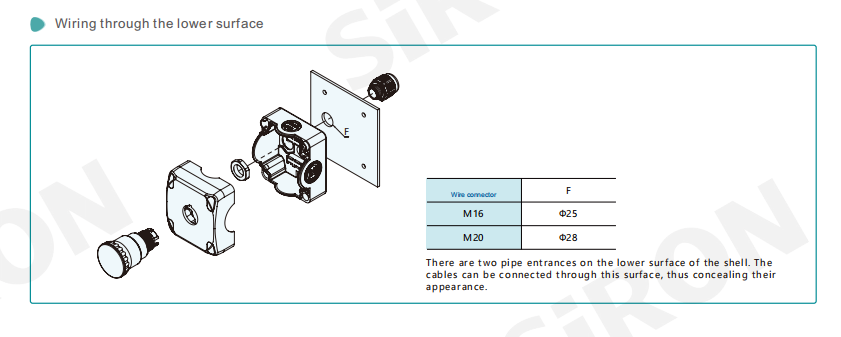

Intravenous catheter inlet	4 side knock‑out entries: 2 × M20‑1/2NPT, 2 × M20‑1/2NPT‑ M25; 2 base knock‑out entries for M16
