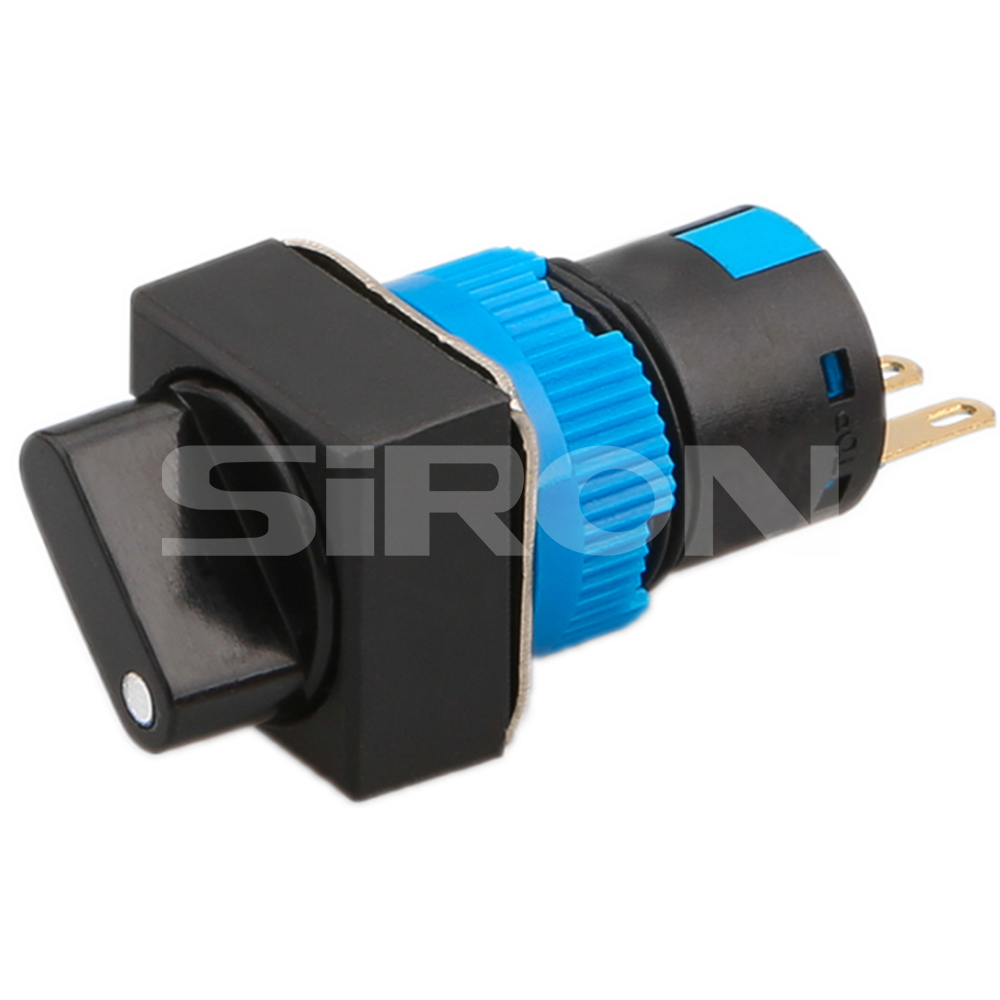

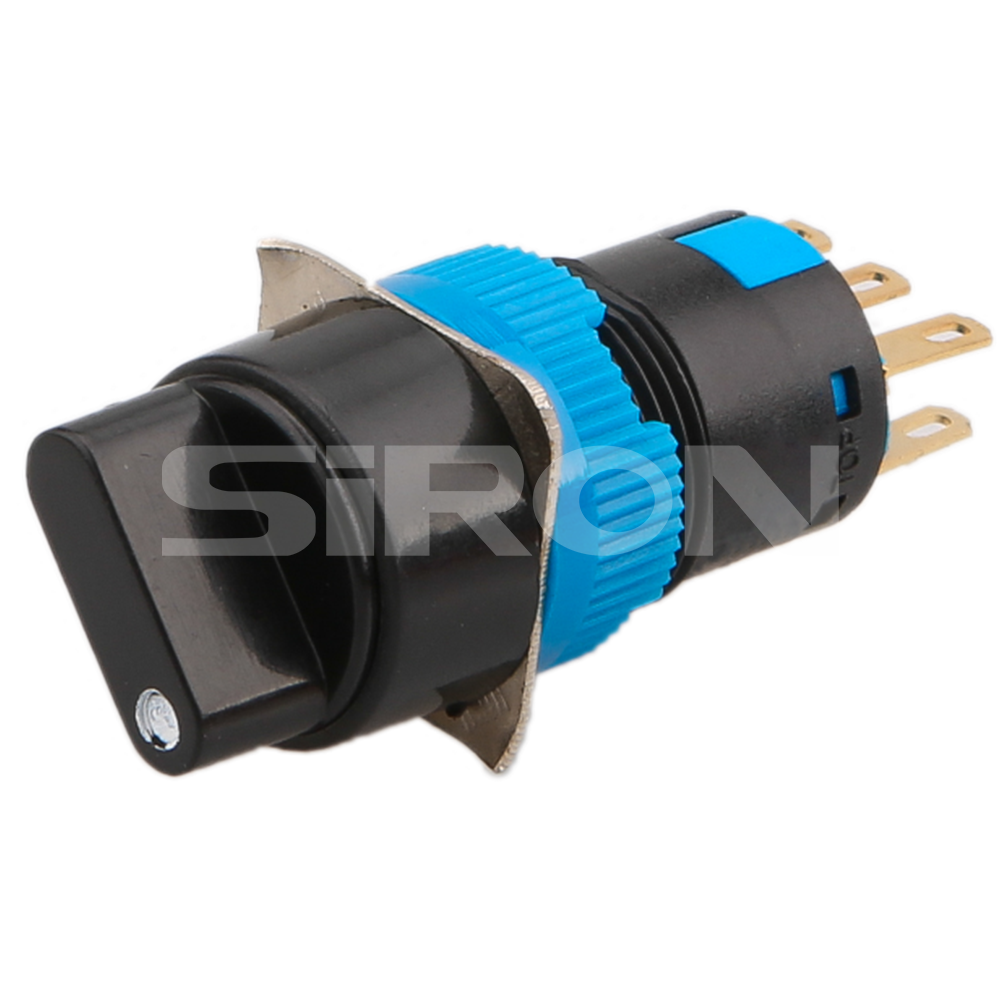

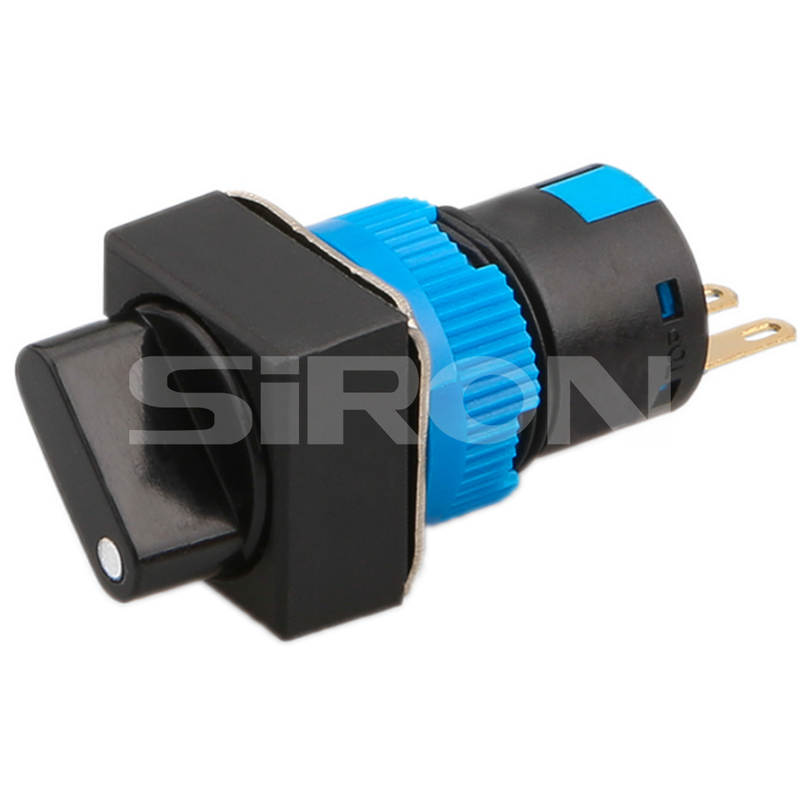

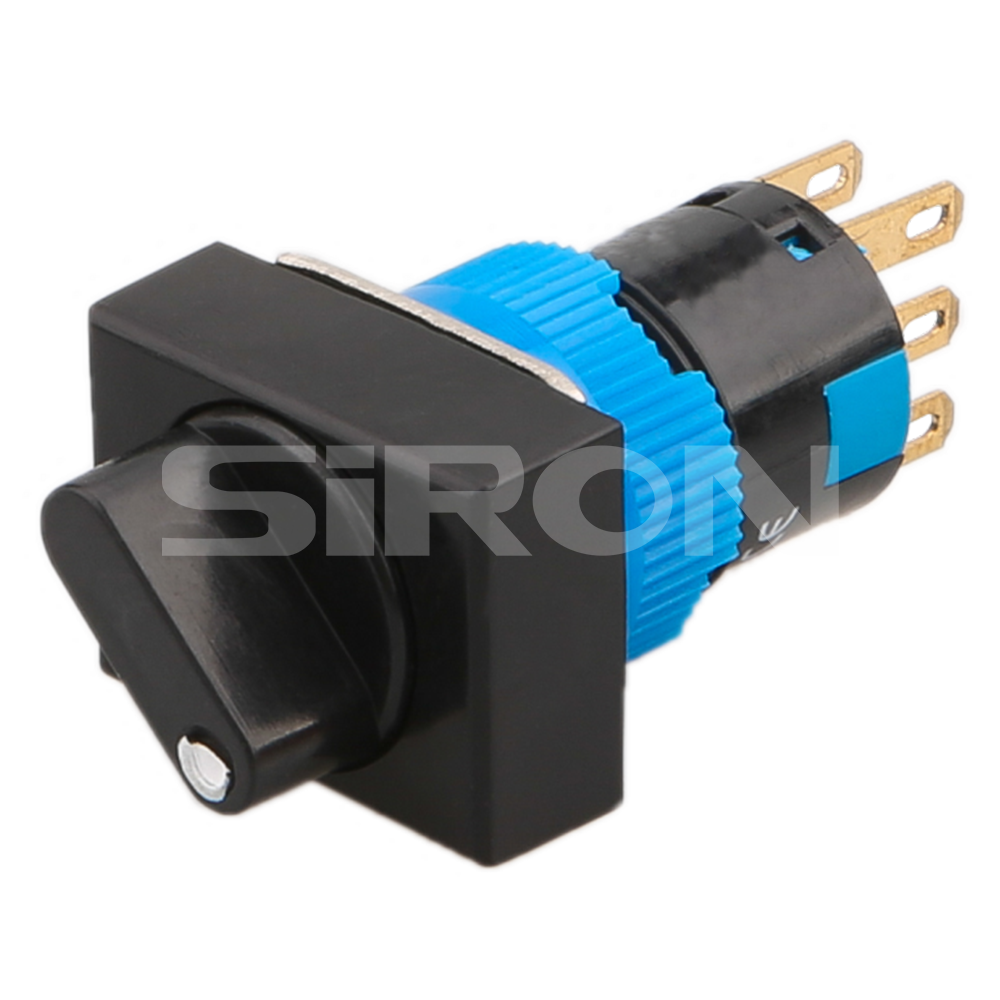

SiRON H005(S) Series Φ16 2nd/3rd Gear Rotary Switch

Name: SiRON H005(S) Series Φ16 2nd/3rd Gear Rotary Switch
Brand: SiRON
Rating: 5.0 (38 reviews)

Features

Heat-resistant, shock-resistant, light-weight mechanical key press, long service life, stable and reliable;
Normally open and normally closed contacts adopt separate insulation structure and sliding designto protect circuit safety;
The product cap is made of new material, anti-oxidation, beautiful, safe and durable;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

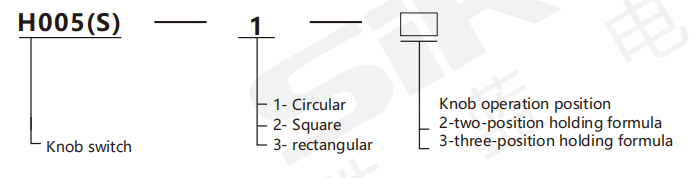

Order

a9790f6b999547212aa01a4b936e64cf

Technical Features

Model		H005 (S) series
Operation type		self locking
The environment temperature		temperature range of the lighting switch body is -25℃ to +55℃(without freezing). There must be good air circulation around it
Environment humidity		45~85%RH(No condensation)
Contact structure		1NO 1NC
Contact matenial		Silver, cadmium oxide silver, gold plating silver, coating thickness 3μm
Contact resistance		≤50MΩ
Insulation resistance		≥100MΩ
Vibration resistance		50Hz,Amplitude approximately1 . 2mm
impact resistance		>10g
Dielectric strength		Between the contacts and the leads of the lamp beads/between different electrode terminals:2000V,AC50Hz,1min Between extremons:1000V,AC50Hz,1min
Mechanical life		One million times
Electrical life		One million times
Winng		Welding wire diameter: 2×0.8mm² Maximum copper wire area: 0.75mm² Gold-plated wiring plug: 2.8×0.5mm²
Operating limits		(button)about3MM
Switch rating	Heating cuIrent	The current allowed when the temperature does not exceed the maximum rated value is 5A
	Rated voltage	24V
	DC	2A
	AC	P.F=1;P.F=0.7
