SiRON H000(S) Series A High-brightness Solid-color LED Light Round Indicator

Name: SiRON H000(S) Series A High-brightness Solid-color LED Light Round Indicator
Brand: SiRON
Rating: 5.0 (23 reviews)

Features

The indicator lig ht uses a hig h-brig htness solid-color LED light-emitting chip as the light source, with long life, low losssmall size, light weight, and various head styles High brightness, good reliability,low power consumption, and longercontinuous working life;
Beautiful in appearance and exguisite in manufacture, suita ble for circuits of electric
Power,telecommunications, machinetools, ships, textiles, printing, mining machinery and other equipment
Indicative signals, warning signals, accident signalsand otherindication signals in China;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

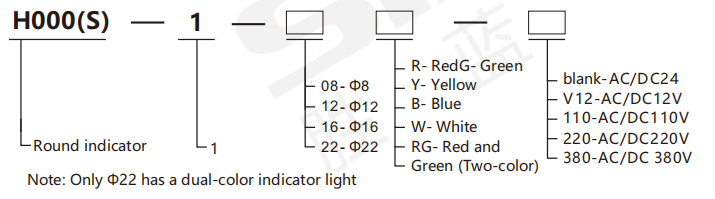

H000S

Specifications

Model	H000(S)-1-08	HO00(S)-1-12	H000(S)-1-16	H000(S)-1-22
Light color	single color			single color/two-tone
Connection type	Wiring plug (soldering pin）		Terminal post (wire）
Head style	Circular indicator light
Voltage	AC/DC 24V
Continuous working life	≥ 30,000 hours
Allow transient voltage fluctuations	±20%(110Vabove)
Power frequency withstand voltage	2.5KV(Effective value of communication),1min
Frequency of use(AC)	50～60Hz
Rated working current	≤20mA
Brightness	≥100cd/m²
Compared with the tracking index CT1	≥100, combustion-supporting
Insulation resistance	Ui≤60V is 5MΩ, and 60V<Ui≤660V is 50MΩ
Glow color		Red, green, yellow, blue, white, red and green
