SiRON H000(C) Series A High-brightness Solid-color LED Light Indicator Light

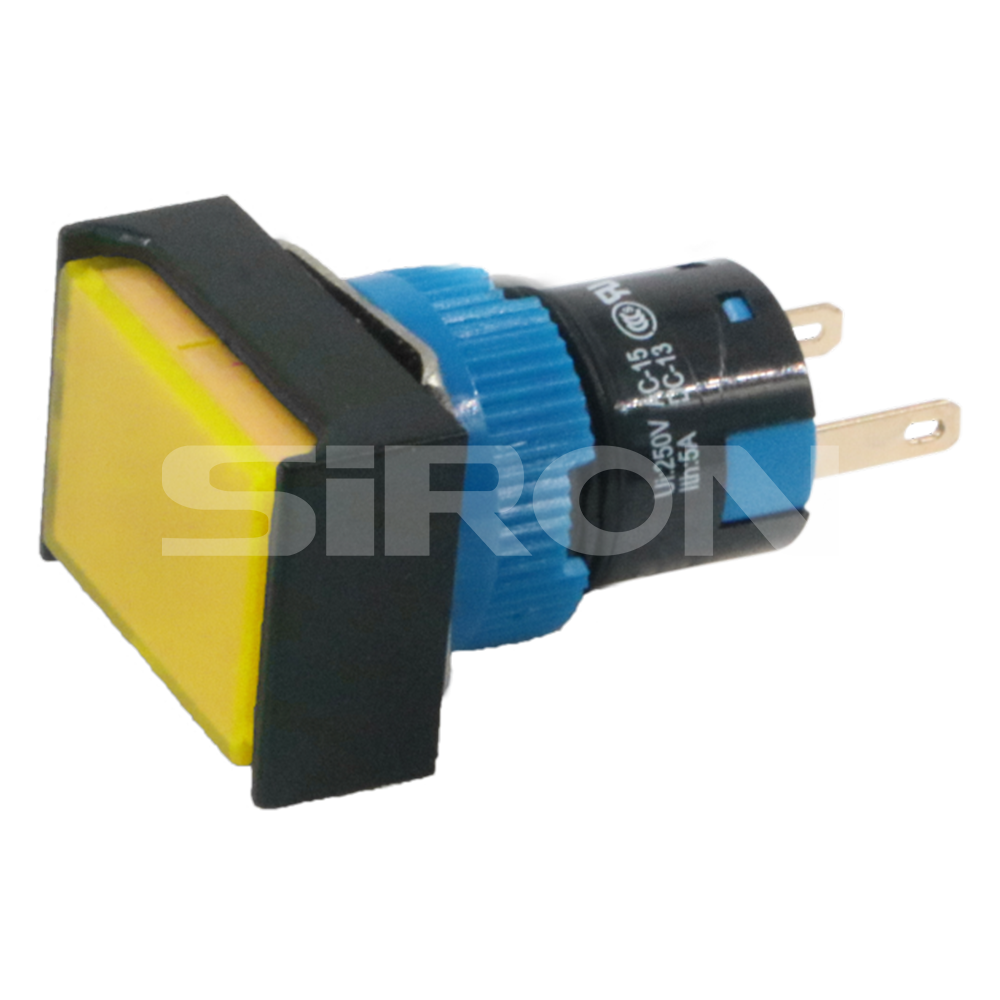

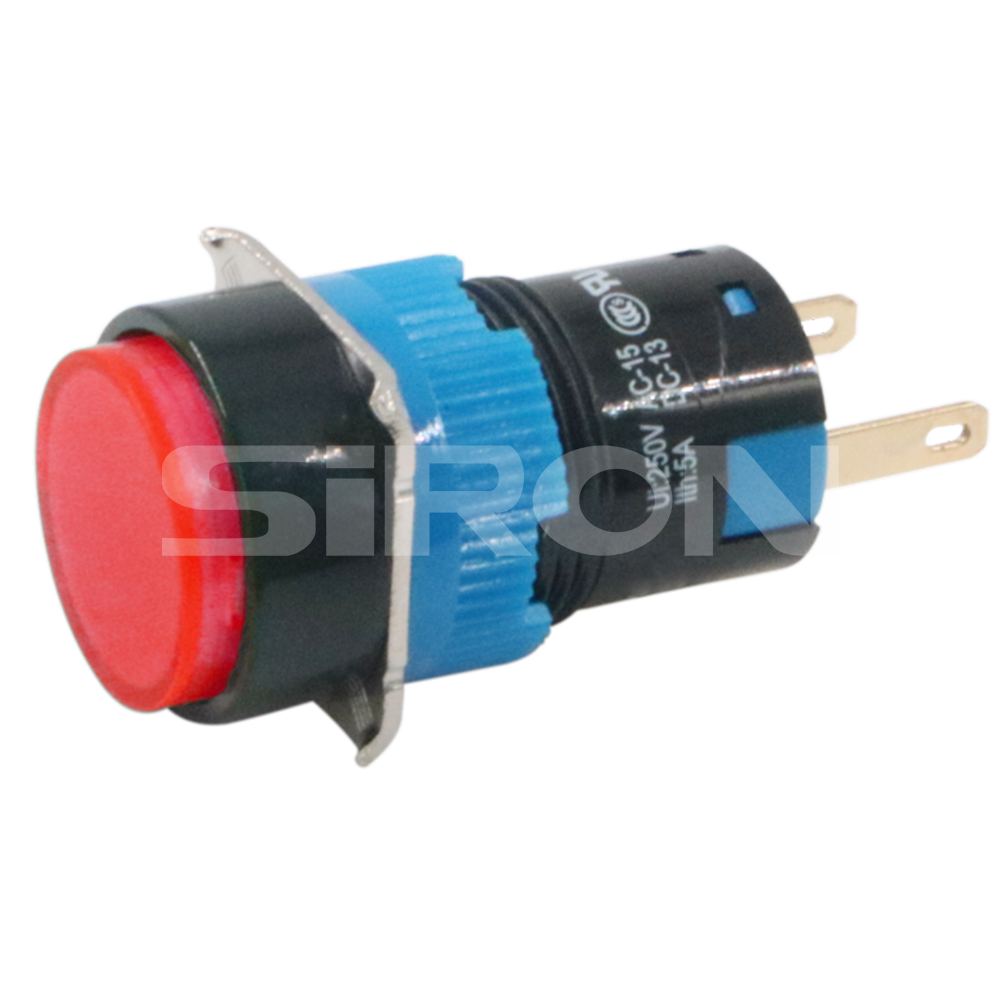

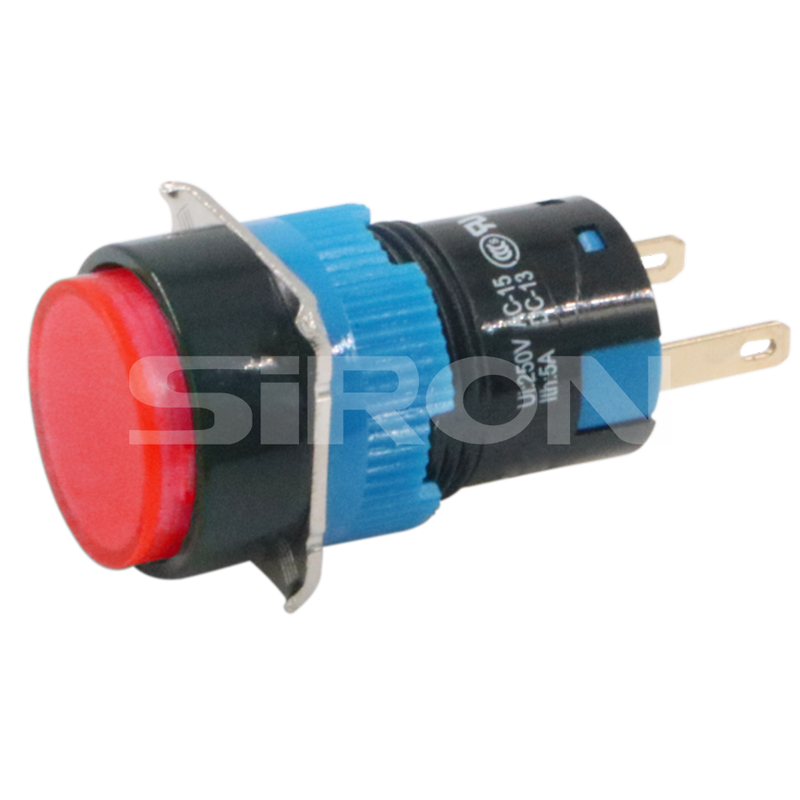

Name: SiRON H000(C) Series A High-brightness Solid-color LED Light Indicator Light
Brand: SiRON
Rating: 5.0 (79 reviews)

Features

The indicator lig ht uses a hig h-brig htness solid-color LED light-emitting chip as the light source, with long life, low losssmall size, light weight, and various head styles High brightness, good reliability,low power consumption, and longercontinuous working life;
Beautiful in appearance and exguisite in manufacture, suita ble for circuits of electric
Power,telecommunications, machinetools, ships, textiles, printing, mining machinery and other equipment
Indicative signals, warning signals, accident signalsand otherindication signals in China;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

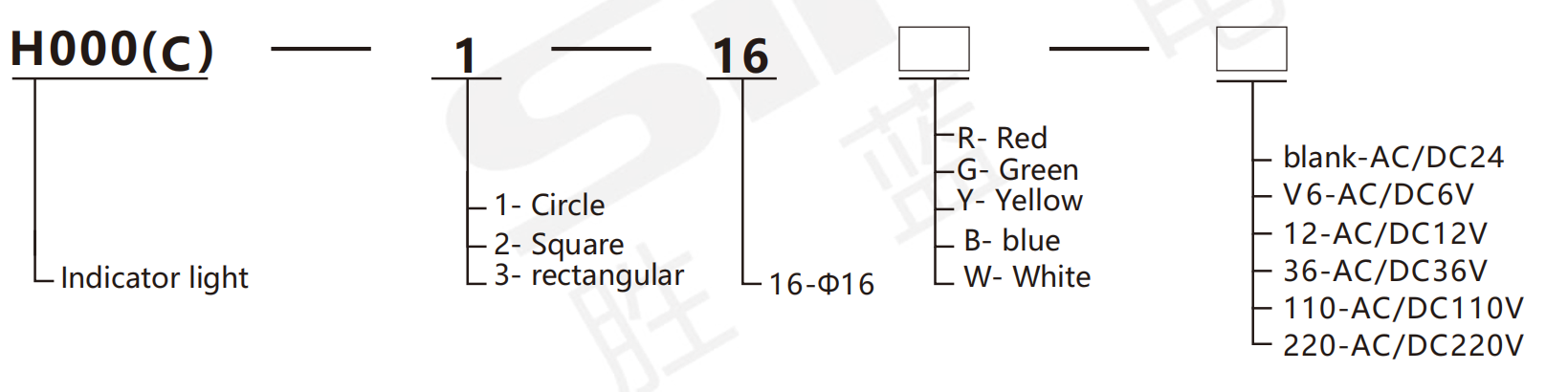

Order

H000C

Specifications

Model		H000(C)series
The environment temperature		The temperature range of the lighting switch body is -25℃ to +55℃(without freezing). There must be good air circulation around it
Environment humidity		45-85%RH(No condensation)
Contact material		Silver, cadmium oxide silver, gold plating silver, coating thickness 3μm
Contact resistance		≤50MΩ
Insulation resistance		≥1000MΩ
Vibration resistance		50Hz, amplitude approximately 1.2mm
Impact resistance		>10g
Dielectric strength		Between the contacts and the leads of the lamp beads/between different electrode terminals: 2000V,AC50Hz,1min Between the same extremum: 1000V,AC50Hz,1min
Mechanical life		One million times
Electrical ife		More than 30,000 times
Wiring		Welding wire diameter: 2×0.8mm² Maximum copper wire area: 0.75mm² Gold-plated wiring plug: 2.8×0.5mm²
Operating limits		(Button) Appointment3MM
Switch rafng	Heating current	The current allowed when the temperature does not exceed the maximum rated value is 5A
	Rated voltage	24V
	Direct current DC	2A
	Cross-flow A C	P.F=1;P.F=0.7
LED	Lamp bead types	Bidirctional LED beads (AC/DC compatible)
	The rated voltage	6V/12V/24V/36V/110V/220V
	Rated current	About 20mA about 20mA
	life	50,000 hours (reference value)
