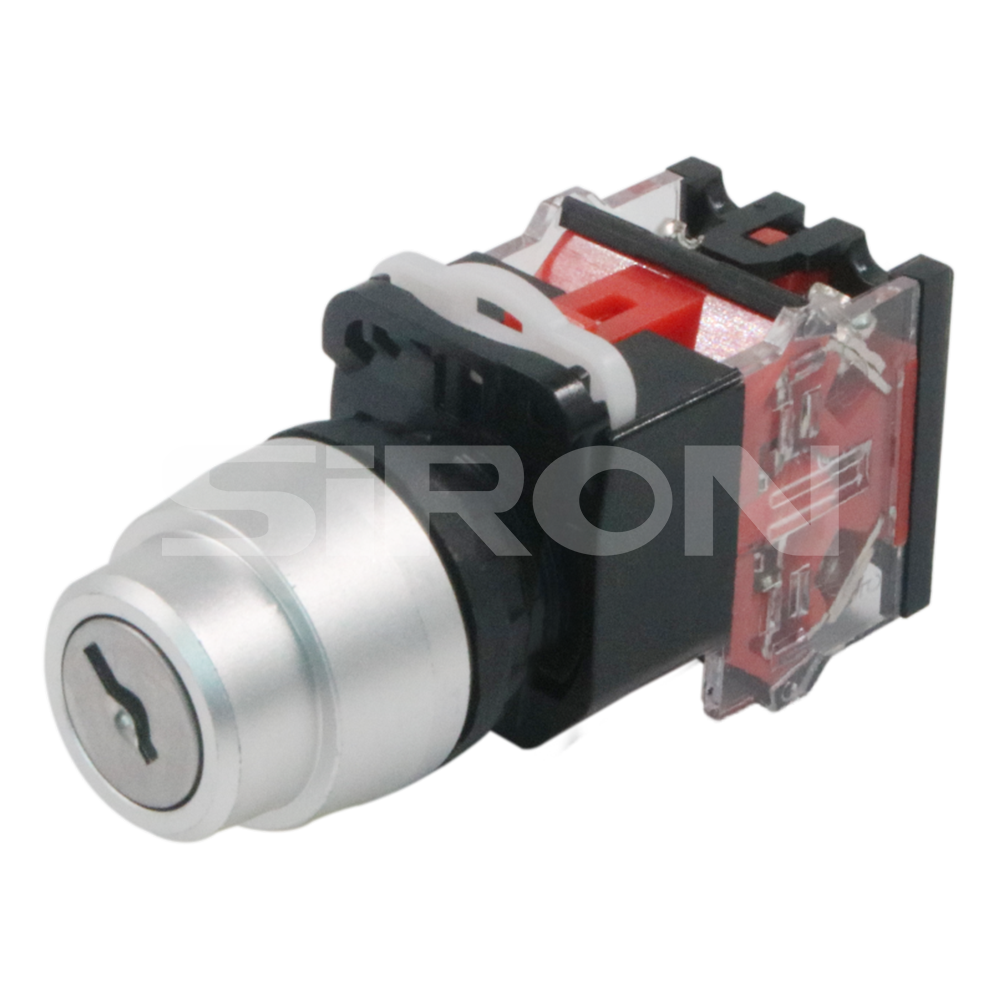

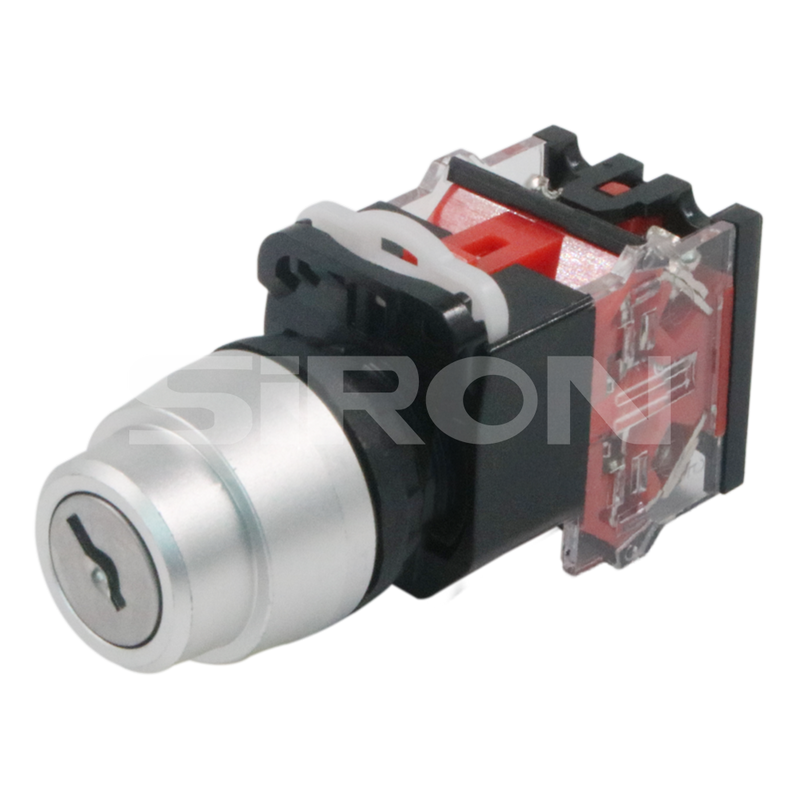

SiRON H016(C) Series Φ22 Round Plastic Key Switch

Name: SiRON H016(C) Series Φ22 Round Plastic Key Switch
Brand: SiRON
Rating: 5.0 (7 reviews)

Features

Heat-resistant, impact-resistant, light-weight mechanical switching force, long service life, stableand reliable;
Normally open and normally closed contacts adopt separate insulation structure and sliding designto protect circuit safety;
The product cap is made ofnew material, anti-oxidation, beautiful, safe and durable,

Product Description

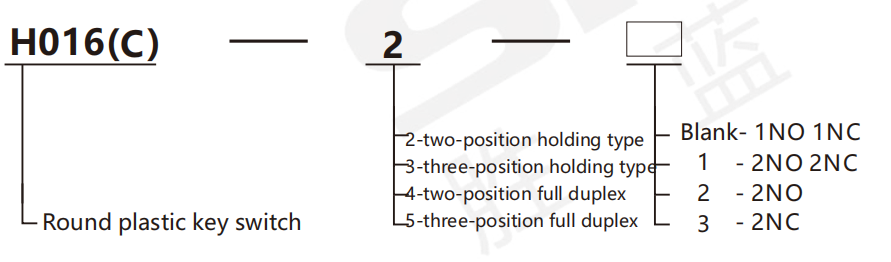

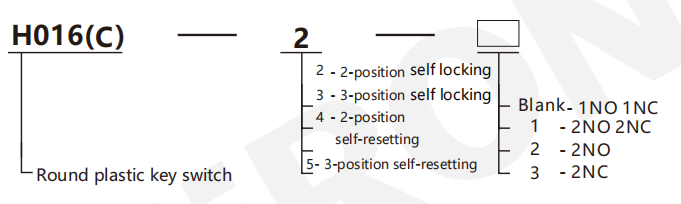

Order

Technical Features

Model		H016(C)-2/3series	H016(C)-4/5series
Operation type		self locking	Self-resetting
The environment temperature		-25℃~+55℃(There must be good air circulation around the lighting switch body (no freezing)
Environment humidity		45~85%RH(non condensing)
Contact structure		1NO1NC/2NO 2NC/2NO/2NC
Contact material		Silver, cadmium oxide silver, gold plating silver, coating thickness 3μm
Contact resistance		≤50MΩ
Insulation resistance		≥100MΩ
Vibration resistance		50Hz,Amplitude approximately1 . 0mm
Impact resistance		>10g
Dielectric strength		3000V,AC50Hz,
Mechanical life		Self-resetting button: 1 million times; Self-locking button: 500,000
Electrical life		Threaded connection, maximum wire diameter: 2×1.5² wiring plug：6.3×0.8²
Wiring		Threaded connection, maximum wire diameter: 2×1.5² wiring plug：6.3×0.8²
Operating force		800gf~2200gf,It depends on the number of switch components
Operating limits		(Button) About3MM
Switch rating	Rated insulation voltage	AC600V
	Heating current	10A
	Rated voltage	24V
	DC	10A
	AC	AC P.F=0.7
