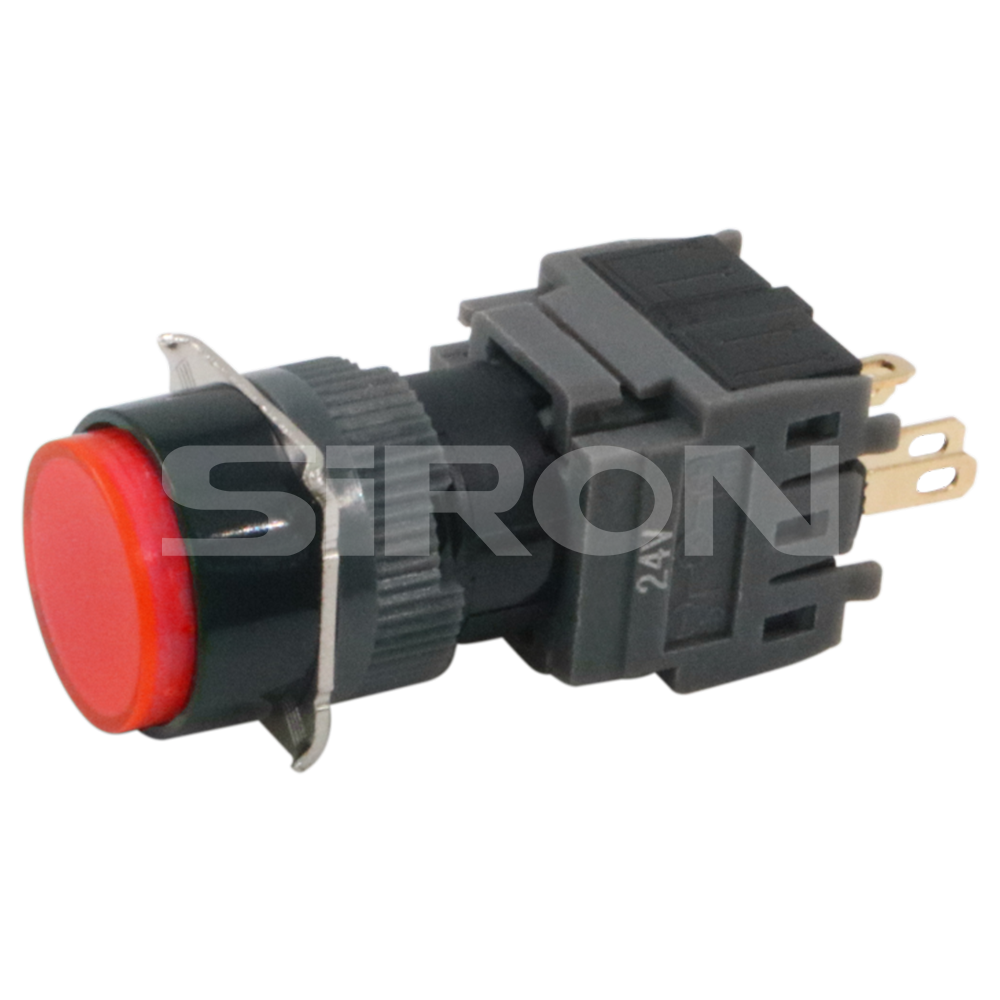

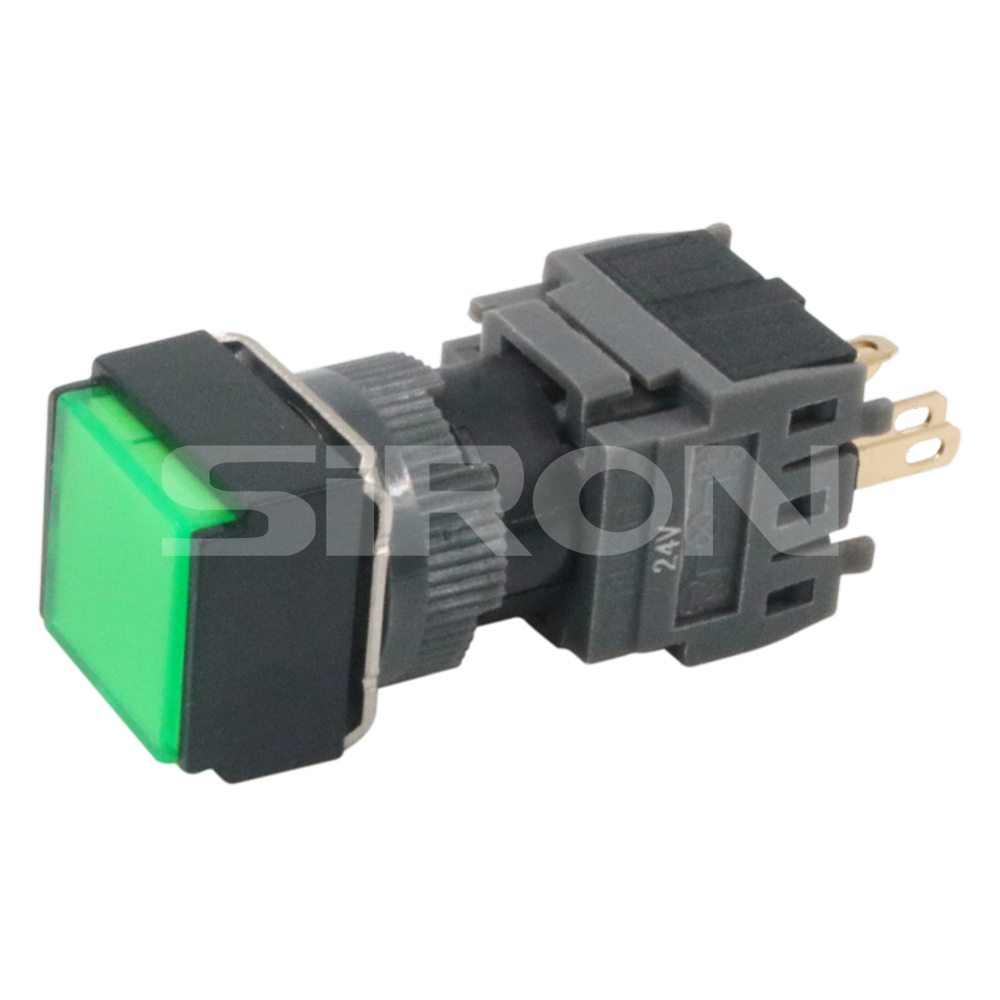

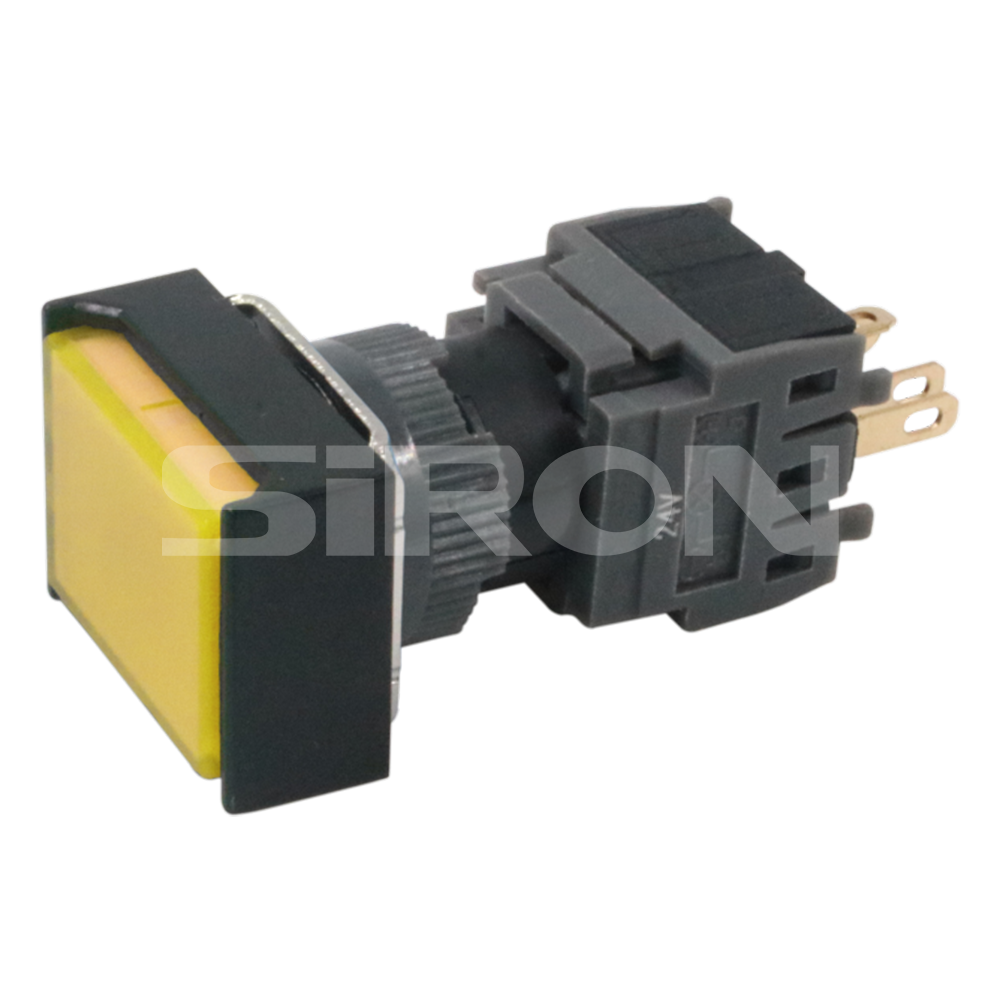

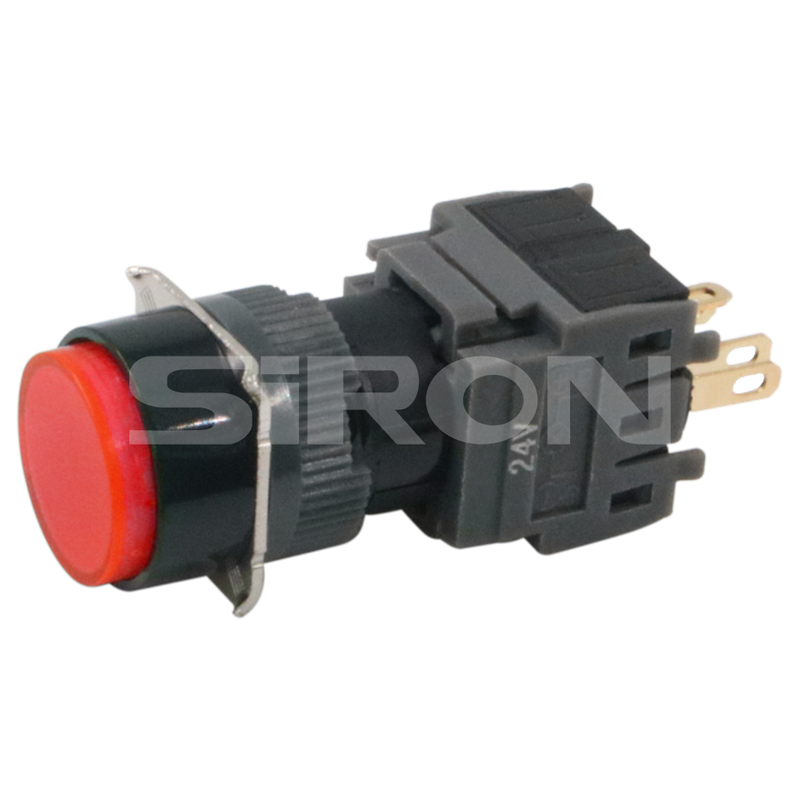

SiRON H002(C)/H004(C) Series Φ16 High-brightness Indicator Light Button Indicator

Name: SiRON H002(C)/H004(C) Series Φ16 High-brightness Indicator Light Button Indicator
Brand: SiRON
Rating: 5.0 (68 reviews)

Features

High-brightness indicator light, easy to identify, long working life, low energy consumption and other features are safer to use,
Electrostatic protective film to prevent scratches on the surface, prevent dust, and ensure that the product is intact and clean;
Silver alloy contacts, copper feet silver alloy electric shock, to ensure the current and sensitivity of the electrification;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

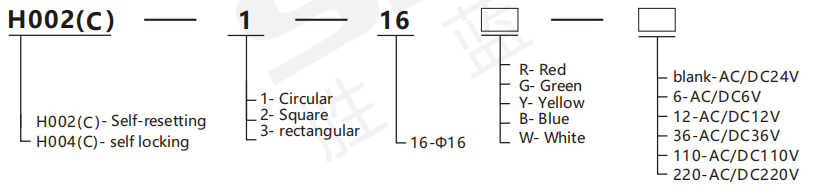

Order

H002C

Specifications

Model		H002(C)series	H004(C)series
Operation type		Self-contained	self locking
The environment temperature		The temperature range of the lighting switch body is -25℃ to +55℃(without freezing). There must be good air circulation around it
Environmen humidity		45~85%RH(No condensation)
Contact structure		1NO1NC
Contact material		Silver, cadmium oxide in silver, gold plating in silver, thick coating3μm
Contact resistance		≤50MΩ
Insulation resistance		≥1000MΩ
Vibration resistance		50Hz,Amplitude approximately1 . 2mm
Impact resistance		>10g
Dielectric strength		Between the contacts and the leads of the lamp beads/between different electrode terminals: 2000V,AC50Hz,1min Between the same extremum: 1000V,AC50Hz,1min
Mechanical life		One million times
Electricalife		More than 100,000 times
Wiring		Welding wire diameter: 2×0.8mm² Maximum copper wire area: 0.75mm² Gold-plated wiring plug: 2.8×0.5mm²
Operating limits		(Button) About3MM
Switch rating	Heating current	The current allowed when the temperature does not exceed the maximum rated value is 5A
	Rated voltage	24V
	Direct current DC	2A
	alternating current A C	P.F=1;P.F=0.7
LED light	Lamp bead types	Bidirectional LED beads (AC/DC compatible)
	The rated voltage	6V/12V/24V/36V/110V/220V
	Rated current	about20mA about 20mA
	life	50000Hours (reference value)
