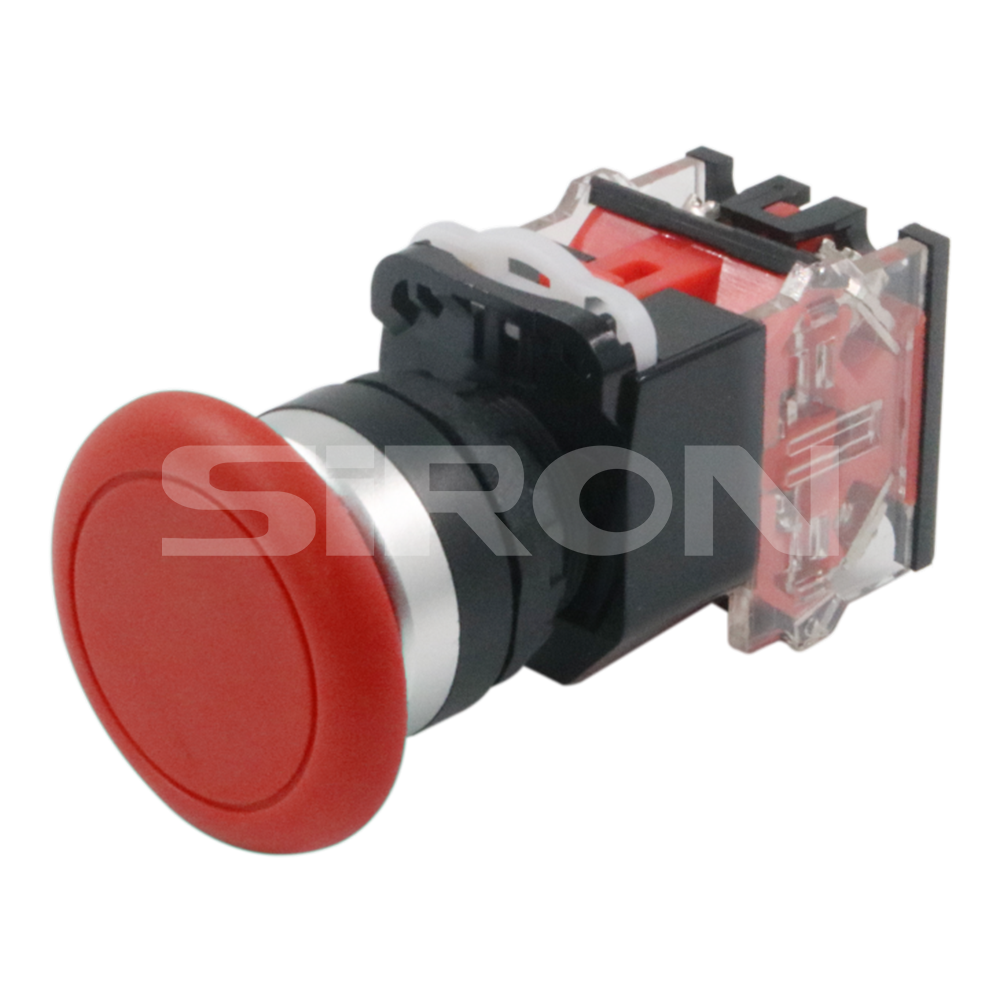

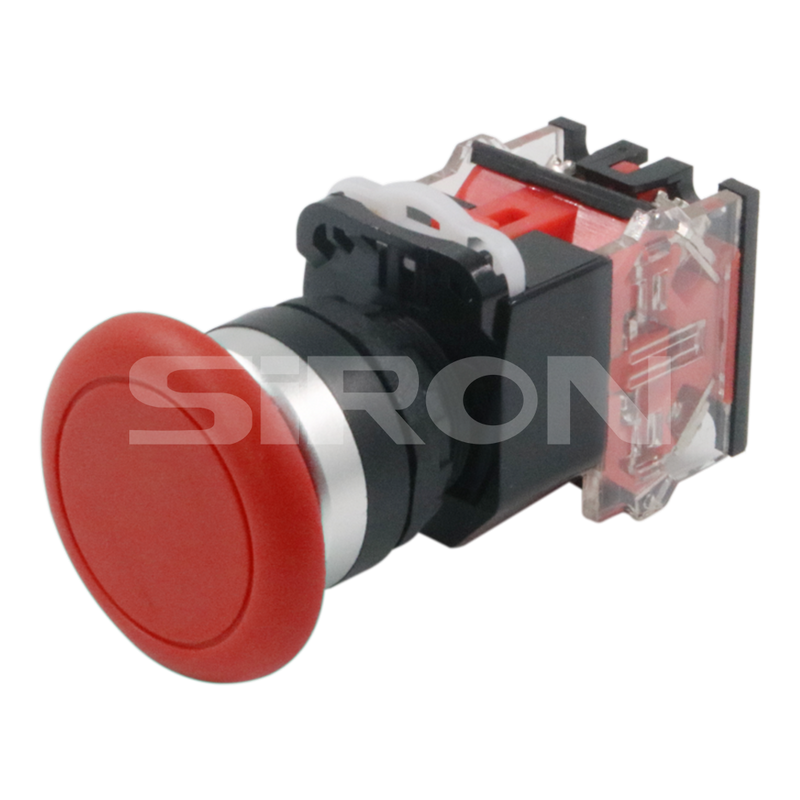

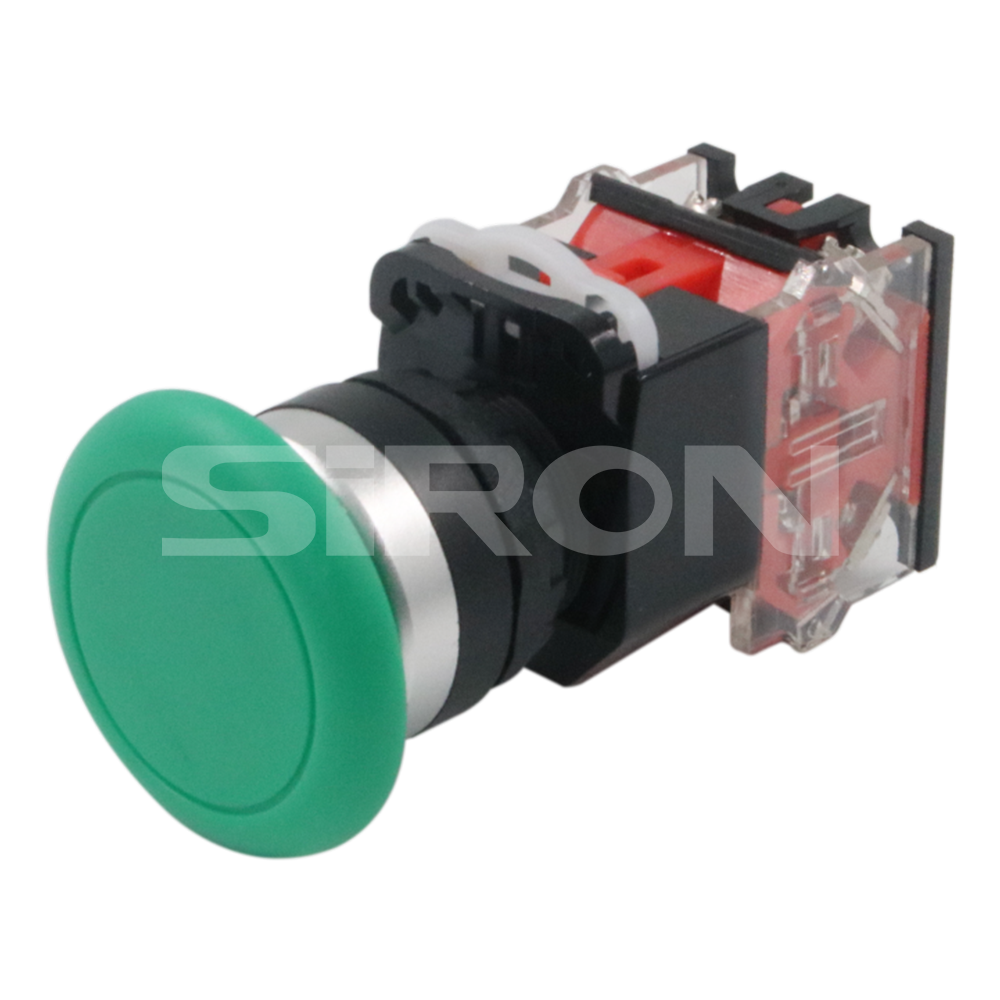

SiRON H019(C)/H020(C) Series Φ22 Round Plastic Mushroom Button

Name: SiRON H019(C)/H020(C) Series Φ22 Round Plastic Mushroom Button
Brand: SiRON
Rating: 5.0 (29 reviews)

Features

High installation buckle design, press and hold the buckle while puling up the button head, you can easily pull out thehigh-quality plastic buttons, and the flexible response is quick
Full of strength, using high-quality plastic material toresistimpact and oxidation for a long time;
Sliding contact design protects circuit safety, good conductivity and durability;safe flame retardant shell, bottom dust cover desian, effectively reduce dust from entering the interior and make theroduct life longer;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

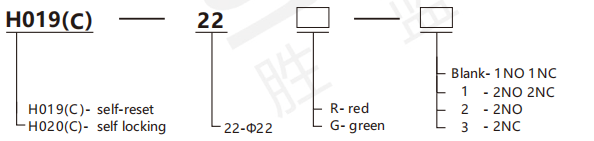

8ac93d926896742068d427fd9e68886d

Technical Features

Model		H019( C)	H020( C)
Operation type		self locking	Self-resetting
The environment temperature		-25℃~+55℃(There must be good air circulation around the lighting switch body (no freezing)
Environment humidity		45~85%RH(non condensing)
Contact structure		1NO1NC/2NO 2NC/2NO/2NC
Contact material		Silver, cadmium oxide silver, gold plating silver, coating thickness 3μm
Contact resistance		≤50MΩ
Insulation resistance		≥100MΩ
Vibration resistance		50Hz,Amplitude approximately1 . 0mm
Impact resistance		>10g
Dielectric strength		3000V,AC50Hz,
Mechanical life		Self-resetting button: 1 million times; Self-locking button: 500,000
Electrical life		Threaded connection, maximum wire diameter: 2×1.5⊃2; wiring plug：6.3×0.8⊃2;
Wiring		Threaded connection, maximum wire diameter: 2×1.5⊃2; wiring plug：6.3×0.8⊃2;
Operating force		800gf~2200gf,It depends on the number of switch components
Operating limits		(Button) About3MM
Switch rating	Rated insulation voltage	AC600V
	Heating current	10A
	Rated voltage	24V
	DC	10A
	AC	AC P.F=0.7
