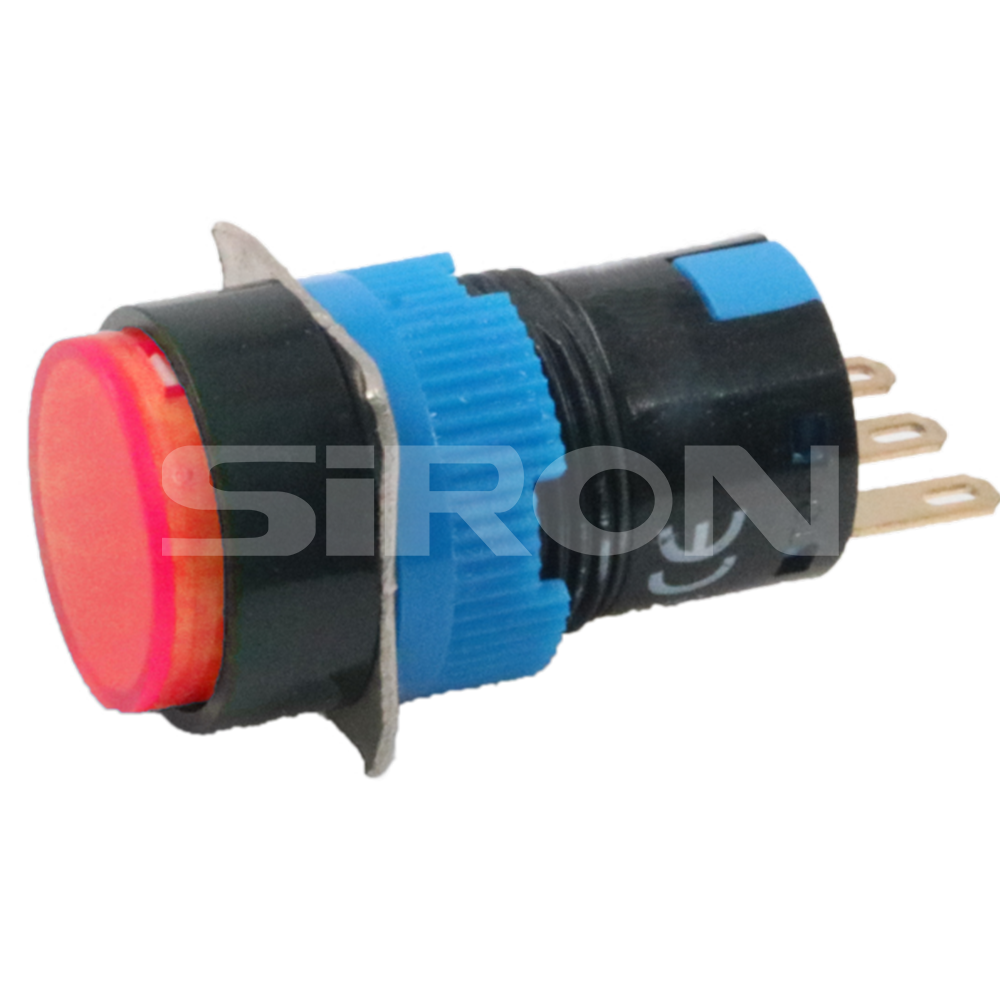

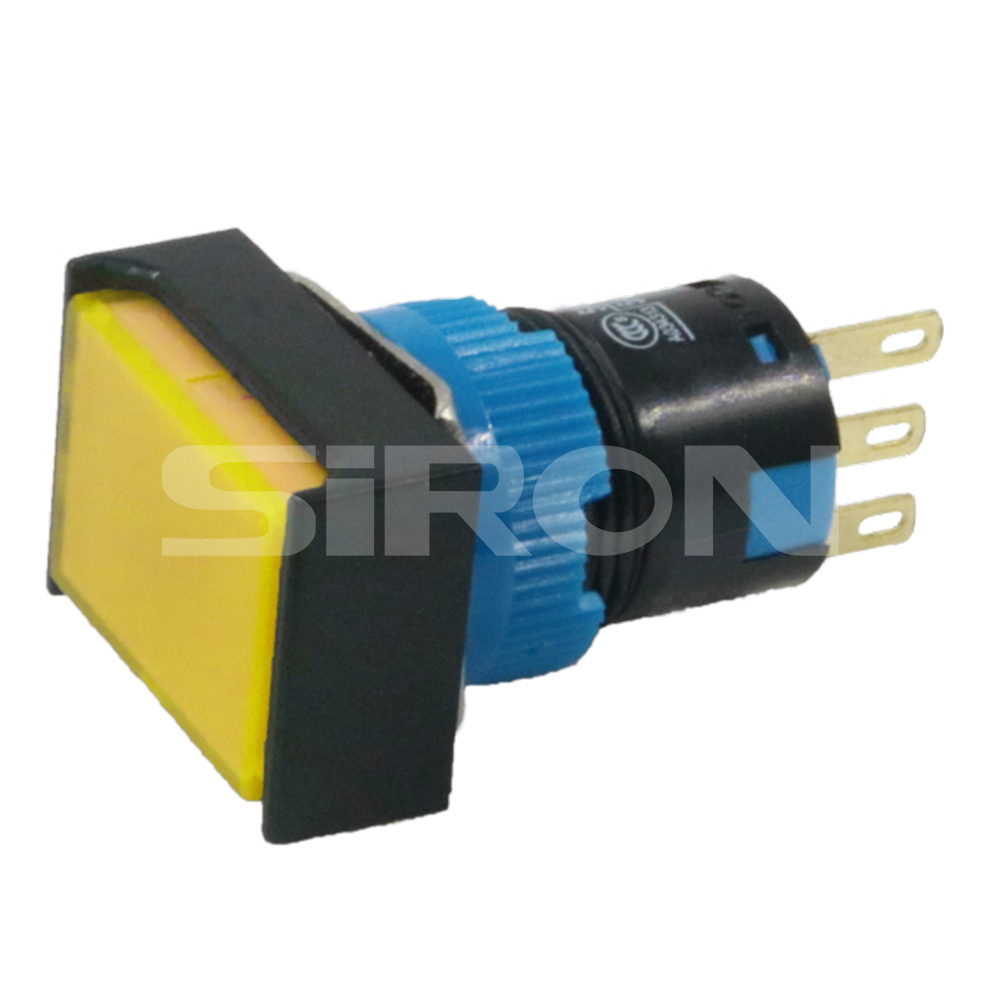

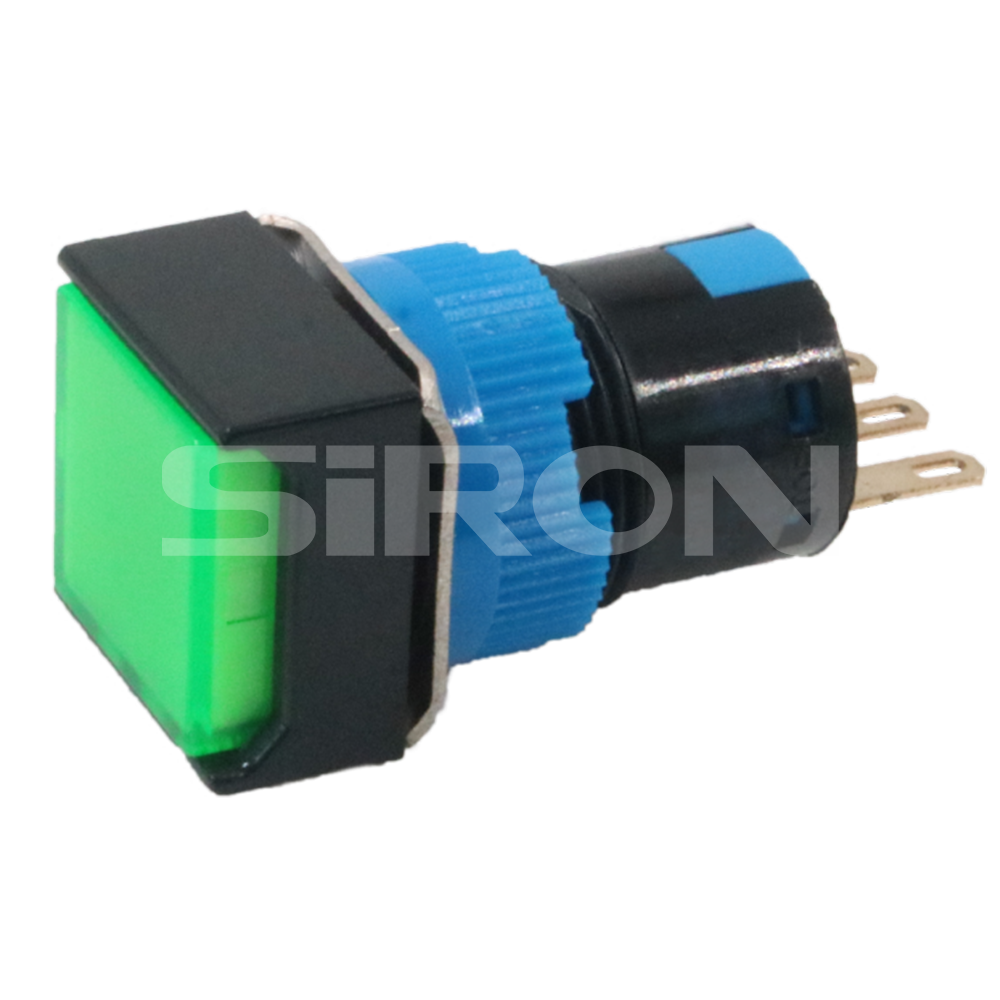

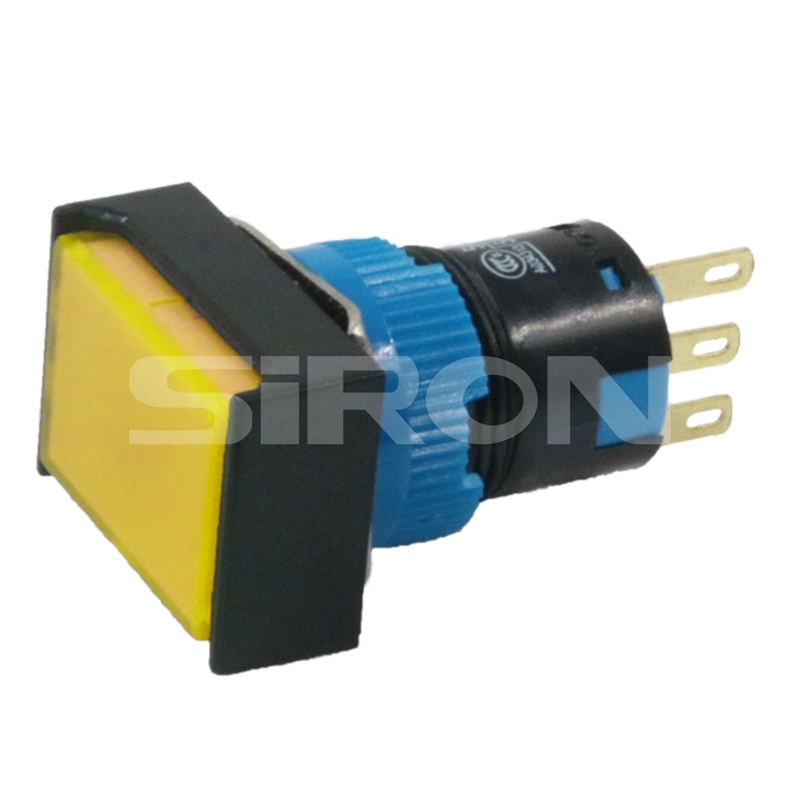

SiRON H001(S)/H003(S) Series Φ16 Self-reset/self-locking Button

Name: SiRON H001(S)/H003(S) Series Φ16 Self-reset/self-locking Button
Brand: SiRON
Rating: 5.0 (85 reviews)

Features

Easy to identify, long working life, low energy consumption and other features are safer to use;
Electrostatic protective film to prevent scratches on the surface, prevent dust, and ensure that the product is intact and clean;
Silver alloy contacts, copper feet silver alloy electric shock, to ensure the current and sensitivity ofthe electrification;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

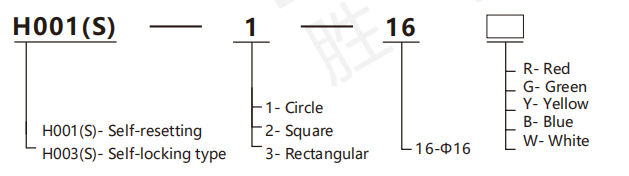

Order

H001

Specifications

Operation type		Self-resetting	Self-locking type
The environment temperature		The temperature range of the lighting switch body is -25℃ to +55℃(without freezing). There must be good air circulation around it
Environment humidity		45～85%RH(No condensation)
Contact structure		1NO 1NC
Contact material		Silver, cadmium oxide silver, gold plating silver, coating thickness 3μm
Contact resistance		≤50MΩ
Insulation resistance		≥1000MΩ
Vibration resistance		50Hz, amplitude approximately 1.2mm
Impact resistance		>10g
Dielectric strength		Between the contacts and the leads of the lamp beads/between different electrode terminals: 2000V,AC50Hz,1min; between the same terminal: 1000V,AC50Hz,1min
Mechanical life		One million times
Electrical life		More than 30,000 times
Wiring		Welding wire diameter: 2×0.8mm² Maximum copper wire area: 0.75mm²
Operating limits		Gold-plated wiring connectors：2.8×0.5mm²

Heating current		5AThe current allowed when the temperature does not exceed the maximum rated value

Switch rating	Rated voltage	24V
	direct currentDC	2A
	alternate current A C	P.F=1;P.F=0.7
