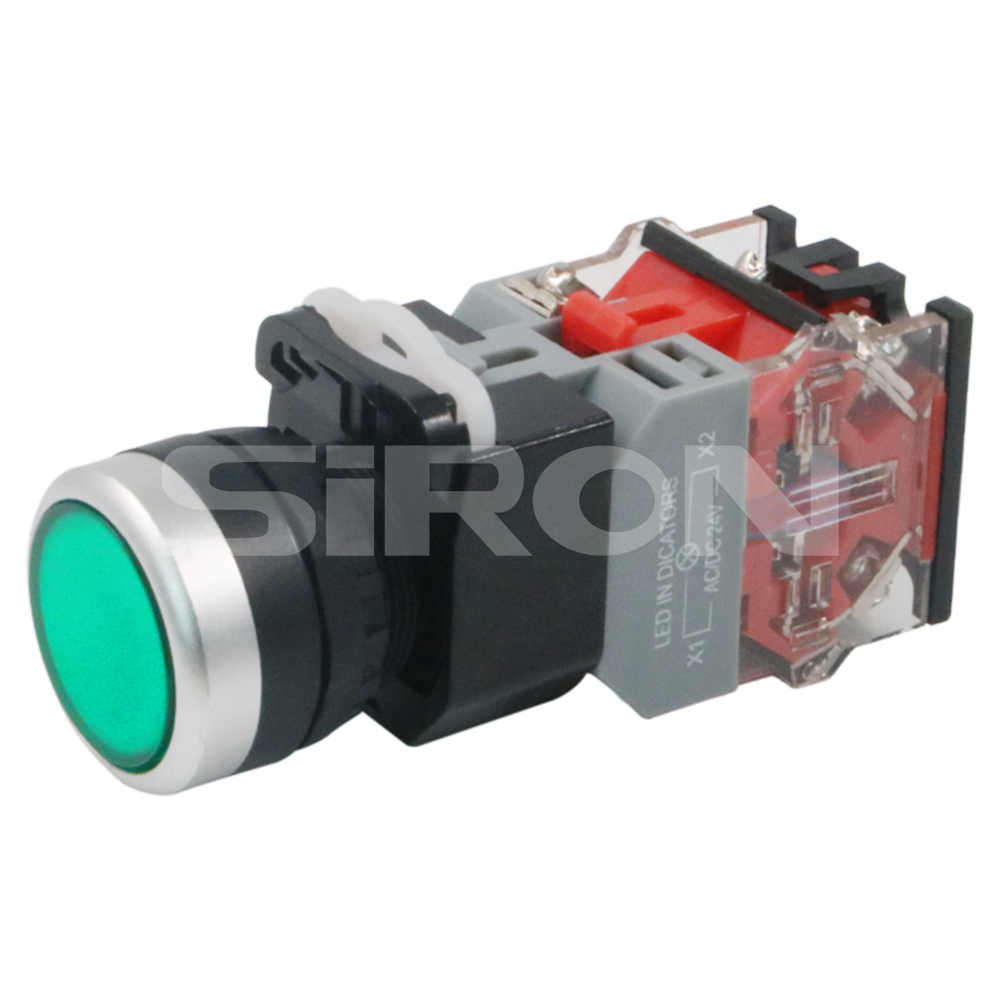

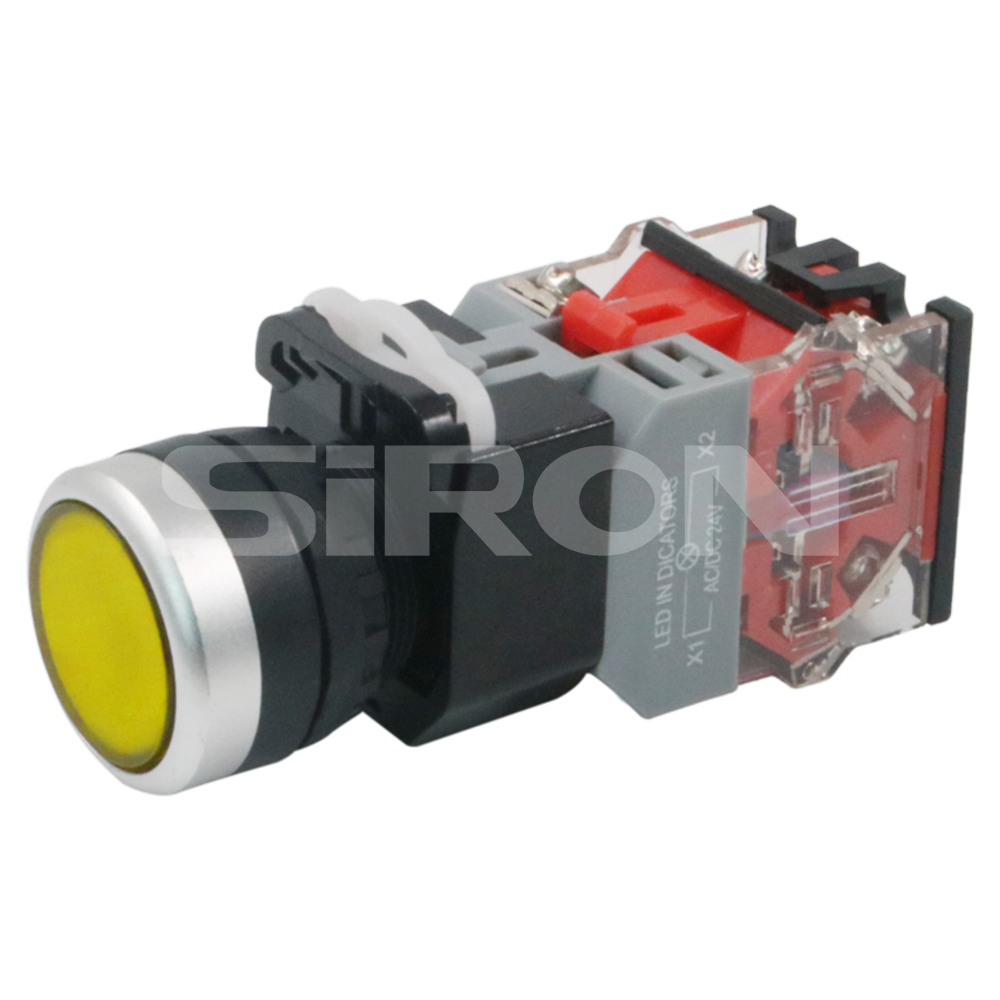

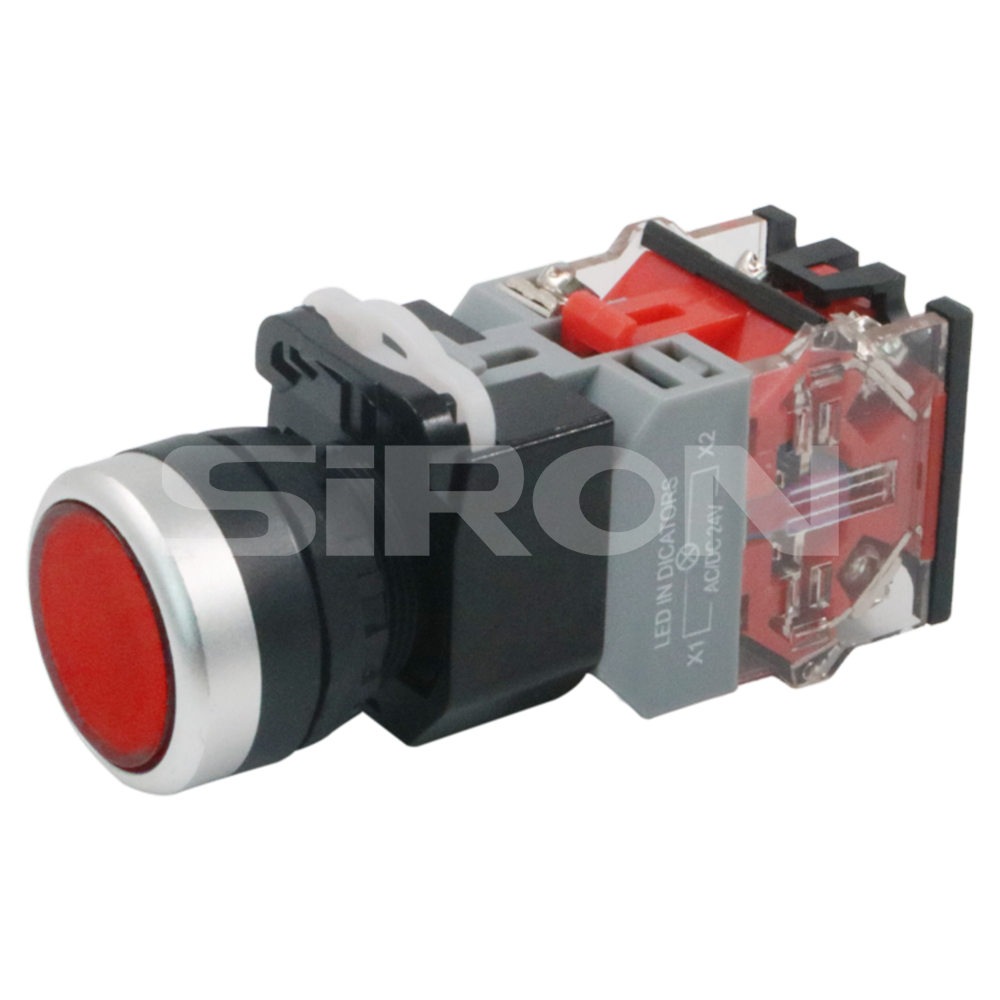

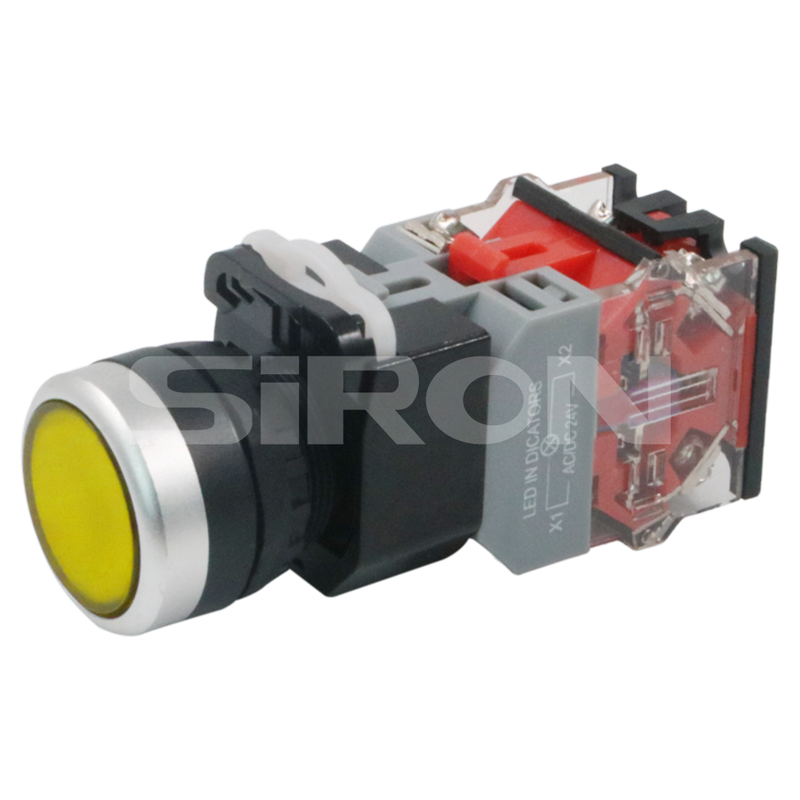

SiRON H012(C)/H014(C) Series Φ22 Flat Button Indicator

Name: SiRON H012(C)/H014(C) Series Φ22 Flat Button Indicator
Brand: SiRON
Rating: 5.0 (40 reviews)

Features

High-brightness indicator light, easy to identify, long working life, low energy consumption and other features are safer to use
Electrostatic protective film to prevent scratches on the surface, prevent dust, and ensure that the product is intact and clean;
Silver alloy contacts, copper feet silver alloy electric shock, to ensure the current and sensitivity ofthe electrification;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

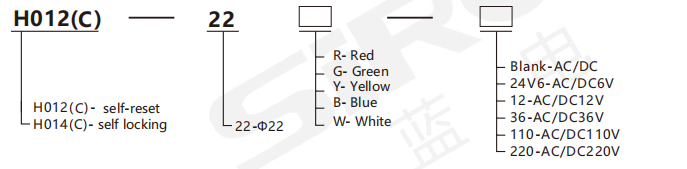

Order

286cdc8e4378feab02e655932af1d70d

Technical Features

Model		H012(C)	H014(C)
Operation type		self-reset	self locking
The environment temperature		-25℃~+55℃There must be good air circulation around the lighting switch body (without freezing)
Environment humidity		45~85%RH(No condensation)
Contact structure		1NO 1NC
Contact material		Silver, cadmium oxide silver, gold plating silver, coating thickness 3μm
Contact resistance		≤50MΩ
Insulation resistance		≥100MΩ
Vibration resistance		50Hz,Amplitude approximately1 .0mm
impact resistance		>10g
Dielectric strength		3000V,AC50Hz,
Mechanical life		Self-resetting button: 1 million times; Self-locking button: 500,000
Electricallife		More than 50,000 times
Wiring		Threaded connection, with the largest wire diameter：2×1.5⊃2;Wiring plug：6.3×0.8⊃2;
Operating force		800gf~2200gf,It depends on the number of switch components
Operating limits		(Button) Appointment3MM
Swich rating	Rated insulation voltage	AC600V
	Heating curent	10A
	Rated voltage	24V
	D C	10A
	A C	AC P.F=0.7
LED lights	Lamp bead types	Bidirectional LED beads (AC/DC compatible)
	The rated voltage	6V/12V/24V/36V/110V/220V
	Rated current	约20mA about 20mA
	life	40000Hours (reference value)
