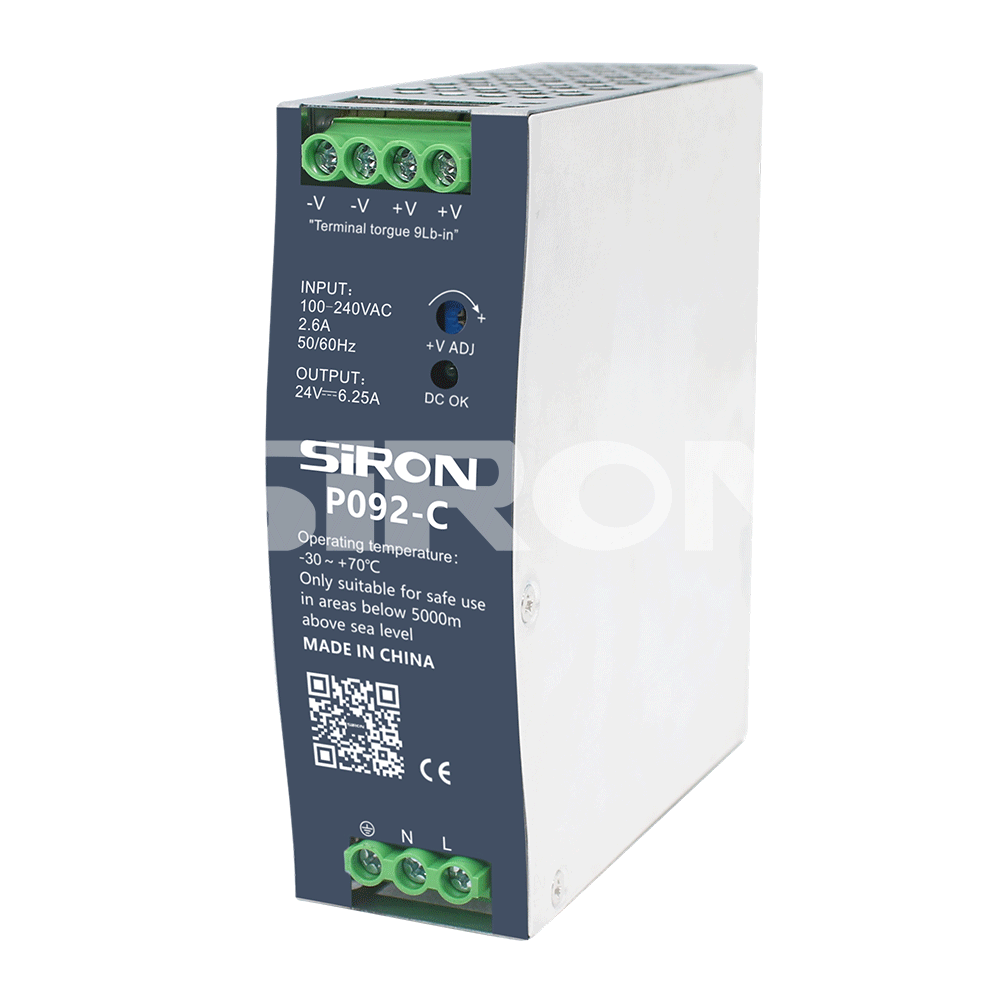

P092-C/P092-12 -C
SiRON
8504401400
Order
Product Attributes

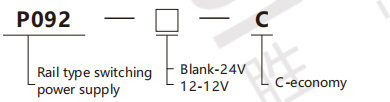

| Mode | P092-C | P092-12-C | |
| Output characteristic | Dc output voltage | 24V | 12V |
| Rated current | 6.25A | 12.5A | |
| Current range | 0~6.25A | 0~12.5A | |
| Rated power | 150W | 150W | |
| Ripple & Noise (Max) | 120mVp-p | 100mVp-p | |
| Voltage regulation range | 24～28V | 12～14V | |
| Voltage accuracy | ±1.0% | ±2% | |
| Linear adjustment rate | ±0.5% | ±0.5% | |
| Load adjustemt rate | ±1.0% | ±1.0% | |
| Start & rise time | 1200ms，60ms/230VAC ; 2500ms，60ms/115VAC(full load) | ||
| Holding time | 16ms/230VAC ; 10ms/115VAC (full load) | ||
| Input characteristic | Input voltage | 85~264VAC;120~375VD C(Dc input can be achieved by connecting AC/L(+) and AC/N(-) | |
| Input frequency | 47~63Hz | ||
| Efficiency | 88% | 85.5% | |
| Alternating Current | 2.8/115VAC ; 1.7A/230VAC | ||
| Inrush current | 20/115VAC ; 35A/230VAC | ||
| Leakage current | ＜1mA/240VAC | ||
| Protective characteristic | Excess load | Rated power105%～130% | |
| Protection mode: Hiccup protection, automatically recovers after abnormal conditions are removed | |||
| Overvoltage protection | 29~33V | 14~17V | |
| Protection mode: Cut off the output voltage and automatically resume after abnormal conditions are removed | |||
| Excess temperature | Turn off the output. When the temperature drops, resume the normal output | ||
| Environmental characteristics | Operating temperature | -20℃~70℃(Refer to the reduction curve) | |
| Working humidity | 2 0 ~ 9 0 % R H No condensation | ||
| Store temperature/humidity | - 4 0 ℃ ~ 8 5 ℃ , 1 0 ~ 9 5 % R H ,No condensation | ||
| Temperature coefficient | ±0.03%/℃(0～50℃) | ||
| Vibration resistance | 10~500Hz,5G 10Minutes per cycle, 60 minutes each for X, Y and Z | ||
| Safety and electromagnetic compatibility | Withstand voltage | I/P-O/P：1KVAC；I/P-FG：1.0KVAC；O/P-FG：0.5KVAC | |
| Insulation impedance | I/P-O/P,I/P-FG,O/P-FG：＞100M Ohms/500VDC/25℃/70%RH | ||
| Product size | 40×125.2×113.5mm (W×H×D) | ||
| Package | 0.6kg；20pcs/13kg/1.16CUFT | ||
Note :1. Unless otherwise specified, all specification parameters are measured under an input of 230VAC, rated load, and an ambient temperature of 25℃. Ripple and noise measurement method: Use a 12" twisted-pair cable, with 0.1uf and 47u capacitors connected in parallel at the terminal, and conduct the measurement under a 20MHZ bandwidth.
Accuracy: It includes setting error, linear regulation rate and load regulation rate.
3.The power supply should be regarded as part of the system's internal components and needs to be confirmed for electromagnetic compatibility in combination with the terminal equipment.
5 Installation distance: When permanently loaded at full power, it is recommended that the top distance be 40mn, the bottom distance be 20mm, and the distance on each side be 5mm. If the adjacent device is a heat source, it is recommended that the spatial distance be 15mm. Under low input voltage conditions, derating output is required. For specific details, please refer to the derating curve graph.
6. When the altitude exceeds 2,000 meters (6,500 feet), the ambient temperature for fanless models decreases at a ratio of 3.5 ° C per 1000m, while for fanless modelsThe ambient temperature decreases in a ratio of 5°C per 1000m.
