SiRON P173 Series 480W Standard Switching Power Supply

Name: SiRON P173 Series 480W Standard Switching Power Supply
Brand: SiRON
Rating: 5.0 (11 reviews)

Features

50% peak power, active PFC, DC OK function;
Double-sided anti-paint, anti-salt spray, explosion-proof, output short-circuit, over-current, over-voltage, over-temperature protection;
Meet 5000m altitude applications;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
P173
Brand:
SiRON
Code:
8504401400

480W Switching Power Supply EMC Type Switching Power Supply 24-10AWG Switching Power Supply

Product Description

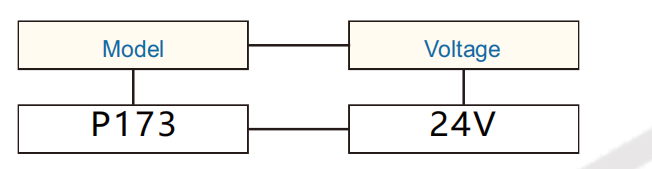

Order

ac1d51470de5d43cd5a91ceca08d7017

Selection reference

Model	Rated output			Type	(uF) Maximum capacitiveload
Model	Power	Voltage/current	Voltage adjustable range	Type	(uF) Maximum capacitiveload
P173-24V	480W	24V/5A	24-28V	95.0%	100000
P173-48V	480W	48V/2.5A	48-56V	95.5%	25000

Product Attributes

Model		P171 series
(@480VAC) Electric shock		Cold Start，35A
Overcurrent Protection	Radius	115%-140%lo
	Type	Hiccupping type, self-recovering
Short circuit protection		Constant current belching type, with long-term short-circuit protection and self-recovery
Isolation withstand voltage		Input-output: 4kVAC, input-PE: 2.5kVAC Output -PE: 1.5kVAC
Operating temperature		-40℃to+85℃
E M C performance	EMI	CISPR32/EN55032 Class A and Class B; IEC/EN61000-3-2 Class A and Class D;EN61000-3-3
	EMS	IEC/EN61000-4-2 Contact±8KV,IEC/EN61000-4-320V/m, IEC/EN61000-4-4±4KV/±2KV.IEC/EN61000-4-60.15-80MHz 20Vr.m.s, IEC/EN61000-4-830A/m,IEC/EN61000-4-5/11,IEC61000-4-13 Class 3
Safety standard		IEC/EN/UL/BS EN62368-1,UL61010-1,UL508,IEC60079-0, IEC60079-7,IEC60079-15,EN60335-1,EN62477-1,ANSI/ISA71.04-2013
Wiring diameter		16-10AWG
Connector torque		Max 0.5N.m
Dimensions		124×55×127

Outline

Note

Unit of size: mm[inch]
ADJ: Output adjustable resistor
Wiring range: Input :20-6AWG
Output: 20-6AWG
Input terminal fastening torque: maximum 1.2N-m
Output terminal fastening torque: maximum 1.2 N-m
Guide rail type: TS35. The guide rail needs to be grounded
Unmarked tolerance: ± 1.00
