P172
SiRON
8504401400
Order

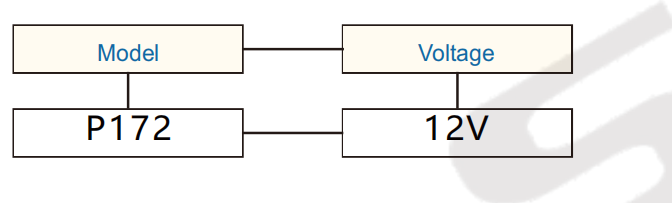

Selection reference
Model | Rated output | Type | (uF) Maximum capacitiveload | ||
Power | Voltage/current | Voltage adjustable range | |||
| P172-12V | 192W | 12V/16A | 12.0-14.0 | 94% | 100000 |
| P172-24V | 240W | 24V/10A | 24.0-28.0 | 95.5% | 50000 |
| P172-48V | 240W | 48V/5A | 48.0-53.0 | 25000 | |
Product Attributes
| Model | P172series | |
| (@480VAC) Electric shock | Cold start, 26A | |
| Overcurrent Protection | Radius | 150%lo |
| Type | Hiccupping type, self-recovering | |
| Short circuit protection | Constant current belching type, with long-term short-circuit protection and self-recovery | |
| isolation withstand voltage | Input-output: 4kVAC, input-PE: 2.5kVAC Output -PE: 0.5kVAC, output -DC OK: 0.5kV AC | |
| Operating temperature | -40℃to+85℃ | |
| performance | EMI | CISPR32/EN55032 Class A and Class B; IEC/EN61000-3-2 Class A and Class D;EN61000-3-3 |
| EMS | IEC/EN61000-4-2 Contact±8KV,IEC/EN61000-4-320V/m, IEC/EN61000-4-4±4KV/±2KV.IEC/EN61000-4-60.15-80MHz 20Vr.m.s, IEC/EN61000-4-830A/m,IEC/EN61000-4-5/11,IEC61000-4-13 Class 3 | |
| Safety standard | IEC/EN/UL/BS EN62368-1,UL61010-1.U1508,IEC60079-0, IEC60079-7,IEC60079-15,ANSI/ISA71.04-2013 | |
| Wiring diameter | 26-10AWG | |
| Connector torque | Max 0.5N.m | |
| Dimensions | 124×48×124 | |
Outline
Note:
LED: Output status indicator light ADJ: Adjustable output resistance connection range: Input: 26 - 10 A WG (12 - 10 A WG for pin 8) Output: 12 V: 12 - 10 A WG 24 V: 16 - 10 A WG 48 V: 18 - 10 A WG DC OK: 24 - 16 A WG Tightness torque: Max 0.5 N-m Rail type: TS 35, the rail needs to be grounded. Unmarked tolerance: ± 1.0
